UNIMIG

UNIMIG BINZEL MIG Torch Liner

UNIMIG BINZEL MIG Torch Liner

$27.95 AUD
$27.95 AUD
Sale Sold out
Shipping calculated at checkout.
Torch Type
Liner Type
Liner Length

TLR3M

In stock

MIG torch liners designed to guide welding wire smoothly through the torch lead and into the contact tip for consistent wire feed and stable arc performance. These liners suit Binzel-style MIG torches including 15 / 24 / 25 / 26 / 36 / 38 / 500 and are available for both steel and aluminium wire applications.

To ensure correct performance, the liner size must match the wire diameter being used. Liners are colour coded for easy identification. For aluminium liners, a neck spring (NKSTL) is also required.

Key Features

  • Guides wire smoothly through the torch lead for consistent feeding
  • Available for steel and aluminium MIG wire applications
  • Colour-coded for easy liner size identification
  • Compatible with Binzel-style 15 / 24 / 25 / 26 / 36 / 38 / 500 MIG torches
  • Aluminium liners require neck spring NKSTL

Colour Coding

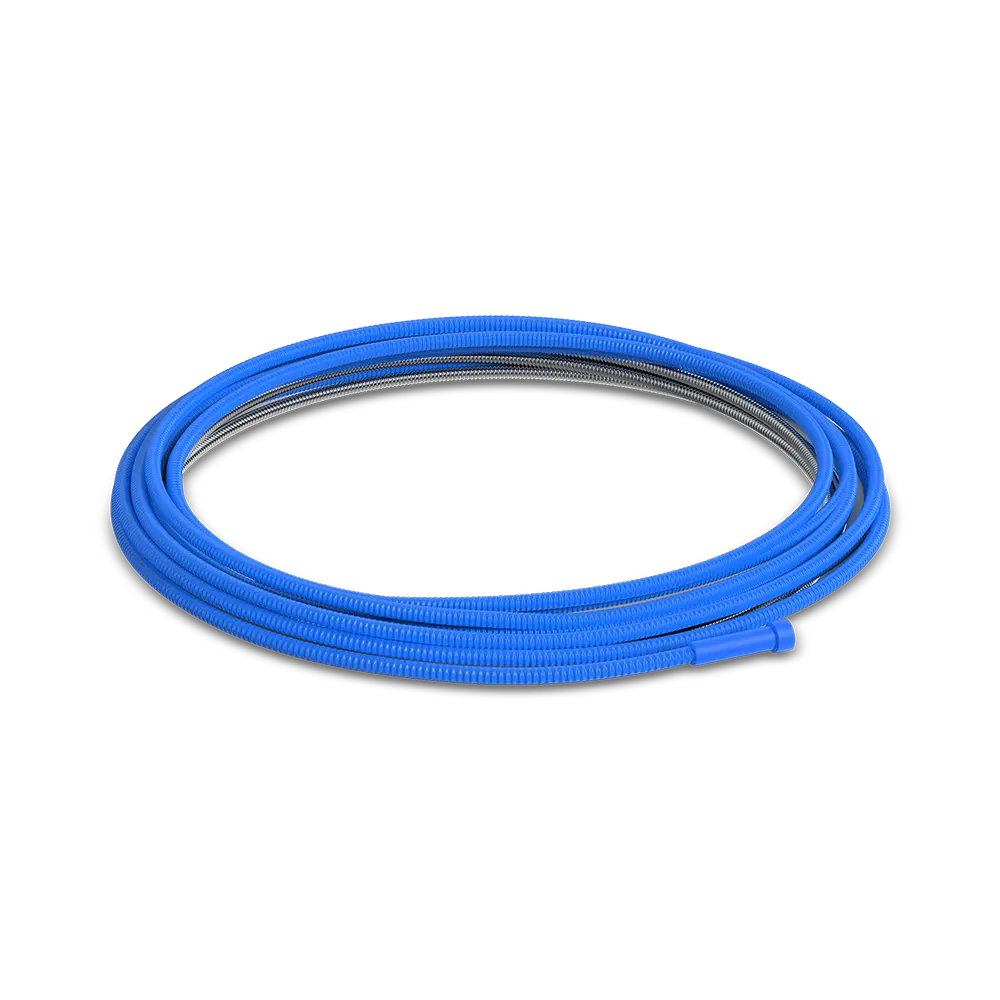

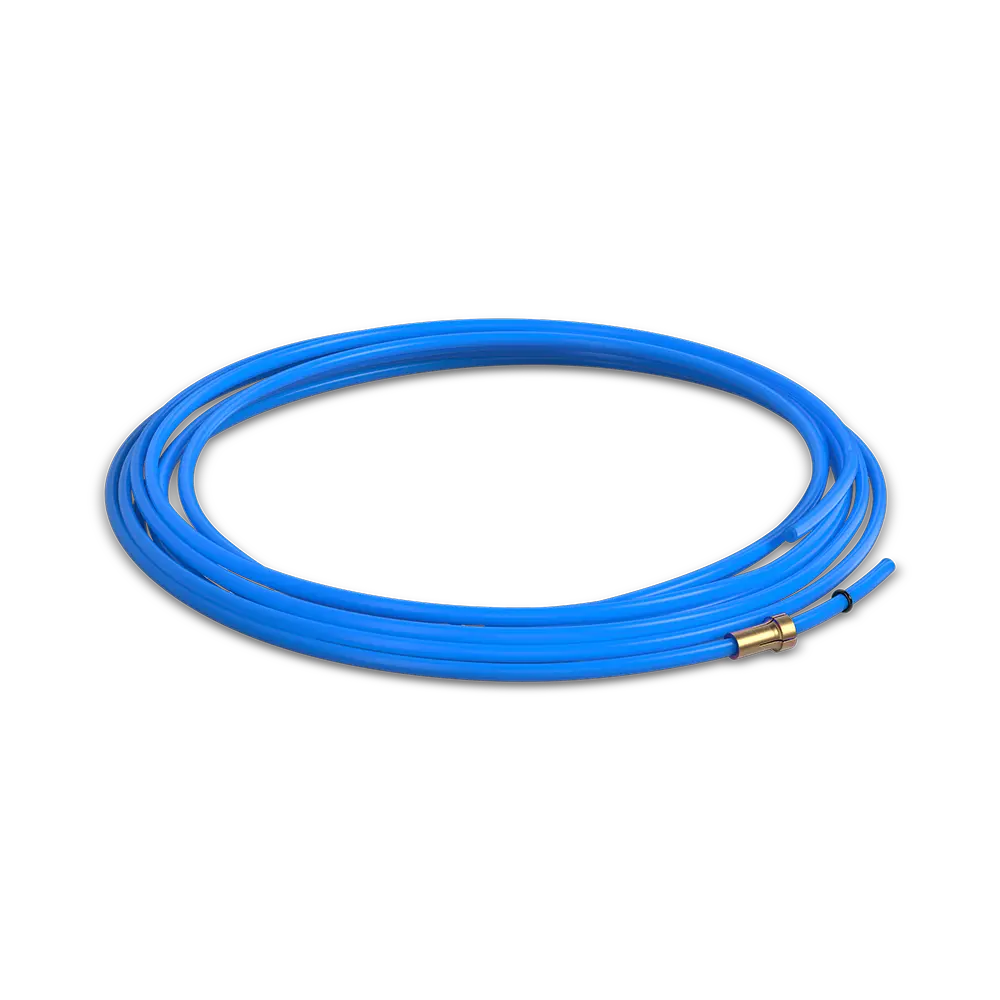

  • Blue: 0.6–0.8mm

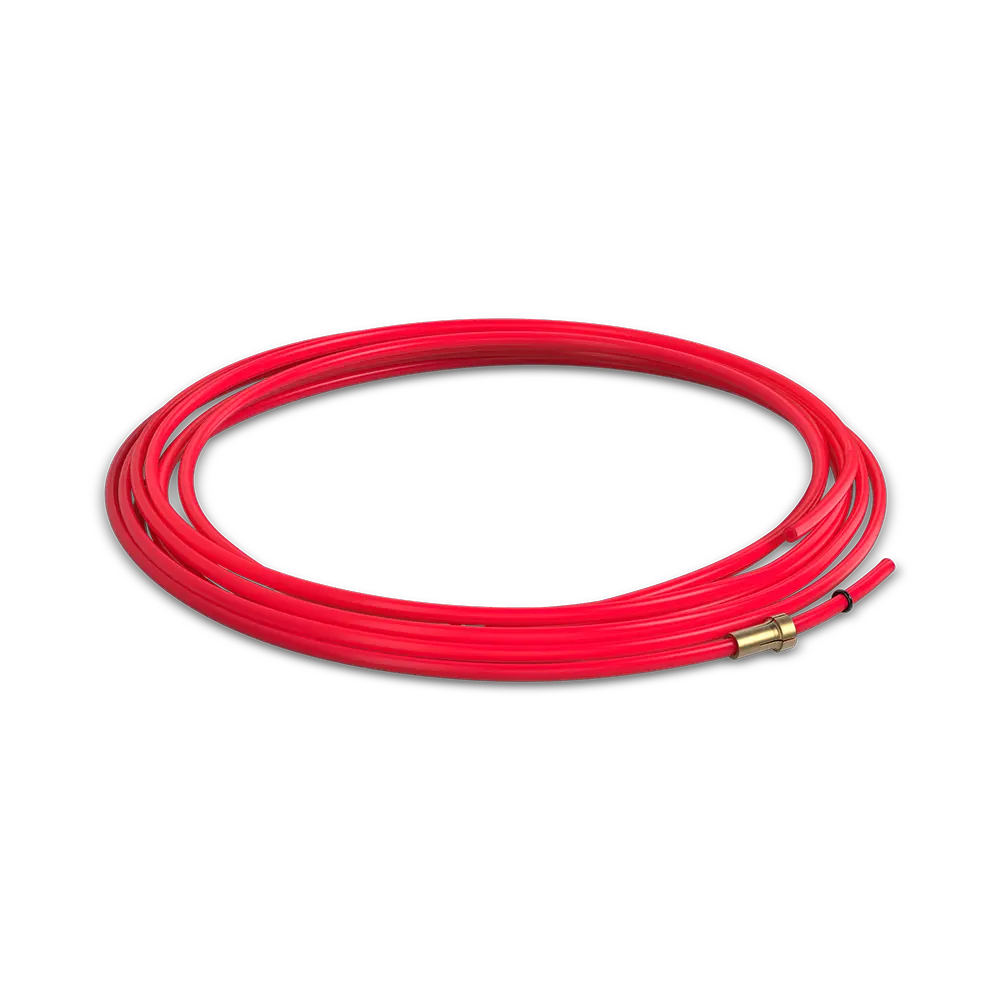

  • Red: 0.9–1.2mm

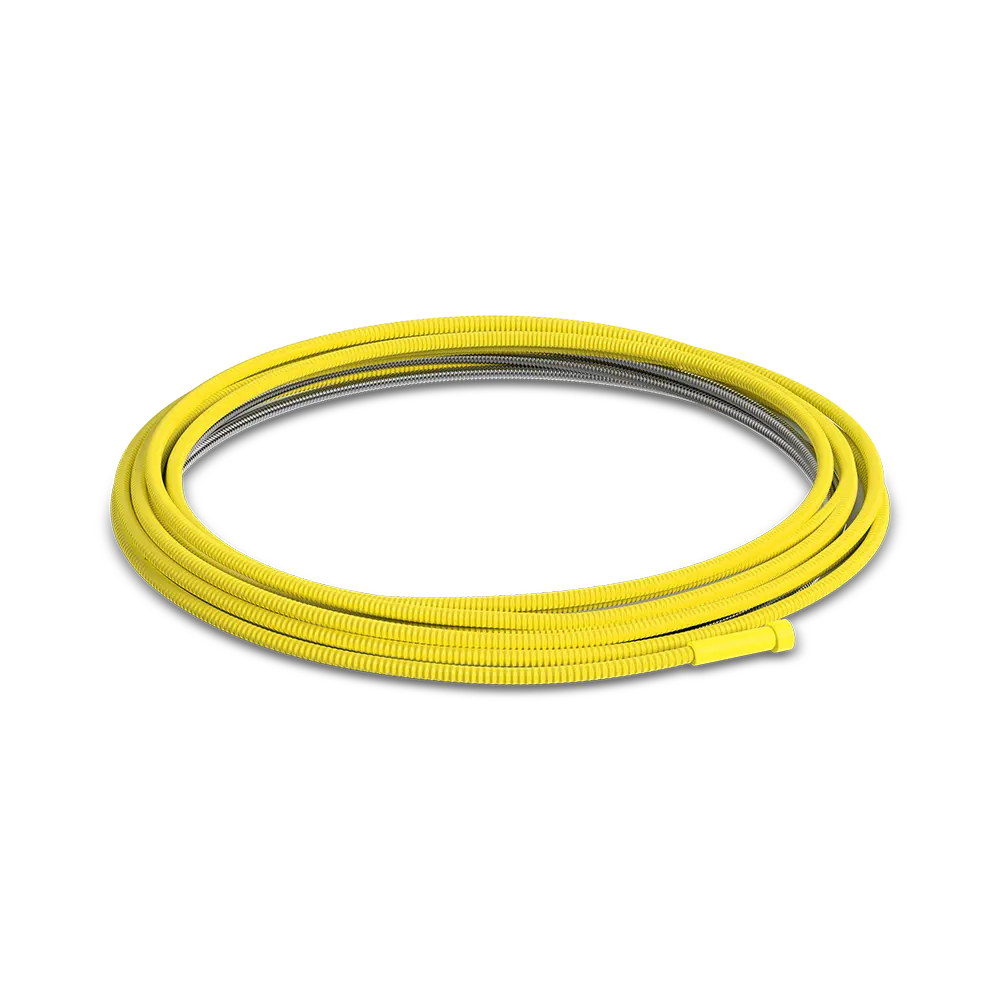

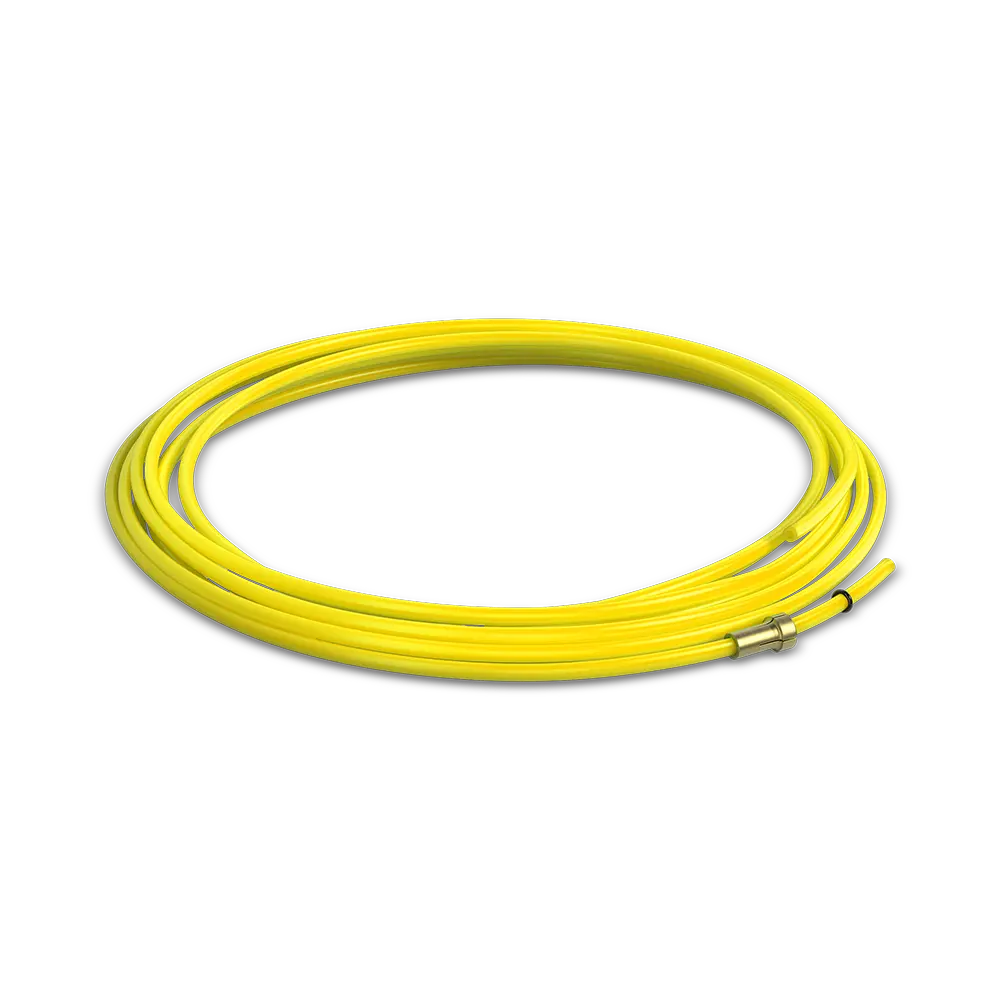

  • Yellow: 1.2–1.6mm

Variants & Part Numbers

Steel Liners

  • Blue Steel / 3 metres – (SLB3M)
  • Blue Steel / 4 metres – (SLB4M)
  • Blue Steel / 5 metres – (SLB5M)
  • Red Steel / 3 metres – (SLR3M)
  • Red Steel / 4 metres – (SLR4M)
  • Red Steel / 5 metres – (SLR5M)
  • Yellow Steel / 3 metres – (SLY3M)
  • Yellow Steel / 4 metres – (SLY4M)
  • Yellow Steel / 5 metres – (SLY5M)

Aluminium Liners

  • Blue Aluminium / 3 metres – (TLB3M)
  • Blue Aluminium / 4 metres – (TLB4M)
  • Red Aluminium / 3 metres – (TLR3M)
  • Red Aluminium / 4 metres – (TLR4M)
  • Yellow Aluminium / 3 metres – (TLY3M)
  • Yellow Aluminium / 4 metres – (TLY4M)

In the Box

  • MIG torch liner (selected variant)
