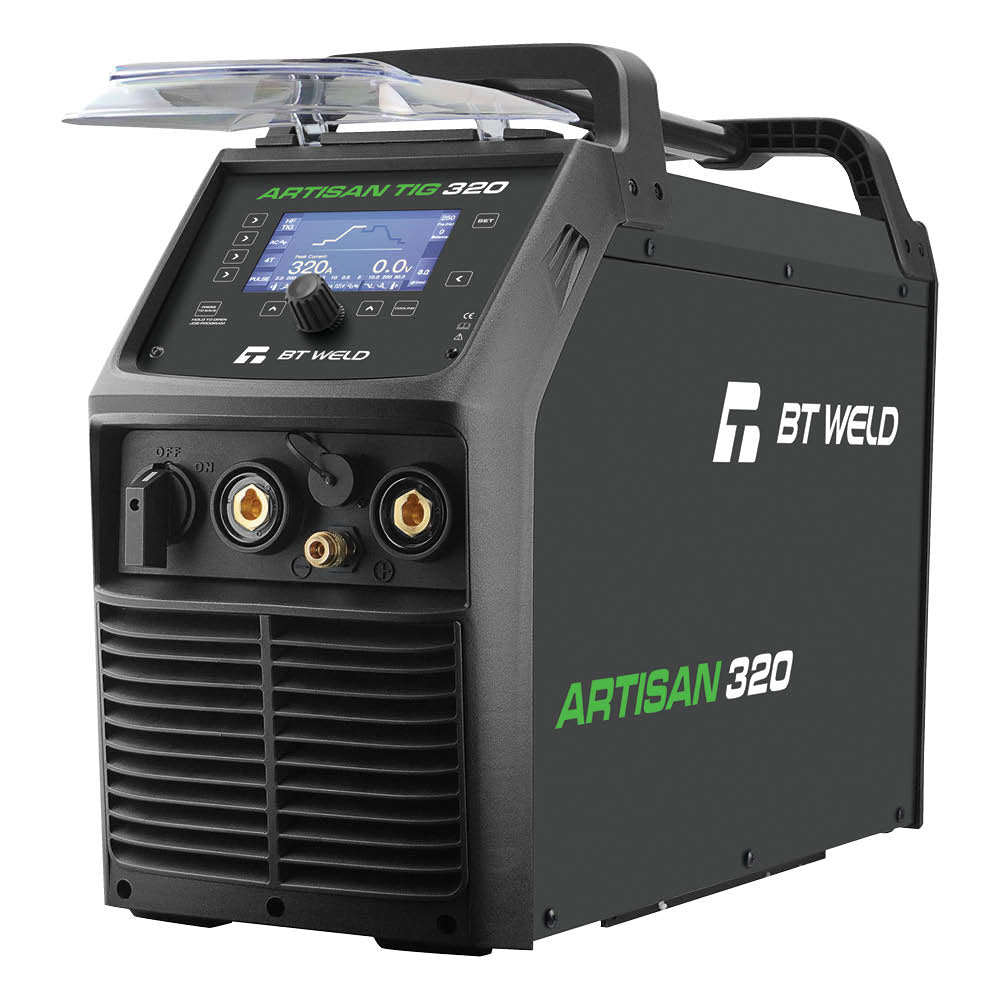

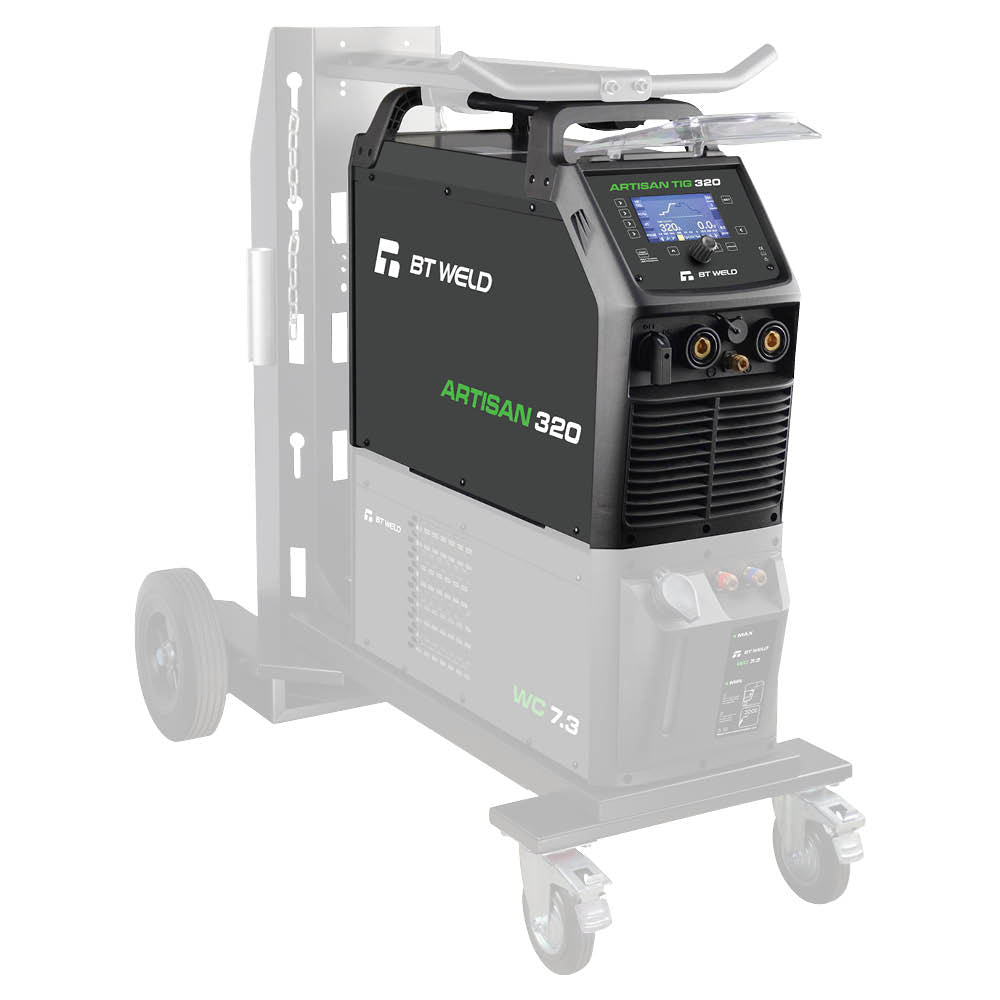

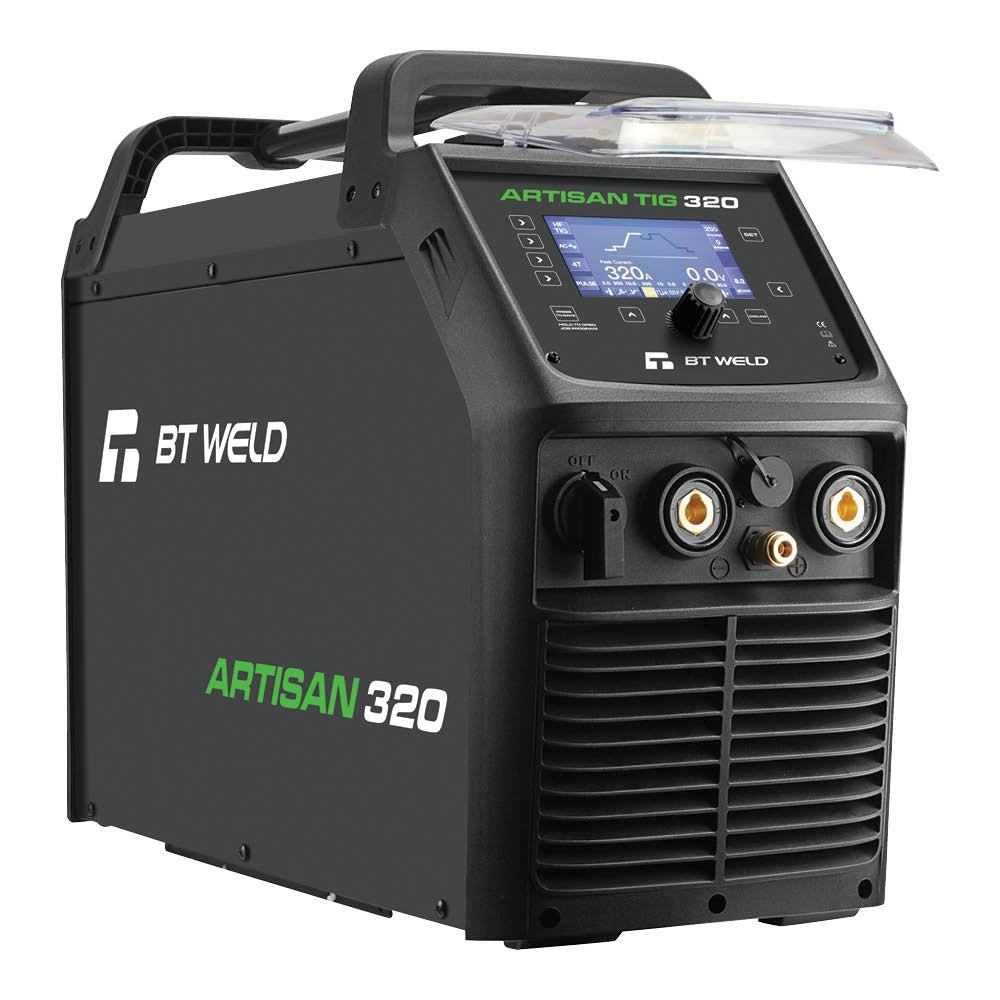

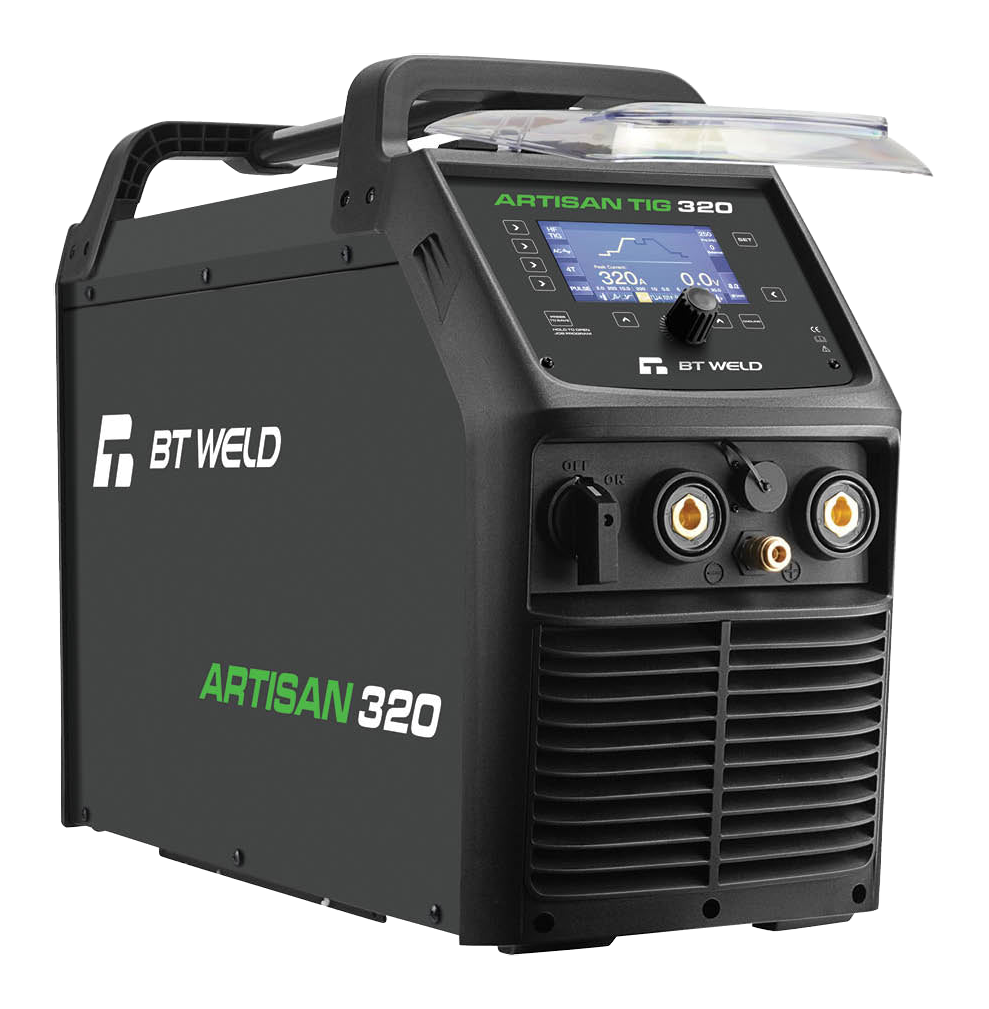

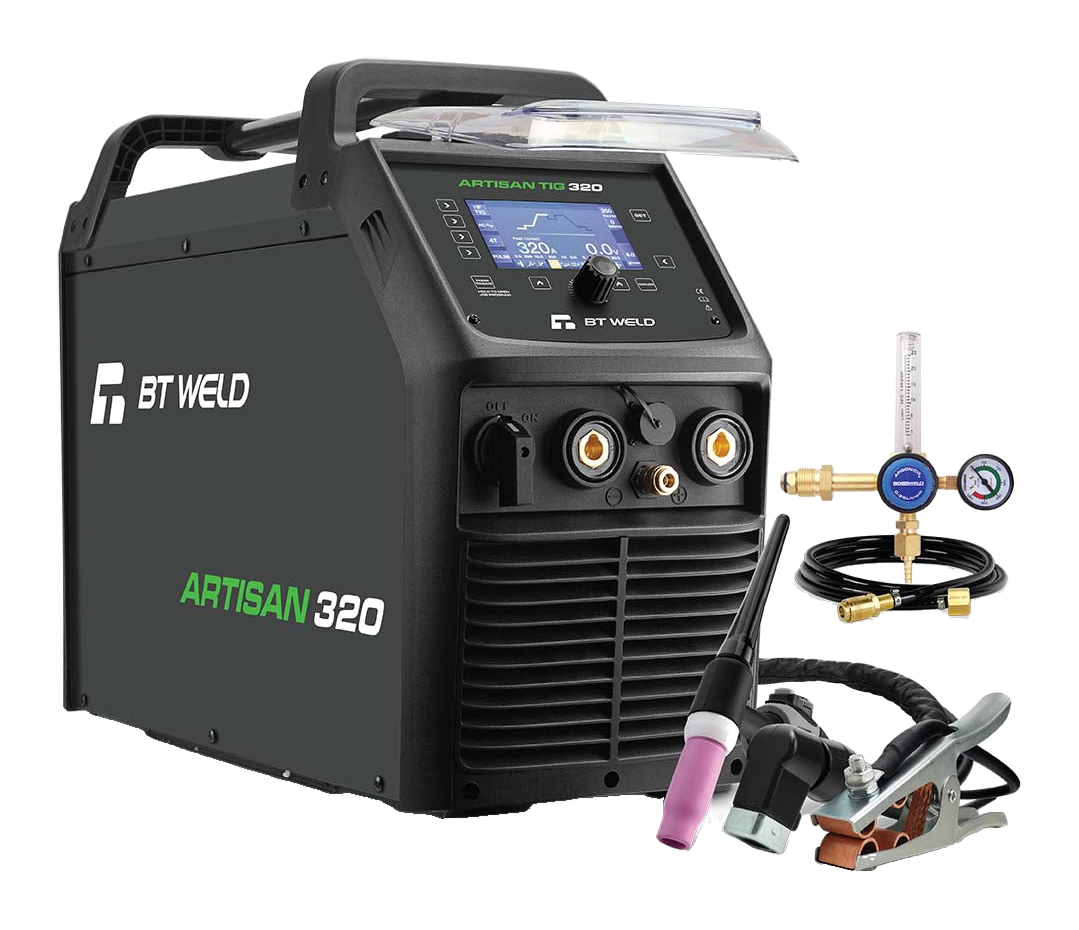

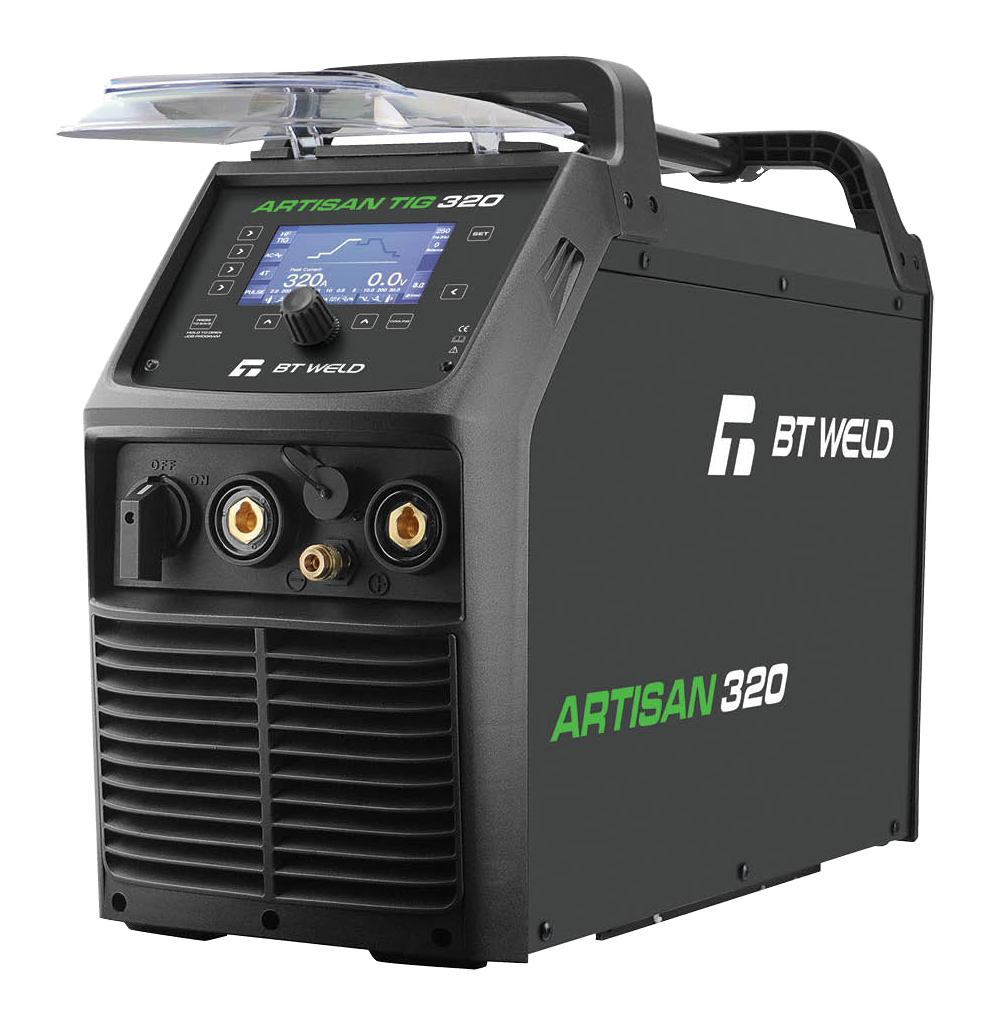

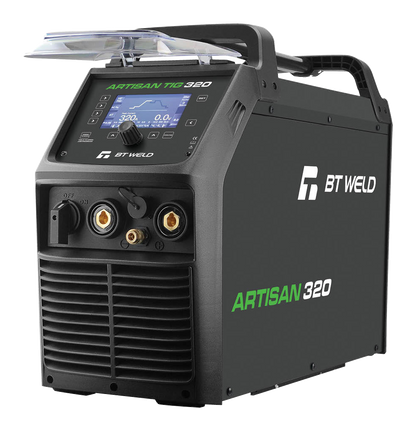

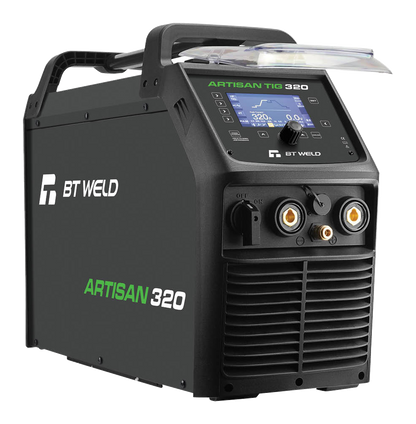

BT Weld ARTISAN 320 AC/DC 415V is an industrial TIG and MMA inverter welder for fabrication, maintenance and multi-material welding, with AC/DC pulse TIG and DC Lift TIG capability.
Key Features
- AC/DC pulse TIG, DC Lift TIG and MMA capability
- Up to 320A output with a 60% duty cycle at maximum output

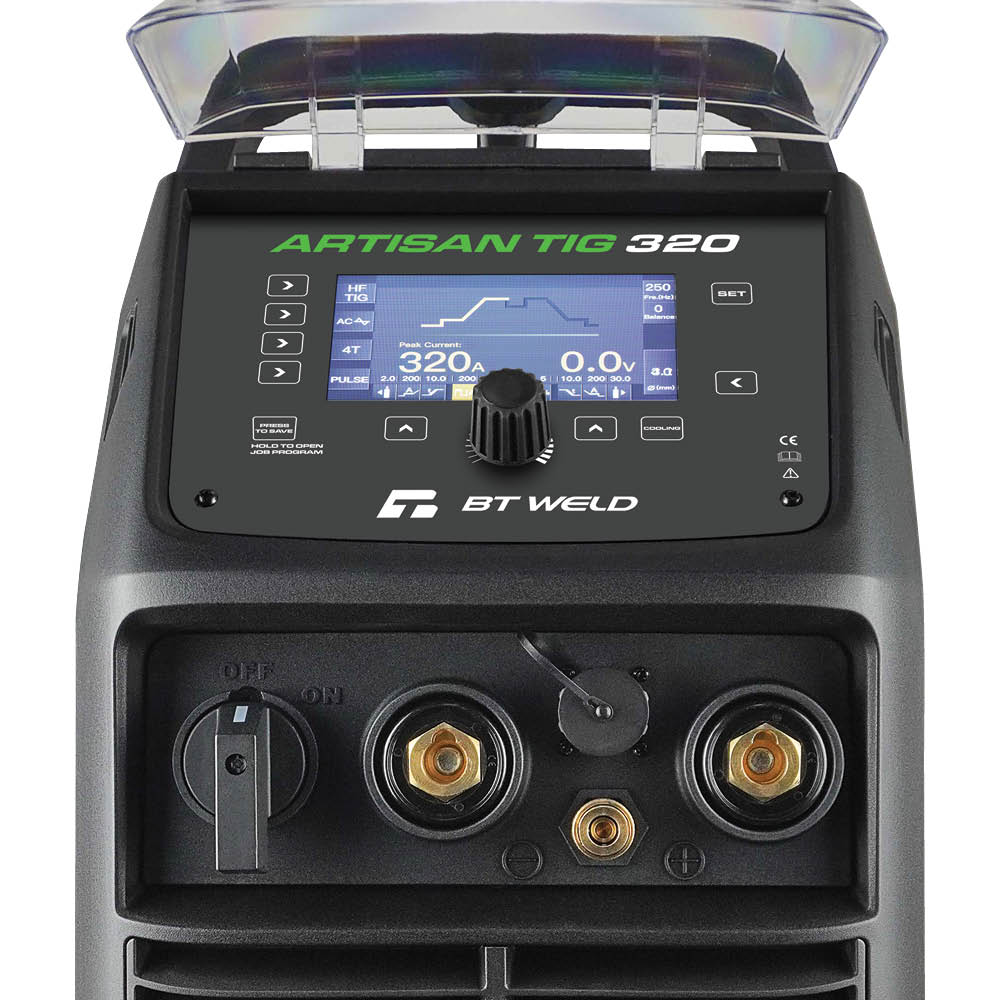

- 5-inch colour LCD
- Adjustable waveforms
- 2T and 4T trigger functionality

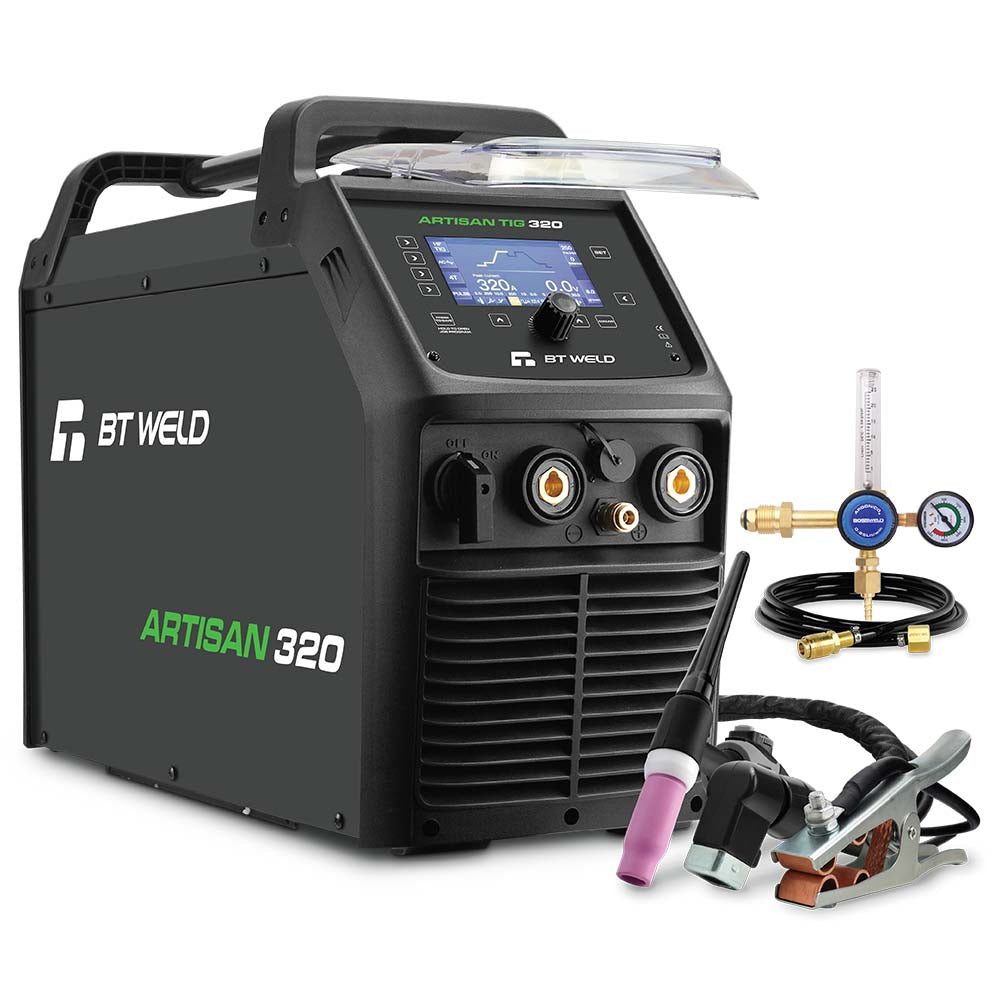

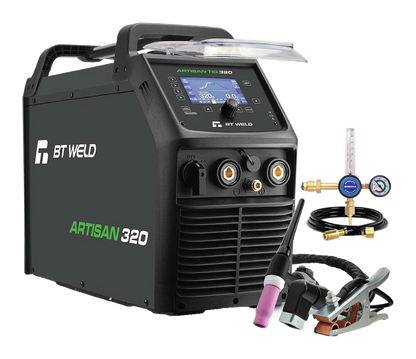

In the Box
- Current-controlled TIG torch
- Argon regulator
- Heavy-duty welding leads
| WELDING OUTPUT | |
| Maximum output | 320 A |
| Duty cycle | 60% at maximum output |

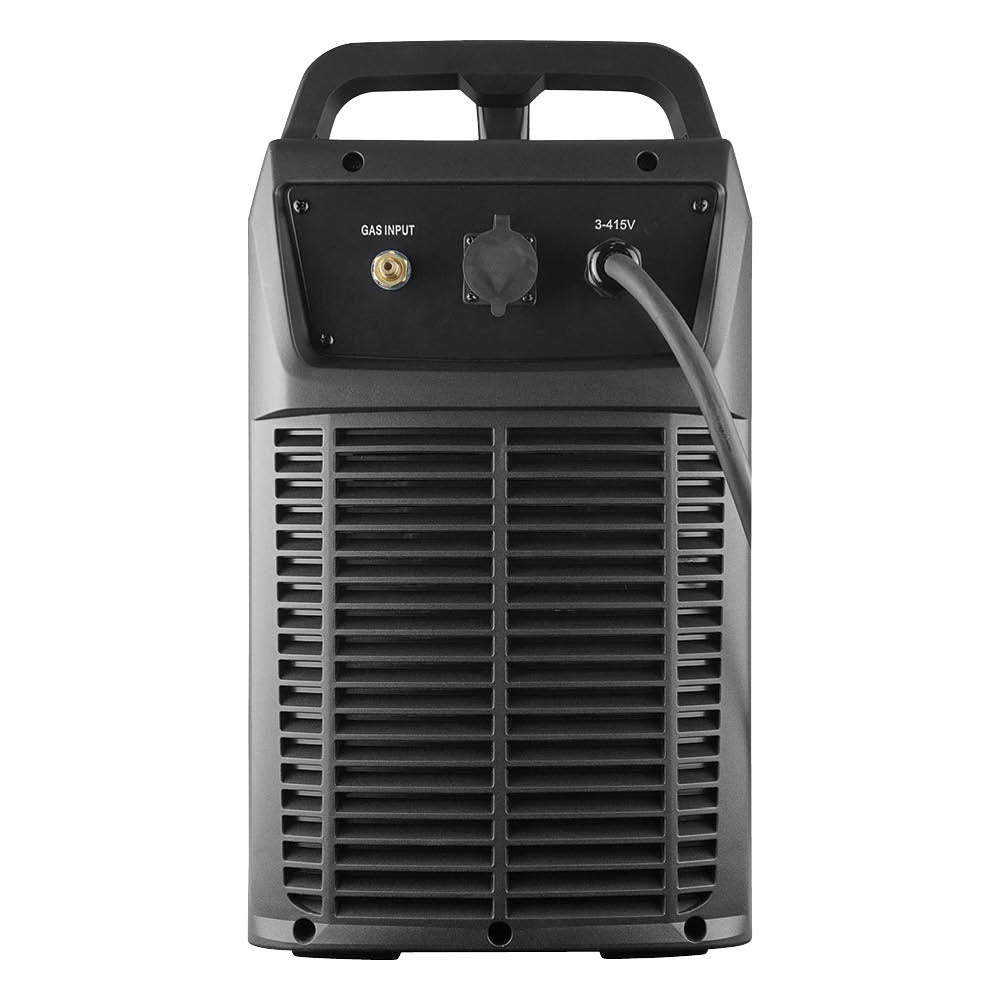

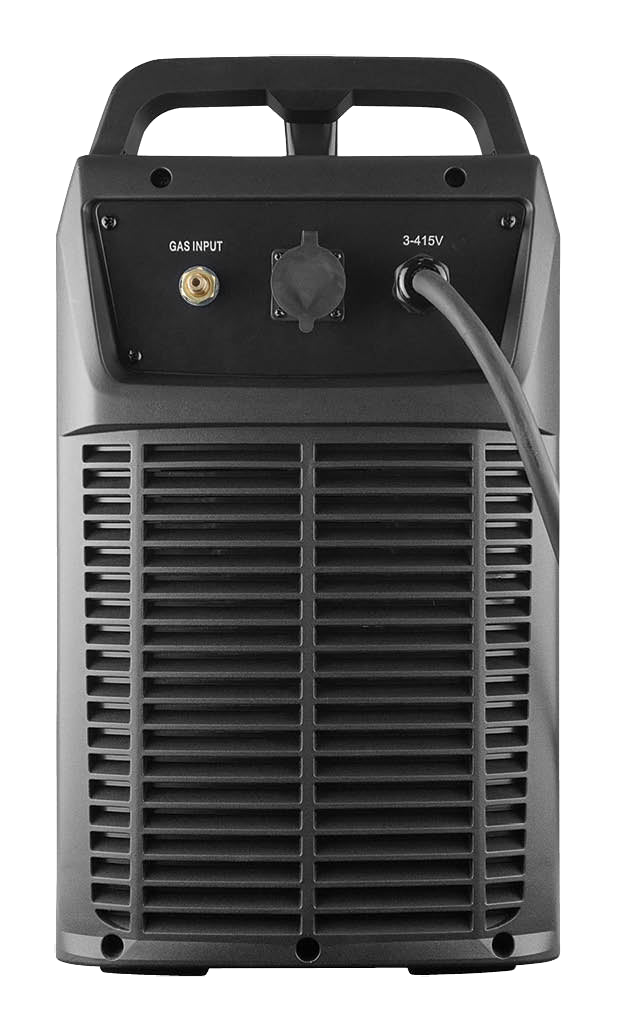

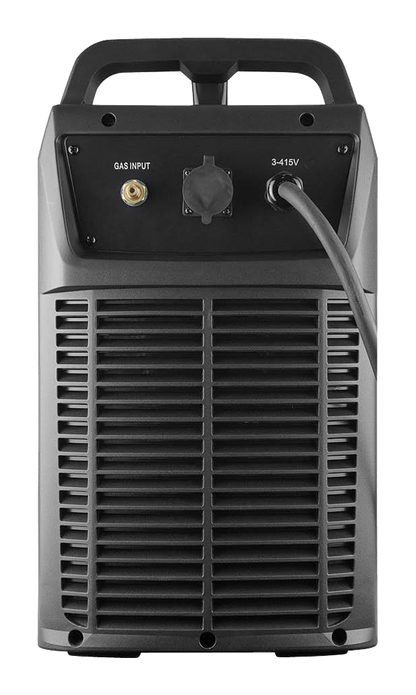

| Primary input voltage | 415 V, three-phase |
| CONTROLS | |
| Display | 5-inch colour LCD |
| Trigger modes | 2T and 4T |
| Stick Specifications | |
| Stick maximum material thickness | Mild steel / stainless steel: up to 16 mm |
| TIG Specifications | |
| TIG maximum material thickness | Mild steel / stainless steel: up to 10 mm; aluminium (AC TIG): up to 8 mm |
| Machine Specifications | |
| Protection class | IP23S |
| Warranty (years) | 5 |
Machine specifications
| Supply plug | Not fitted |
|---|---|
| Recommended supply plug | 20 A, three-phase |
