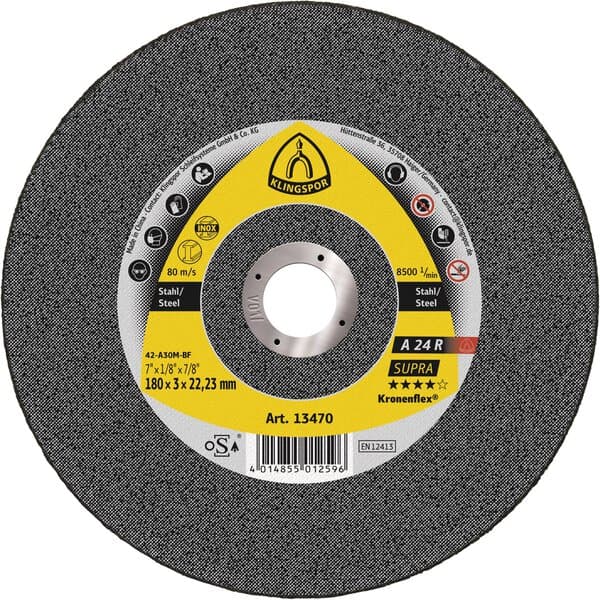

KLINGSPOR A 24 R Supra Cutting Wheels – 25 Pack are designed for cutting steel, stainless steel, castings. Supplied in packs of 25.
Key Features
- Bond and grain composition are optimised for cutting steel, stainless steel and cast iron.
- Supra construction balances cutting performance with working life.
- Choose the listed wheel profile, diameter and bore for the intended angle grinder.
Specifications
| Class | Supra |
| Bonding agent | Synthetic resin, fibre-reinforced |
| Grain | Aluminium oxide |
| Abrasive grain | Aluminium oxide |
| Form | flat |
| Machine type | angle grinder |
| Maximum operating speed | 80 m/s |
| Pack quantity | 25 |
| Suitable materials | Steel, Stainless steel, Castings |
| Applications | Apparatus and container manufacturing, Locksmith's shop, Metal construction, Plant engineering |
Variants & Part Numbers
- 100 x 2.5 x 16mm – flat / Medium / 25 Pack (70467) — Diameter: 100 mm; Thickness: 2.5 mm; Bore: 16 mm; Maximum rotational speed: 15,300 rpm
- 115 x 2.5 x 22.23mm – flat / Medium / 25 Pack (13297) — Diameter: 115 mm; Thickness: 2.5 mm; Bore: 22.23 mm; Maximum rotational speed: 13,300 rpm
- 125 x 2.5 x 22.23mm – flat / Medium / 25 Pack (328772) — Diameter: 125 mm; Thickness: 2.5 mm; Bore: 22.23 mm; Maximum rotational speed: 12,250 rpm
- 180 x 3 x 22.23mm – flat / Medium / 25 Pack (328766) — Diameter: 180 mm; Thickness: 3 mm; Bore: 22.23 mm; Maximum rotational speed: 8,500 rpm
- 230 x 3 x 22.23mm – flat / Medium / 25 Pack (328762) — Diameter: 230 mm; Thickness: 3 mm; Bore: 22.23 mm; Maximum rotational speed: 6,650 rpm
