Take a closer look
Product information
Details

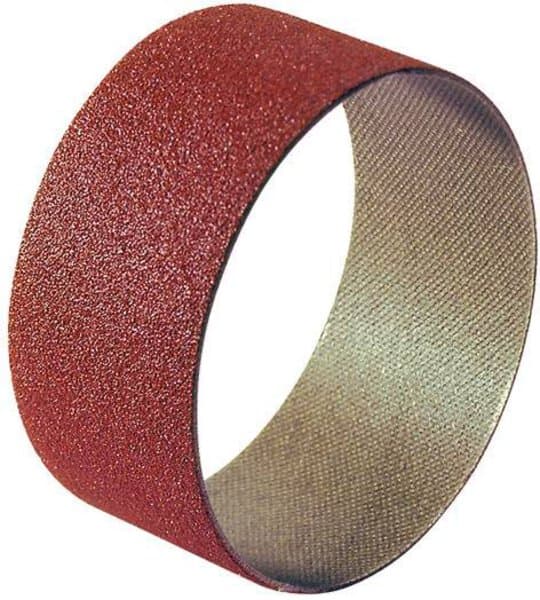

KLINGSPOR CS 410 X Abrasive Sleeves – 50 Pack are designed for grinding and finishing stainless steel, non-ferrous metals. Supplied in packs of 50.
The abrasive or tool is specified for Stainless steel, NF metals. Its construction and working form are detailed below, so material suitability, mounting and the selected article can be checked together.
Sold as a full selling pack: 50 Sleeves; 16 Sleeves + 1 Adaptor. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.
Features and benefits
- Reinforced, tear-resistant cloth forms a cylindrical sleeve with a spiral joint.
- Multibond treatment reduces grinding heat and heat tinting on stainless steel.
- Use with a matching GK 555 rubber drum for controlled material removal.
- Aluminium oxide abrasive grain for the listed material applications.
- Resin bonding secures the abrasive grain to the working structure.
- Close-coated abrasive coverage provides a densely covered working face.
- The X-cotton backing supports the abrasive during the specified sanding operation.
Suitable materials
Stainless steel, NF metals.
Typical applications
- Apparatus and container manufacturing
- Railing construction
- Stainless steel processing industry
Sleeve set contents

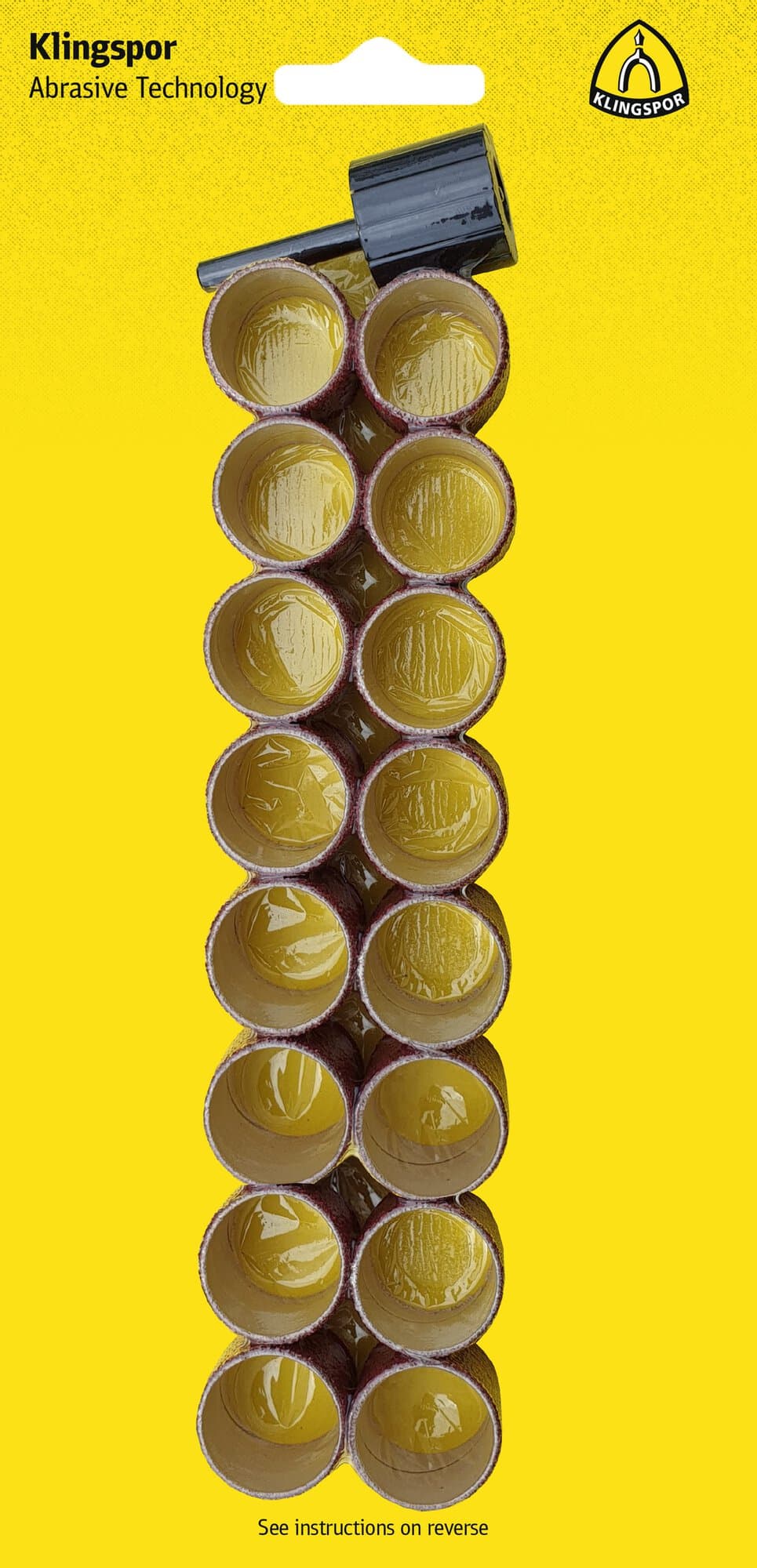

- Article 354102: 16 abrasive bands plus one adaptor, supplied as one set.
- The set covers grades 40, 60, 80 and 120 in the 25 × 25 mm band format.
- Standard sleeve articles are supplied in the separate pack quantities shown in the variant table.
Technical specifications
| Brand | Klingspor |
|---|---|
| Bonding agent | Resin |
| Grain | Aluminium oxide |
| Coating | Close |
| Backing | X-cotton |
Variant specifications
| SKU | Dimensions | Grit / grade | Selling quantity |
|---|---|---|---|
| 324117 | 25 × 25 mm | 40 Grit | 50 Sleeves |
| 324118 | 25 × 25 mm | 60 Grit | 50 Sleeves |
| 328368 | 25 × 25 mm | 80 Grit | 50 Sleeves |
| 328367 | 25 × 25 mm | 120 Grit | 50 Sleeves |
| 324119 | 38 × 25 mm | 40 Grit | 50 Sleeves |
| 324121 | 38 × 25 mm | 60 Grit | 50 Sleeves |
| 328366 | 38 × 25 mm | 80 Grit | 50 Sleeves |
| 354102 | 25 × 25 mm | Mixed 40/60/80/120 Grit | 16 Sleeves + 1 Adaptor |
Selection and use
Match sleeve diameter and width to the compatible sanding drum or expanding holder. Choose the grit for material removal or finishing and centre the sleeve on the support. The sleeve is the replaceable abrasive component; the mounting drum and machine must suit the selected dimensions and speed rating.
