Take a closer look
Product information
Details
Key Features
• Fully automatic feed
• Superior 50mm deep hole drilling - automatically cuts holes from 14mm - 65mm
• Boosts productivity
• Powerful two speed drill motor 400/750 rpm
Applications
• Suitable for mild steel drilling applications
Specifications
| Model | QA 6500 |
| Power Source (Single Phase) | 220~240V AC 50/60Hz |
| Rated Power Consumption | 1,010W |
| No Load Speed | 400/750rpm |
| Hole Diameter | 14-65mm |
| Plate Thickness | 9-50mm |
| Magnetic Holding Power | 1,000 kg/f |
| Weight | 26kg |
Accessories
Standard Accessories
• Carry Case
• 3 mm Hex. Socket Screw Key
• Cutting Oil 0.5L
• 4 mm Hex. Socket Screw Key
• Pilot Pin 08050
• 8 X 10 mm Spanner
• Side Handle
• Guard
• Chip Breaker
• 3 mm Hex. Socket Screw Key
• Cutting Oil 0.5L
• 4 mm Hex. Socket Screw Key
• Pilot Pin 08050
• 8 X 10 mm Spanner
• Side Handle
• Guard
• Chip Breaker
• Pilot Pin 08050 A3: 1 pc.
Optional Accessories
• OZBROACH: High-speed steel, One-touch type: 25mm, 50mm and 75mm depth of cut
• OZBROACH: Countersink - Product No. OT10-30CS
*Manual mode only
• JETBROACH: TCT carbide-tipped cutters: 25mm, 35mm, 50mm and 75mm depth of cut
Specifications
The technical details, grouped for easy checking.
No matching specifications. Try another term or clear your search.
Documents & manuals
Keep the setup and technical information close at hand.
Media gallery

Swipe to browse. Pinch or use + to zoom, then drag to move.
Request Pricing or a Quote
Choose the request that suits you and we’ll review the details with this product.

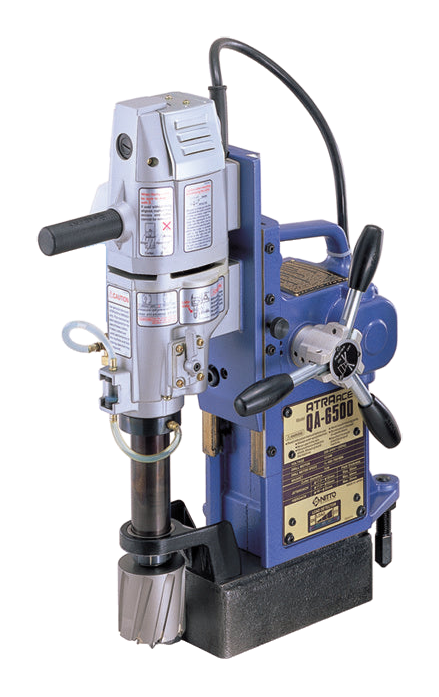

Nitto Atra Ace QA-6500 Automatic Magnetic Base DrillSKU: NTQA-6500
Current price: $6,092.90 USD including GST
