UNIMIG

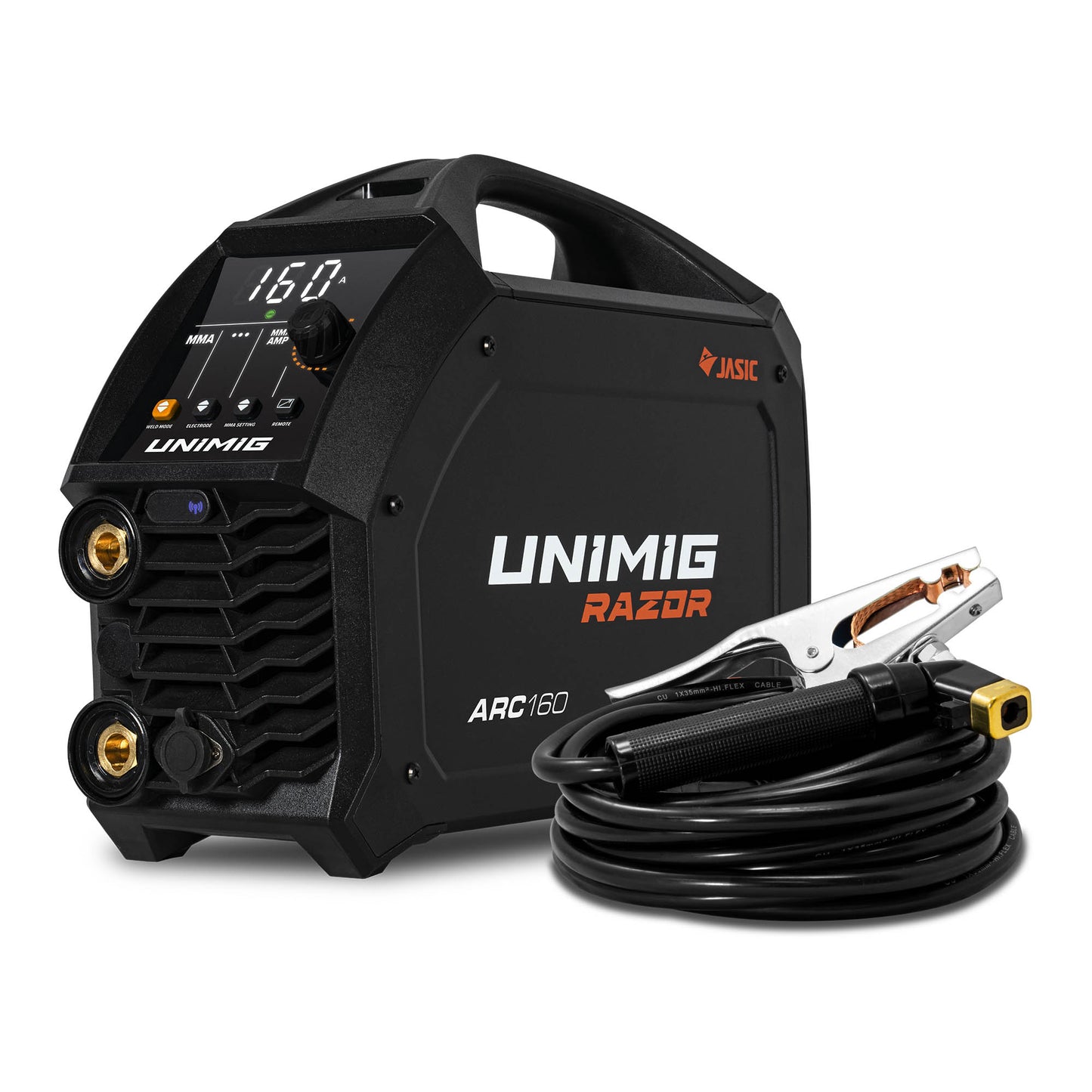

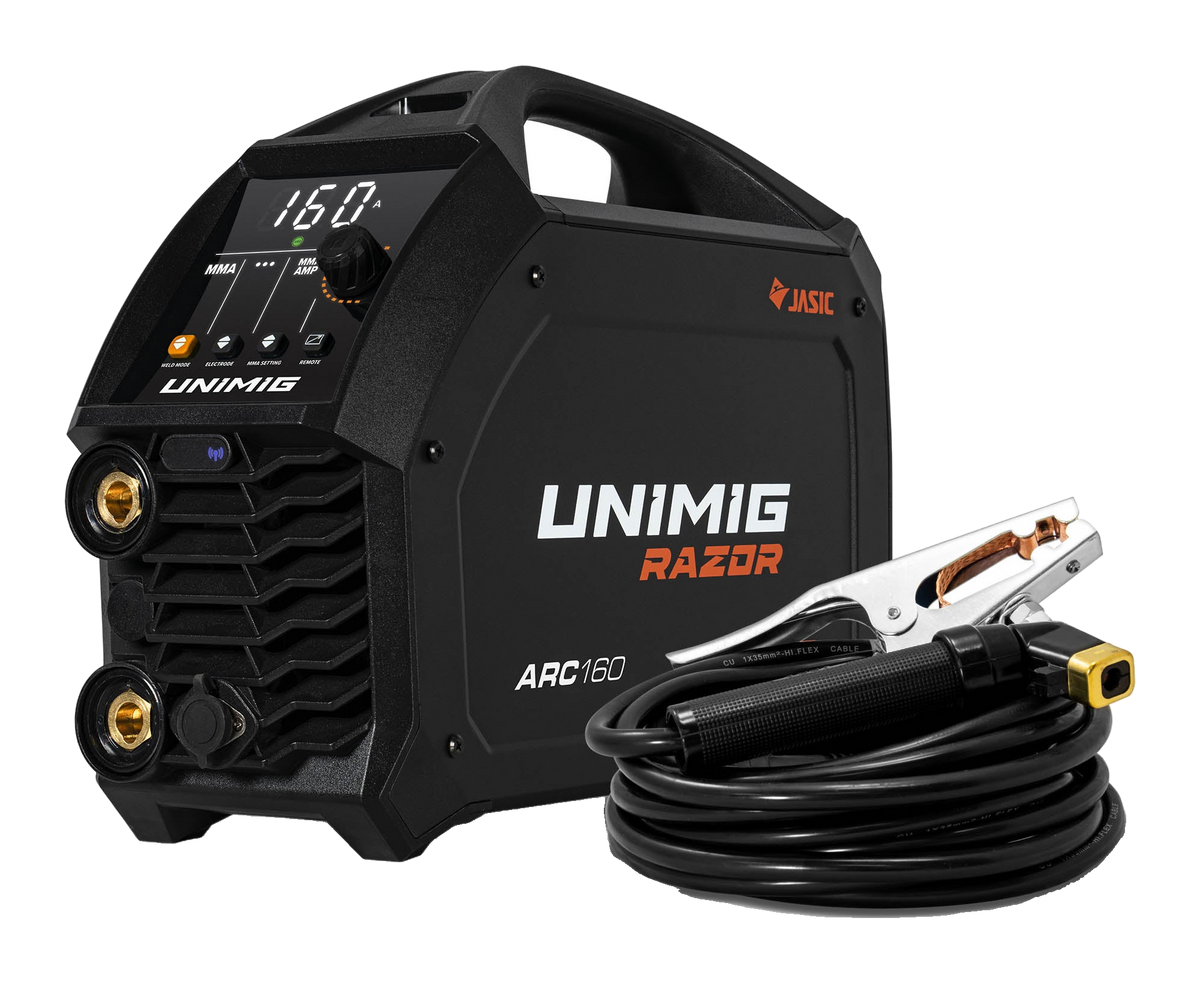

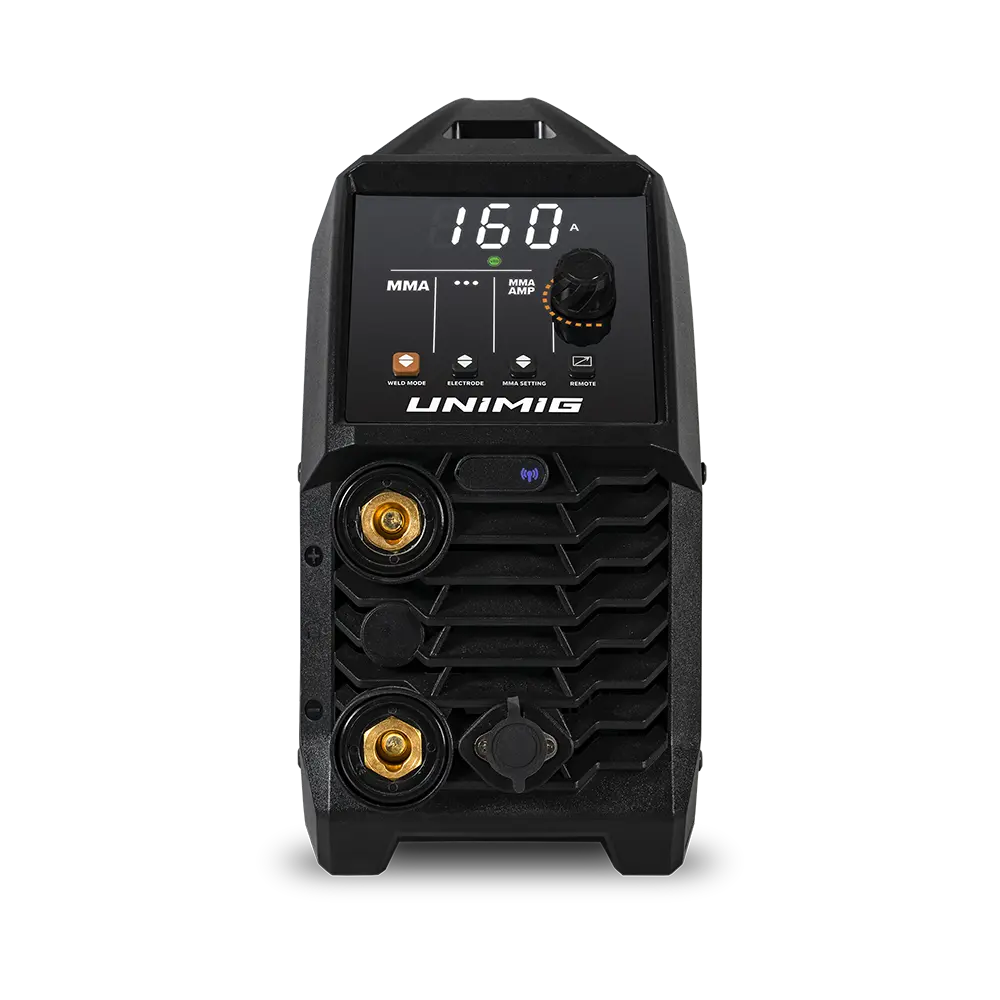

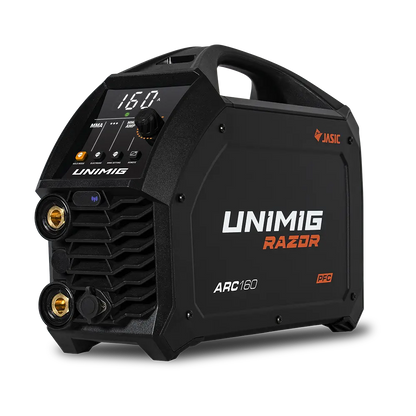

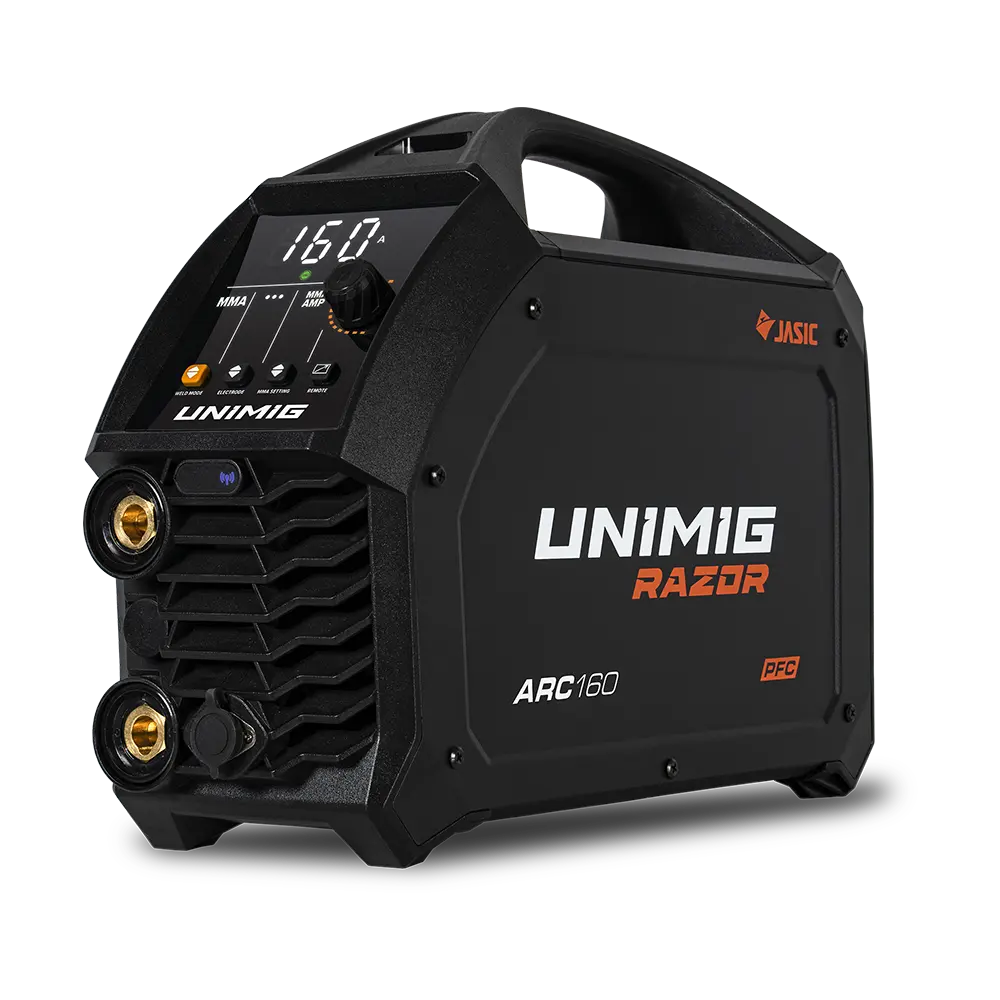

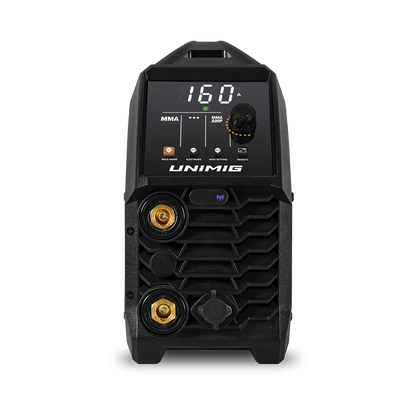

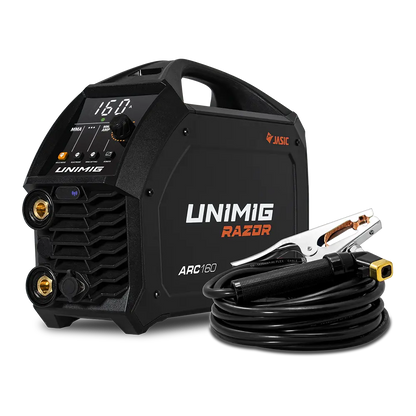

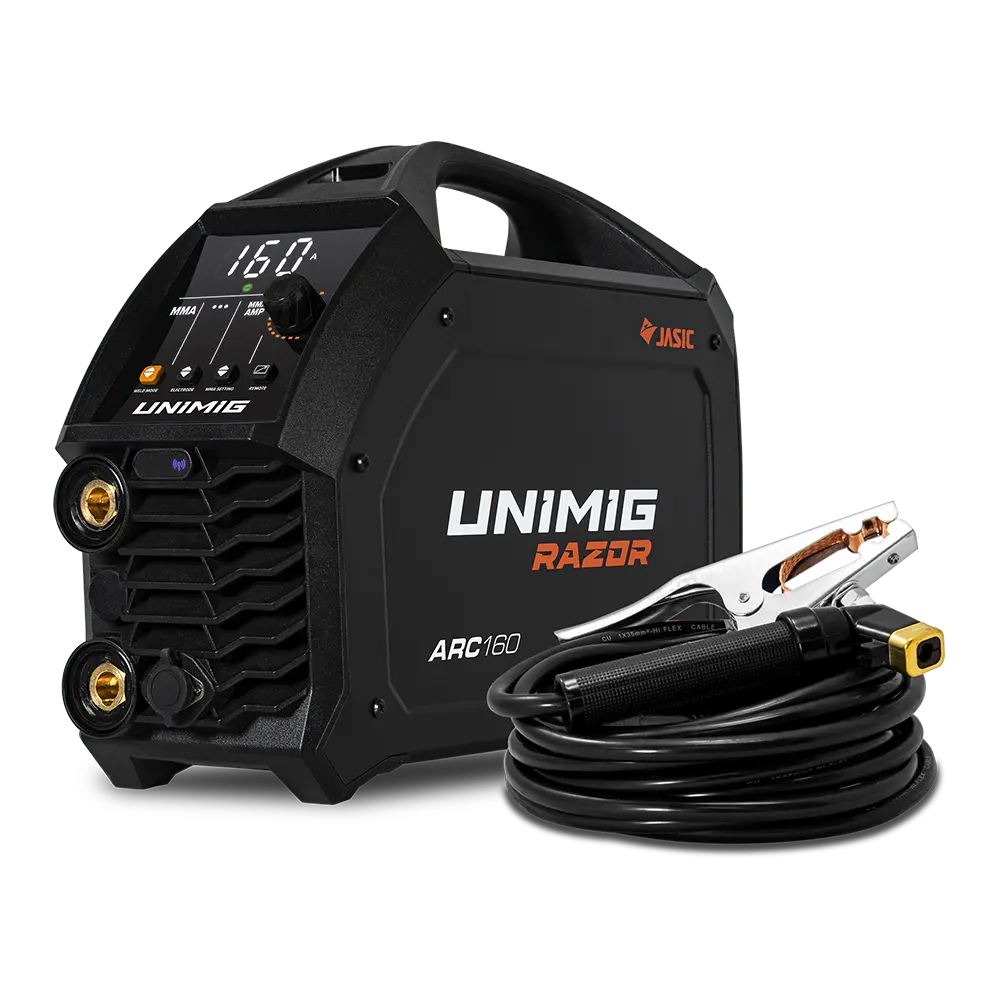

RAZOR ARC 160 PFC Welder

RAZOR ARC 160 PFC Welder

$829.00 AUD
$396.00 AUD $829.00 AUD
Sale Sold out
Shipping calculated at checkout.

U13002K

In stock

This powerful, professional STICK (MMA) machine is designed to be taken on the worksite or the workshop.

  • Packed full of advanced features including hot start, arc force and anti-stick
  • PFC gives you maximum electrical efficiency
  • Capable of DC Lift Arc TIG for more versatility
  • A 5-year warranty to reflect our confidence in this machine
MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase
Supply Plug 10Amp
Ieff (A) 10.0
Rated Output 20A/20.8V - 160A/26.4V
No Load Voltage (V) 78
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 7.0
Dinse Connector 35/50
Standard AS/NZ60974-1
Suitable Material

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

MMA: Mild Steel, Stainless Steel, Cast Iron
Warranty  5 years



 TIG SPECIFICATIONS
TIG Function Type DC Lift Arc
TIG Welding Current Range
 10-160A
TIG Duty Cycle @ 40c 35% @ 160A / 60% @ 123A / 100% @ 95A
TIG Welding Thickness Range 1-6mm



 STICK SPECIFICATIONS
STICK Welding Current Range 20-160A
STICK Duty Cycle @ 40c
 20% @ 160A / 60% @ 93A / 100% @ 72A
STICK Electrode Range 2.5-4.0mm
STICK Welding Thickness Range
 2-10mm



SIZE AND WEIGHT
 DIMENSIONS (mm) 413x150x311mm
Weight (kg) 7.2kg



MACHINE FEATURES
VRD  Yes



Package Contents:

  • RAZOR ARC 160 PFC Welder
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Operating Manual



  • Customer Promise
  • Price Match
  • 30-Day Returns
