UNIMIG

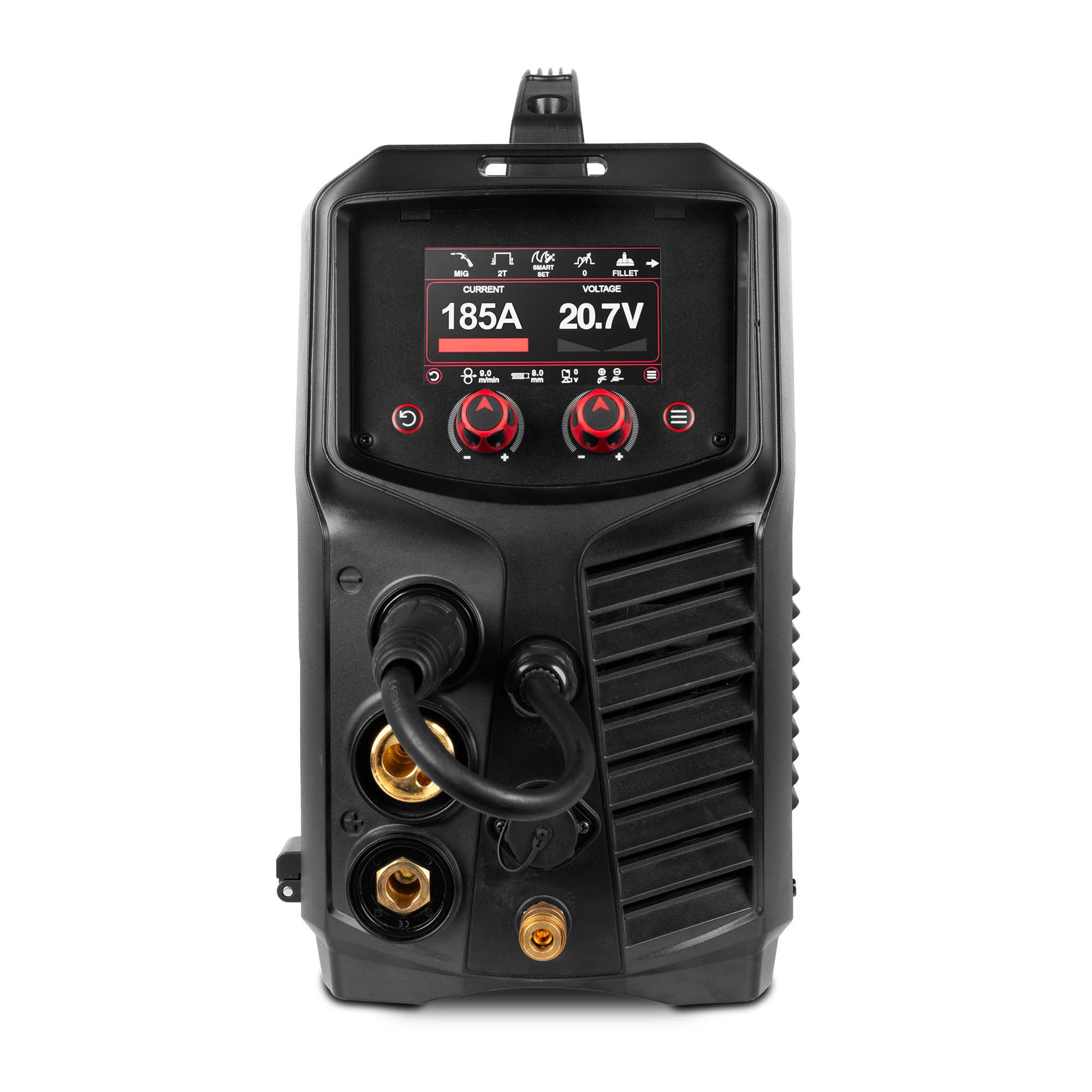

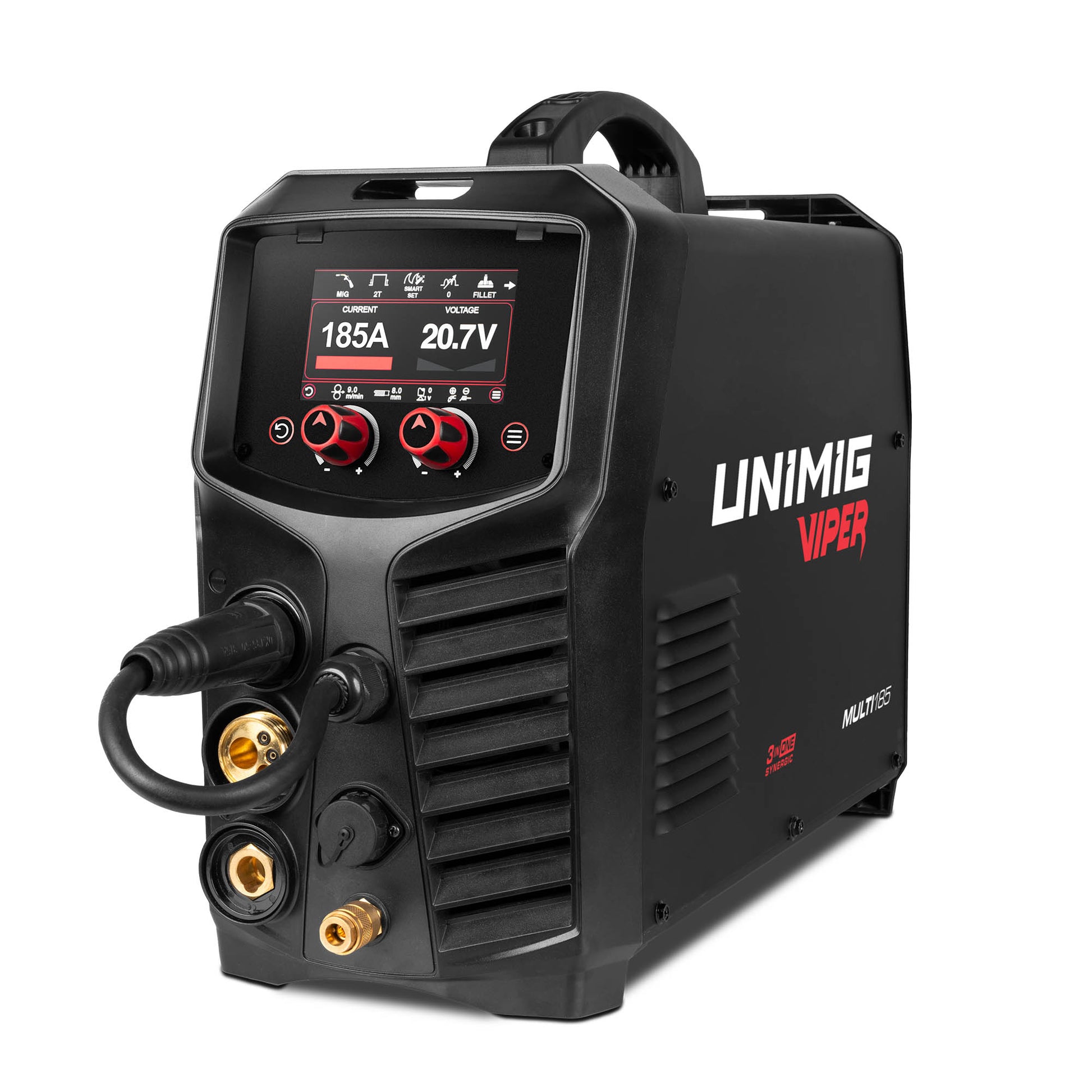

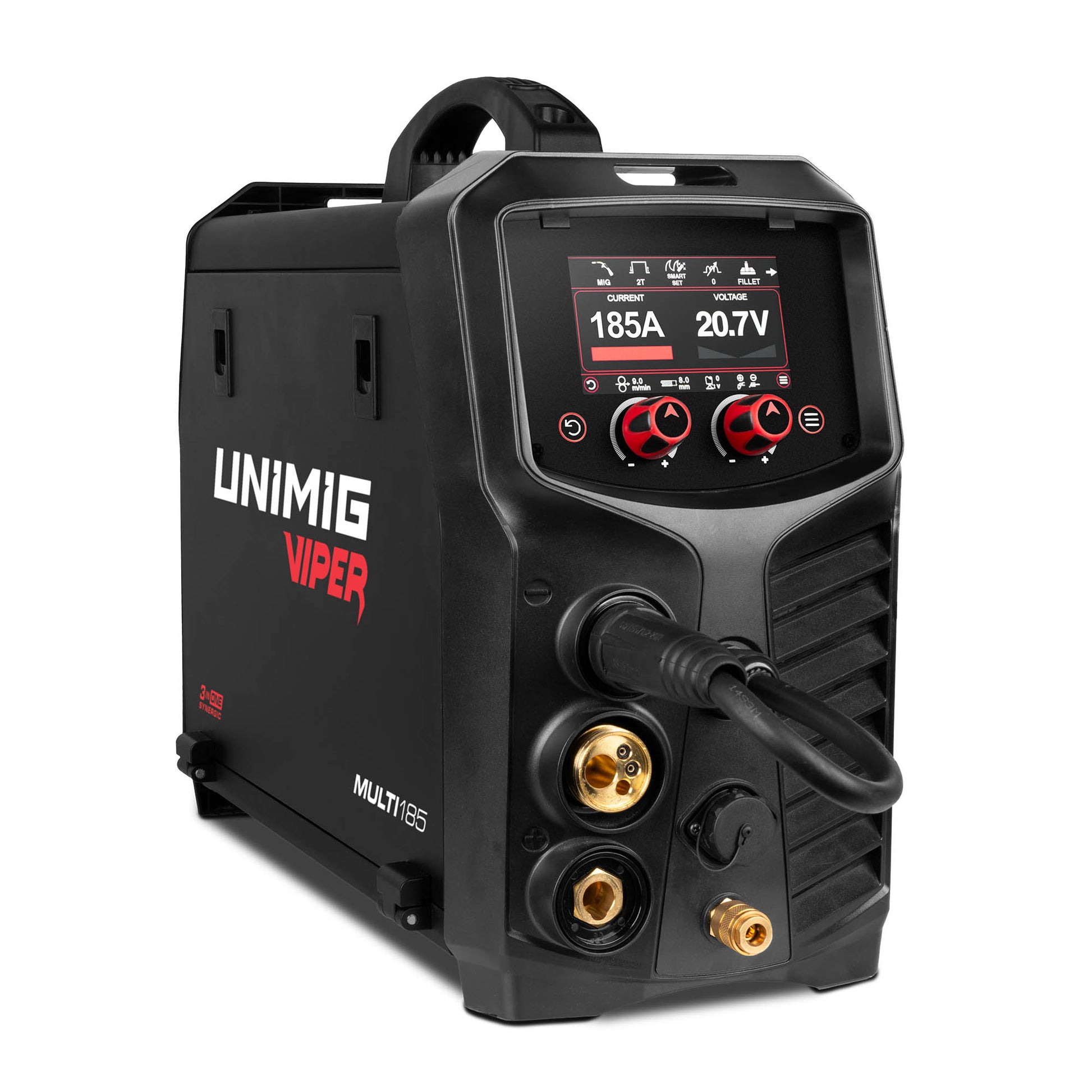

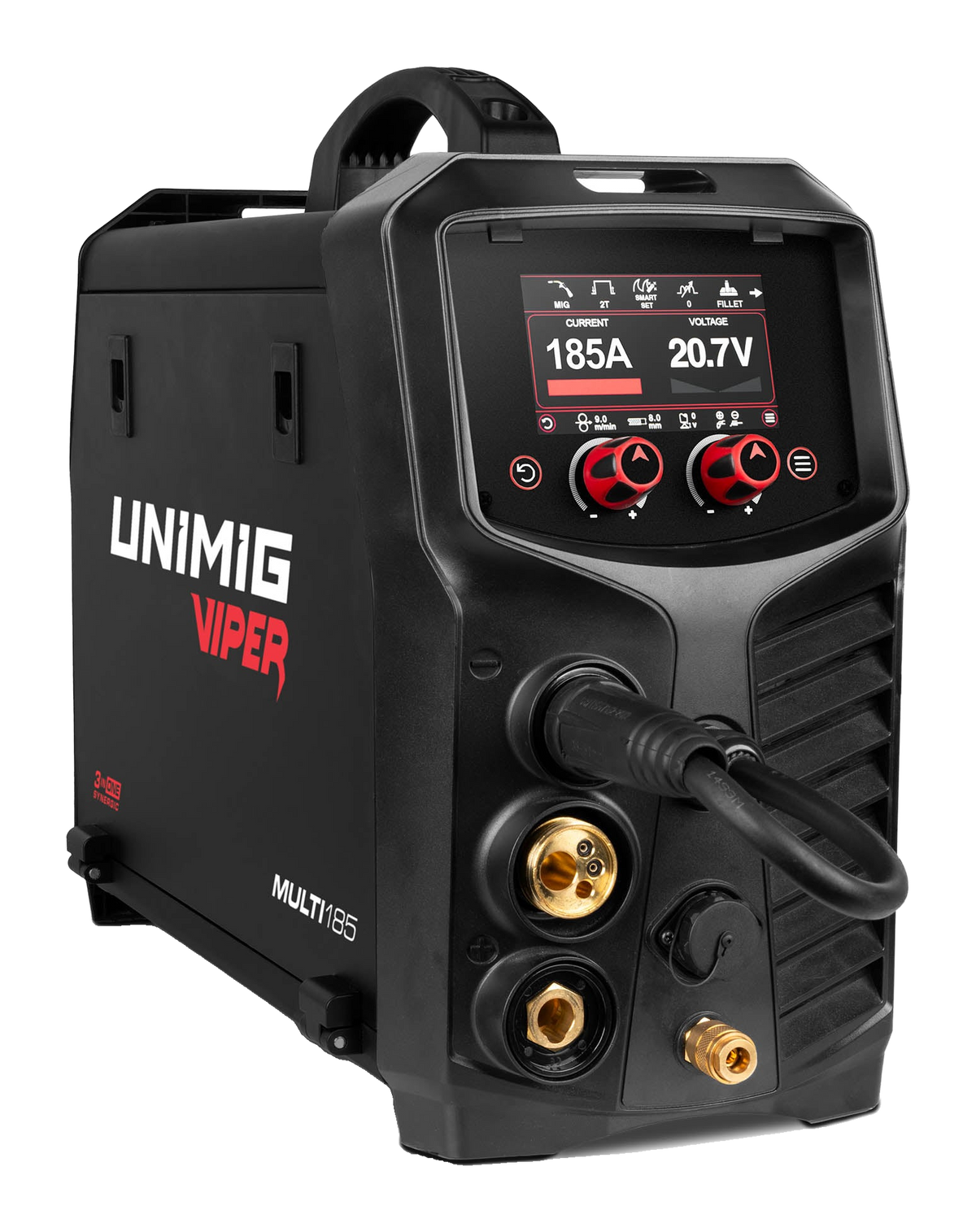

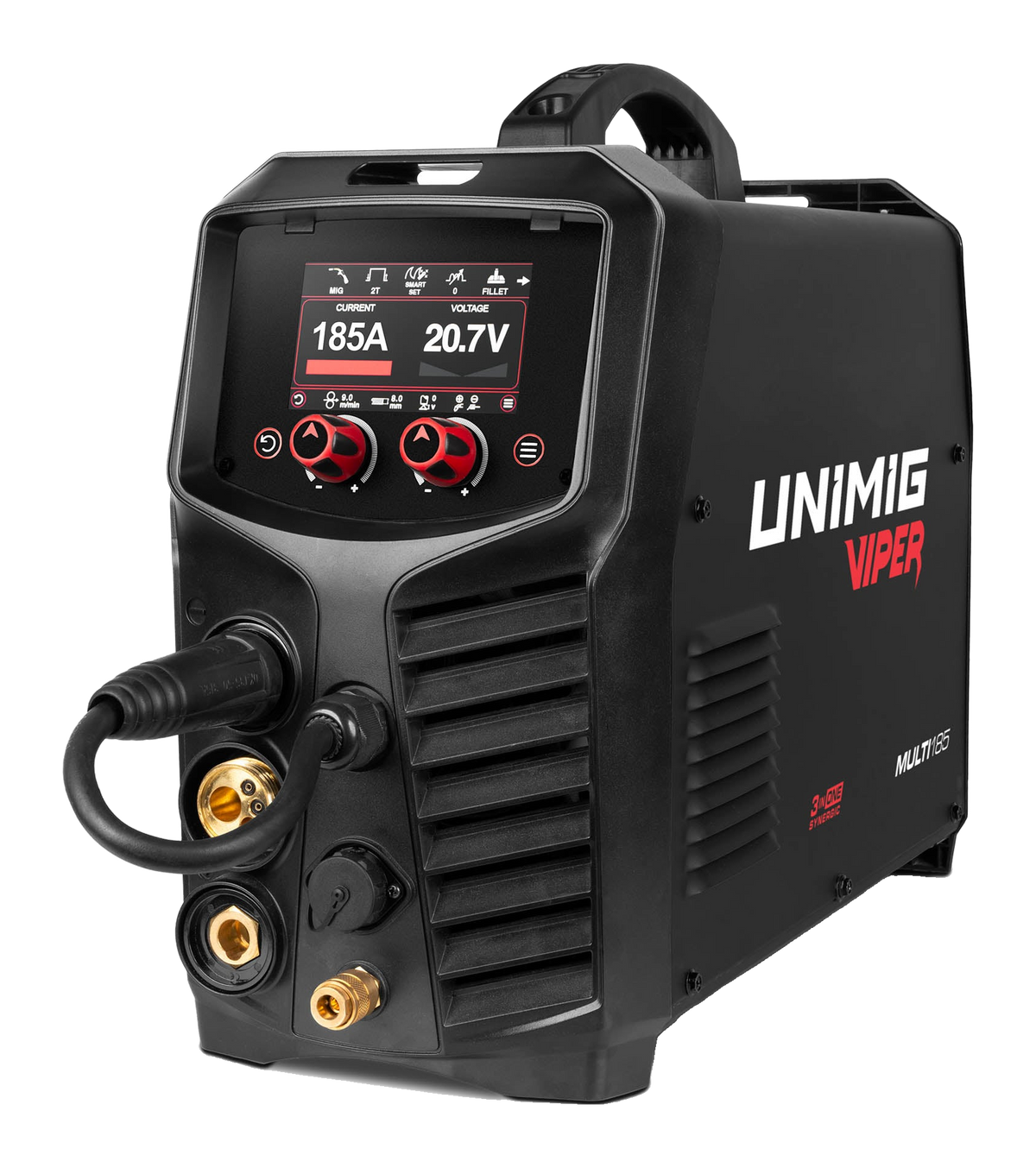

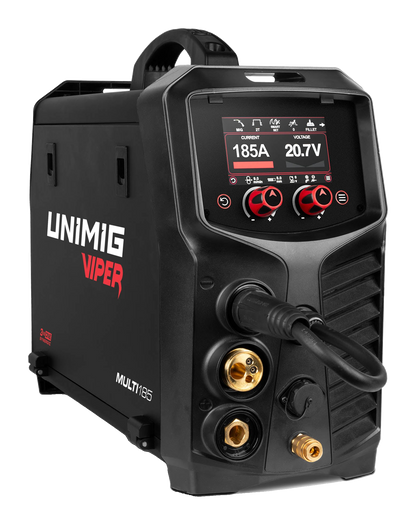

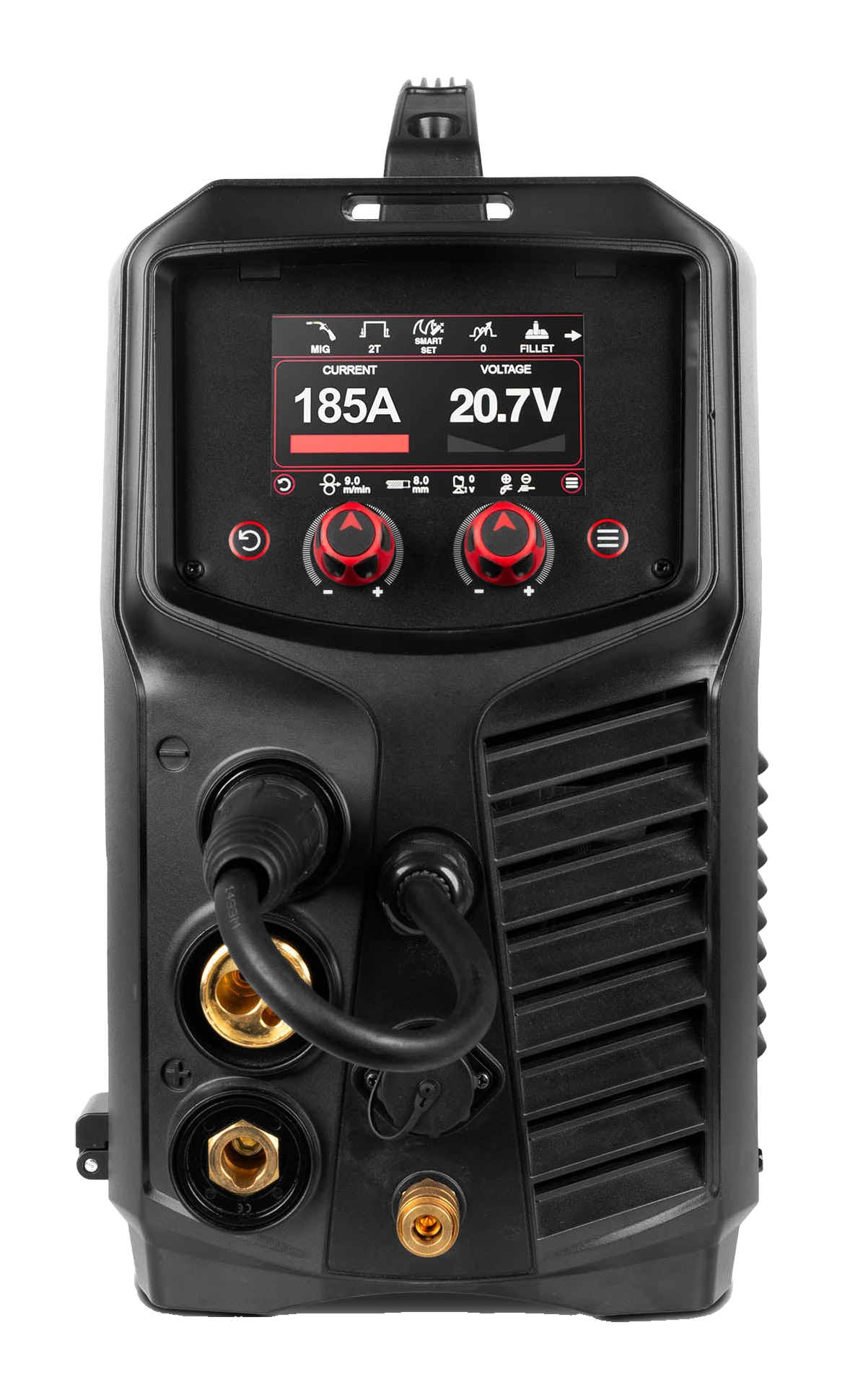

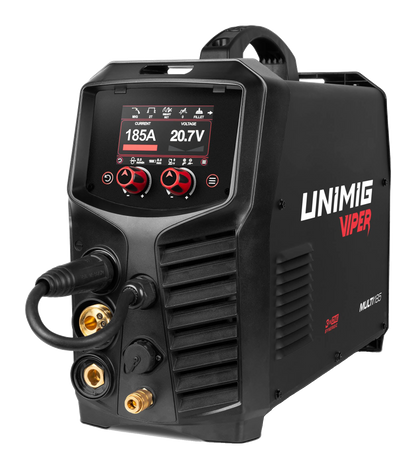

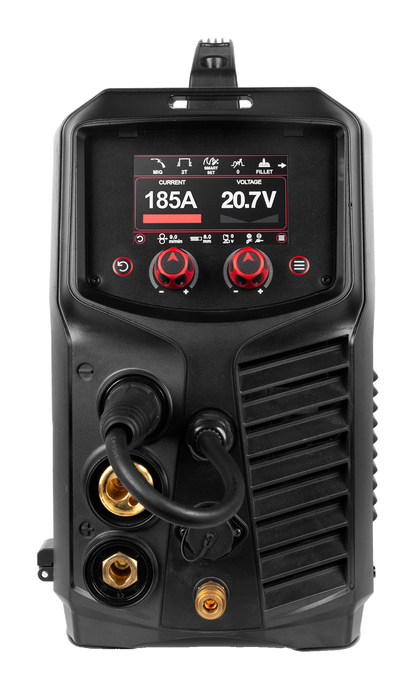

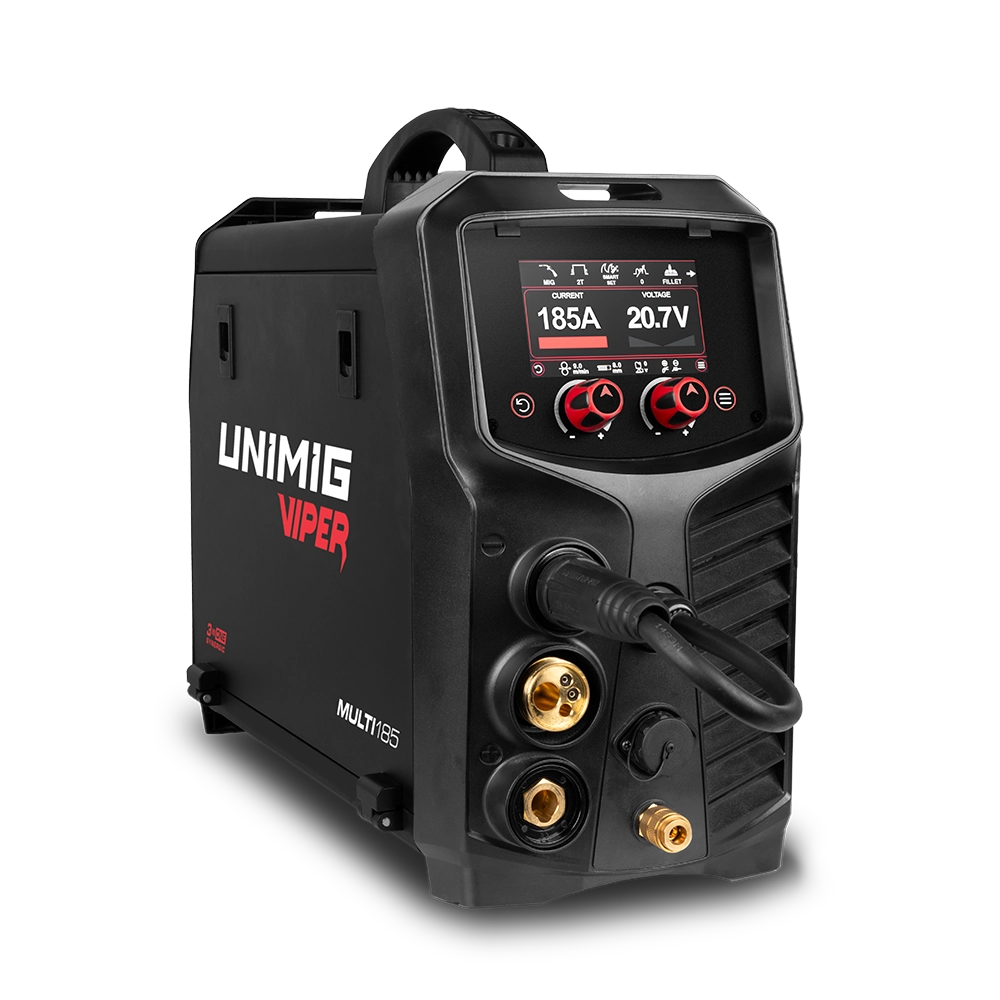

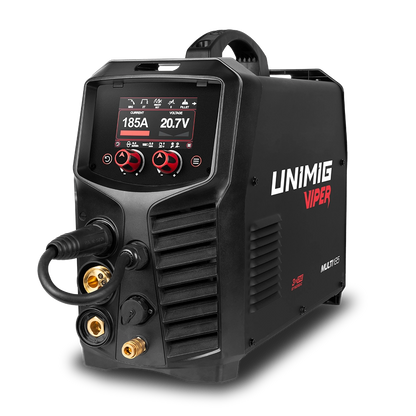

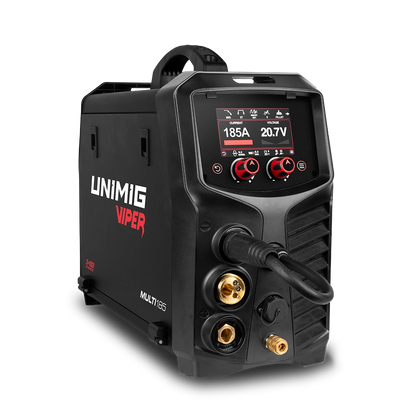

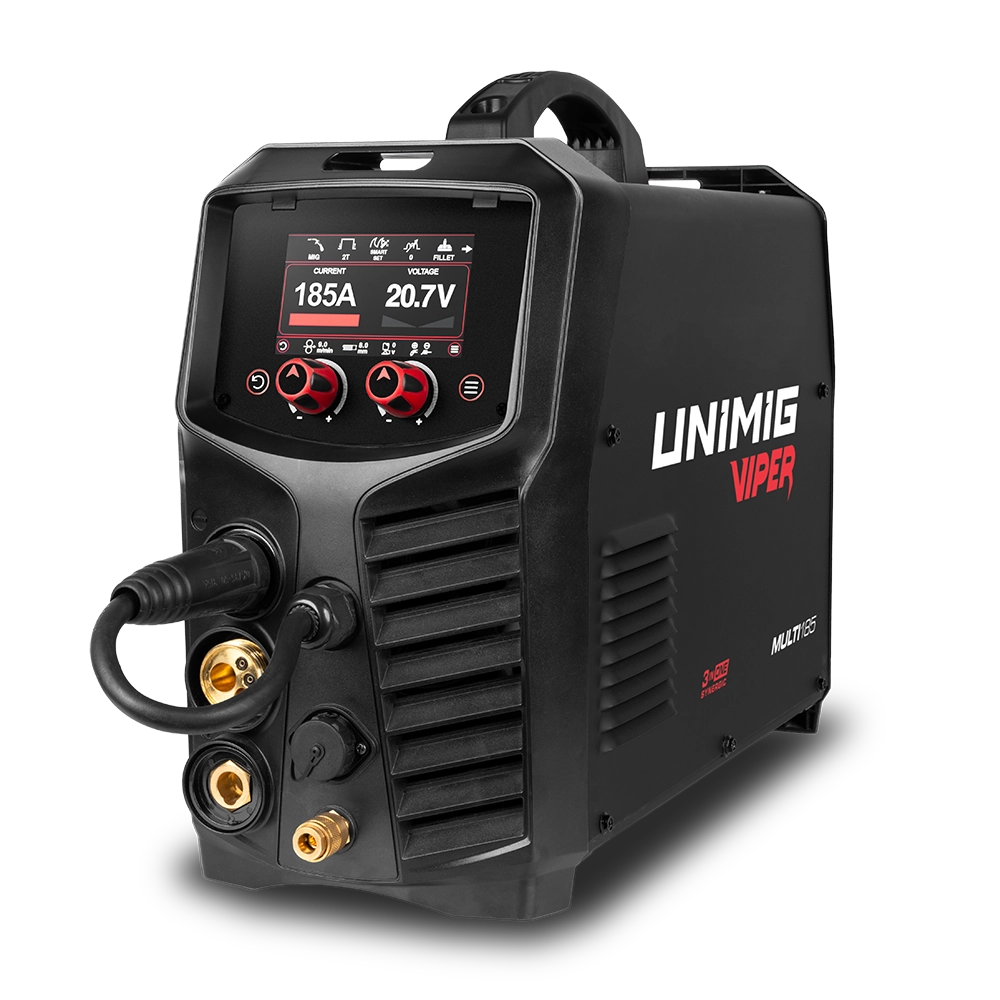

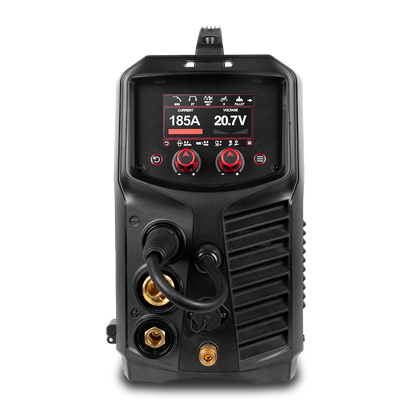

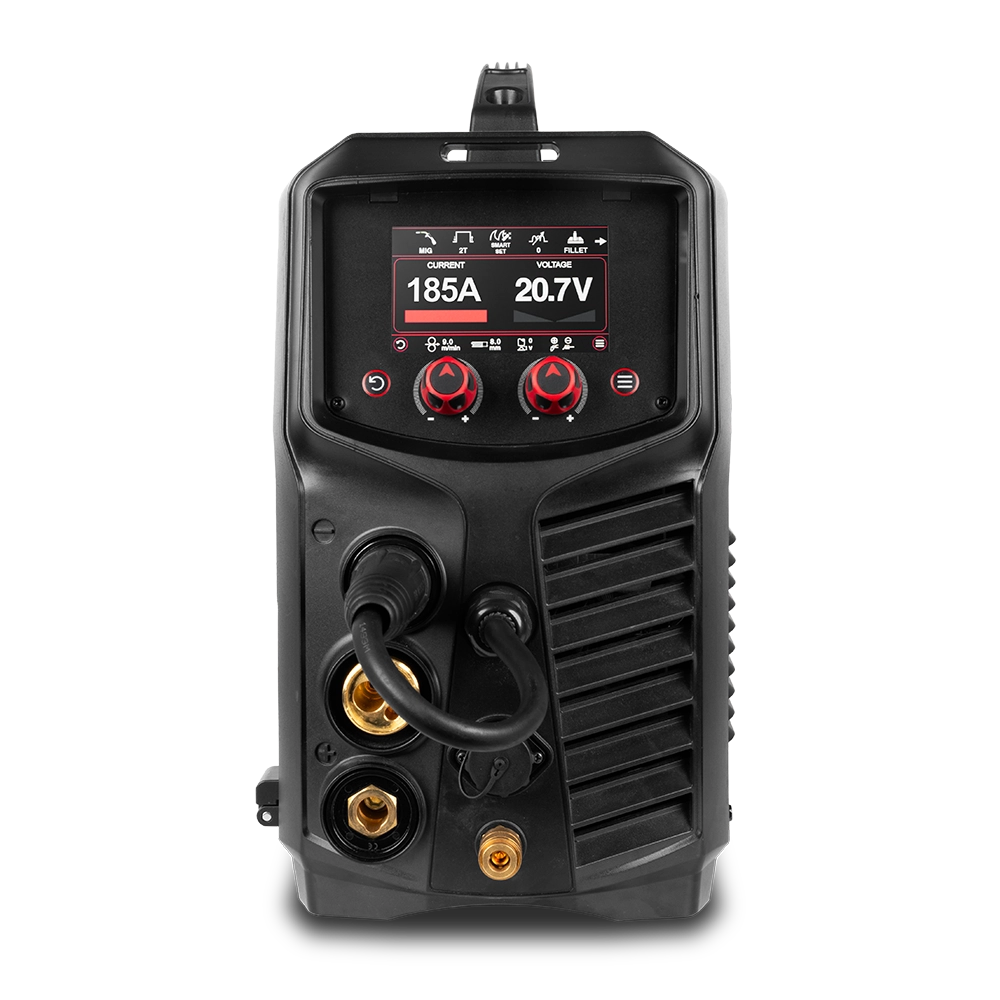

UNIMIG VIPER MULTI 185 MIG/TIG/MMA Welder U11260

UNIMIG VIPER MULTI 185 MIG/TIG/MMA Welder U11260

$1,149.01 AUD
$1,149.01 AUD
Sale Sold out
Shipping calculated at checkout.

U11260

In stock

The UNIMIG VIPER MULTI 185 is a versatile multi-process welder designed for home, workshop, and light fabrication projects. Packed with modern features, it delivers exceptional performance for MIG, DC TIG, and Stick welding in one compact unit.

Key Features:

  • 4.3" Colour LCD Interface: Intuitive controls make setup simple and fast.
  • Single Pulse MIG: Lower heat input, reduced spatter, and smoother welds – ideal for aluminium.
  • MIG Smart-Set: Select your wire, gas, and joint type and start welding immediately.
  • Complete MIG Control: Adjustable pre/post gas, inductance, burnback, and arc length.
  • Geared Wire Drive: Consistent, smooth wire feeding for precision results.
  • High-Frequency DC TIG: Touchless arc starts with full weld cycle control.
  • Foot Control Ready: Optional foot pedal for precise TIG amperage control.
  • Hot Start, Arc Force & Anti-Stick: Stable arc ignition and improved MMA performance.
  • Power Factor Correction (PFC): Maximises efficiency and compensates for voltage fluctuations.
  • Generator Compatible: Runs on 10kVA+ generators for worksite flexibility.
  • Smart Fan Technology: Quieter operation, reduced dust intake, and longer component life.

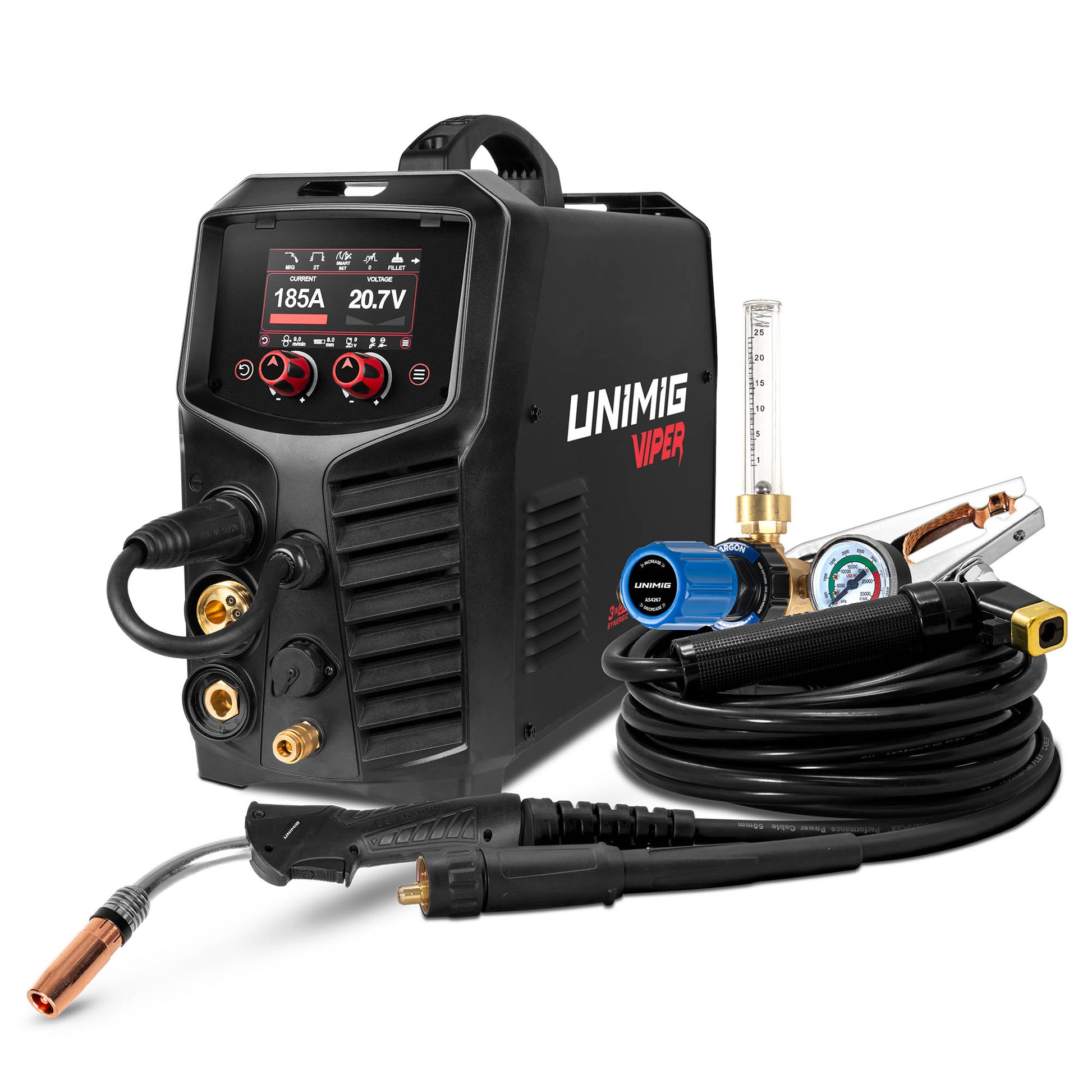

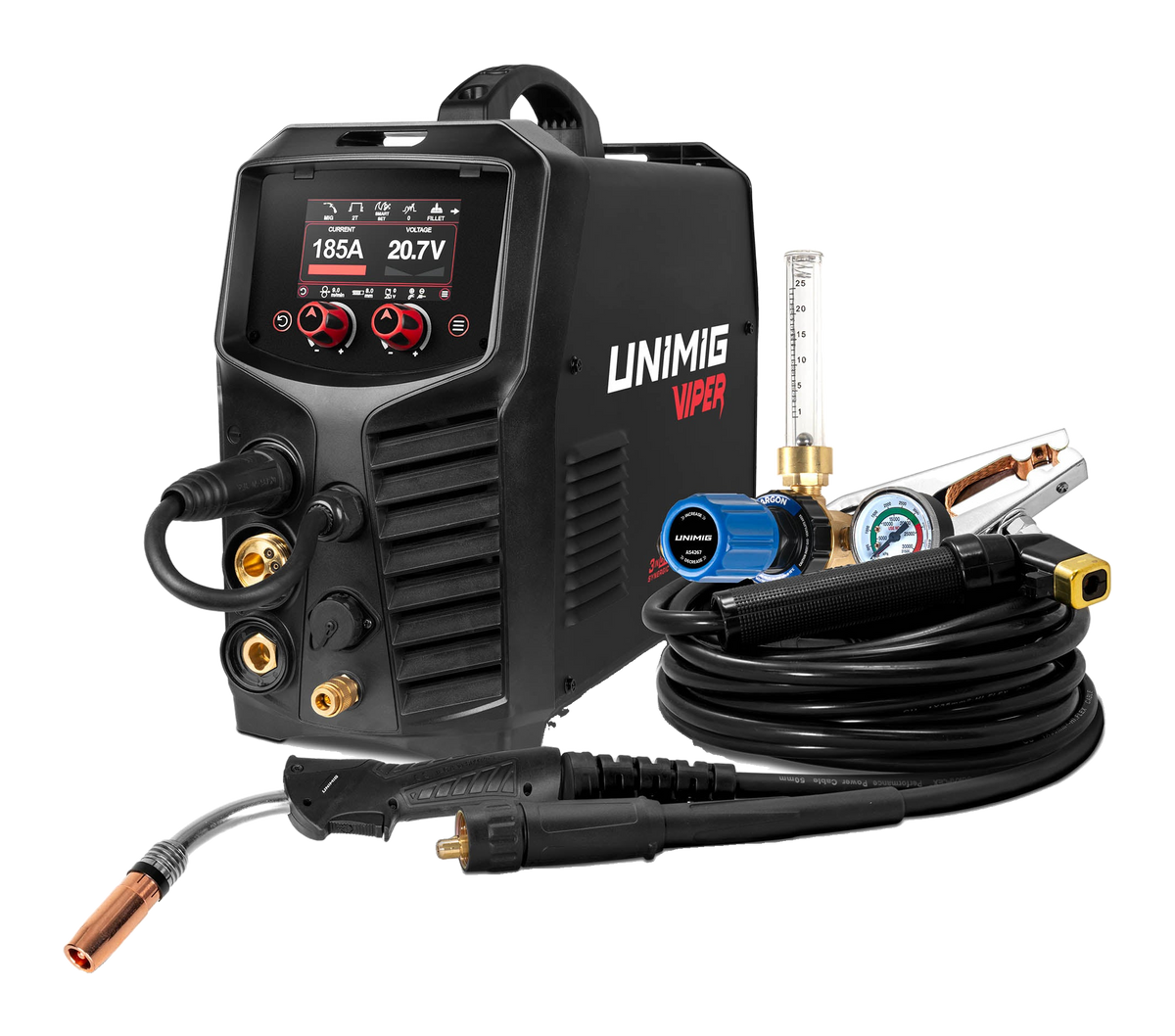

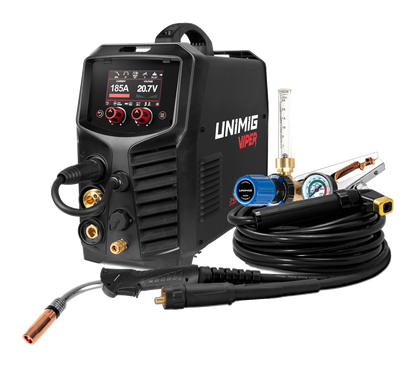

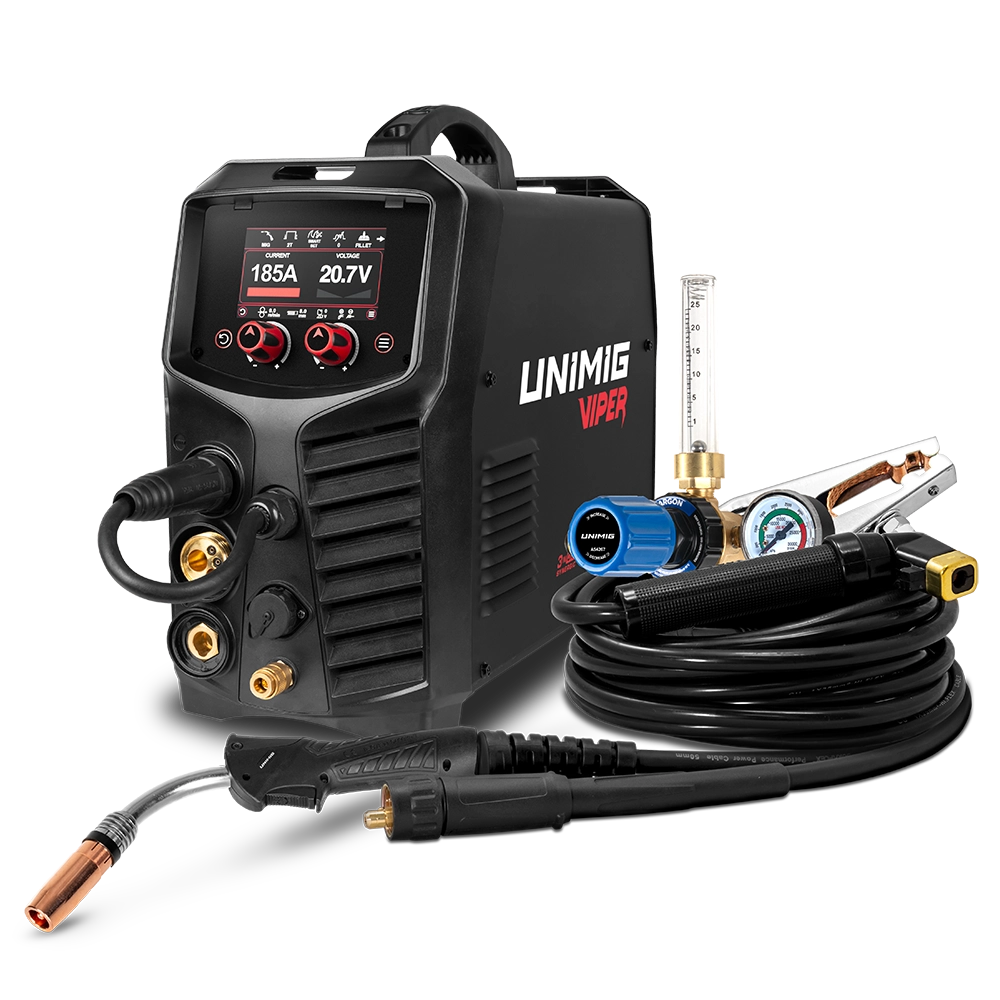

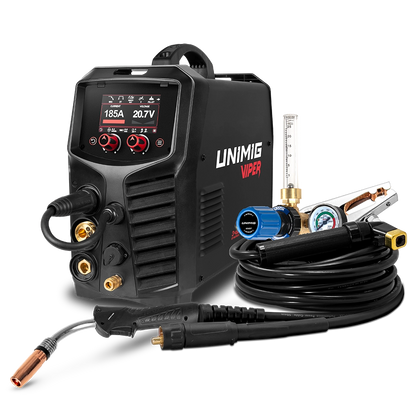

In the Box:

  • VIPER MULTI 185 Welder
  • 3m M26 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 3m 300 Amp Earth Clamp & Lead
  • Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • 9-to-9 Pin TIG Torch Adapter
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  • 1.0-1.2mm U Groove Roller

This machine supports gas-shielded and gasless wires, includes job memory for up to 10 programs, and is IP21S rated for protection against dust and water spray. Perfect for welders who need a reliable all-in-one solution without sacrificing control or quality.

MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase 50/60Hz
Supply Plug 10A
Ieff (A) 10.0
Imax (A) 31.0
Rated Output 20-185A
No Load Voltage (V) 67.0
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 10
Dinse Connector 35/50
Standard AS 60974.1
Suitable Material MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
Warranty  3 Years



 MIG SPECIFICATIONS
 MIG Welding Current Range 30-185A
MIG Duty Cycle @ 40°C 10% @ 185A, 60% @ 77A, 100% @ 60A
MIG Wire Size Range 0.6-1.0mm
MIG Wire Spool Size 1kg (100mm) / 5kg (200mm)
MIG Welding Thickness Range 1-10mm
Drive Roller Size 30/22



TIG SPECIFICATIONS
 TIG Function Type DC High-Frequency TIG
TIG Welding Current Range 20-185A
TIG Duty Cycle @ 40°C 10% @ 185A, 60% @ 77A, 100% @ 60A
TIG Welding Thickness Range 1-6mm



 MMA SPECIFICATIONS
MMA Welding Current Range 20-180A
MMA Duty Cycle @ 40°C 10% @ 180A, 60% @ 75A, 100% @ 60A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-10mm



SIZE AND WEIGHT
 Dimensions (mm) 523x214x388mm
Weight (kg) 13.5kg
