Details
- Advanced 2-in-1 TIG & MMA Welding – Supports both AC/DC TIG and MMA Stick welding modes for versatile use on aluminum, steel, and stainless steel materials.
- High-Frequency TIG Start – Ensures easy arc starting without contact, minimizing contamination and improving weld quality. No scratch start needed.
- Pulse TIG Functionality – Allows better heat control and precision welding on thin metals and complex joints. Great for professional fabrication and fine detail work.
- Digital Control Panel – Easy-to-use interface with memory function for job saving/loading, adjustable welding parameters (frequency, slope, AC balance, etc.).
- Powerful Performance – Delivers up to 200A output (AC TIG), with a 25% duty cycle at 200 amps for demanding applications.
- Dual Voltage Compatibility – Operates on single-phase AC230V ±15%, compatible with most standard power outlets.
- Compact & Portable Design – Weighs only 7.5kg with ergonomic handle, perfect for mobile use in garages, workshops, or on-site welding.
Safety & Efficiency – Includes VRD (Voltage Reduction Device) for safer MMA operation, IP21 housing protection, and over 70% efficiency rating.
Package Includes
- 4m 26 HF TIG Gun
- 4m Earth Lead
- 4m Arc Lead
- Gas Hose
- Regulator
Optional
- Foot Pedal
- 8m TIG Gun
|
Model |

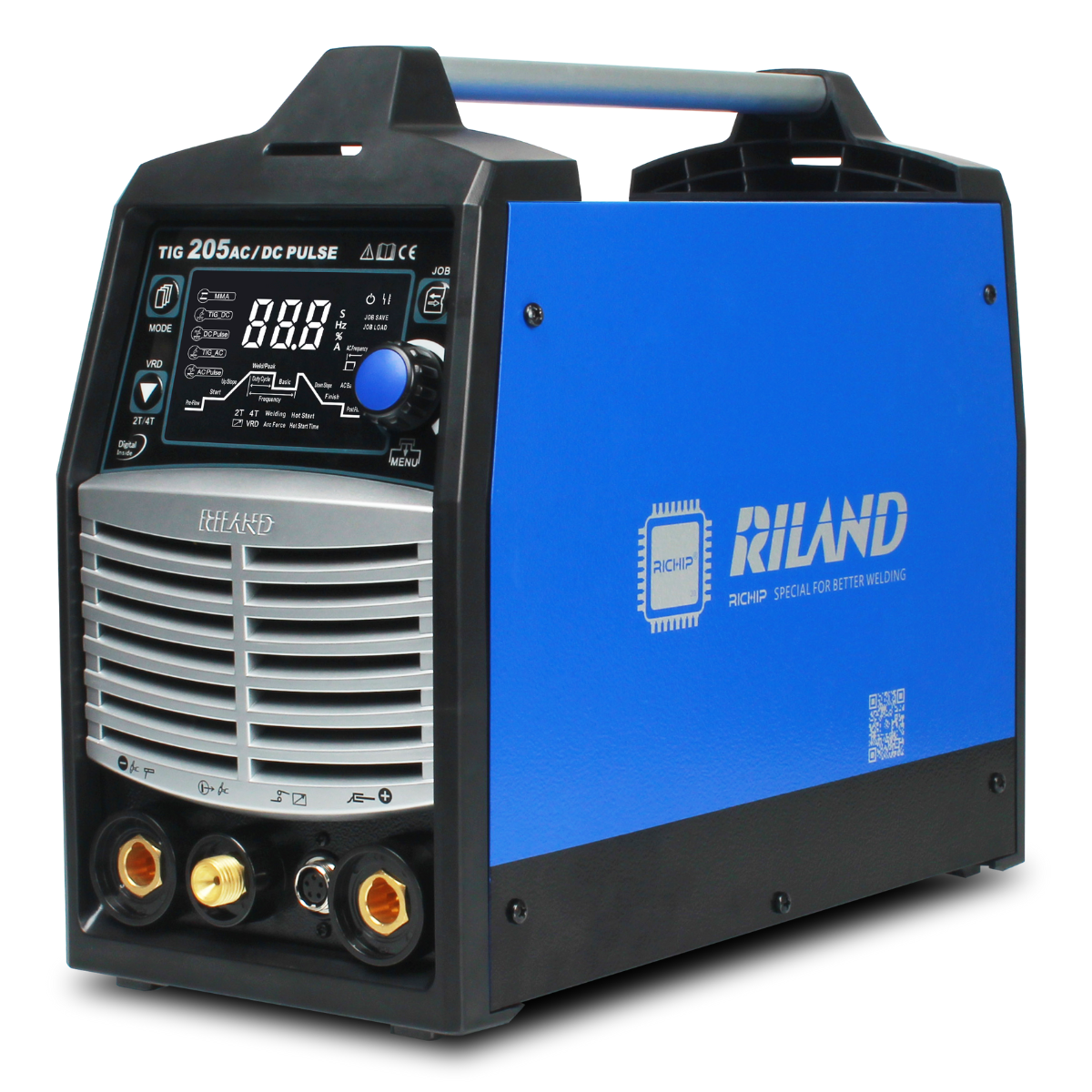

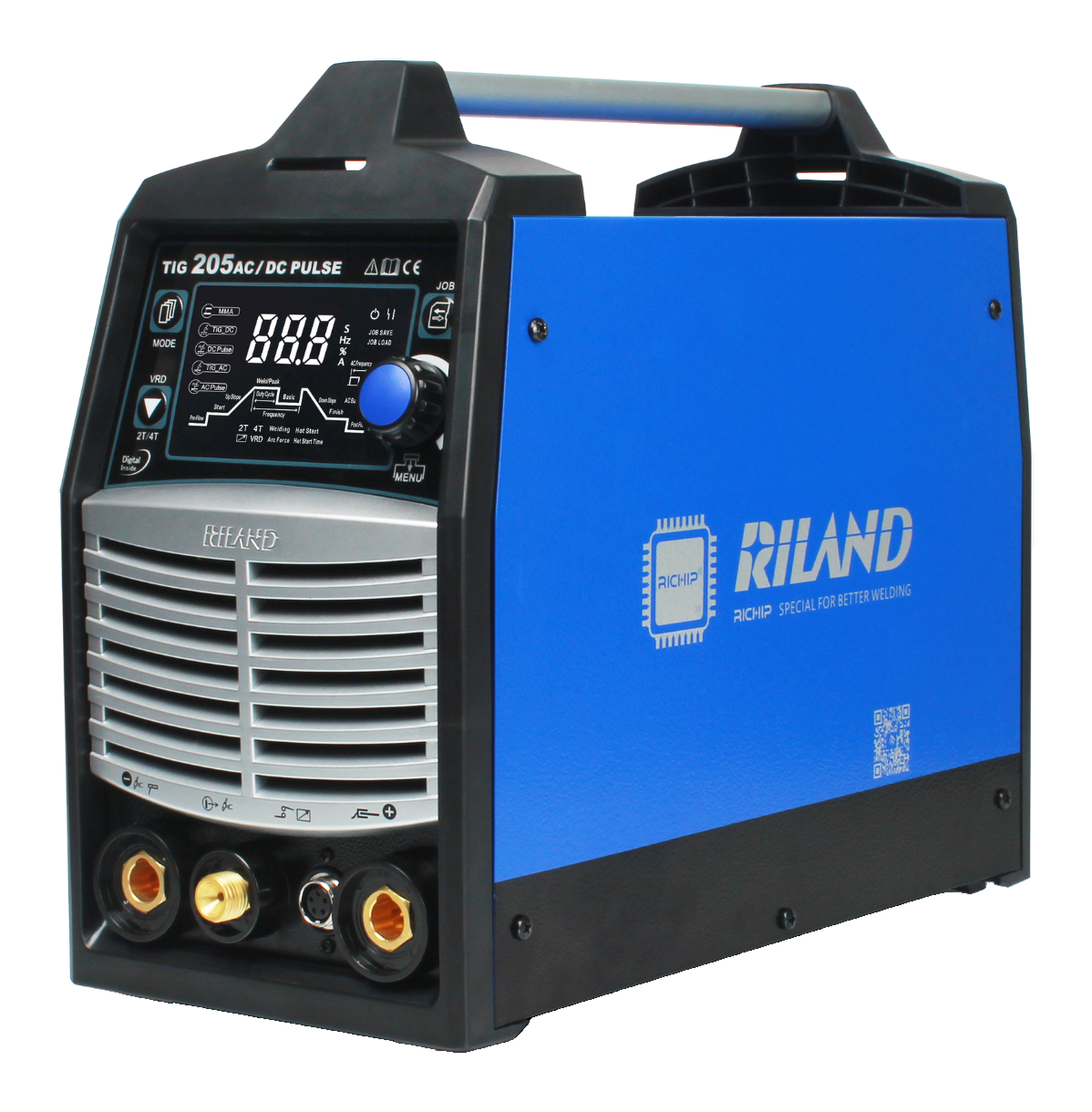

Pulse 205 AC/DC TIG |
| Primary input voltage | 230 V, single-phase |
| Input voltage tolerance | ±15% |
| Input frequency (Hz) | 50/60 |
|
Rated maximum supply current (I1max/A) |
29.1 (TIG/DC) 32.7 (TIG/AC) 36 (MMA) |
|
Maximum effective supply current (I1ef /A) |
15.9 (TIG/DC) 17.9 (TIG/AC) 19.7 (MMA) |
|
Output current range (A) |
5–180 (TIG/DC) 5–200 (TIG/AC) 40–160 (MMA) |
|
Output voltage range (V) |
10.2–17.2 (TIG/DC) 10.2–18 (TIG/AC) 21.6–26.4 (MMA) |
|
Duty cycle (%) |
25% at 200 A |
| Open circuit voltage (V) |
61 |
|
VRD (V) |
21 |
|
Power factor |
0.63 (TIG), 0.64 (MMA) |
|
Efficiency (%) |
70% (TIG), 77% (MMA) |
| Insulation class |
F |
| Protection class |
IP21 |
|
Weight (kg) |
7.5 |
| Dimensions (mm) | 365 × 172 × 320 |
Machine specifications
| Supply plug | 15 A |
|---|
