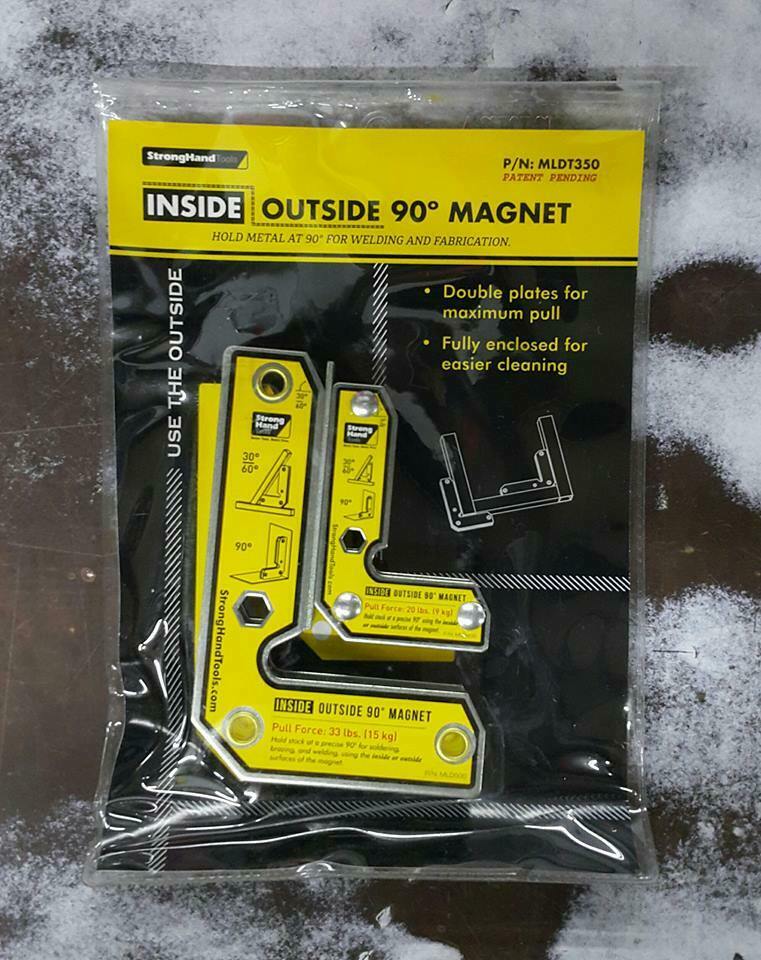

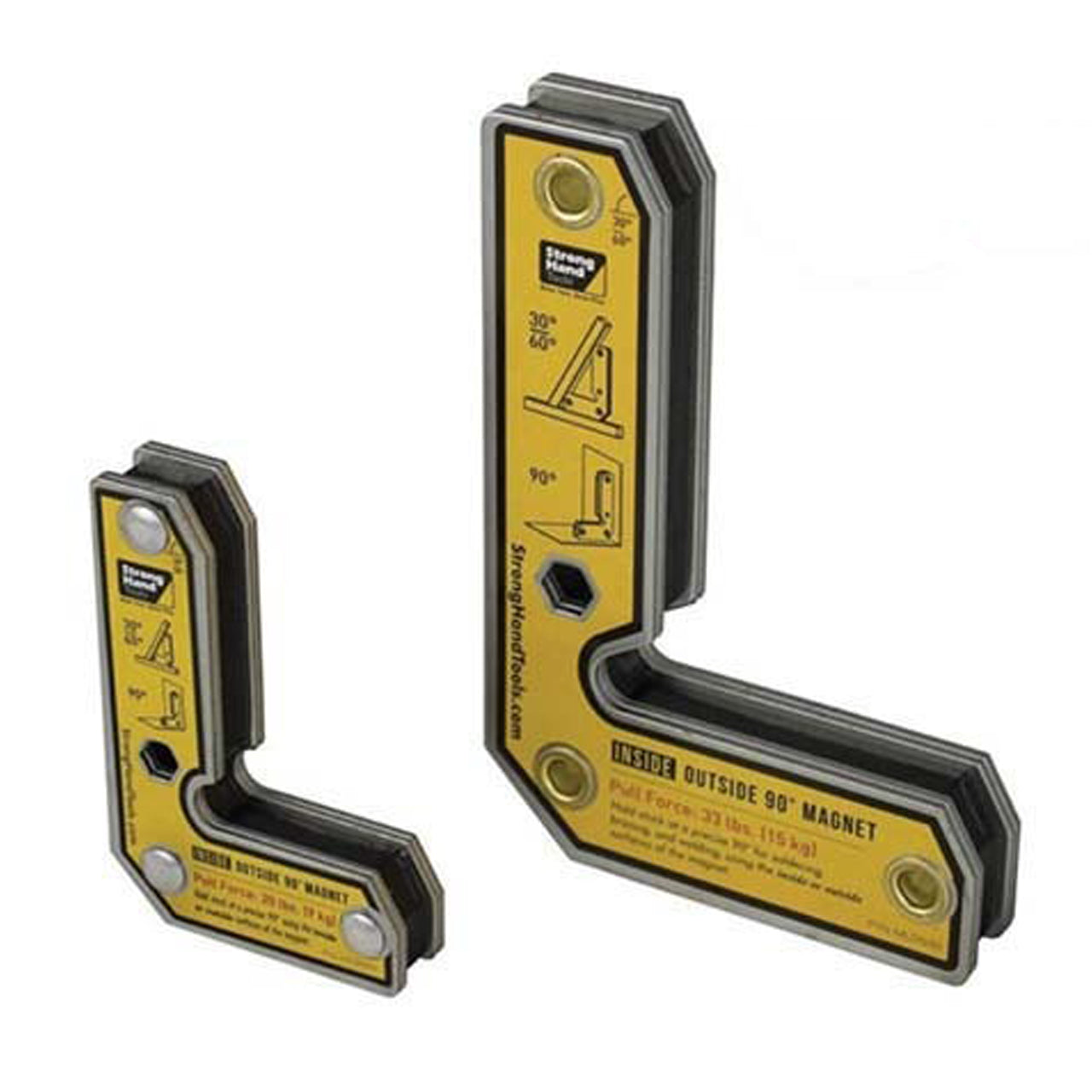

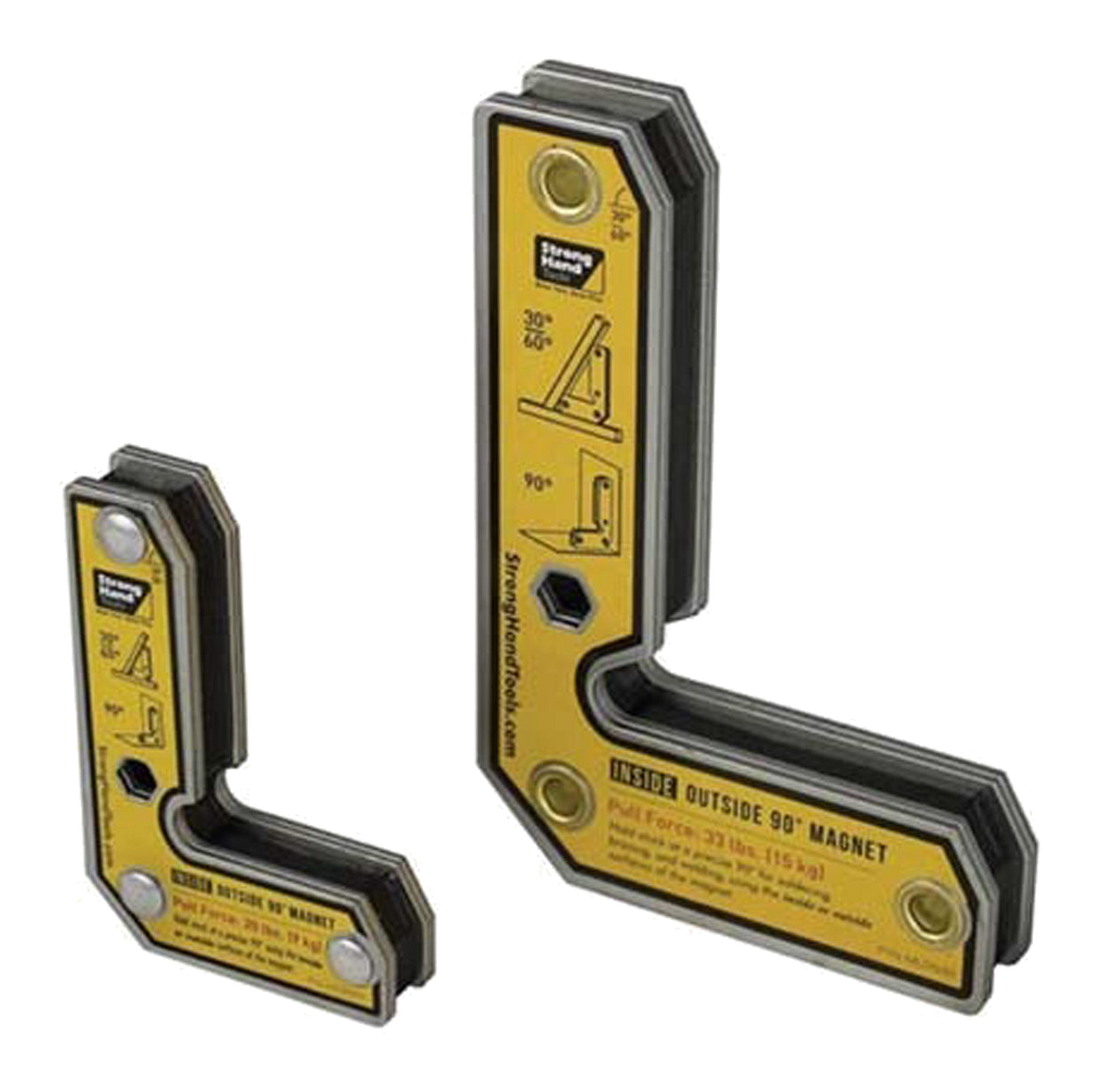

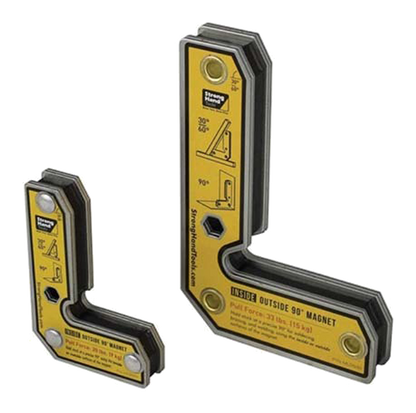

2 Pack - Includes MLD300 and MLD500
- Hold stock from the outside, leaving clearance for inside welds, or hold stock from the inside for outside welds.
- Hold and position sheet metal, round pipes, square, angled or flat stock.
- The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to workpieces.
- Use mounting holes to link two magnets together for use as fixturing elements.
- Use hex hole on magnet for breakaway leverage.
MLD300
- Angles: 90o (30o, 60o)
- Height: 75.5 mm
- Width: 52 mm
- Thickness: 14 mm
- Mag. Pull Force: 9 kg
MLD500
- Angles: 90o (30o, 60o)
- Height: 125 mm
- Width: 85 mm
- Thickness: 18 mm
- Mag. Pull Force: 15 kg
