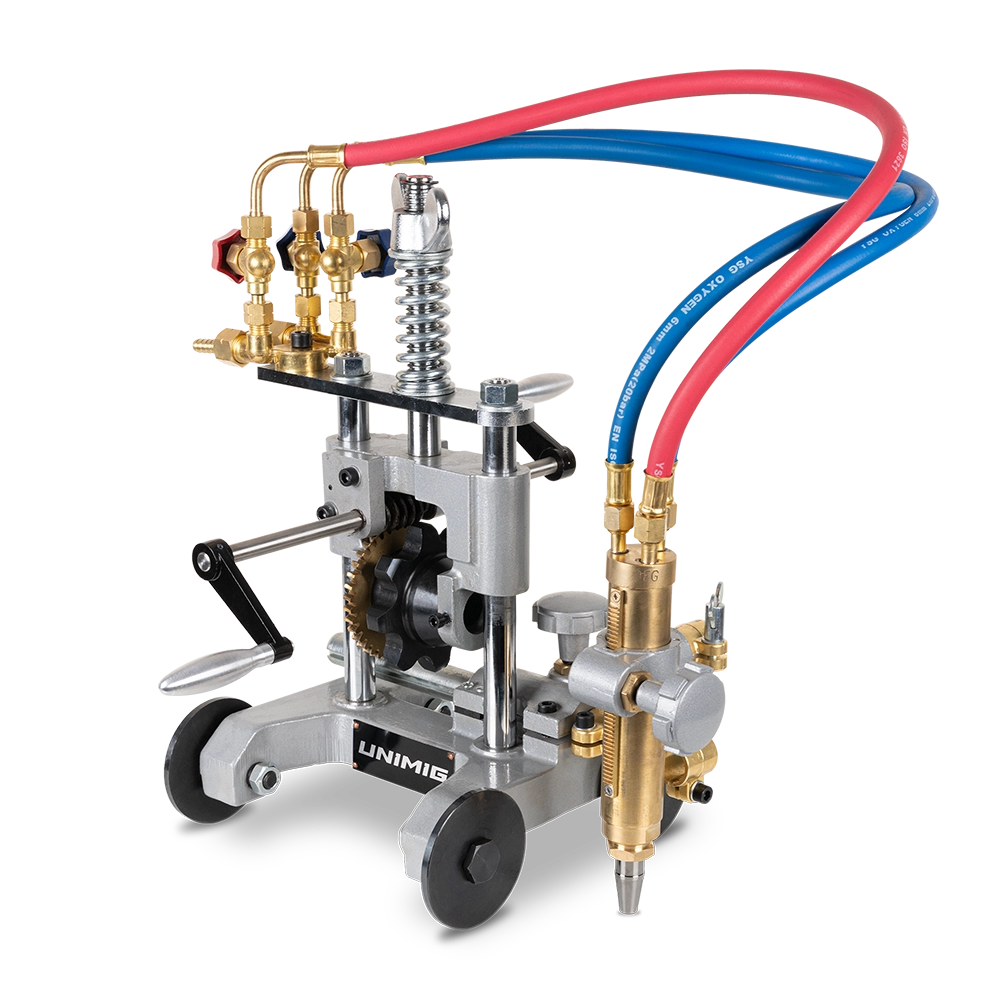

UNIMIG Pipe Gas Cutting Machine U11466

UNIMIG Pipe Gas Cutting Machine U11466

$799.00 AUD
$799.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11466

Available to order

UNIMIG Pipe Gas Cutting Machine U11466 is gas pipe cutting machine designed for portable oxy-fuel operation and precise pipe cutting that provides controlled travel with accurate bevel adjustment for clean, consistent results.

Key Features

  • steady, controlled movement is delivered by smooth Chain and Gear Drive operation, providing low Gear ratio travel for Precise cuts around the pipe.
  • Precise angle control is achieved through Accurate Graduated Bevel adjustment, allowing Consistent, repeatable Bevel settings.
  • Flexible sizing and Long term Durability come from Durable Interlocking Links, easily added or removed To suit different pipe diameters.

In the Box

  • Pipe Gas Cutting Machine
  • Cutting Torch with Rack Mount
  • Torch Holder
  • Torch Holder Connector
  • Gear Bar 200mm
  • Hose Set 600mm
  • Type 41 Acetylene High Speed Cutting Nozzle Size 8 (U11393)
  • Type 41 Acetylene High Speed Cutting Nozzle Size 12 (U11394)
  • Type 41 Acetylene High Speed Cutting Nozzle Size 15 (U11395)
  • Gas Distributor
  • Chain x 2.4m
  • Tool Kit (screw driver & flint lighter)
  • Power Lead
  • Operating Manual
SPECIFICATIONS
Primary Input Voltage 240V Single-Phase 50/60Hz
Drive System Manual
Warranty (Years) 1 Year
Dimensions (mm) 410x210x410mm
Wheel Width (mm) 210
Weight (kg) 8.5kg
Effective Pipe Cutting Diameter (mm) 108-600 (on 2.4m chain)
Pipe Material Thickness (mm) <50
Cutting Shape I-Shape Cutting, V-Bevel Cutting (up to 45°)
Range of Vertical Torch Movement (mm) 50
Range of Horizontal Torch Movement (mm) 100
Nozzle Type Type 41 (High-Speed)



SIZE & WEIGHT
Length (mm) 350
Width (mm) 140
Height (mm) 175
Weight (kg) 10



WARRANTY
Warranty 12 Months
