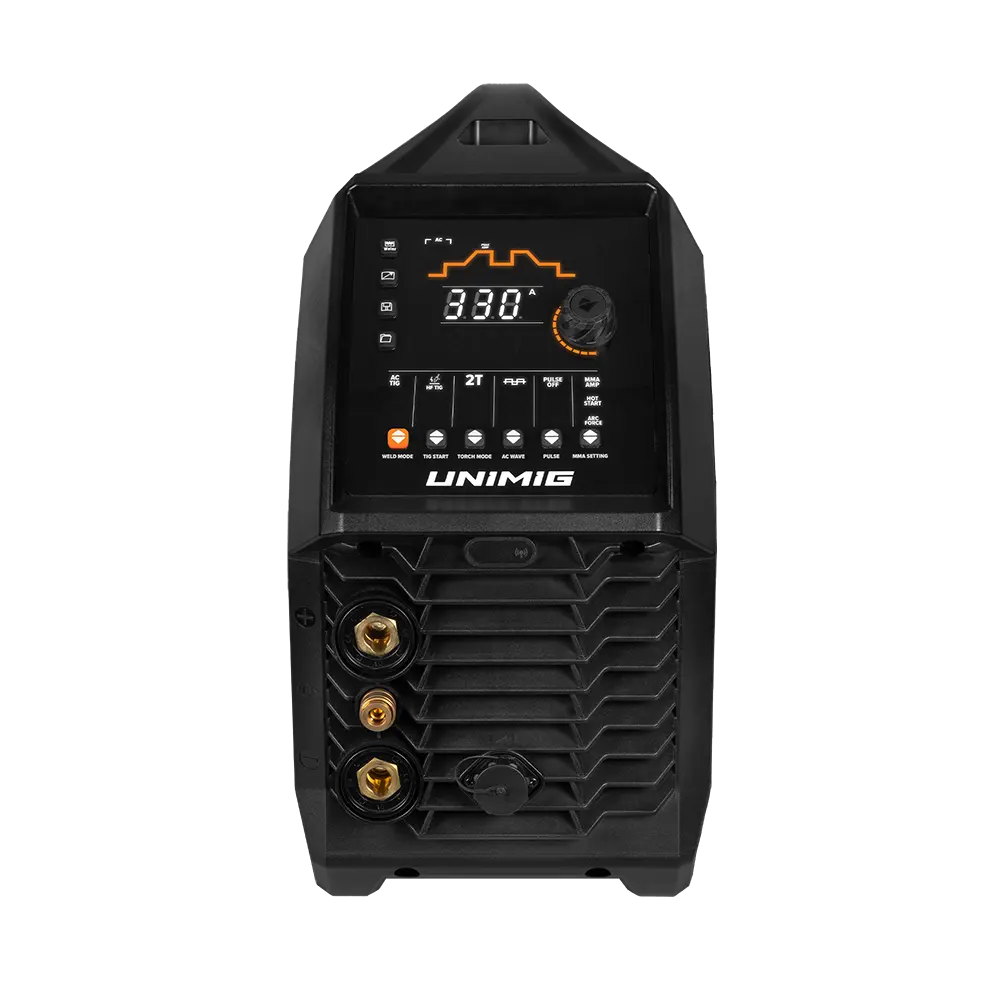

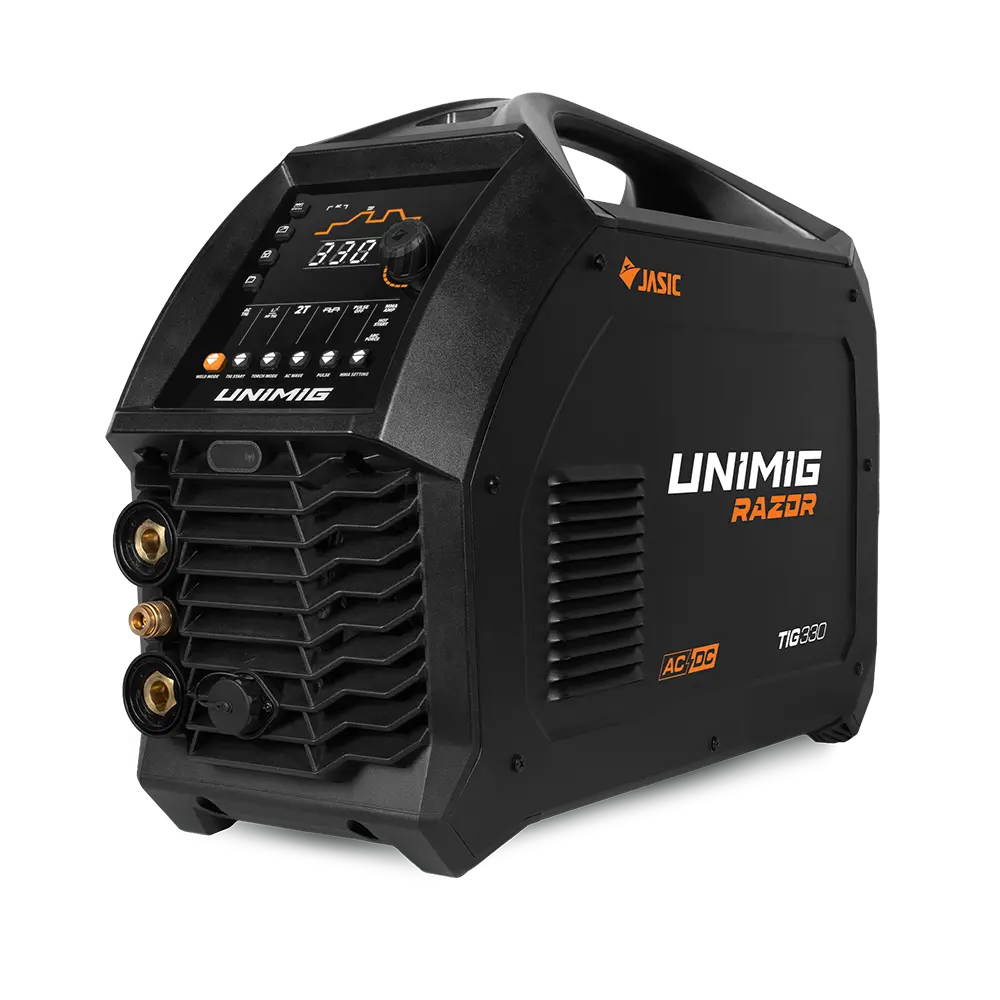

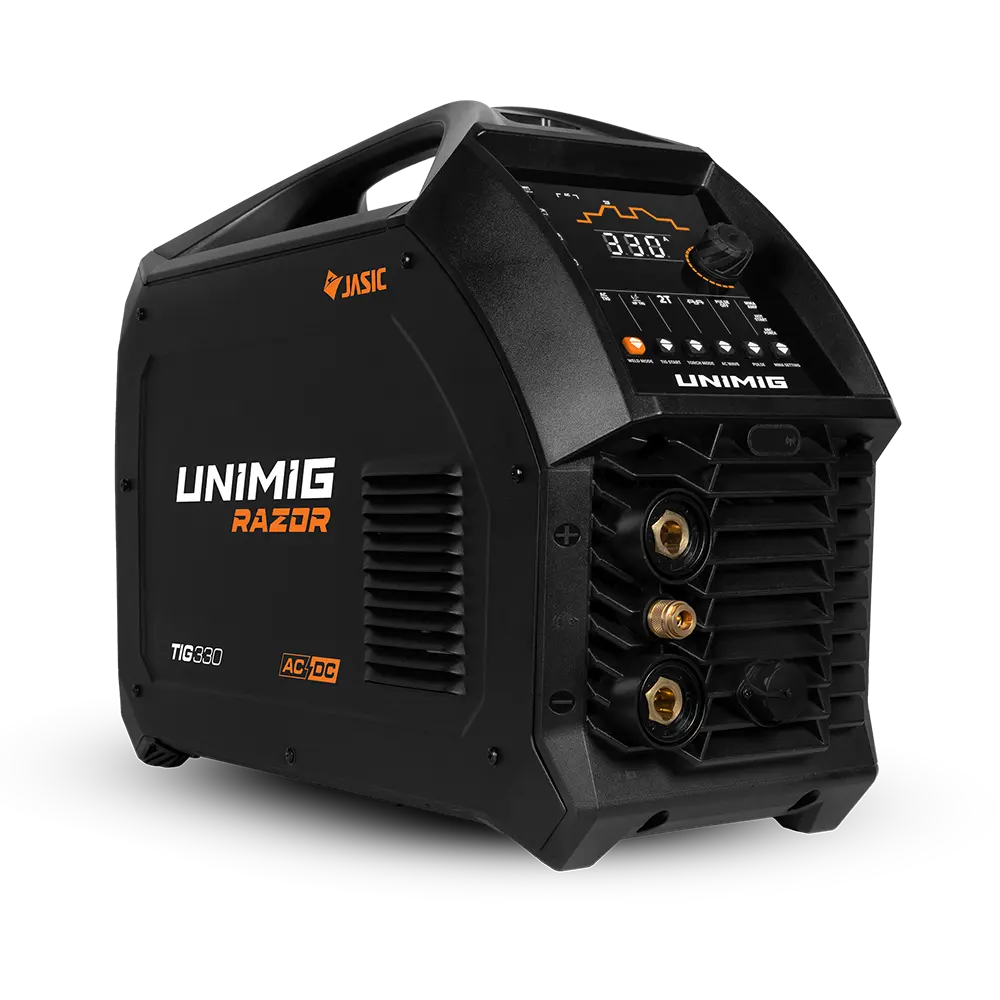

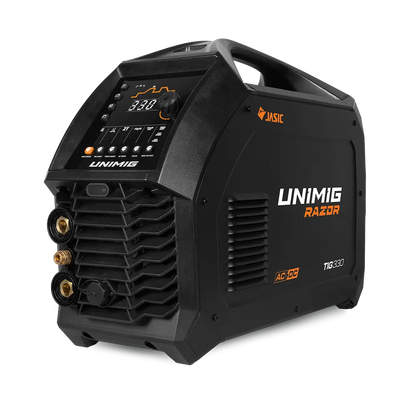

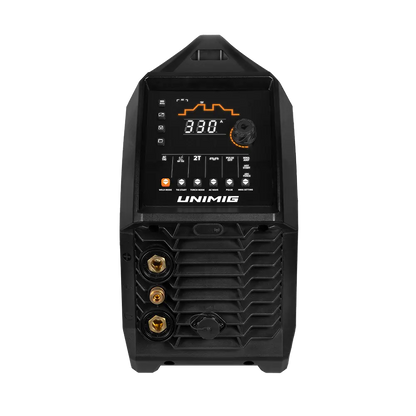

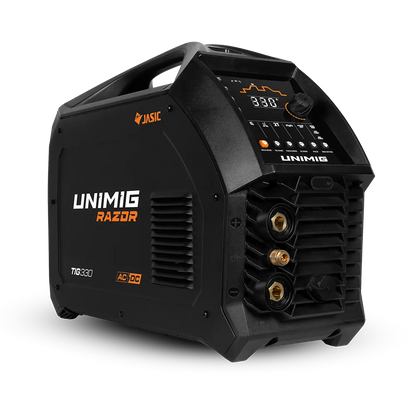

UNIMIG RAZOR TIG 330 AC/DC Welder U11021

UNIMIG RAZOR TIG 330 AC/DC Welder U11021

$3,499.00 AUD
$3,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11021

In stock
Get incredible results from start to finish with this professional-grade TIG welder, designed for high-end fabrication, and marine and industrial engineering situations.
  • Effortlessly weld any metal with the high-frequency AC/DC TIG
  • The ultimate combination of AC and DC  with mixed arc settings
  • Switch your AC welds to suit your needs with the choice of three waveforms
MACHINE SPECIFICATIONS
 Primary Input Voltage 415V Three Phase
Supply Plug Unplugged (32A recommended)
Ieff (A) 10.0
Imax (A) 17.6
Open Circuit Voltage (OCV) 71.0
Open Circuit Voltage with VRD Active (V) 9.5
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 20.00
Dinse Connector 35/50
Standard AS/NZ60974.1
Warranty 5 Years
Weight (kg) 23.80
Dimensions (LxWxH) 568 x 230 x 416mm
Suitable Material  TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron



TIG SPECIFICATIONS
 TIG Ignition Type AC/DC High-Frequency
AC/DC Lift Arc
TIG Current Range
 10-330A
TIG Duty Cycle @ 40 °c
 30% @ 330A
60% @ 233A
100% @ 181A
TIG Welding Thickness Range
 1-16mm



 MMA SPECIFICATIONS
MMA Current Range 10-270A
MMA Duty Cycle @ 40 °c

30% @ 270A
60% @ 190A
100% @ 148A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-16mm

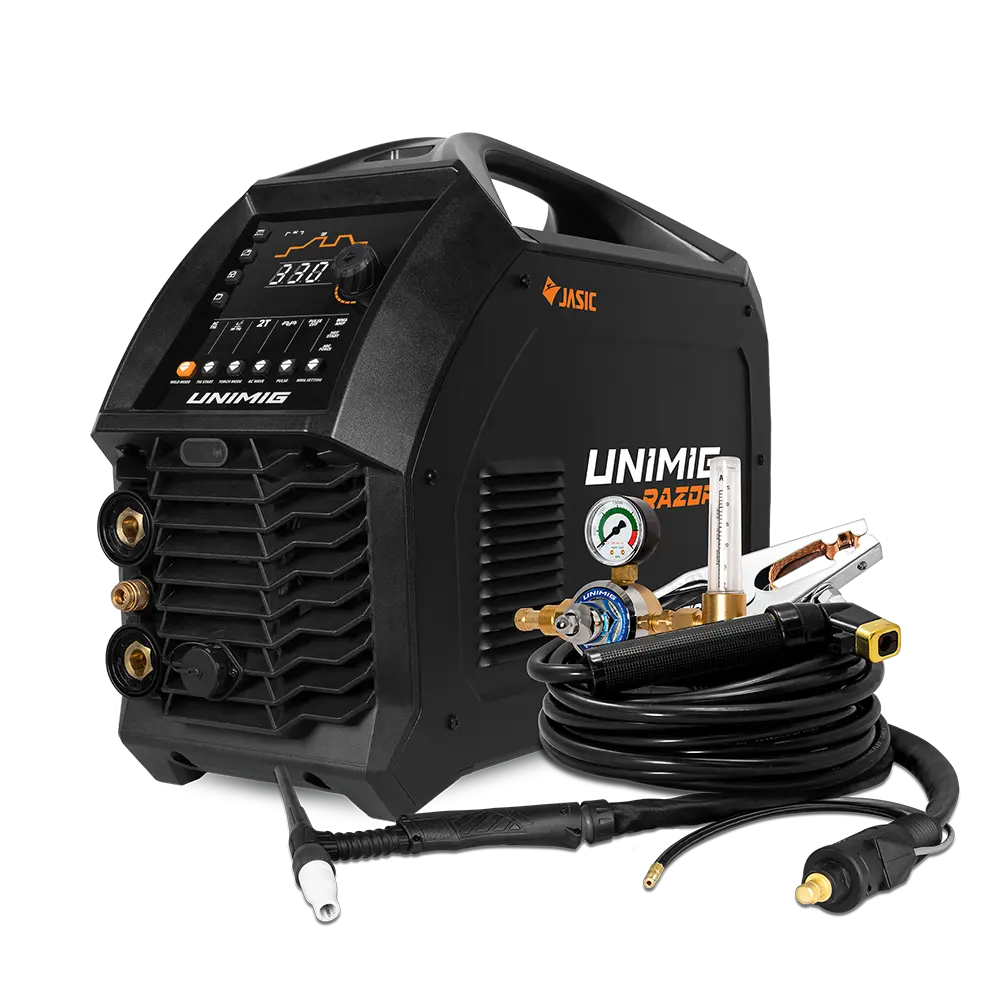

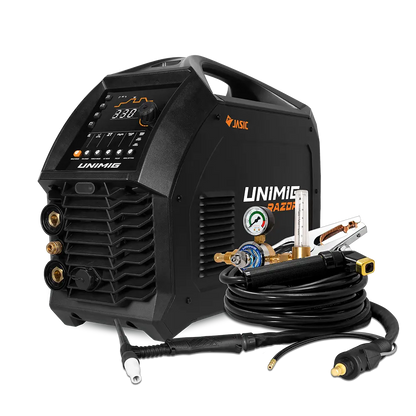

Package Contents (U11021):

  • RAZOR TIG 330 AC/DC Welder
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Argon Flowmeter Regulator
  • 2.5m Gas Hose with fittings
  • Operating Manual
