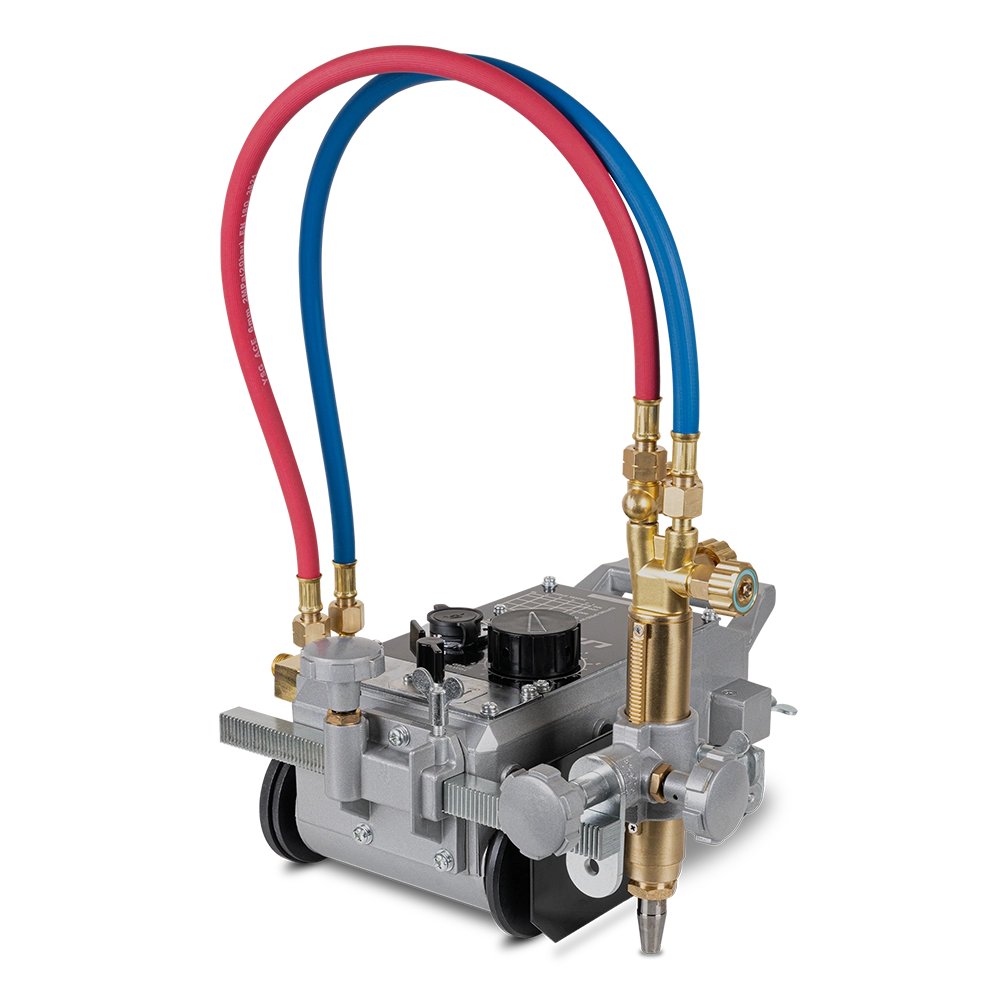

UNIMIG Single Gas Cutting Machine & Track U11464

UNIMIG Single Gas Cutting Machine & Track U11464

$699.00 AUD
$699.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11464

Available to order

UNIMIG Single Gas Cutting Machine & Track U11464 is high-performance straight line gas cutting machine that delivers fast, accurate cuts on steel plate and structural work where precision matters.

Key Features

  • Clean, repeatable results are achieved with Steel Plate Cutting Precision, ensuring straight, Accurate cuts on Plate and structural sections.
  • smooth travel and exact speed control come from the Stepless Variable speed control, allowing Precise adjustment for different Cutting conditions.
  • built for demanding environments, Industrial-Grade accuracy supports Consistent, High quality Performance on Heavy fabrication tasks.

In the Box

  • Straight Line Gas Cutting Machine
  • Cutting Torch with Rack Mount
  • Torch Holder
  • Gear Bar 260mm
  • Hose Set 600mm
  • Type 41 Acetylene High Speed Cutting Nozzle Size 8 (U11393)
  • Type 41 Acetylene High Speed Cutting Nozzle Size 12 (U11394)
  • Type 41 Acetylene High Speed Cutting Nozzle Size 15 (U11395)
  • Gas Distributor
  • Straight Line Track x 1.8m
  • Tool Kit (screw driver & flint lighter)
  • Power Lead
  • Operating Manual
SPECIFICATIONS
Primary Input Voltage 240V Single-Phase 50/60Hz
Supply Plug 10A
Motor (rpm) 1500-1800
Warranty (Years) 1 Year
Dimensions (mm) 350x140x175
Wheel Distance (mm) 260
Weight (kg) 9.5kg
Reduction Gear Single Cone System
Cutting Speed (mm/min) 150-800
Cutting Edge I-Shape Cutting, V-Bevel Cutting (up to 45°)
Cutting Thickness 5-75mm



SIZE & WEIGHT
Length (mm) 250
Width (mm) 250
Height (mm) 400
Weight (kg) 10.5



WARRANTY
Warranty 12 Months
