Take a closer look
Product information
Details

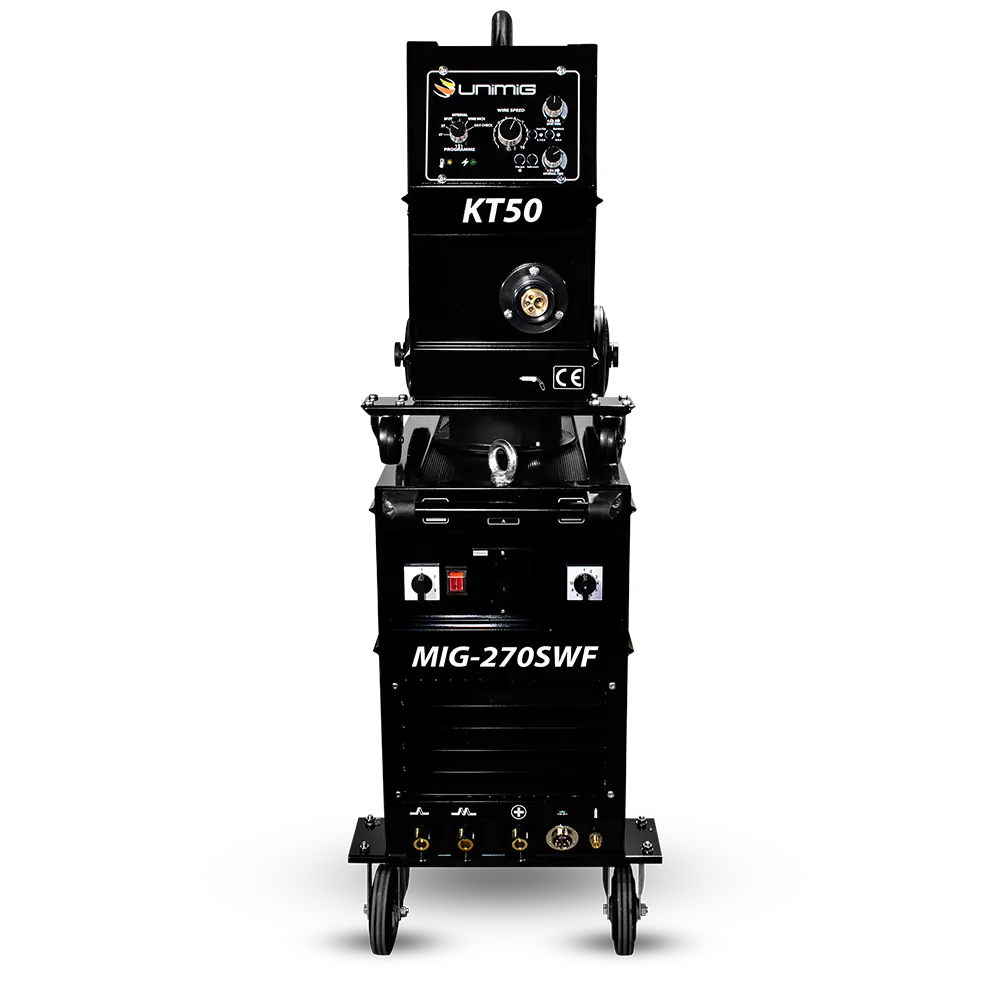

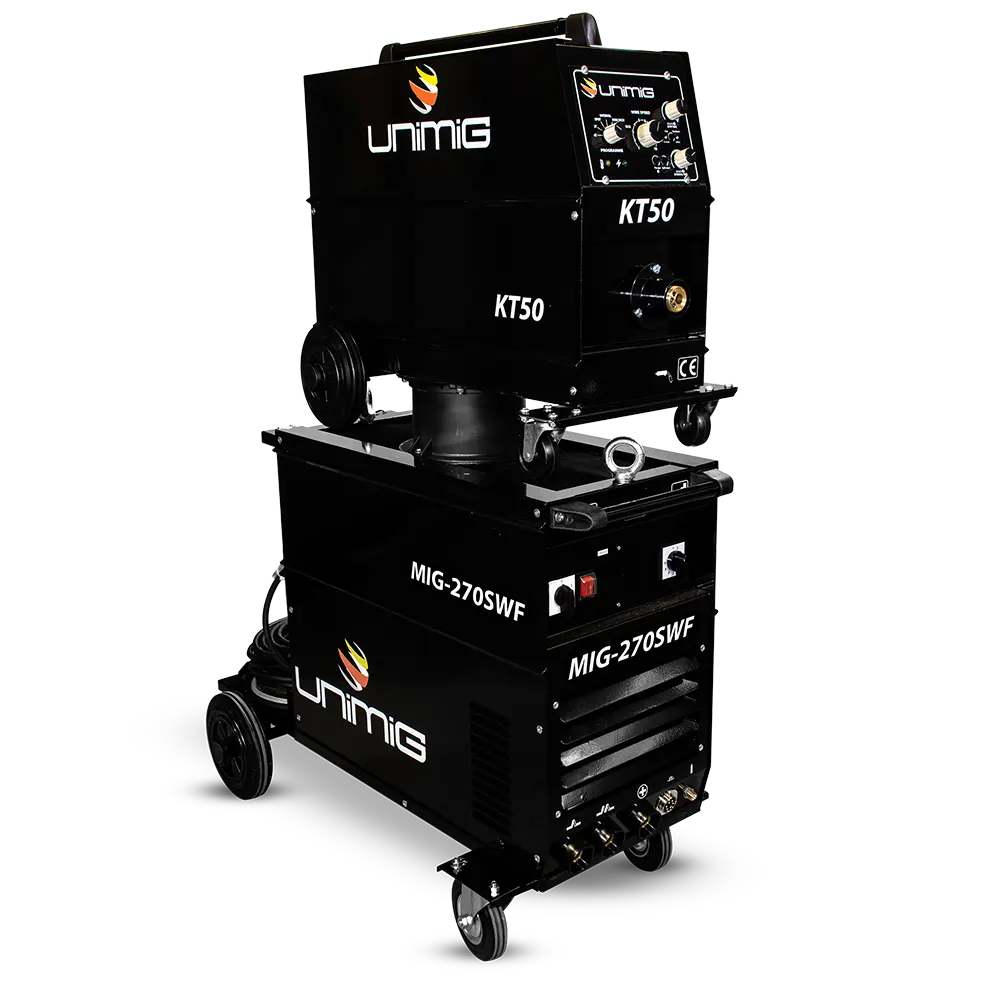

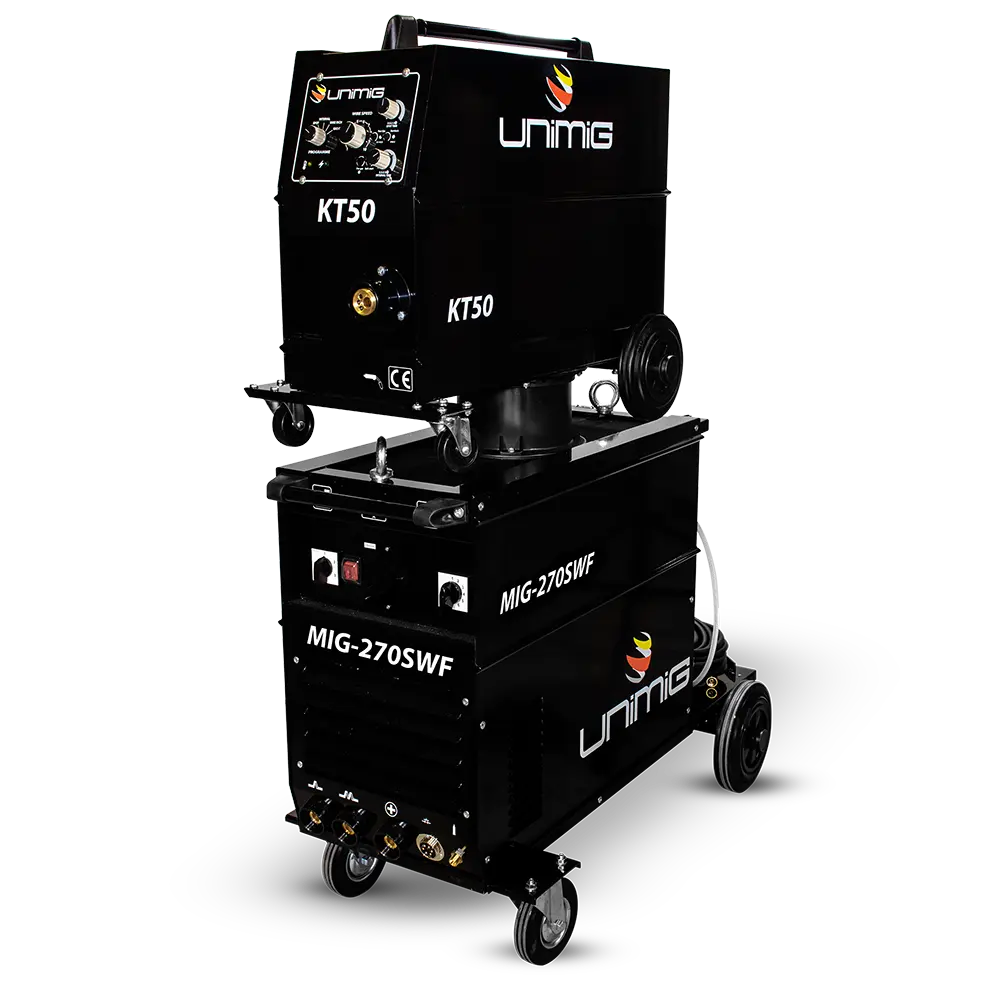

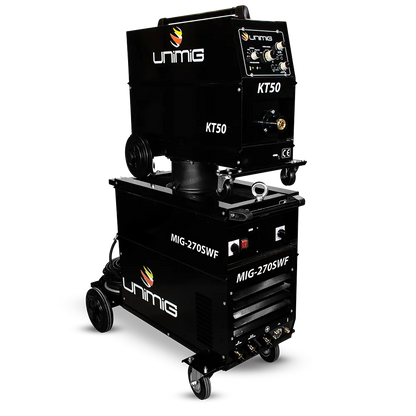

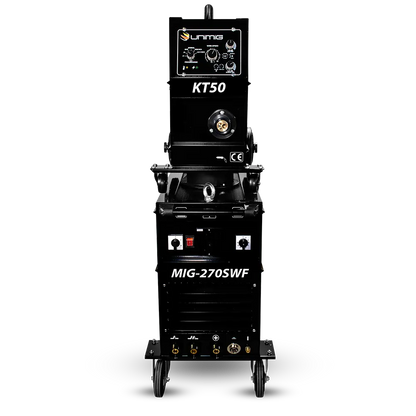

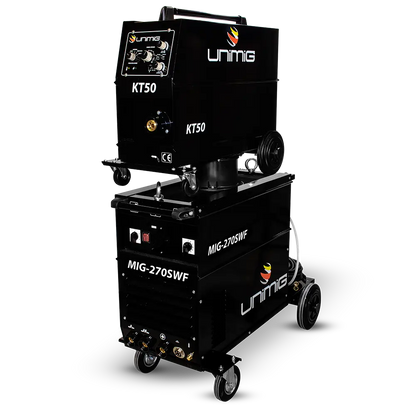

The UNIMIG Workshop 270 SWF is a heavy-duty industrial MIG welding system designed for fabrication shops, workshops and production environments. Featuring a separate wire feeder, robust 250A output, and a 40/32 geared drive system, it delivers stable arc performance across mild steel, stainless and aluminium.
Key Features
- SWF (Separate Wire Feeder): Allows optimal machine placement and reduces lead drag in workshop environments.
- Industrial 250A Output: Reliable performance for continuous fabrication and thick-section welding.
- 40/32 Geared Drive: Smooth, consistent wire feeding for solid and flux-cored wires.
- Wide Material Capability: Welds mild steel, stainless, aluminium and silicon bronze.
- Simple, Robust Controls: Designed for shop floor reliability and ease of use.
In the Box
- Workshop 270 SWF Welder
- Separate Wire Feeder
- 3m MIG Torch
- 3m Earth Clamp & Lead
- 3m Electrode Holder
- Gas Hose
- Operating Manual
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 240 V, single-phase |
| Supply plug | Not fitted |
| Recommended supply plug | 32 A, single-phase |
| Ieff (A) | 39.0 |
| Protection class | IP21 |
| Insulation class | F |
| Minimum generator (kVA) | 13.0 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 3 |
| Weight (kg) | 139 |
| Dimensions (mm) | 980 × 660 × 460 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze |
| MIG SPECIFICATIONS | |
| MIG welding current range | 30–250 A |
| MIG duty cycle at 40°C | 70% at 250 A, 100% at 200 A |
| MIG wire size range | 0.6–1.2 mm |
| MIG wire spool size | 5kg (D200); 15kg (D300) |
| MIG welding thickness range | 1–16 mm |
| Drive Roller Size | 40/32 |
