Asada Pipe & Bolt Threading Machines

Asada Pipe & Bolt Threading Machines

  • Special Order Item
$3,653.10 AUD
$0.00 AUD $3,653.10 AUD
Sale Sold out
Shipping calculated at checkout.
Model

B25-AT
  • Threading Machines designed to give accurate threads for most pipe and bolt (rod) applications
  • BSPT, NPT, BSW, UNC, UNF, Conduit and Metric threads possible in such materials as stainless, high tensile, galvanised and mild steels
  • Footswitch included on B50, B80, & B100 machines for safety

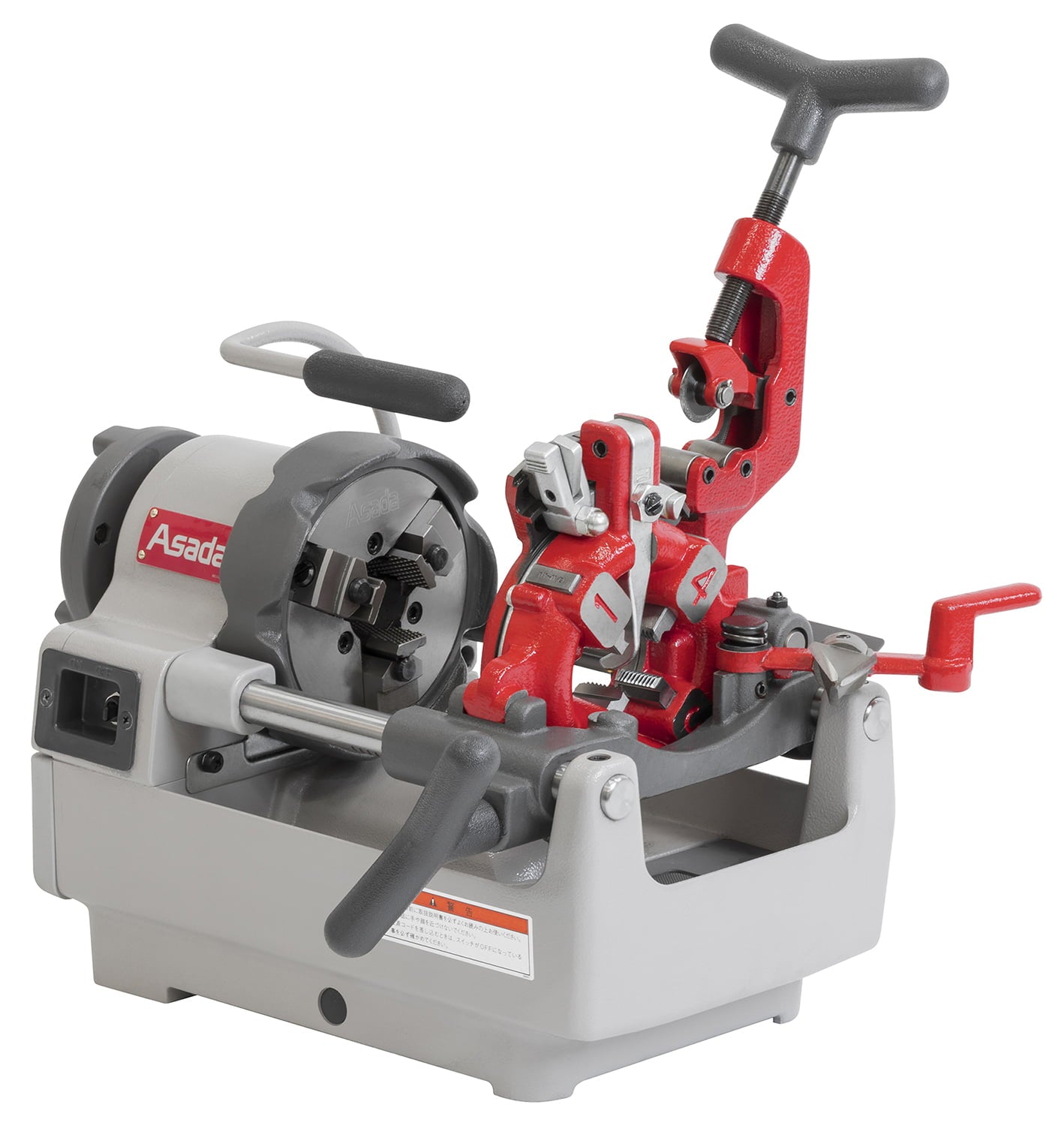

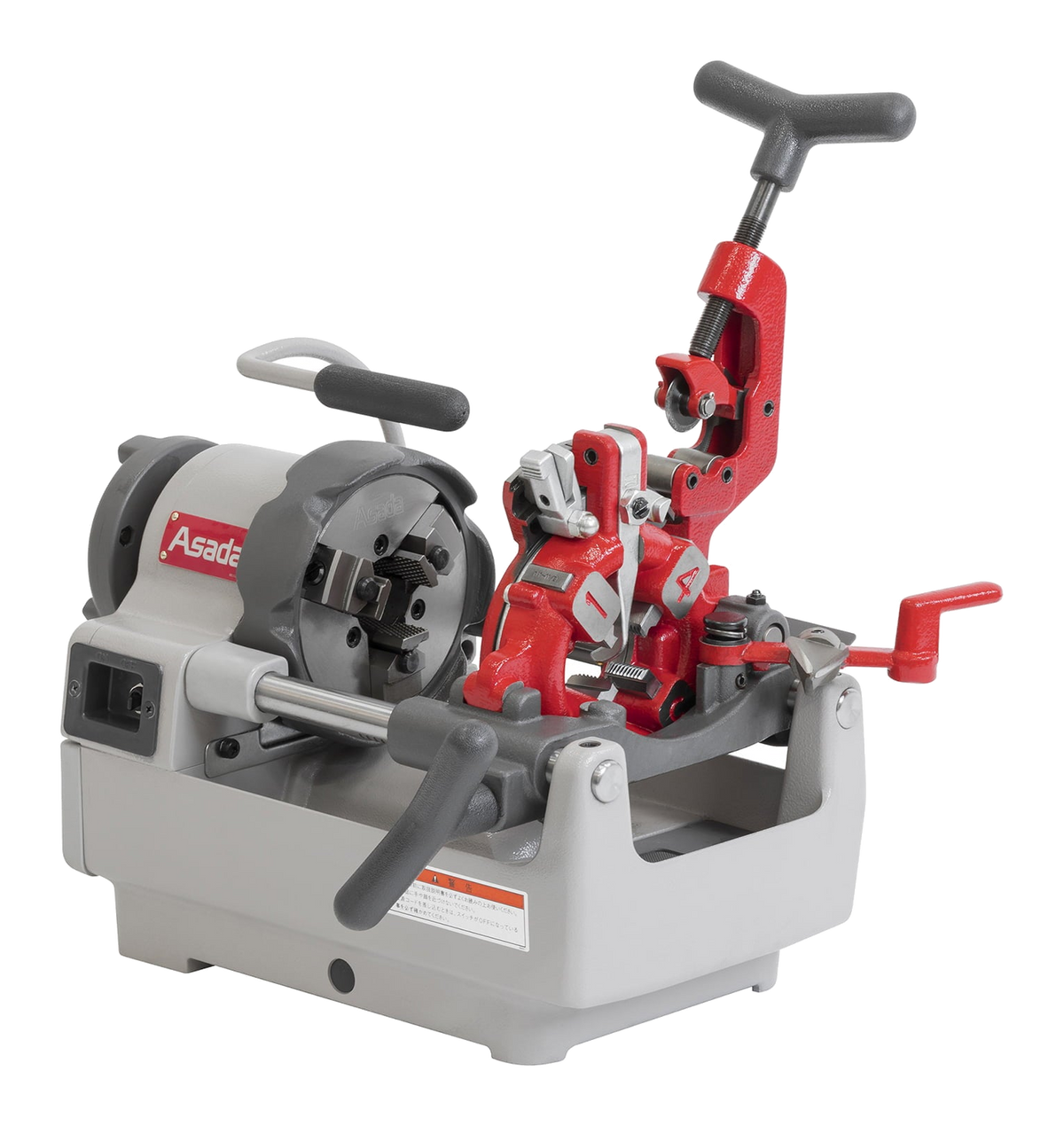

Model: B25-AT (Automatic)
Model: B50 (Manual)

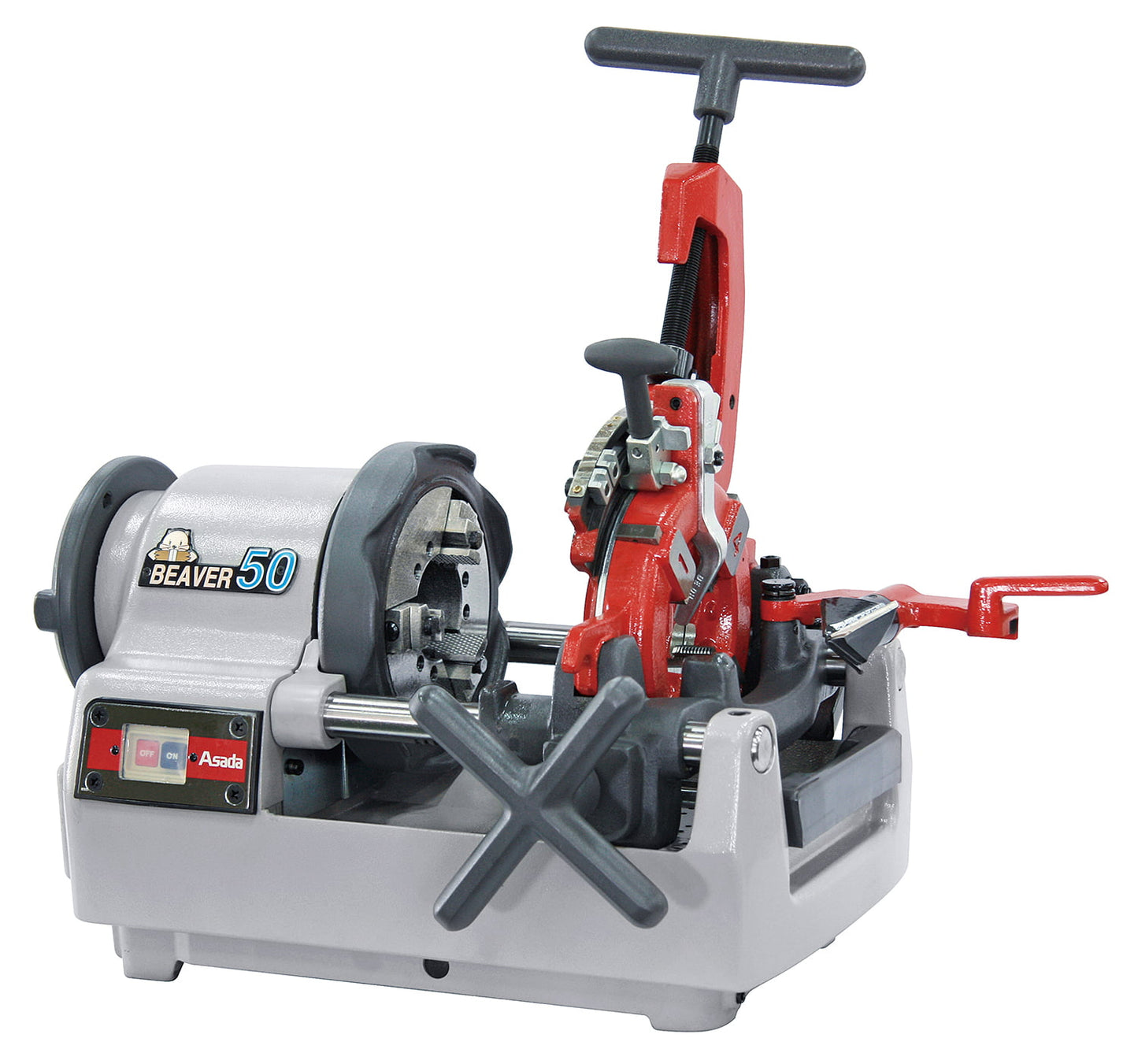

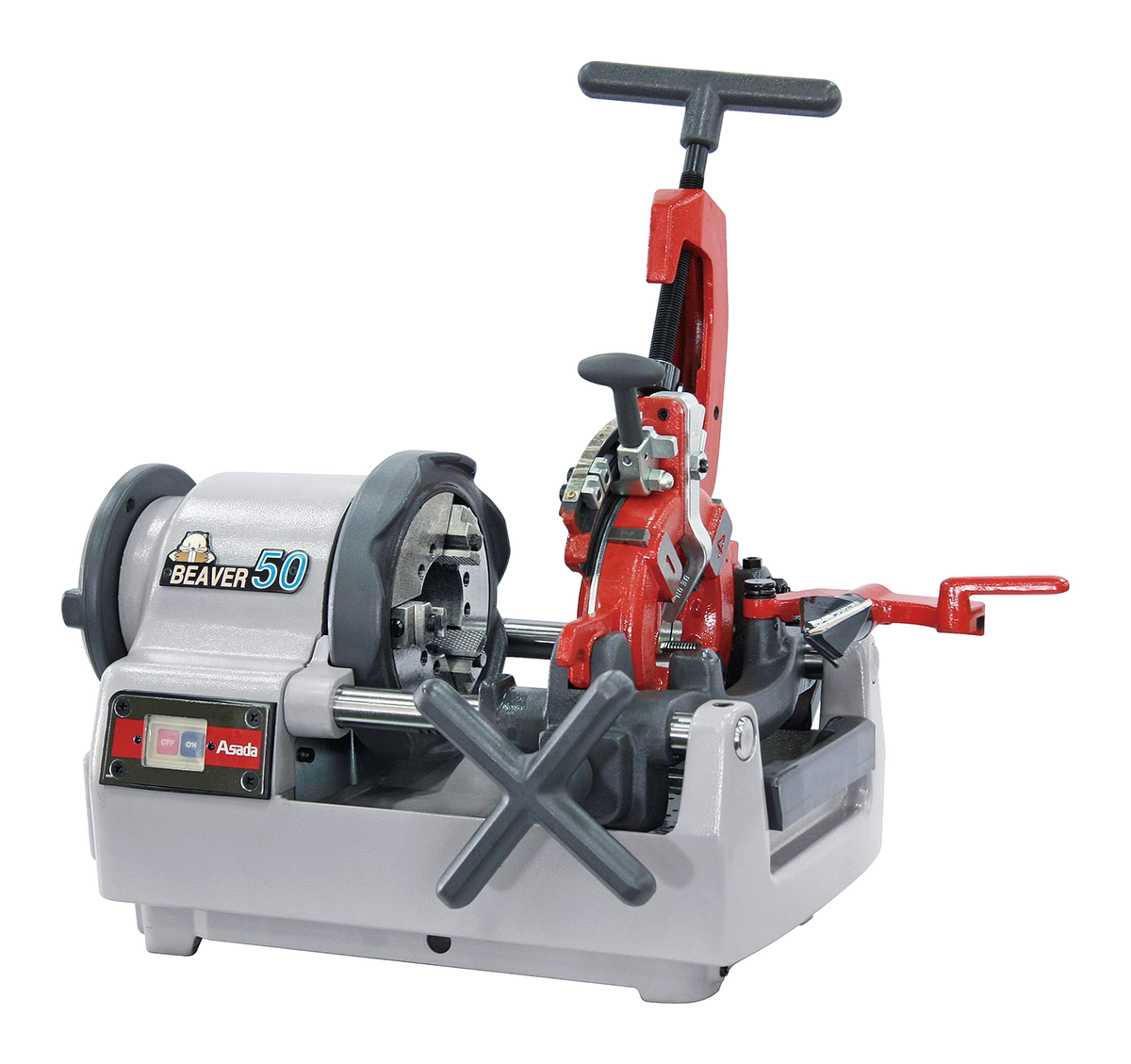

Model: B50-AT (Automatic)

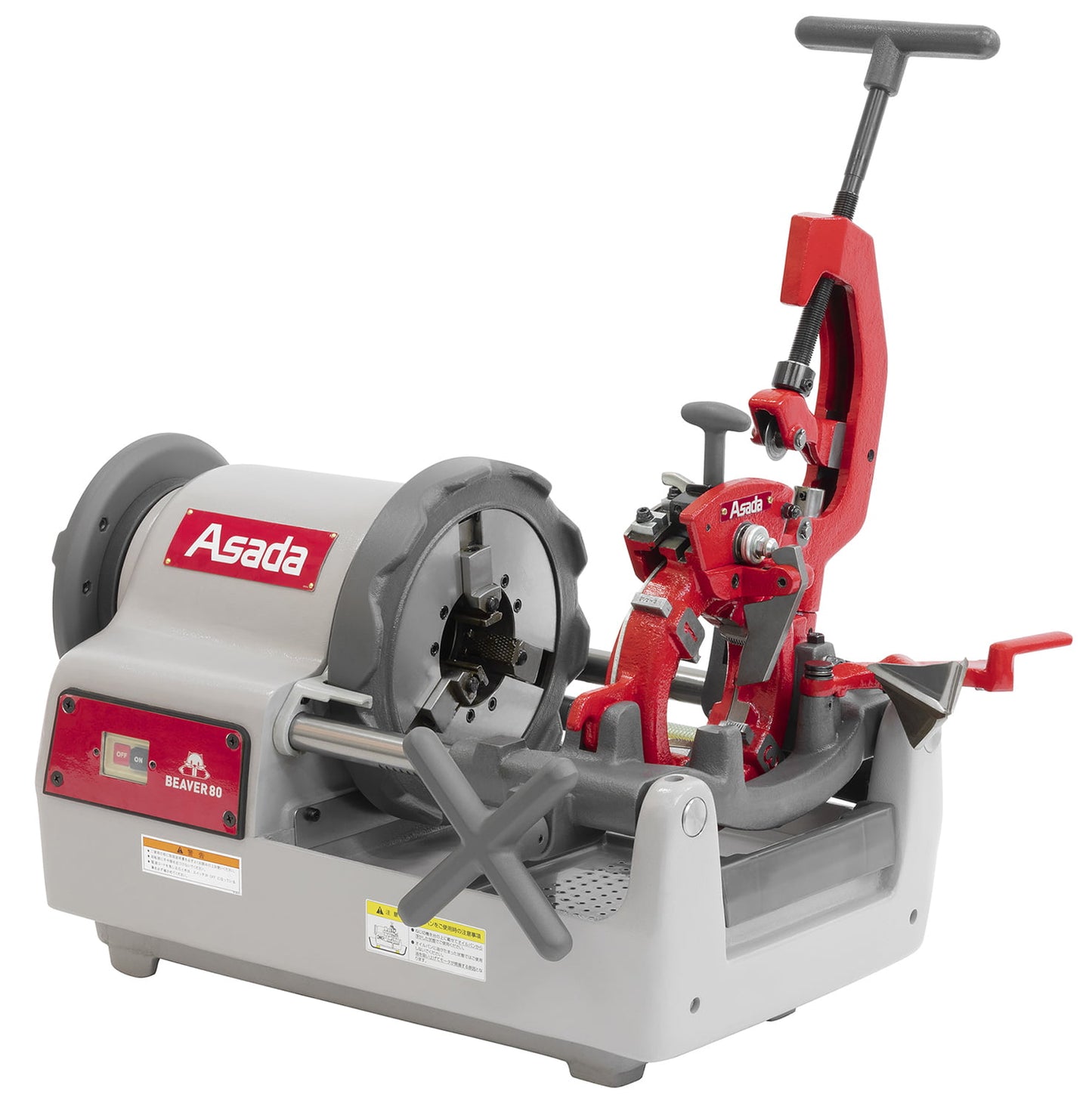

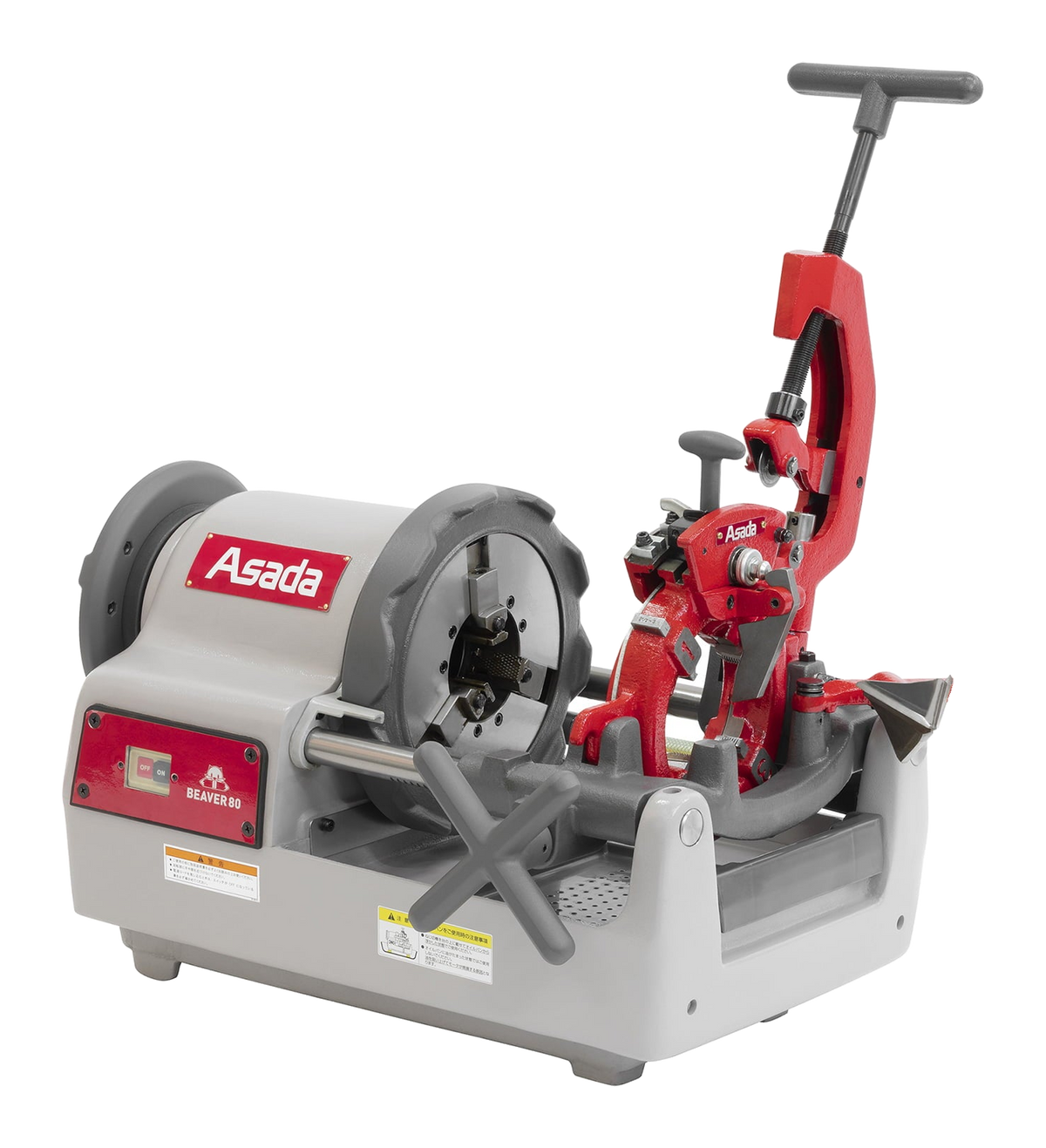

Model: B80-AT (Automatic)

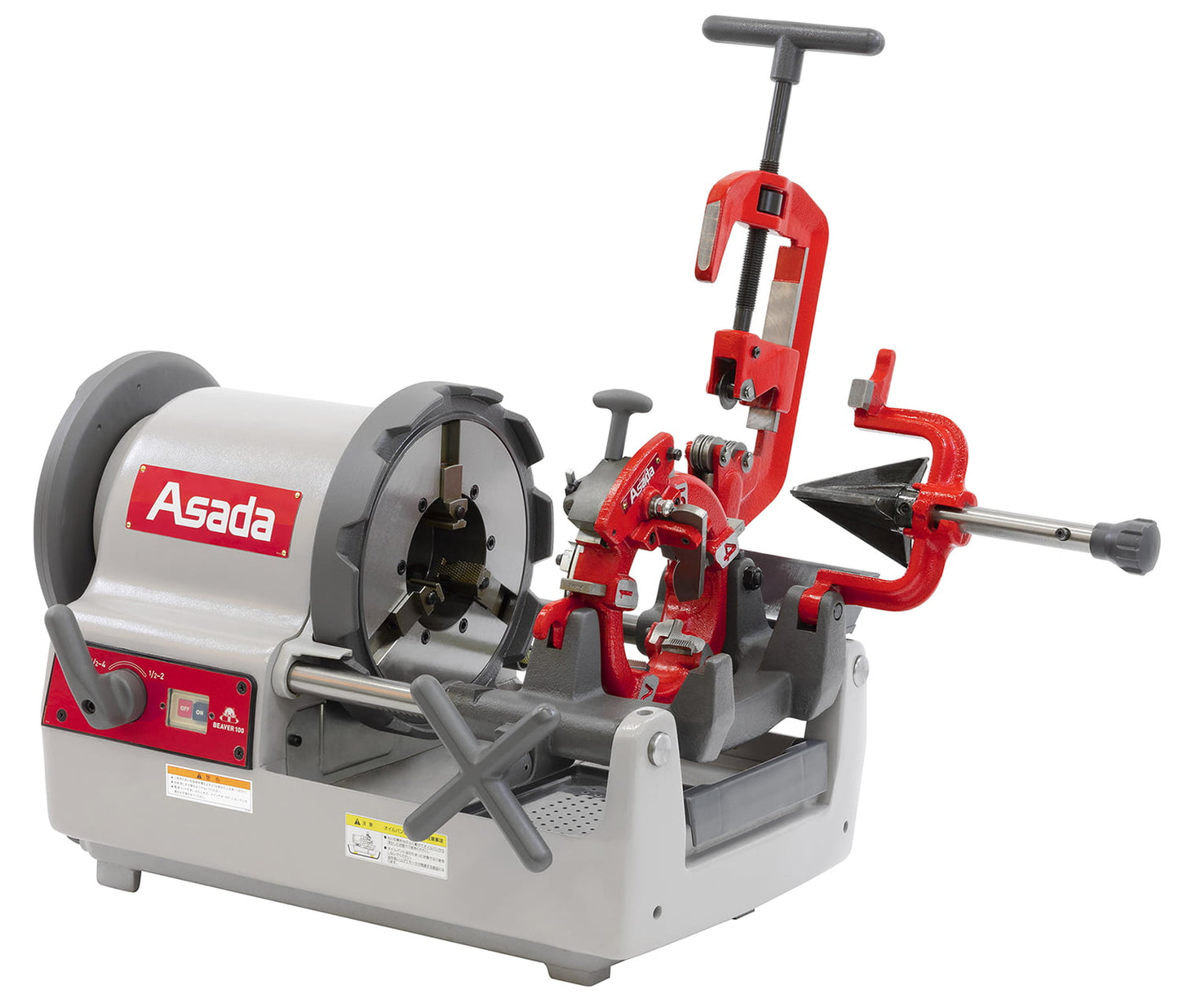

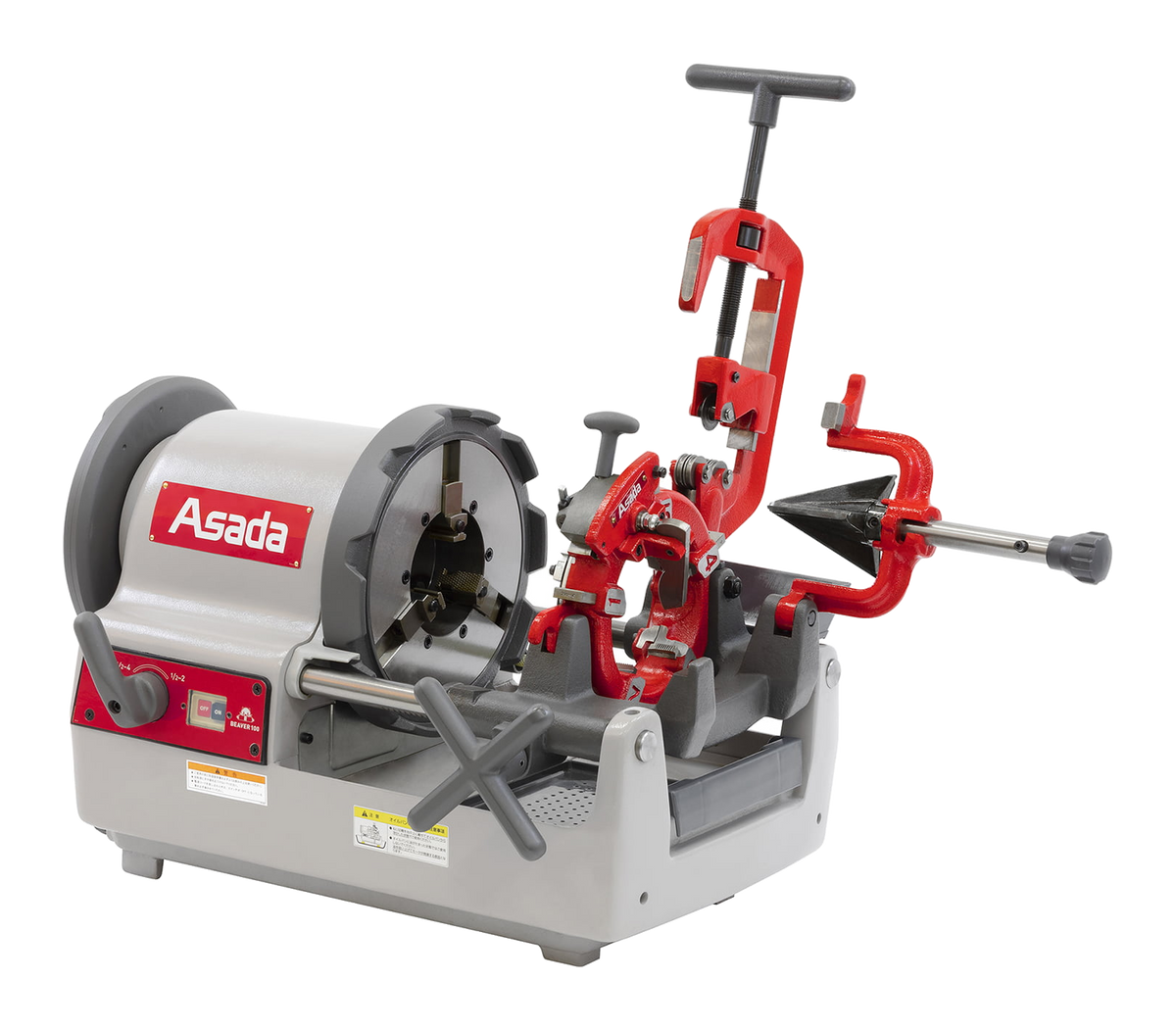

Model: B100-AT (Automatic)

 Model Threading Capacity Motor  Spindle Speed
Beaver 25
(Auto)
Dies		 1/4 - 1” BSPT or NPT Pipe
Automatic Die-Head version
AM 1/2~3/4”, AM 1~11/2”		 Universal Single
Phase 350W		 52rpm (No load)
Beaver 50
(Manual)
Dies		 1/4 - 2” BSPT or NPT Pipe
Manual Die-Head version
BE 1/2~3/4” • BE 1~11/2” (2”)		 Universal Single
Phase 750W		 40rpm (No load)
Beaver 50
(Auto)
Dies		 1/4” - 2” BSPT or NPT Pipe
Automatic Die-Head version
BE 1/2~3/4” • BE 1~11/2” (2”)		 Universal Single
Phase 750W		 40rpm (No load)
Beaver 80
(Auto)
Dies		 1/4” - 3” BSPT or NPT Pipe
Automatic Die-Head version
BE 1/2~3/4” • BE 1~11/2” (2”), AT 21/2~3”		 Universal Single
Phase 1140W		 33rpm (No load)
Beaver 100
(Auto)
Dies		 1/4” - 4” BSPT or NPT Pipe
Automatic Die-Head version
BE 1/2~3/4” • BE 1~11/2” (2”), AT 21/2~4”		 Universal Single
Phase 1140W		 48 / 18rpm
(2 Speed)

 Note: all machines supplied as standard with all dies & dieheads from
1/2” BSPT up to capacity, cutter, reamer, threading oil and tubular legs.

Dieheads and dies for 1/4” - 3/8” BSPT, NPT, Conduit and all bolt sizes are
available as optional extras.
