Product information
Details

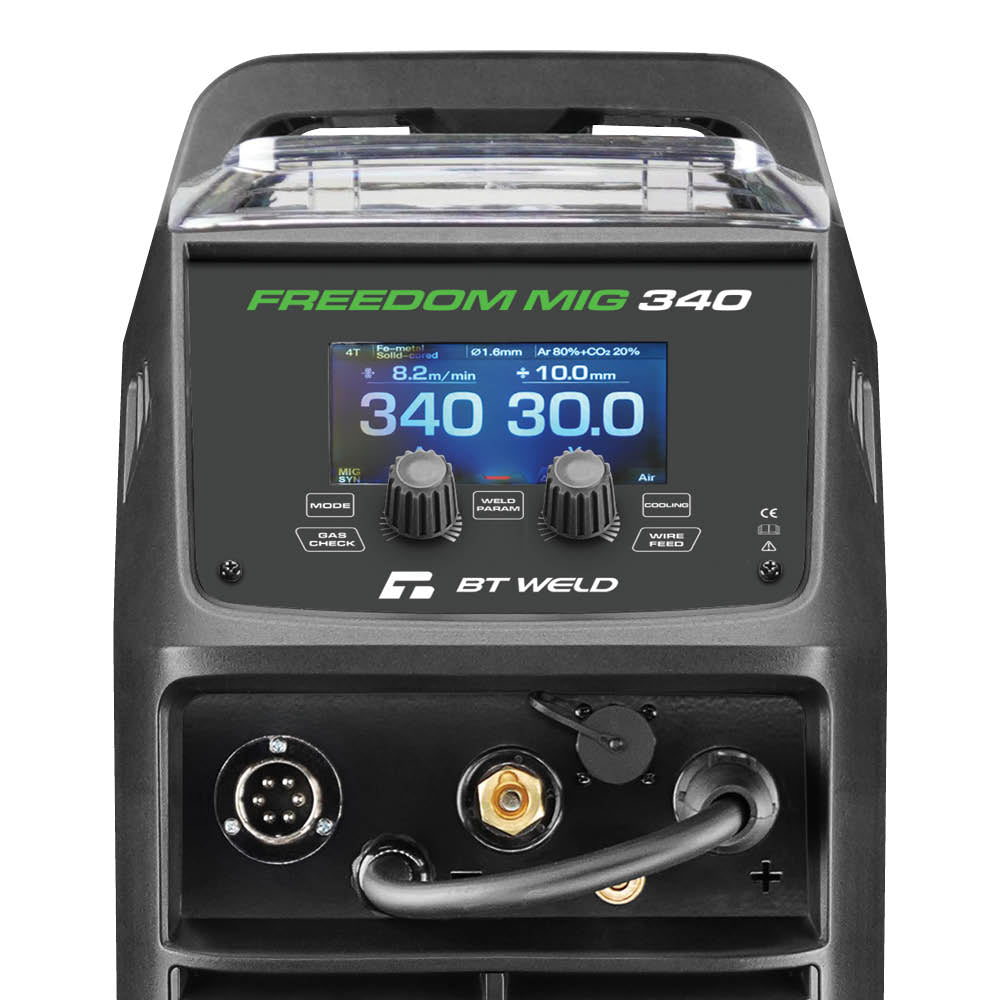

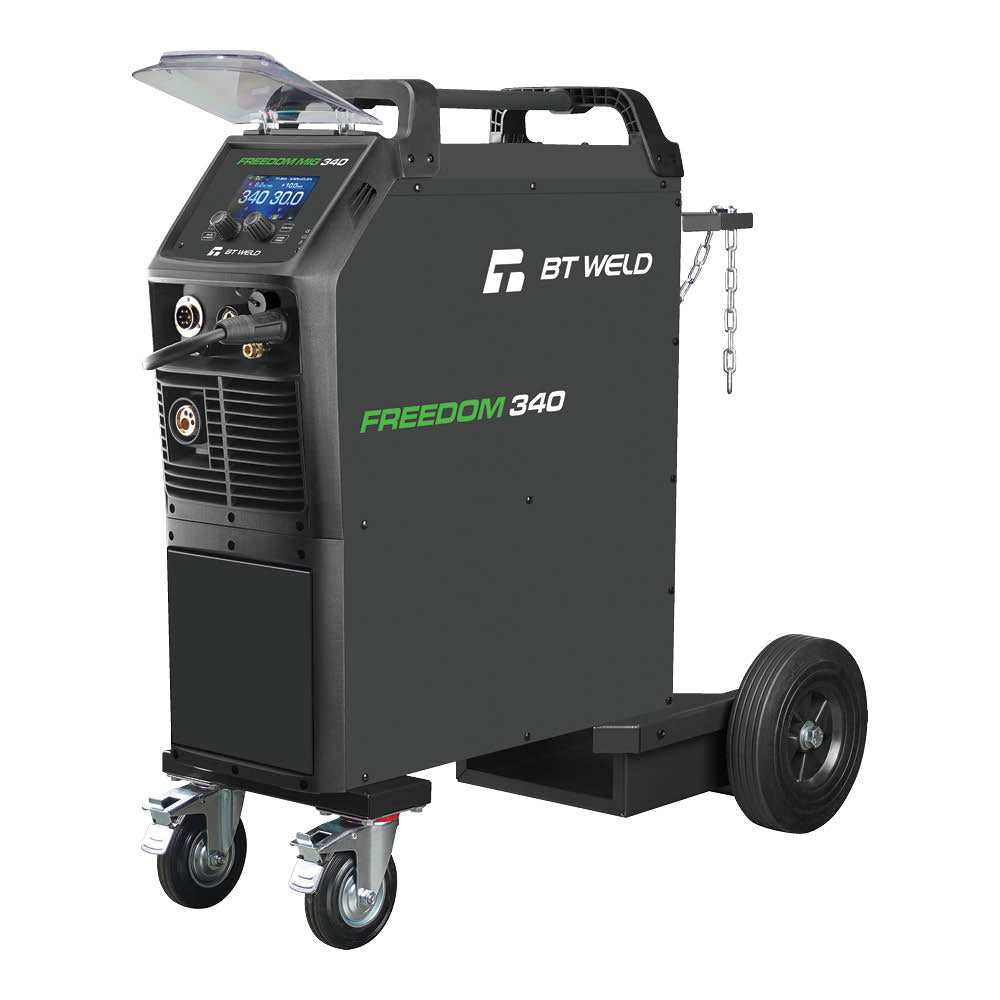

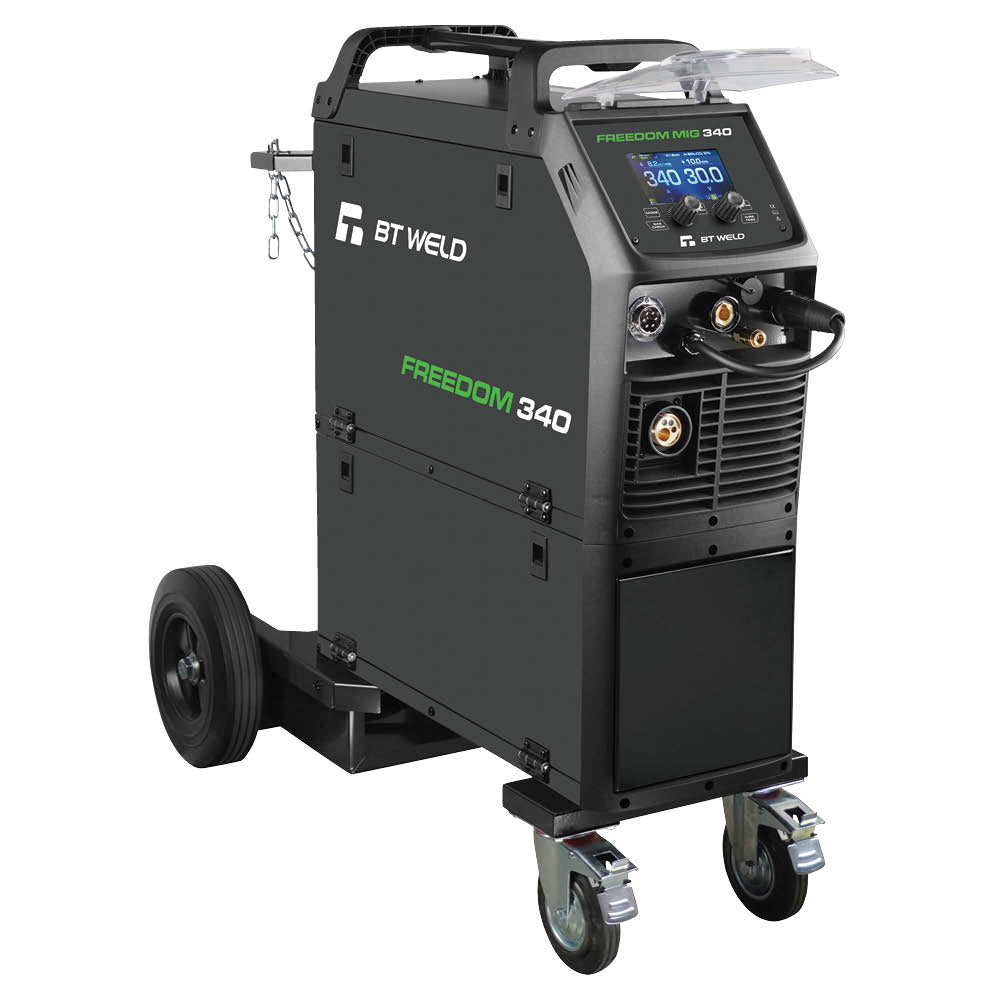

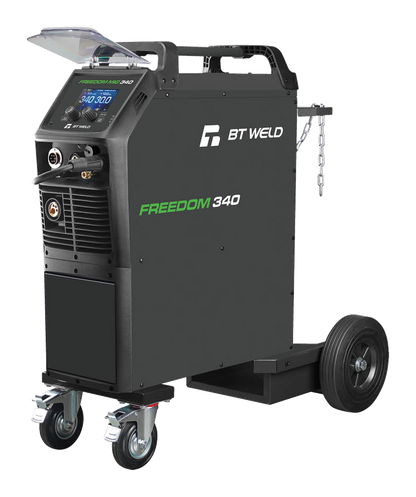

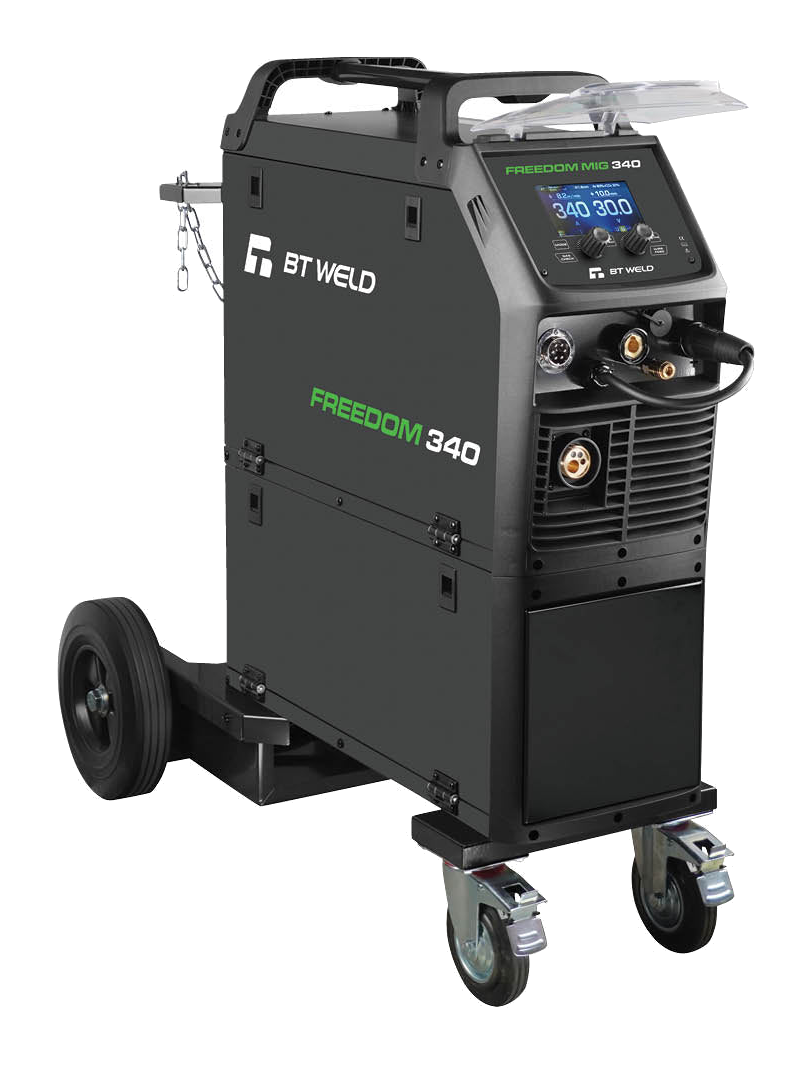

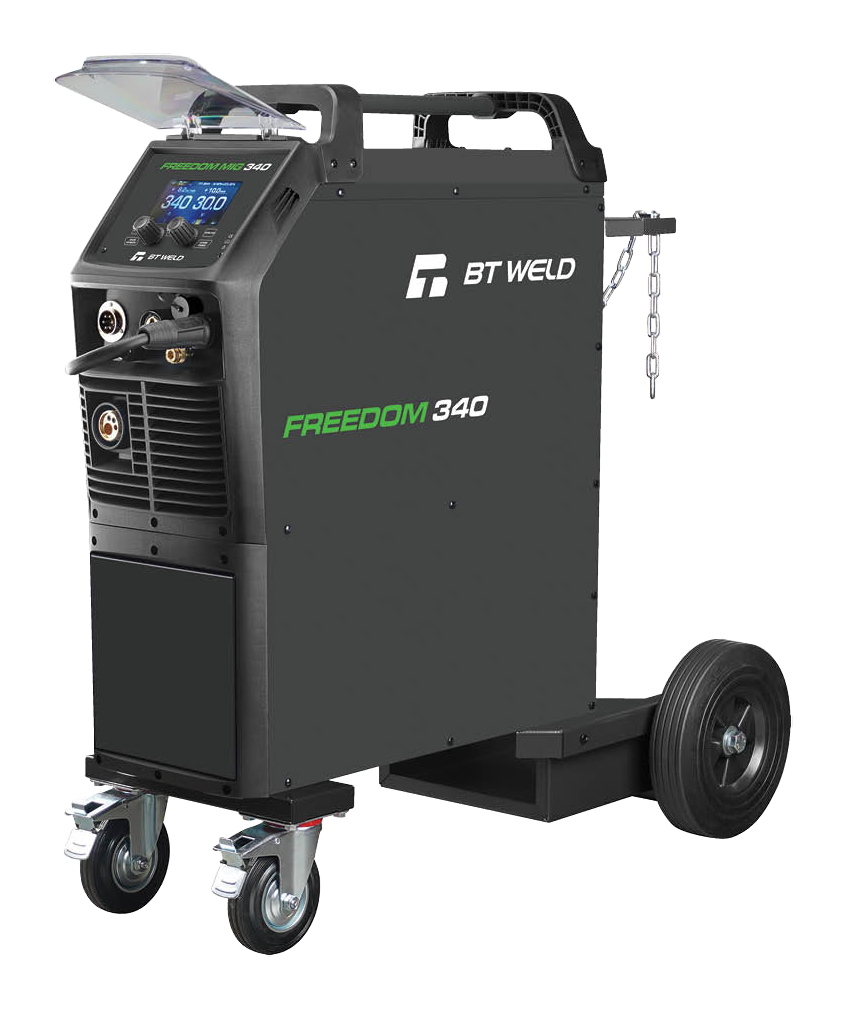

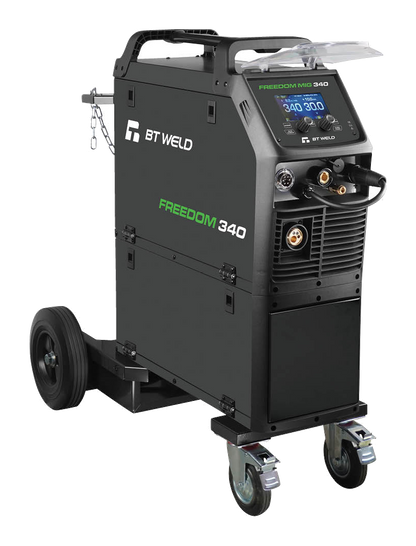

BT Weld FREEDOM 340 COMPACT 415V is a 415 V multi-process inverter welder for synergic or manual MIG, MMA and DC Lift-TIG work in industrial fabrication and workshop environments.
Key Features
- Synergic and manual MIG gas and gasless welding
- MMA (stick) and DC Lift-TIG capability
- Up to 315 A output
- 40% duty cycle
- 5-inch colour LCD
- 2T, 4T and spot welding modes
- Supplied with a 4-wheel trolley for workshop mobility
In the Box
- 4-wheel trolley
| WELDING | |
| Processes | MIG gas/gasless, MMA (stick), DC Lift-TIG |
| Maximum output | 315 A |
| Duty cycle | 40% |
| POWER AND CONTROL | |
| Primary input voltage | 415 V, three-phase |
| Display | 5-inch colour LCD |
| Control modes | Synergic and manual |
| Operating modes | 2T, 4T, spot |
| Stick Specifications | |
| Stick maximum material thickness | Mild steel / stainless steel: up to 16 mm |
| Stick maximum input current I1max (A) | 18.1 |
| Stick effective input current I1eff (A) | 11.4 |
| TIG Specifications | |
| TIG maximum material thickness | Mild steel / stainless steel: up to 8 mm |
| TIG maximum input current I1max (A) | 18 |
| TIG effective input current I1eff (A) | 11.4 |
| MIG Specifications | |
| MIG maximum material thickness | Mild steel: up to 12 mm; stainless steel: up to 10 mm; aluminium: up to 8 mm |
| MIG maximum input current I1max (A) | 22.3 |
| MIG effective input current I1eff (A) | 14.1 |
| Machine Specifications | |
| Input frequency (Hz) | 50/60 |
| Input voltage tolerance | ±15% |
| Supply plug | Not supplied |
| Plug installation | Electrician required |
| Recommended supply plug | 20 A, three-phase |
| Warranty (years) | 5 |
| Power factor | 0.66 |
| Efficiency (%) | 85.8 |
| Size and Weight | |
| Weight (kg) | 64.5 |
| Packaged weight (kg) | 70 |
| Dimensions (mm) | 940 × 460 × 930 |
Machine specifications
| MIG wire spool size | 5kg (D200); 15kg (D300) |
|---|
