BT WELD FREEDOM 340 WF
BT WELD FREEDOM 340 WF
GST included. Shipping calculated at checkout.
SKU: 659343
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

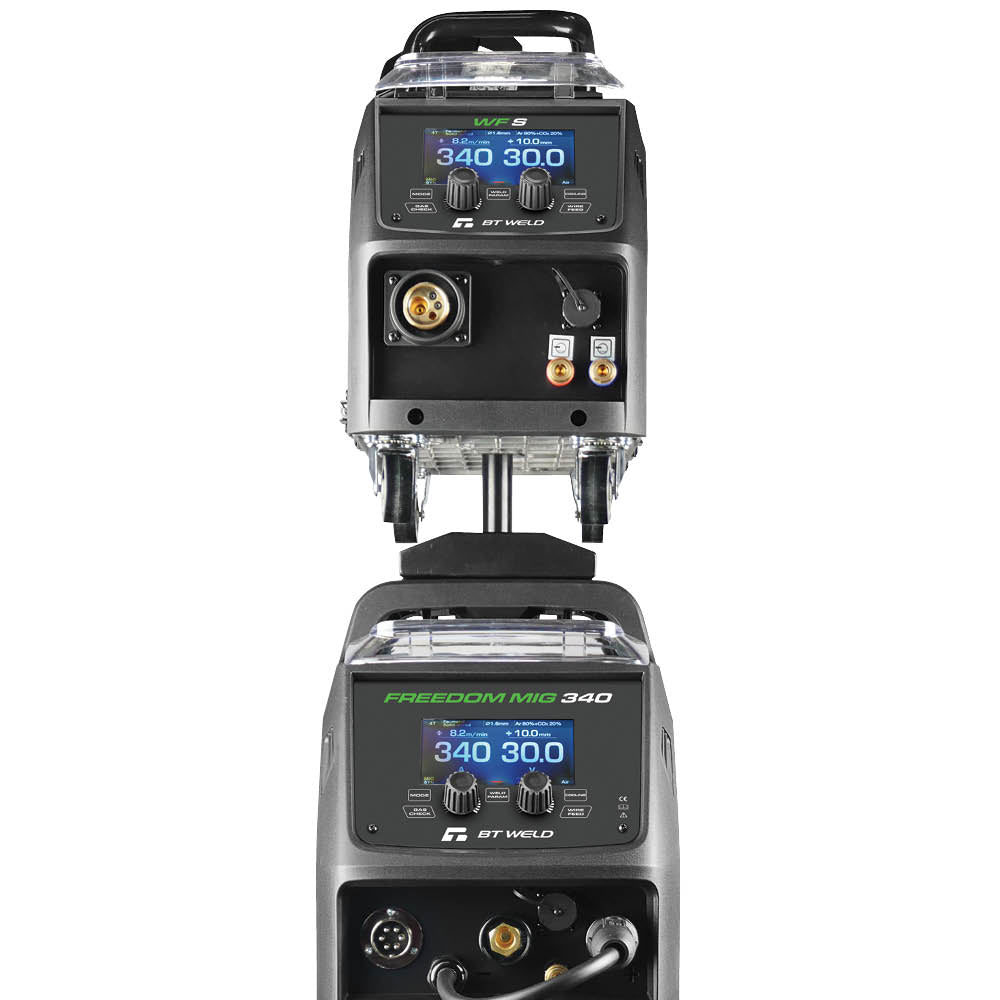

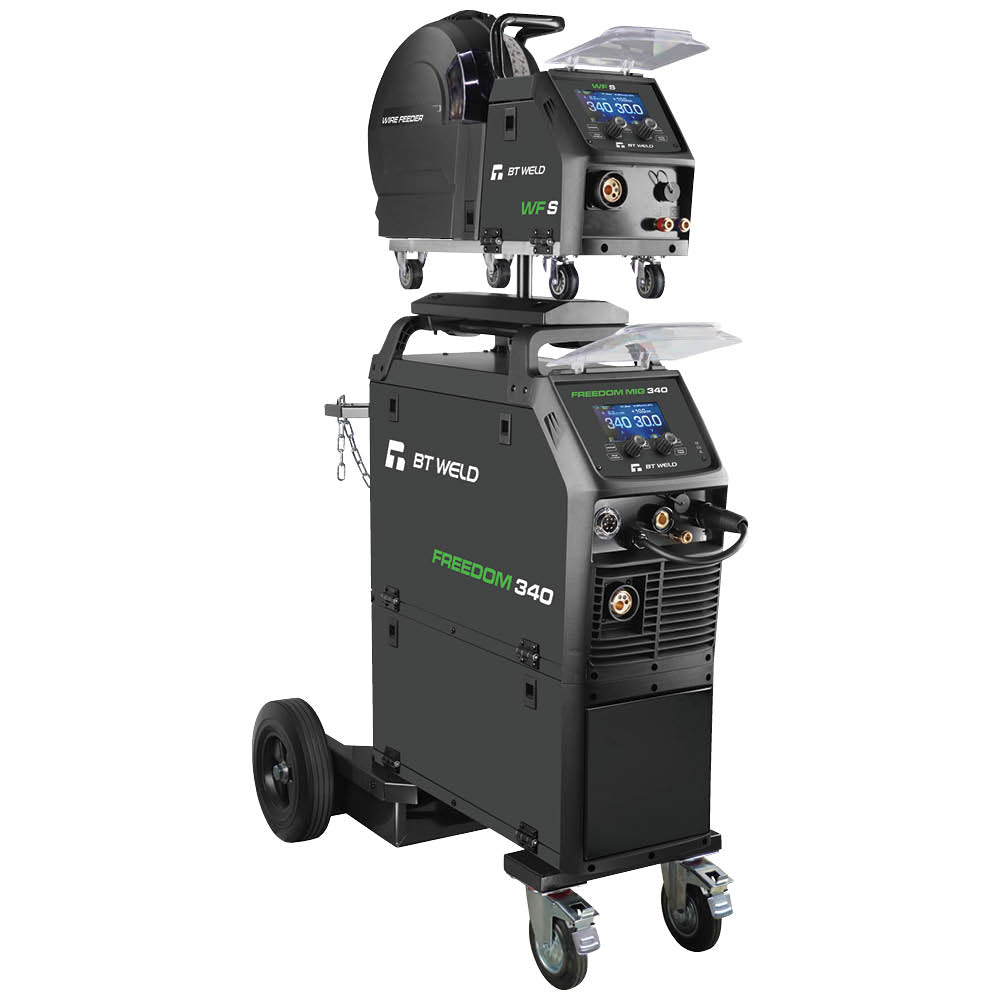

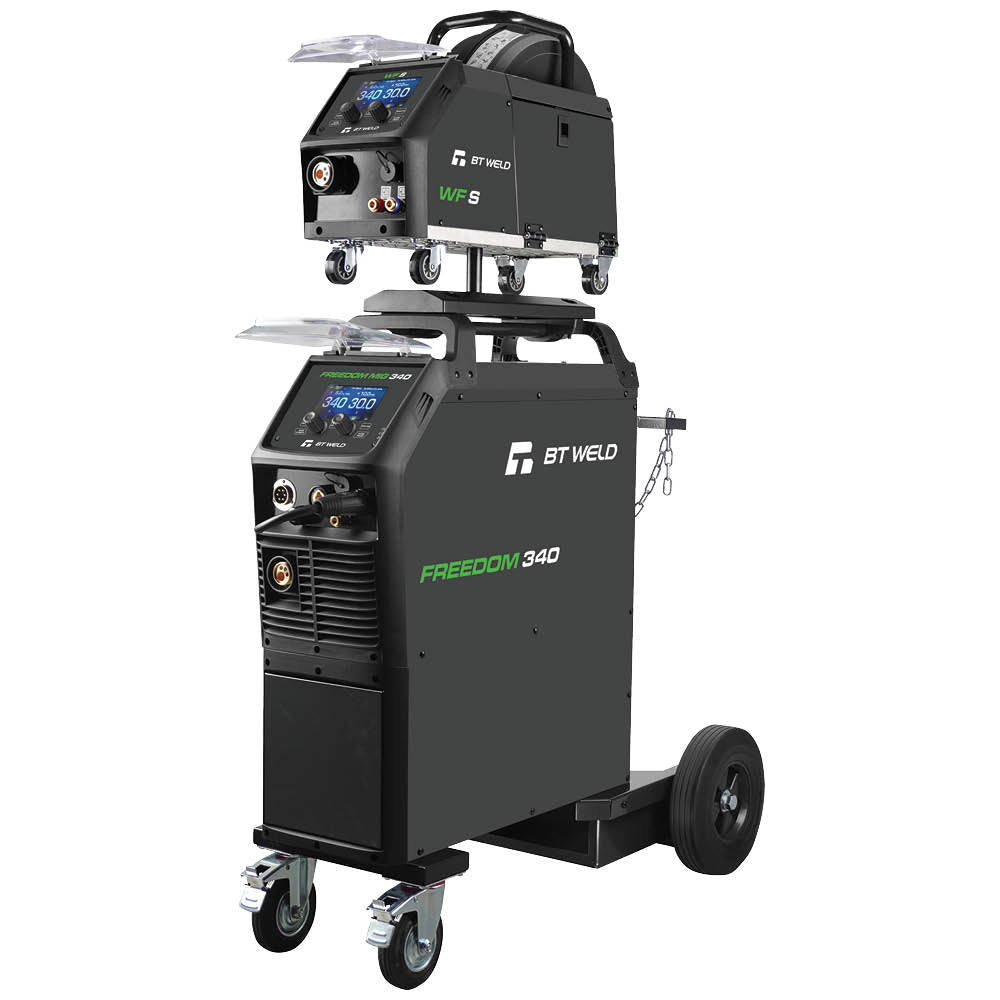

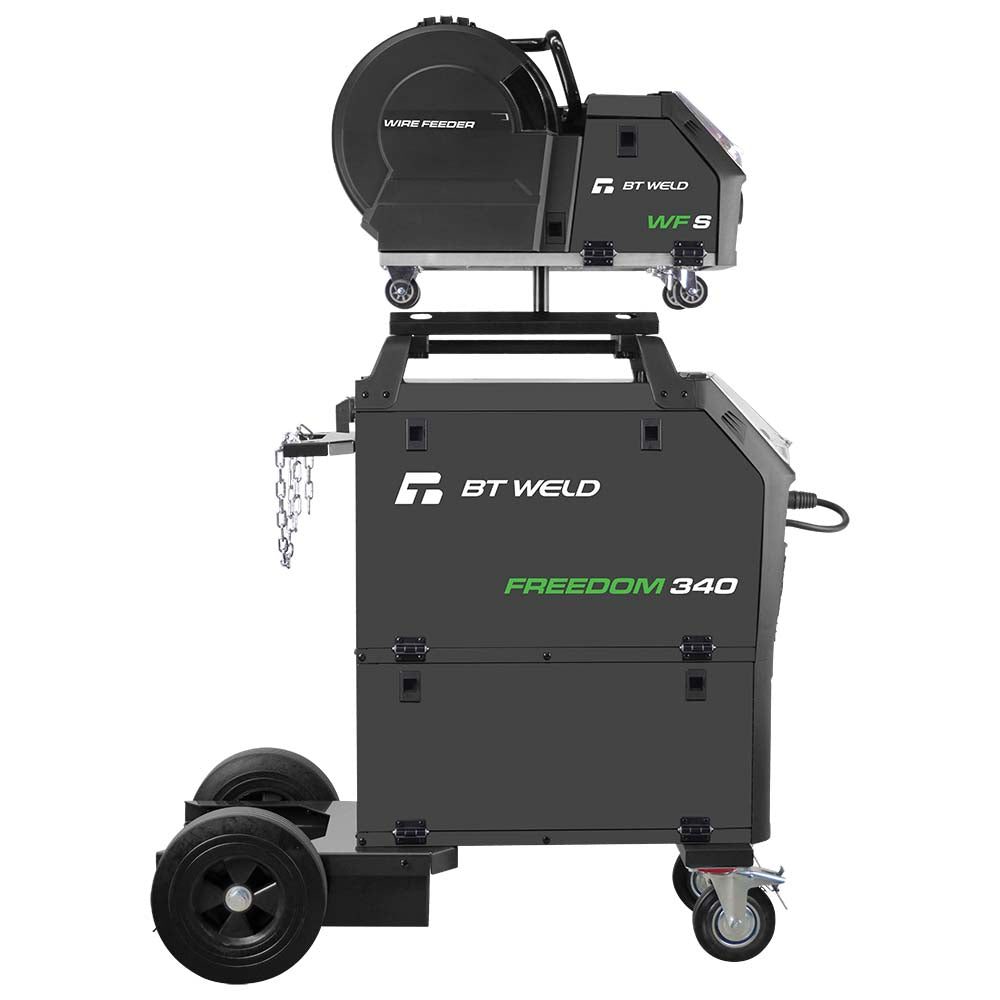

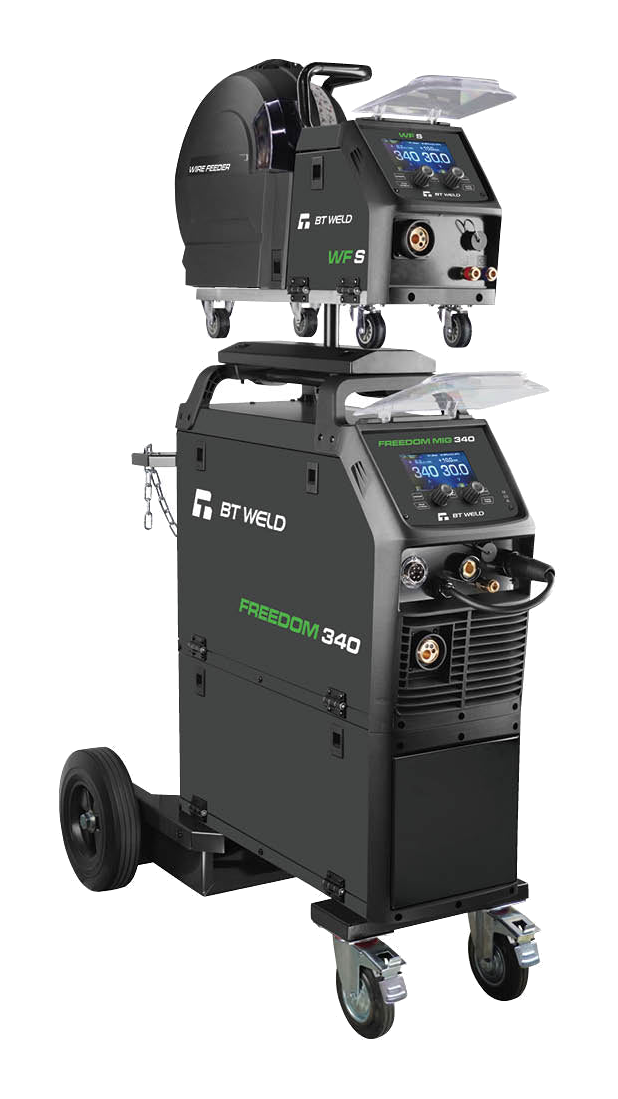

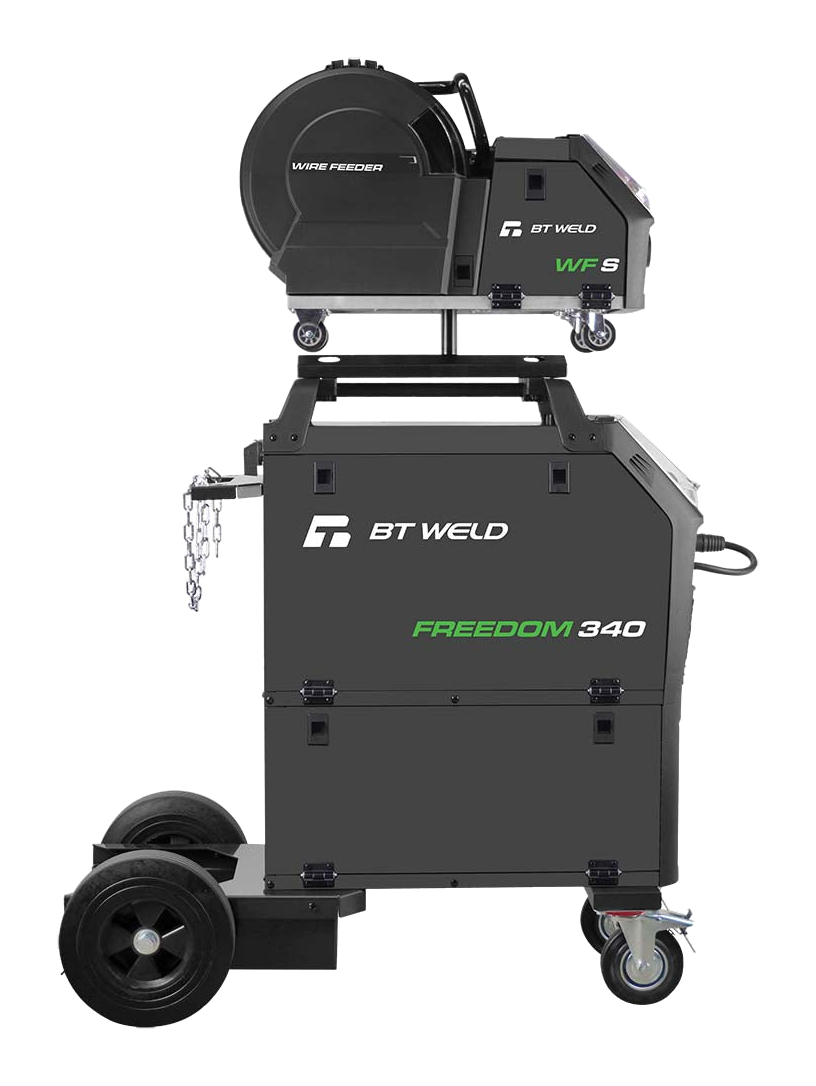

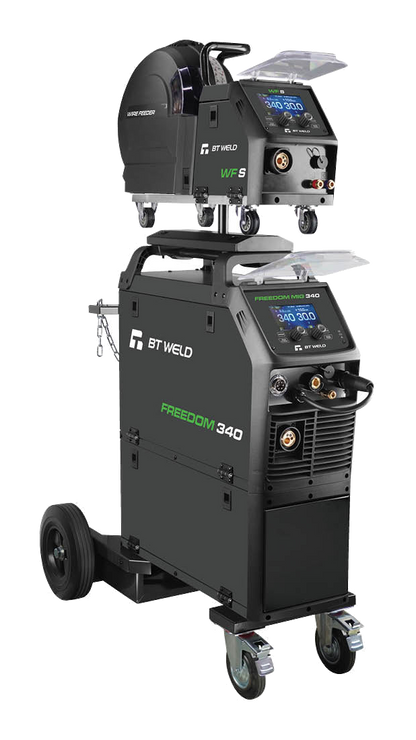

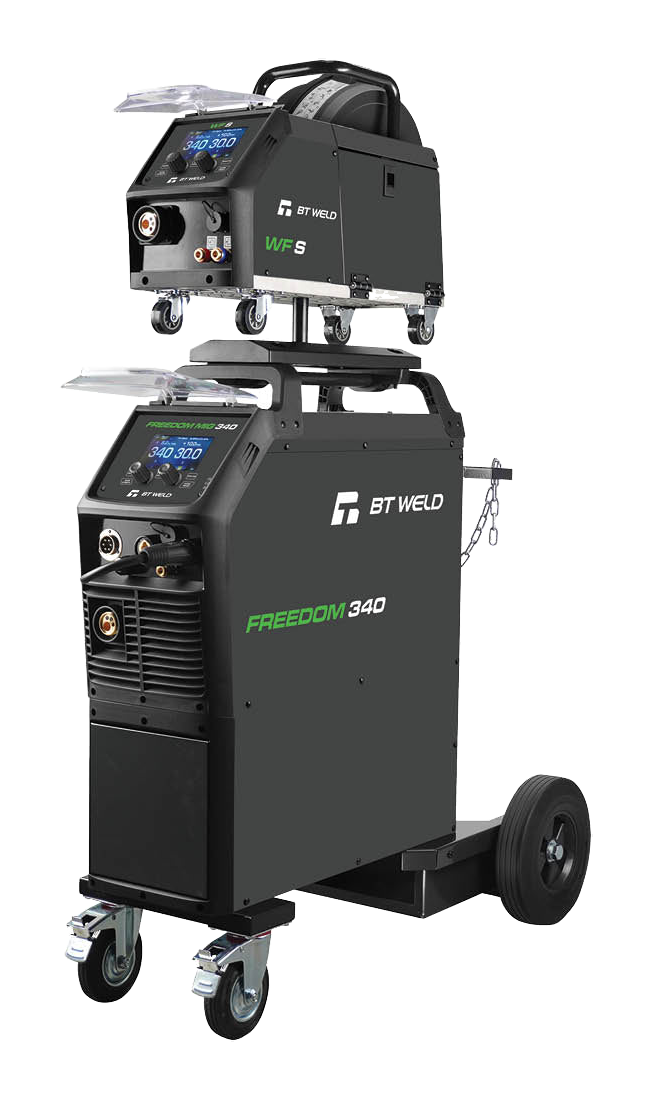

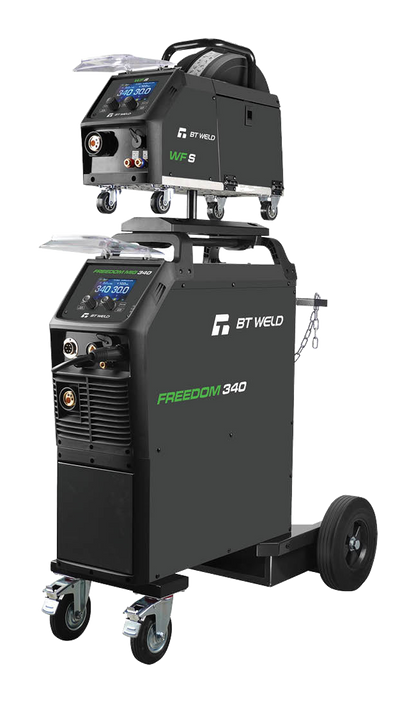

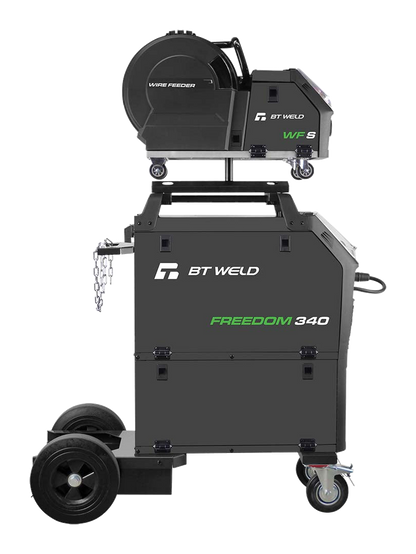

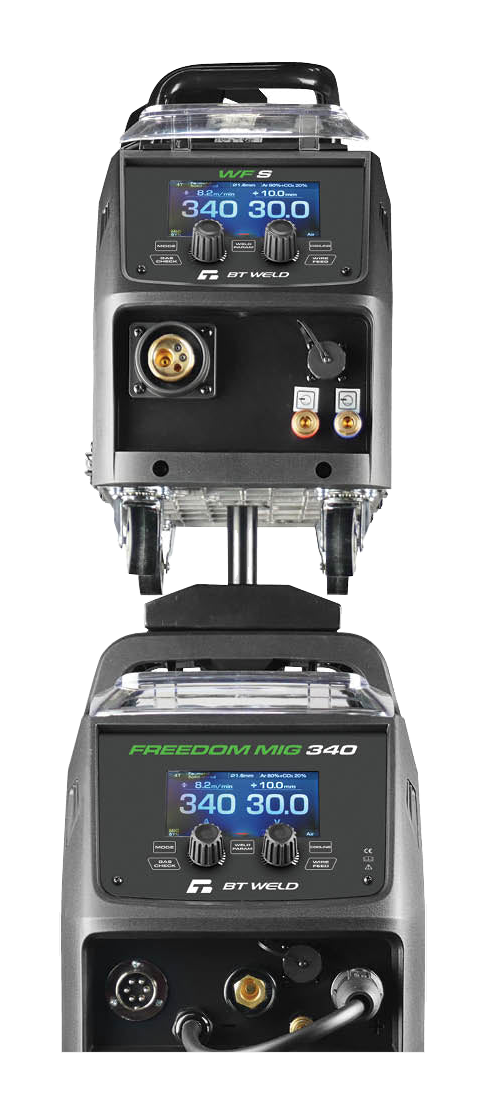

BT Weld FREEDOM 340 WF is a 415 V industrial multi-process inverter welder with a separate wire feeder for synergic or manual MIG, DC TIG and MMA work in fabrication and workshop environments.
Key Features
- Synergic and manual MIG gas and gasless welding
- DC TIG and MMA (stick) capability
- Up to 315 A output
- 40% duty cycle

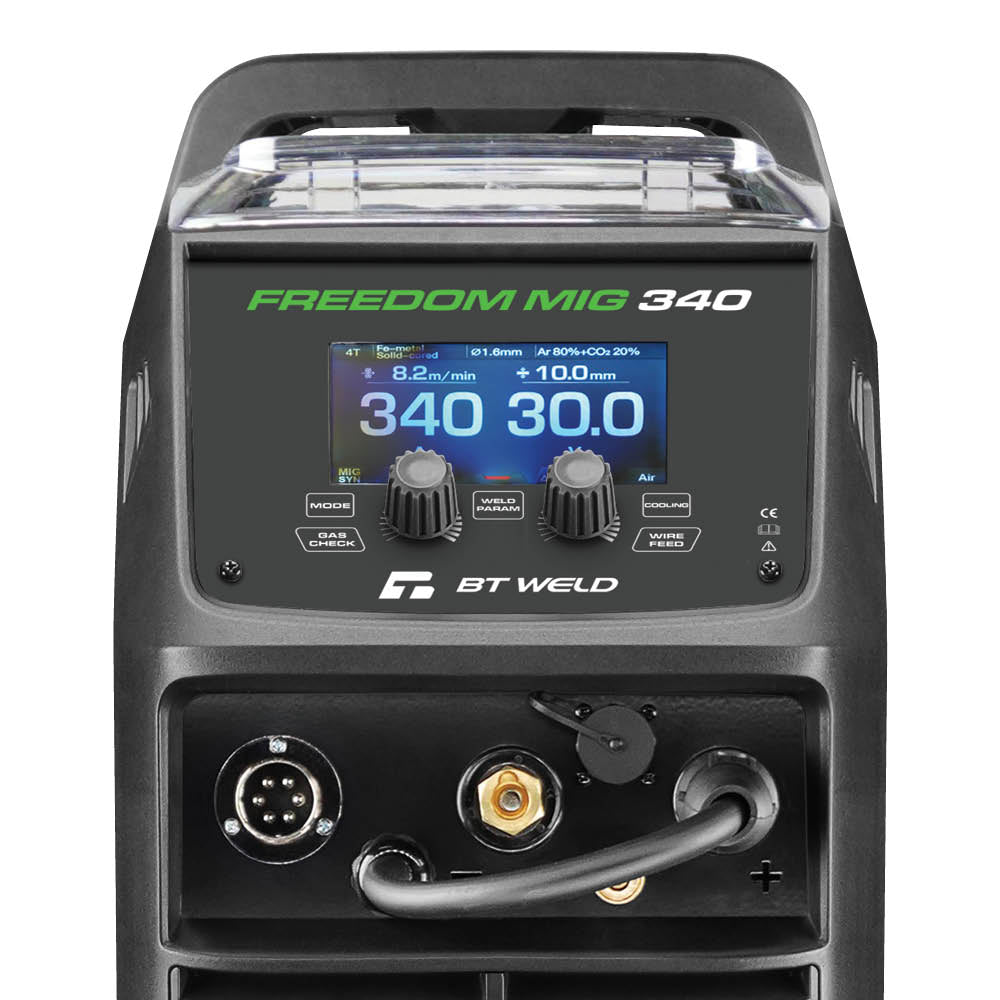

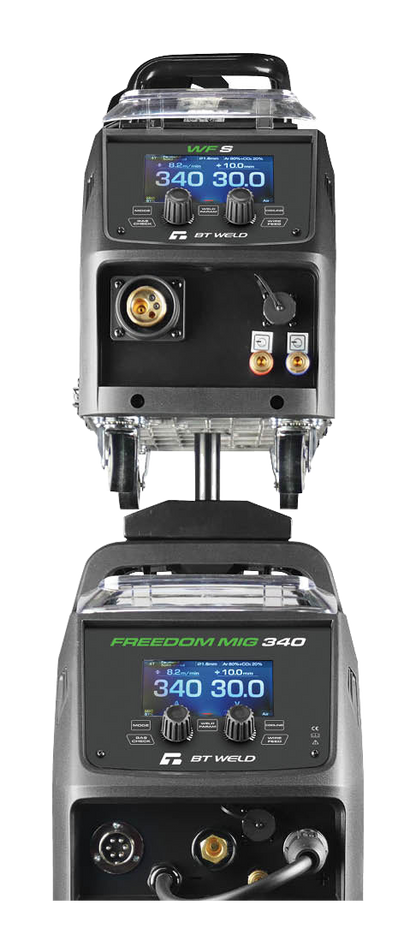

- 5-inch colour LCD
- 2T, 4T and spot welding modes

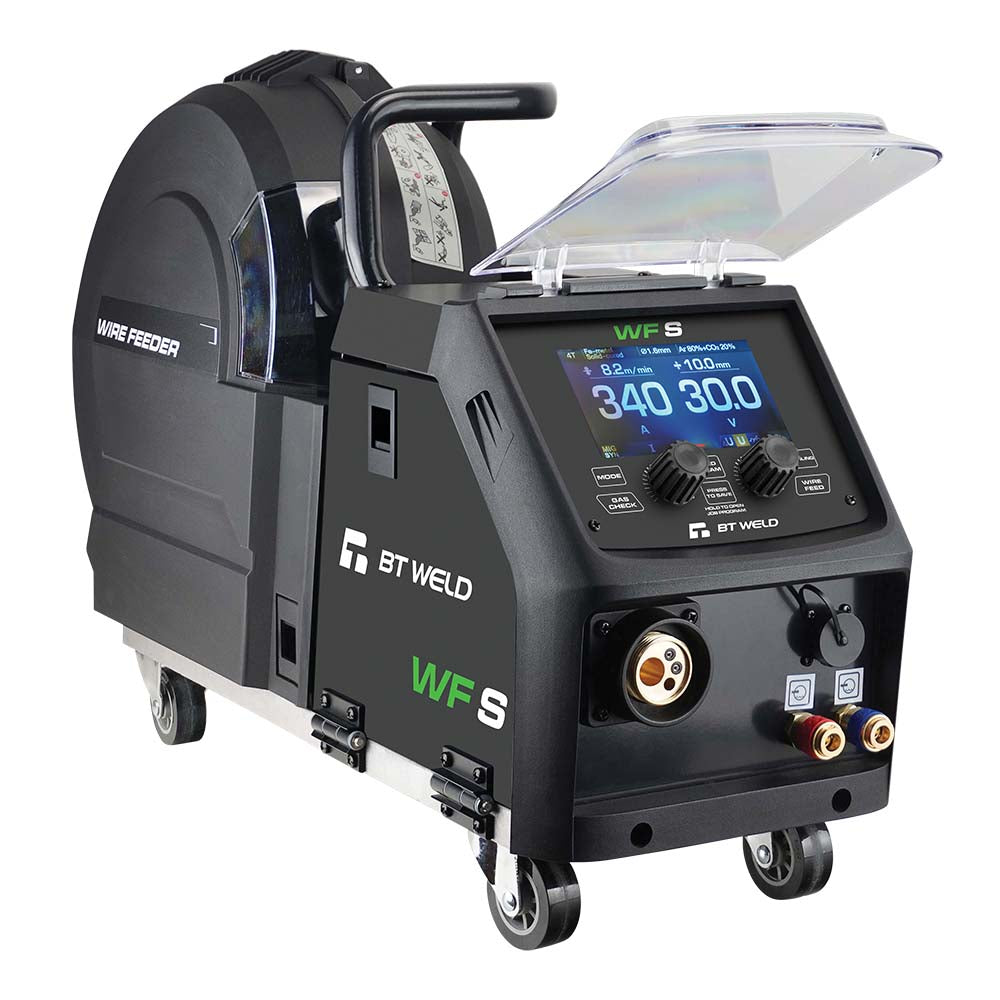

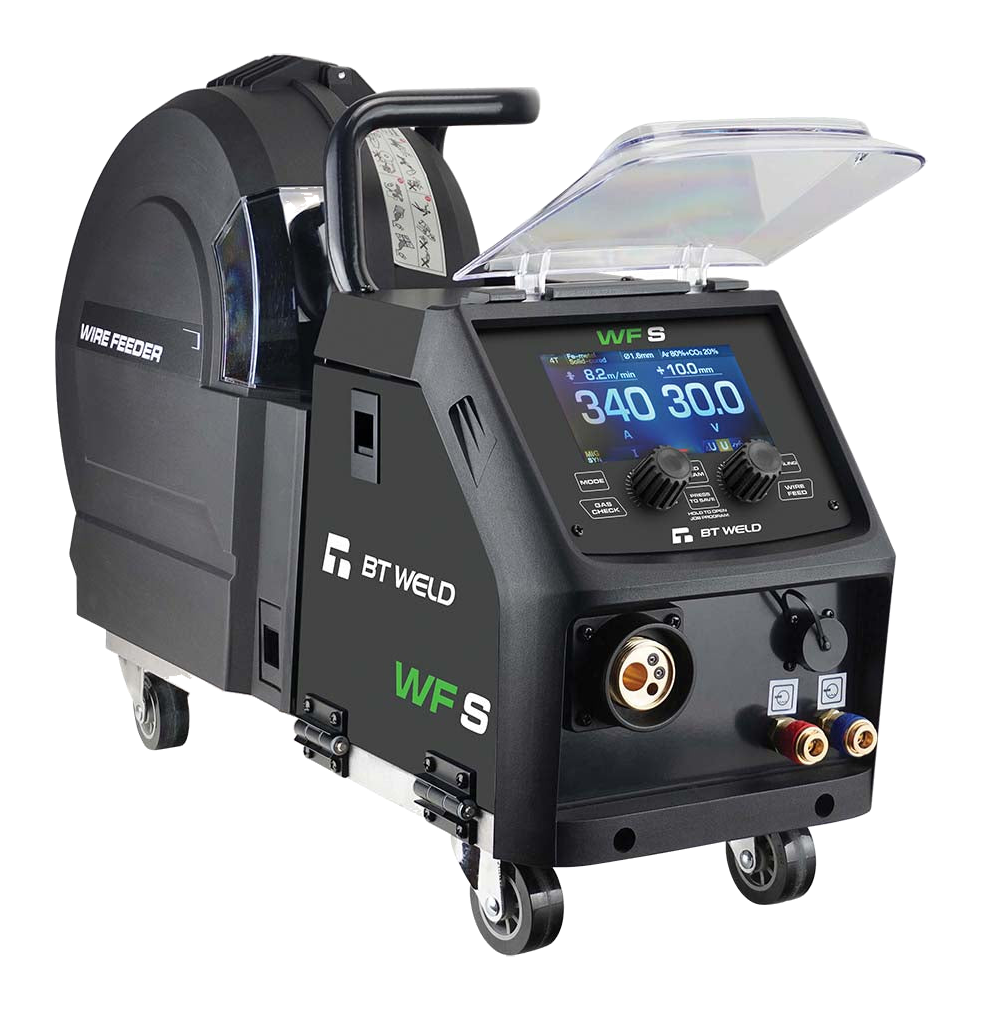

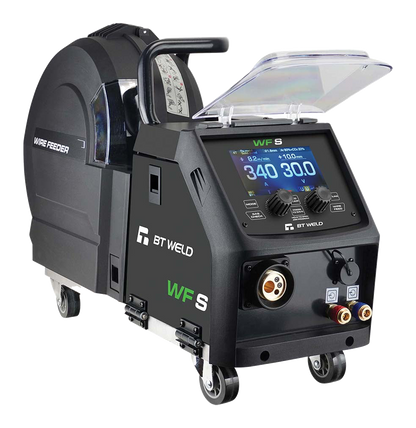

- Separate wire feeder with 10 m interconnection cable
- IP21S-rated enclosure
In the Box
- Separate wire feeder

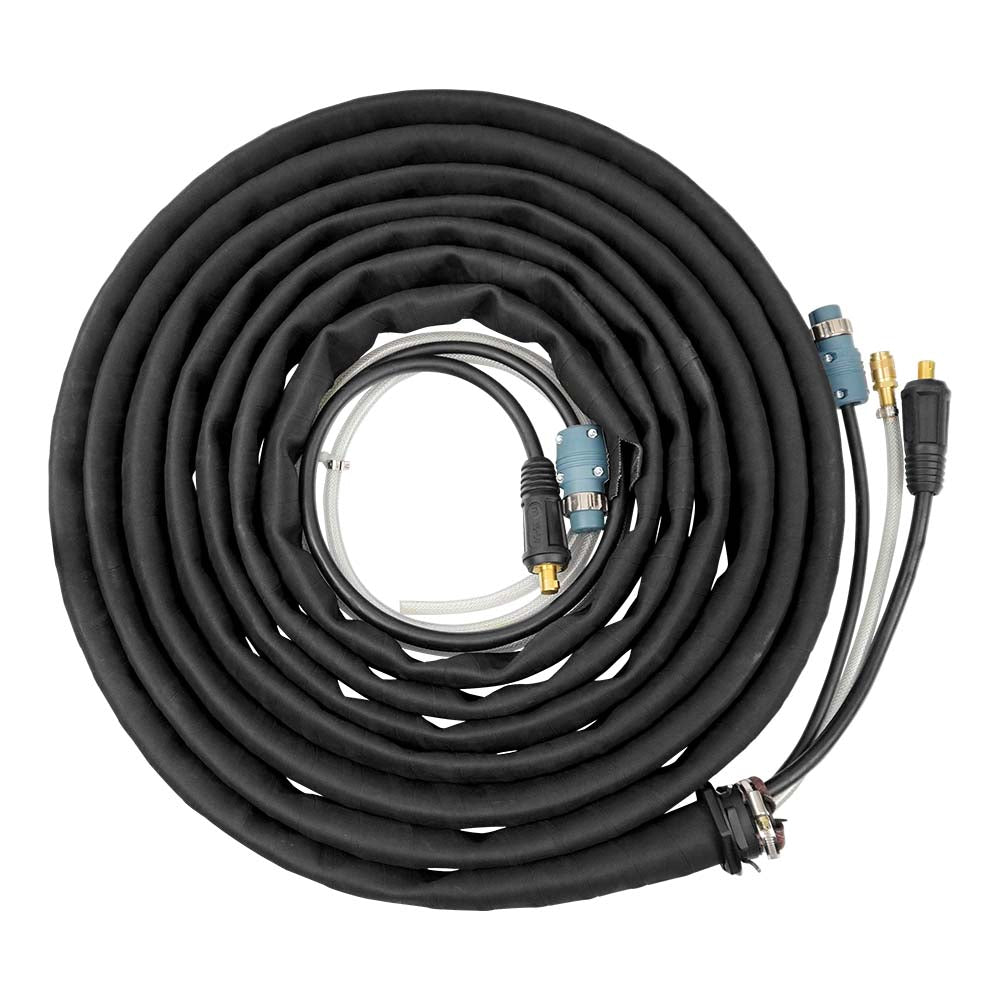

- 10 m interconnection cable
| WELDING | |
| Processes | MIG gas/gasless, DC TIG, MMA (stick) |
| Maximum output | 315 A |
| Duty cycle | 40% |
| POWER AND CONTROL | |
| Primary input voltage | 415 V, three-phase |
| Display | 5-inch colour LCD |
| Control modes | Synergic and manual |
| Operating modes | 2T, 4T, spot |
| Stick Specifications | |
| Stick maximum material thickness | Mild steel / stainless steel: up to 16 mm |
| TIG Specifications | |
| TIG maximum material thickness | Mild steel / stainless steel: up to 8 mm |
| MIG Specifications | |
| MIG maximum material thickness | Mild steel: up to 12 mm; stainless steel: up to 10 mm; aluminium: up to 8 mm |
| Machine Specifications | |
| Input frequency (Hz) | 50/60 |
| Input voltage tolerance | ±15% |
| Supply plug | Not supplied |
| Plug installation | Electrician required |
| Recommended supply plug | 20 A, three-phase |
Machine specifications
| MIG wire spool size | 5kg (D200); 15kg (D300) |
|---|
