BT WELD FREEDOM 440 COMPACT 415V
BT WELD FREEDOM 440 COMPACT 415V
GST included. Shipping calculated at checkout.
SKU: 659441
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

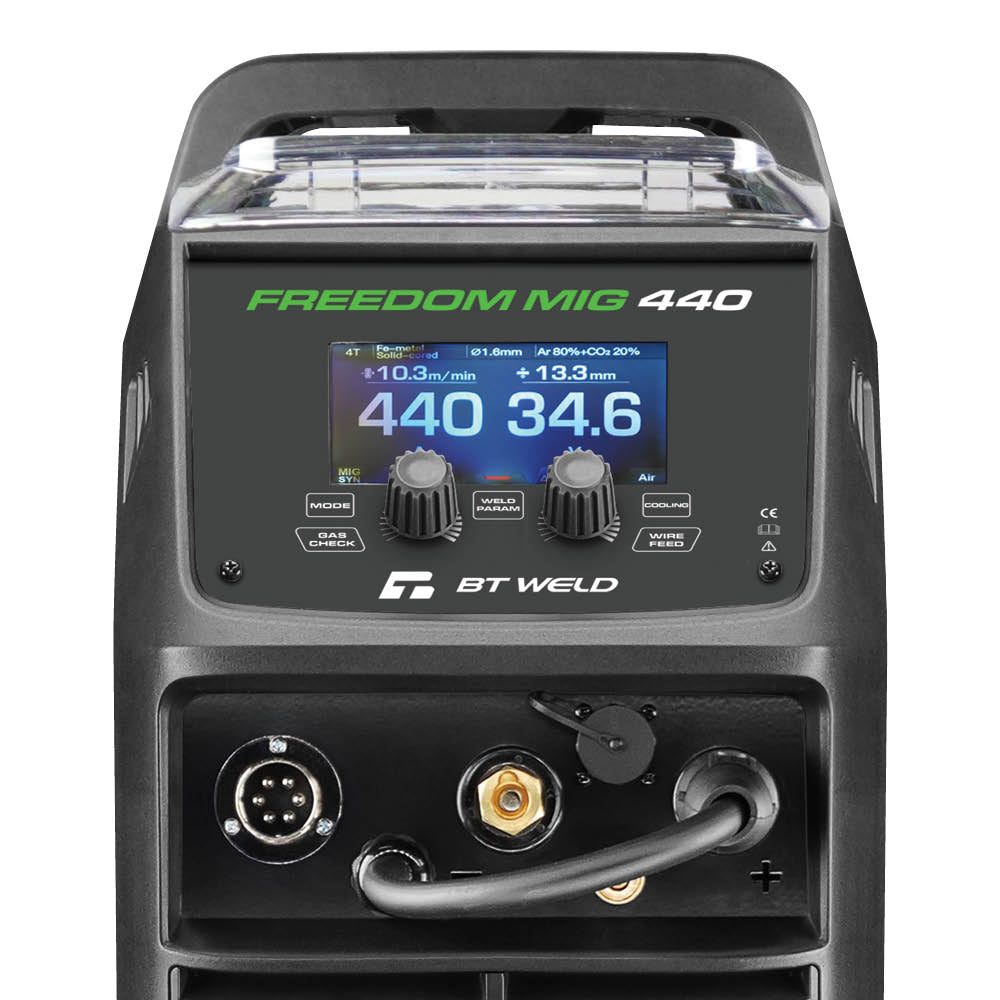

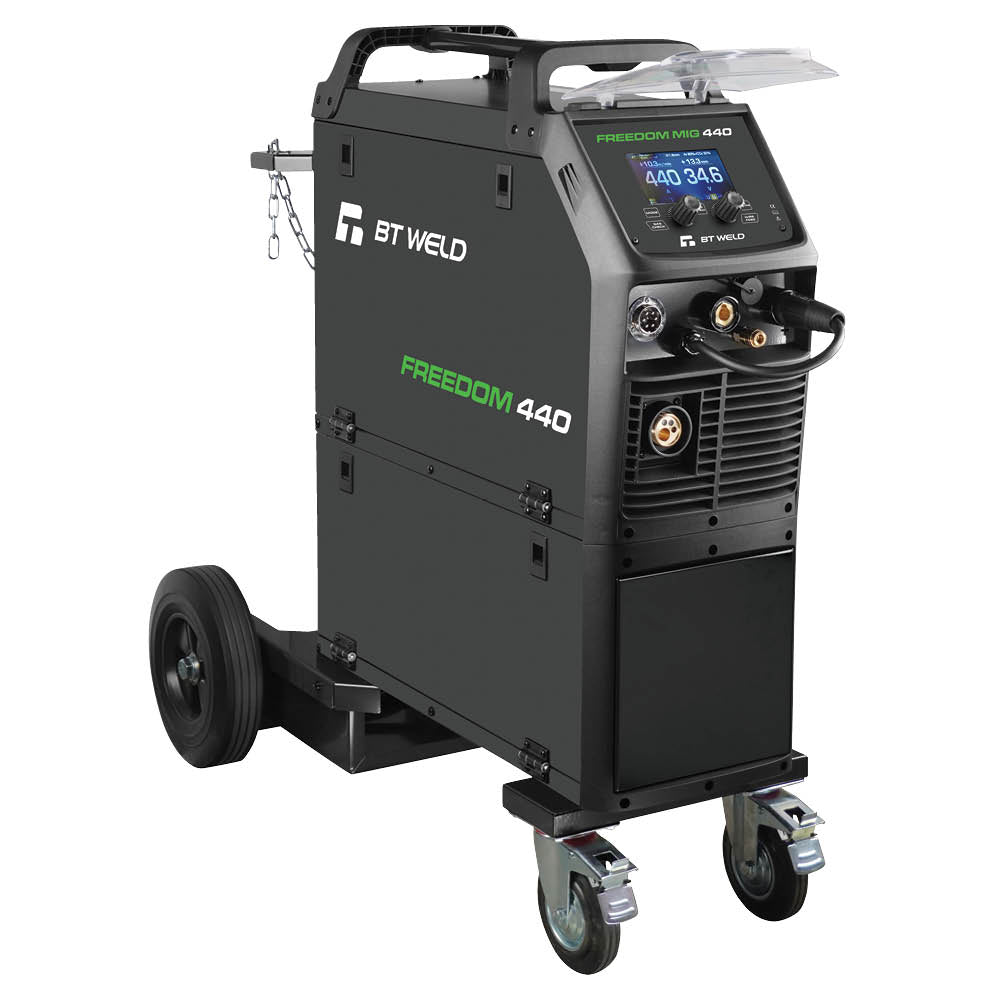

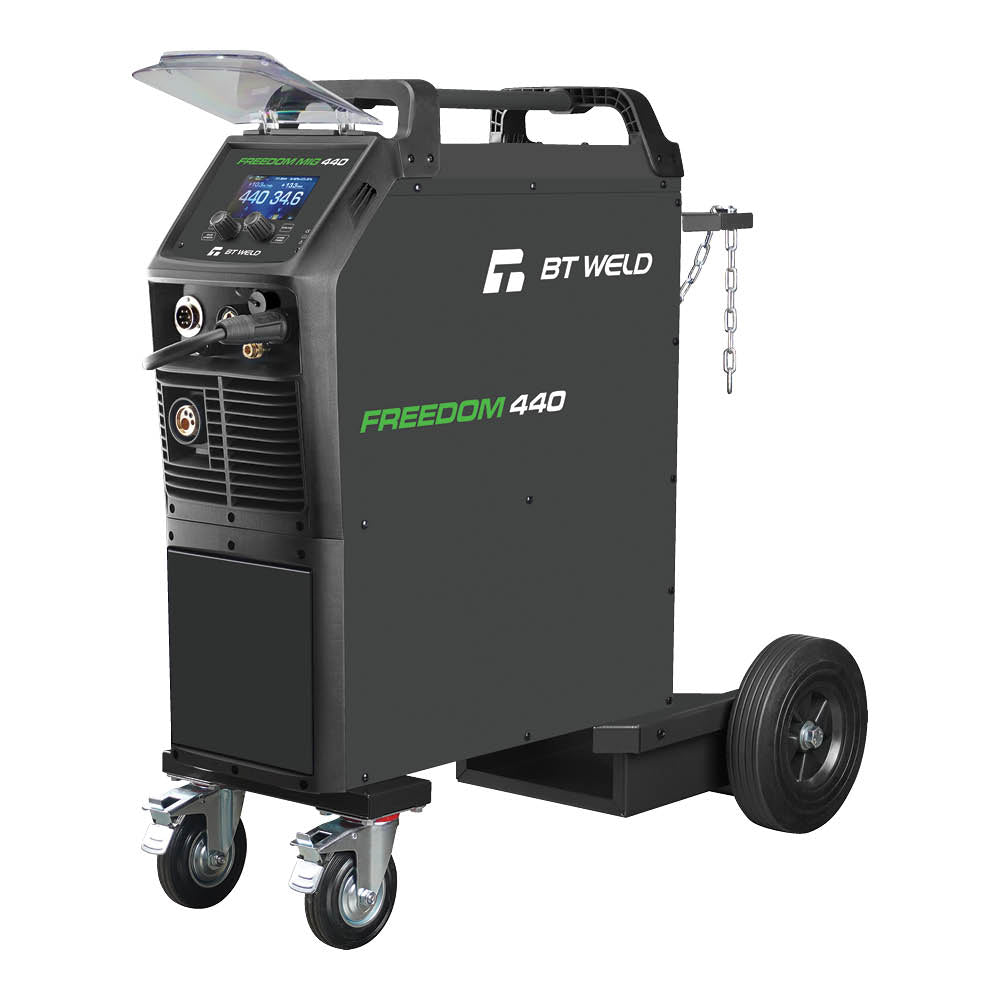

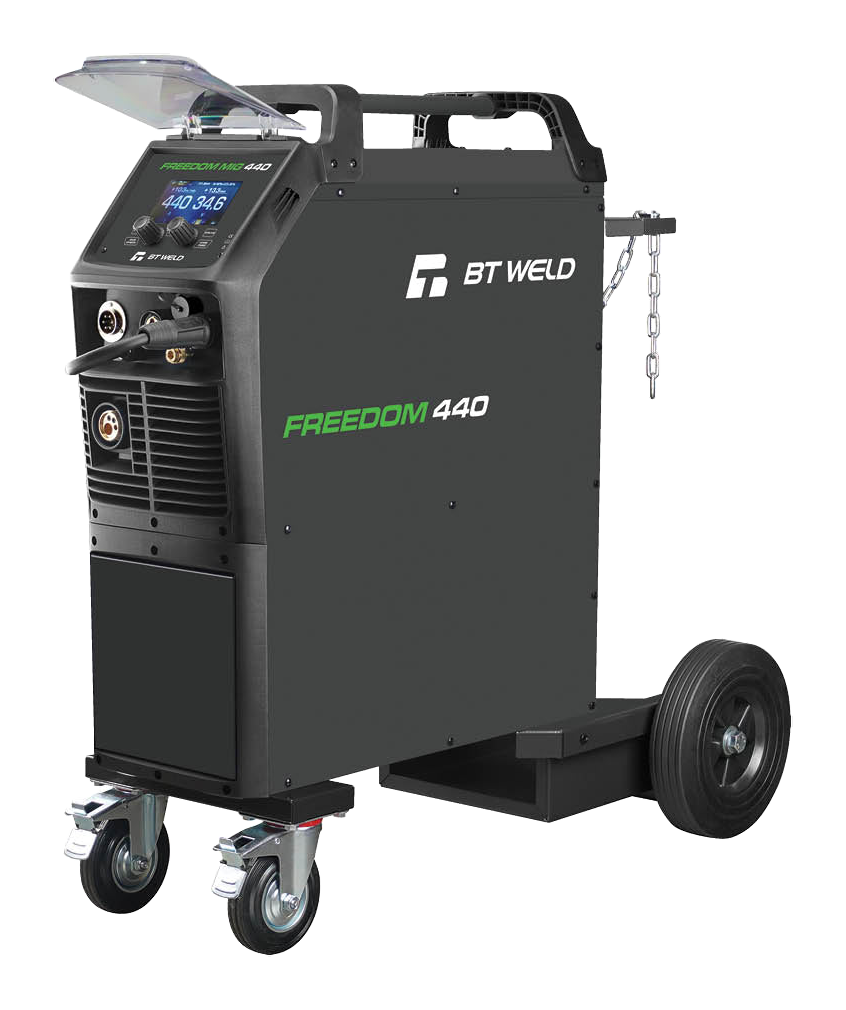

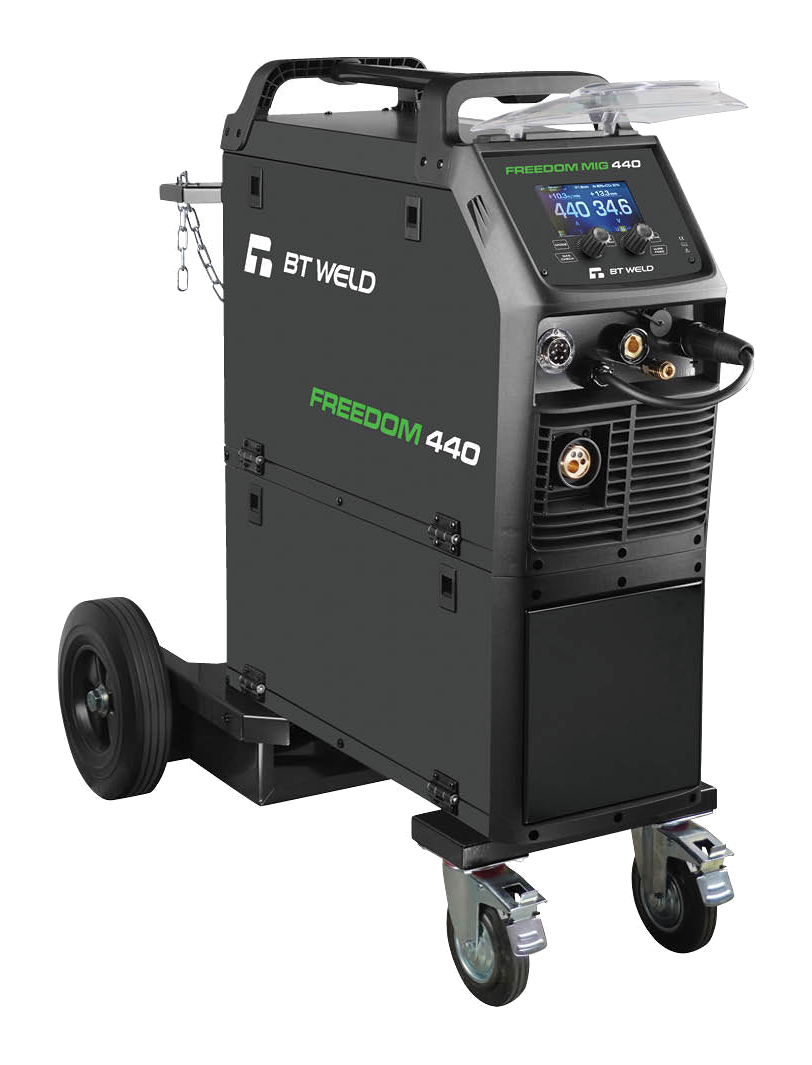

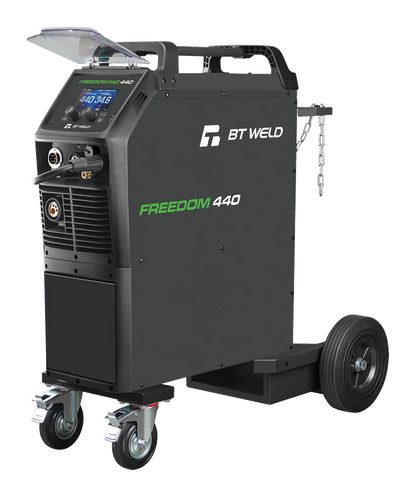

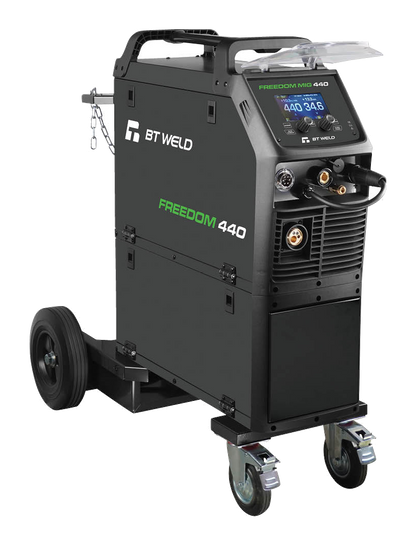

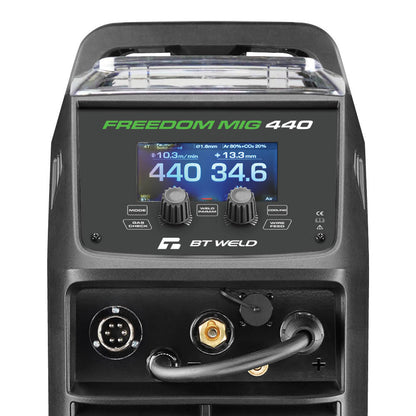

BT Weld FREEDOM 440 COMPACT 415V is a 415V multi-process inverter welder for workshop and industrial fabrication, with MIG, DC Lift-TIG and MMA welding functions.
Key Features
- Synergic and manual MIG operation, including gas and gasless welding
- DC TIG with Lift Arc and MMA stick welding capability
- Up to 400A output with a 40% duty cycle at full output
- 5-inch LCD with 2T, 4T and spot welding modes
- IP21S-rated construction
| SPECIFICATIONS | |
| Primary input voltage | 415 V, three-phase |
| Welding processes | MIG, DC Lift-TIG and MMA |
| Maximum output | 400 A |
| Duty cycle | 40% at full output |
| Display | 5-inch LCD |
| Protection class | IP21S |
| Stick Specifications | |
| Stick maximum material thickness | Mild steel / stainless steel: up to 24 mm |
| Stick maximum input current I1max (A) | 24.8 |
| Stick effective input current I1eff (A) | 15.7 |
| TIG Specifications | |
| TIG maximum material thickness | Mild steel / stainless steel: up to 10 mm |
| TIG maximum input current I1max (A) | 18.9 |
| TIG effective input current I1eff (A) | 12 |
| MIG Specifications | |
| MIG maximum material thickness | Mild steel: up to 16 mm; stainless steel: up to 12 mm; aluminium: up to 12 mm |
| MIG maximum input current I1max (A) | 23.8 |
| MIG effective input current I1eff (A) | 15.1 |
| Machine Specifications | |
| Input frequency (Hz) | 50/60 |
| Input voltage tolerance | ±15% |
| Supply plug | Not supplied |
| Plug installation | Electrician required |
| Recommended supply plug | 20 A, three-phase |
| Warranty (years) | 5 |
| Size and Weight | |
| Weight (kg) | 55 |
| Packaged weight (kg) | 60 |
| Dimensions (mm) | 960 × 465 × 925 |
Machine specifications
| MIG wire spool size | 5kg (D200); 15kg (D300) |
|---|
