Product information

Details

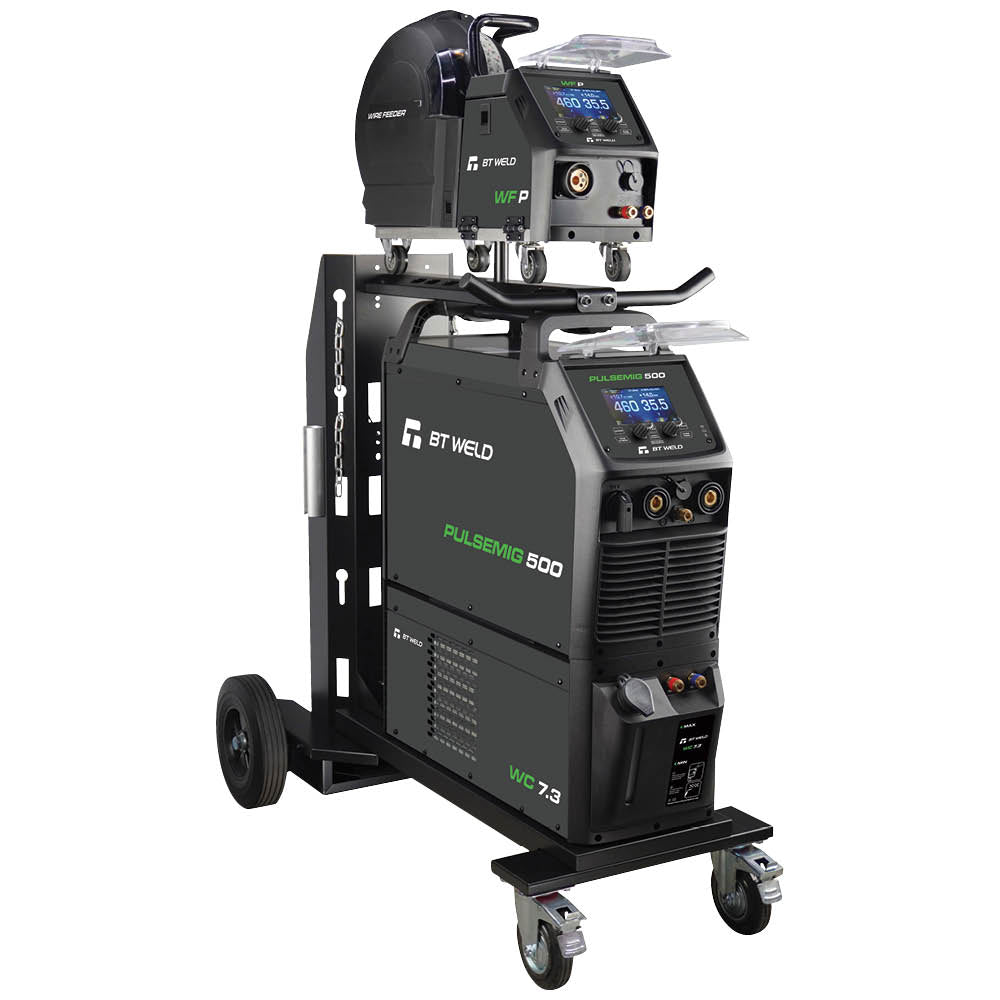

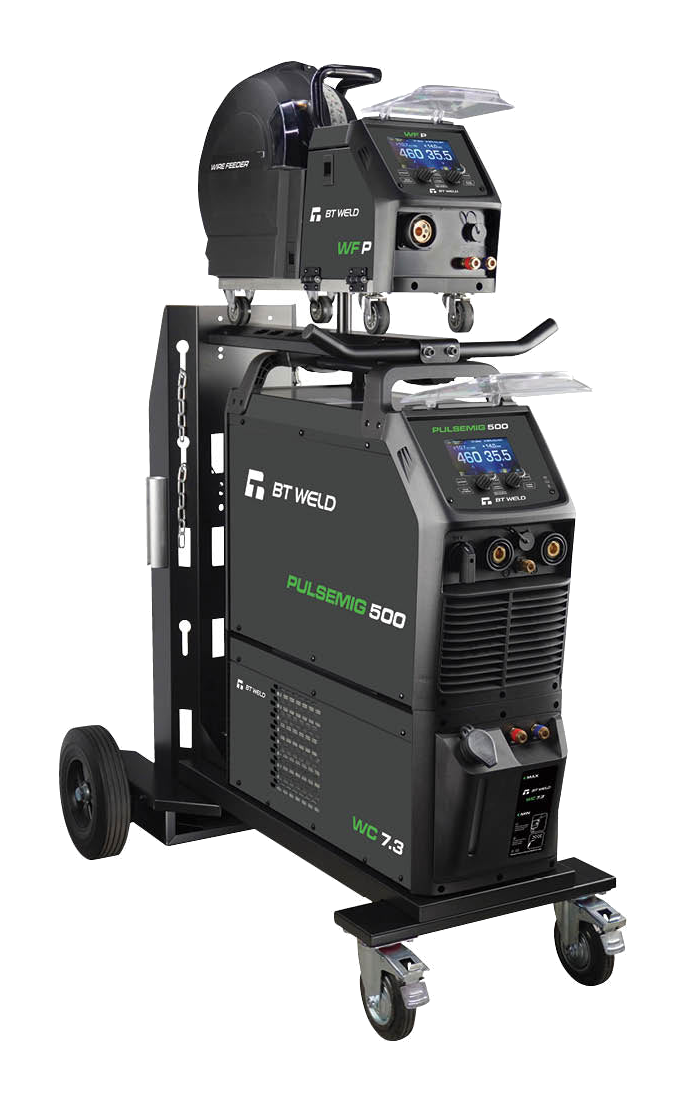

BT Weld PULSEMIG 500 Water Cooled SWF 415V is a high-output, water-cooled pulse MIG welding system for demanding fabrication and multi-material welding, with a separate wire feeder for improved manoeuvrability. It also supports DC Lift-TIG and MMA (stick) welding.

Key Features

  • Single pulse, dual pulse and synergic MIG modes, including gas and gasless MIG
  • DC Lift-TIG and MMA (stick) capability
  • Up to 500A output with a 60% duty cycle
  • Water-cooled operation with a 7L cooler
  • 5-inch colour LCD
  • 2T, 4T, S4T and spot welding modes

In the Box

  • Trolley
  • Wire feeder
WELDING OUTPUT
Maximum output 500 A
Duty cycle 60% at 500 A
Primary input voltage 415 V, three-phase
COOLING AND CONTROLS
Cooling system Water cooled
Cooler capacity 7L
Display 5-inch colour LCD
Stick Specifications
Stick maximum material thickness Mild steel / stainless steel: up to 30 mm
TIG Specifications
TIG maximum material thickness Mild steel / stainless steel: up to 14 mm
MIG Specifications
MIG maximum material thickness Mild steel: up to 20 mm; stainless steel: up to 16 mm; aluminium: up to 16 mm
Machine Specifications
Input frequency (Hz) 50/60
Input voltage tolerance ±15%
Supply plug Three-phase plug
Plug approval AS approved
Supply plug fitting Fitted
Welding processes Pulse MIG, MIG gas/gasless, DC Lift-TIG and MMA (stick)

Machine specifications

MIG wire spool size 5kg (D200); 15kg (D300)
