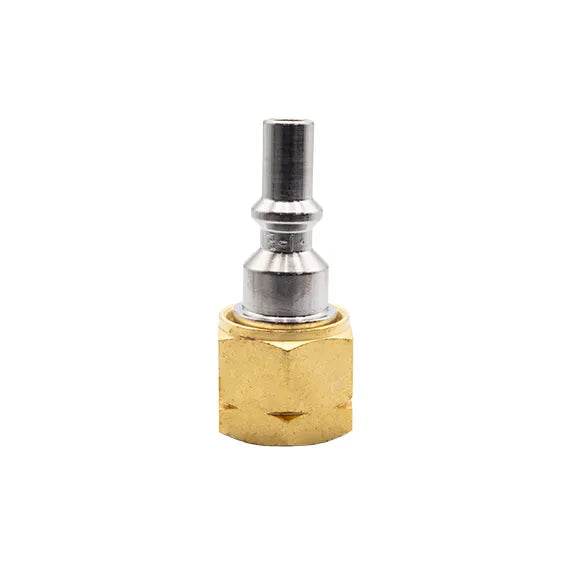

• Bulgin® Coupling Pin D1 Fuel Gas EN561 5/8"-18 UNF LH FM — 0069-4004
1 1

Bulgin

Bulgin D1 EN 561 Coupling Pins — 5/8-18 UNF Female

Bulgin D1 EN 561 Coupling Pins — 5/8-18 UNF Female

$22.77 AUD
$22.77 AUD
Sale Sold out

GST Included, Shipping calculated at checkout

Pay in instalments

  • Afterpay Afterpay
  • Zip Zip
  • PayPal PayPal Pay in 4

Split your purchase into interest-free instalments at checkout. Terms apply.

Gas service

0069-4004

Available to order

Buy with confidence

Delivery & pickupAvailable to order · Lead time varies

Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.

Australia-wide delivery. Available shipping options and costs are shown at checkout.

Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.

Full delivery & pickup policy

Returns & exchanges90 days for eligible unopened items

Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.

You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.

Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.

Full returns policy & exclusions

Warranty & supportProduct-specific warranty & support

Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.

For a fault or incorrect item, contact our team with your order details and a description of the issue.

Email our support team

Price Beat requestsFound a lower price? Ask us to review it.

Send us the competitor’s product link and price. Our team will review the details and respond to your request.

Need help choosing?

Call our Smithfield team for product advice and compatibility checks.

Call our team Live chat
View full details

Take a closer look

Product information

Details

Bulgin D1 EN 561 Coupling Pins — 5/8-18 UNF Female provide gas-specific connections for compatible quick-action coupling systems. Choose the gas service and connection shown in the variant table.

Every Quick Action Coupler and Pin is 100% function tested prior to leaving the factory. This rigorous quality assurance process provides complete confidence in product performance, safety, and compliance.

The Bulgin gas quick-action couplings are quick and easy to install on torches, regulators and inline. The Bulgin Quick-action coupler range combines proven German engineering, precision manufacturing, and comprehensive testing to deliver dependable protection in demanding industrial environments.

Features and applications

  • Coupling system according to EN 561 / ISO 7289 – worldwide compatible
  • 100% factory function tested and flame tested.
  • Passed an additional voluntary endurance test where 6000 cycles have been performed under maximum working pressure (standard requires a minimum of 1000 cycles)
  • Push system for easy connection
  • Stainless steel coupling pins offer long life

Shared specifications

Specification Details
Model D1
Installation Position Torch End
Operating Temperature -20°C to +60°C
Construction Material Brass Nut with stainless steel coupling pin
Standards EN561, ISO7289
Country of Manufacture Germany
Testing 100% Function Tested

Available variants

SKU Gas service Gas Service Inlet Connection Outlet Connection Maximum Working Pressure
0069-4004 Fuel gas — LH Fuel Fuel Coded Coupling Pin 5/8”-18 UNF FM LH Acetylene 0.15 MPa (1.5 bar) Hydrogen 2.0 MPa (20 bar) LPG, Methane 2.0 MPa (20 bar)

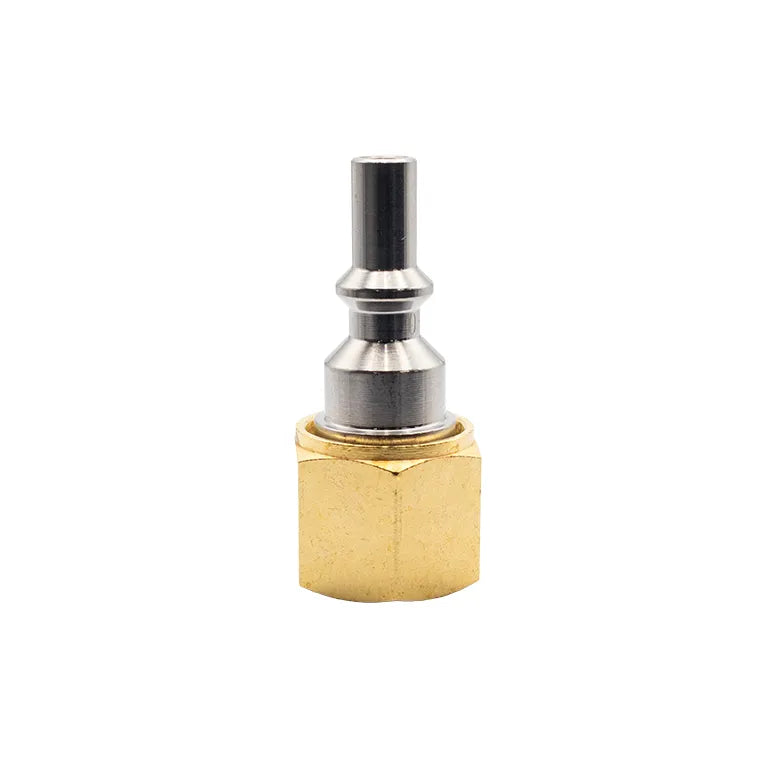

0069-4009 Oxygen — RH Oxygen Oxygen Coded Coupling Pin 5/8”-18 UNF FM RH Oxygen 2.0 MPa (20 bar)

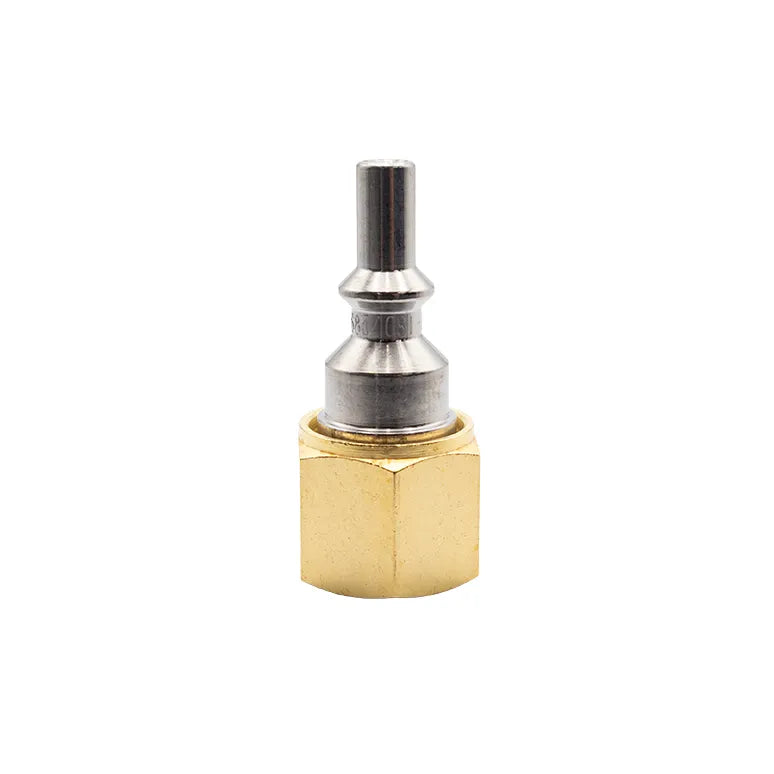

0069-4014 Inert gas — RH Inert gas Inert Coded Coupling Pin 5/8”-18 UNF FM RH Inert Gas 2.0 MPa (20 bar) (such as Nitrogen, Argon, Helium, Carbon Dioxide)

Variant-specific features

Feature Applies to SKU
Coded coupling pins to assist in avoiding the mix-up of the products for different gas types. 0069-4004, 0069-4014
