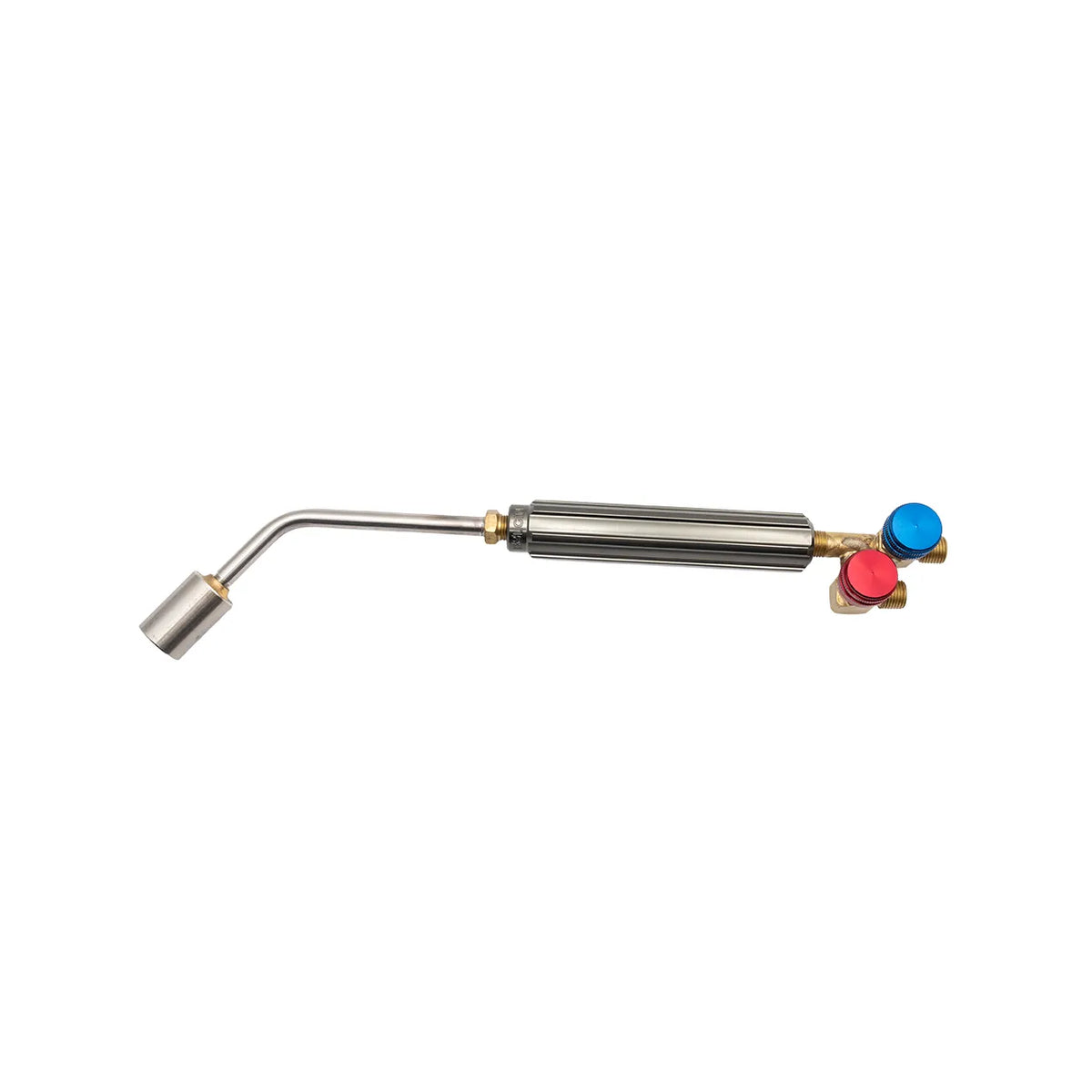

Bulgin Fuel and Compressed Air Torch with Handle and Burner Inlet (Fuel): 5/8"-18 UNF Male LH and Inlet (Air): 5/8"-18 UNF Male RH - 619-00054
Bulgin Fuel and Compressed Air Torch with Handle and Burner Inlet (Fuel): 5/8"-18 UNF Male LH and Inlet (Air): 5/8"-18 UNF Male RH - 619-00054
GST Included, Shipping calculated at checkout
Pay in instalments
- Afterpay
- Zip
- PayPal Pay in 4
SKU:619-00054
Available to order
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Price Beat requestsFound a lower price? Ask us to review it.
Send us the competitor’s product link and price. Our team will review the details and respond to your request.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
The Bulgin Fuel & Compressed Air Torch is a versatile professional heating torch that combines propane or other compatible fuel gases with a separate compressed air supply to produce a hotter, highly adjustable flame for a wide range of industrial, commercial, trade and precision heating applications.
Unlike a conventional air–propane burner that draws atmospheric air into the flame, this torch introduces compressed air directly into the fuel gas stream. The additional air supply allows the operator to control the fuel-to-air mixture using two independent adjustment valves, providing considerably greater control over flame characteristics.
The flame can be adjusted from a large, softer flame for general preheating through to a fine, concentrated flame for precision heating and suitable welding applications, making the torch particularly versatile for fabrication, soldering, jewellery, glass work and specialist workshop applications.
Manufactured with a stainless steel burner and neck tube, extruded aluminium handle and brass control valves, the torch features robust construction designed for reliable long-term professional use.
Key Features
- Professional propane and compressed air torch
- Separate fuel gas and compressed air connections
- 5/8"-18 UNF Male LH fuel gas inlet
- 5/8"-18 UNF Male RH compressed air inlet
- Independent fuel and air control valves
- Adjustable fuel-to-air mixture for precise flame control
- Enhanced flame temperature through the introduction of compressed air
- Flame adjustable from broad preheating through to fine, concentrated heating
- Stainless steel burner and neck tube
- Extruded aluminium handle
- Brass control valves
- Robust and serviceable construction
- Suitable for a variety of compatible fuel gases
- Designed for professional workshop, industrial and precision heating applications
Typical Applications
- Preheating
- Silver soldering
- Soft soldering
- Brazing
- Suitable welding applications
- Jewellery manufacturing and repair
- Glass work
- Precision heating
- Fabrication and maintenance
- Hobby and workshop applications
How the Compressed Air System Works
The Bulgin Fuel & Compressed Air Torch differs from a conventional air–propane torch through the introduction of a dedicated compressed air supply.
Instead of relying solely on atmospheric air being drawn into the burner, compressed air is introduced and mixed with the fuel gas. This increases the oxygen available for combustion and allows a hotter, more concentrated flame to be produced.
Two independent control valves allow the operator to adjust the fuel gas and compressed air separately. By changing the mixture ratio, the flame characteristics can be tailored to the application from a larger, softer flame suitable for preheating to a fine, concentrated flame for precision work.
Technical Specifications
| Application | Fuel Gas Pressure | Compressed Air Pressure |
|---|---|---|
| Small Work | 14–35 kPa (2–5 PSI) | 100 kPa (15 PSI) |
| Medium Work | 35–100 kPa (5–15 PSI) | 200 kPa (30 PSI) |
| Large Work | 100–200 kPa (15–20 PSI) | 400–800 kPa (60–90 PSI) |
General Specifications
| Specification | Value |
| Product Type | Fuel & Compressed Air Torch |
| Fuel Gas Inlet | 5/8"-18 UNF Male LH |
| Compressed Air Inlet | 5/8"-18 UNF Male RH |
| Burner Connection | 1/2" × 26 BSB Female or G1/4 Male |
| Overall Length | 365 mm |
| Product weight (not packed shipping weight) | 658 g |
| Burner & Neck Tube Material | Stainless Steel |
| Handle Material | Extruded Aluminium |
| Control Valve Material | Brass |
| Gas Control | Independent Fuel Gas & Air Adjustment |
Compatible Fuel Gases
The torch can be configured for use with a range of suitable fuel gases, including:
- Propane / LPG
- MAPP-type fuel gas
- Acetylene
- Hydrogen
- Natural Gas
The correct fuel gas supply equipment, operating pressures and connections must always be selected for the particular gas being used.
Designed for Professional Performance
Independent control of the fuel gas and compressed air is what gives this torch its versatility. Rather than requiring a different burner for every heating task, the operator can adjust the flame characteristics to better suit the work being performed.
For delicate soldering, jewellery or glass work, the flame can be reduced and concentrated for greater control. For larger workpieces and preheating applications, the flame can be adjusted to provide broader heat coverage.
This makes the torch particularly useful in workshops performing a variety of heating processes where both heat intensity and flame characteristics need to be adjustable.
Connection & Compatibility
The torch features two clearly differentiated inlet connections:
| Supply | Connection |
| Fuel Gas | 5/8"-18 UNF Male LH |
| Compressed Air | 5/8"-18 UNF Male RH |
The left-hand fuel gas connection and right-hand compressed air connection help distinguish the two supply lines during equipment setup.
Note: The above pressures represent operating ranges for small, medium and large work as specified. Actual settings should be selected according to the fuel gas, burner configuration, application and required flame characteristics. Always ensure regulators, hoses, fittings and associated equipment are suitable for the gas, pressure and intended application.
Versatile Flame Control for Specialist Heating
The Bulgin Fuel & Compressed Air Torch combines dual gas control, robust construction and a highly adjustable flame in a single professional heating tool. From broad preheating through to precision soldering, jewellery and glass work, its ability to independently control fuel gas and compressed air provides operators with exceptional flexibility across a wide variety of heating applications.
