IRONWELD Solid Brass Argon Double Flowmeter IW6012

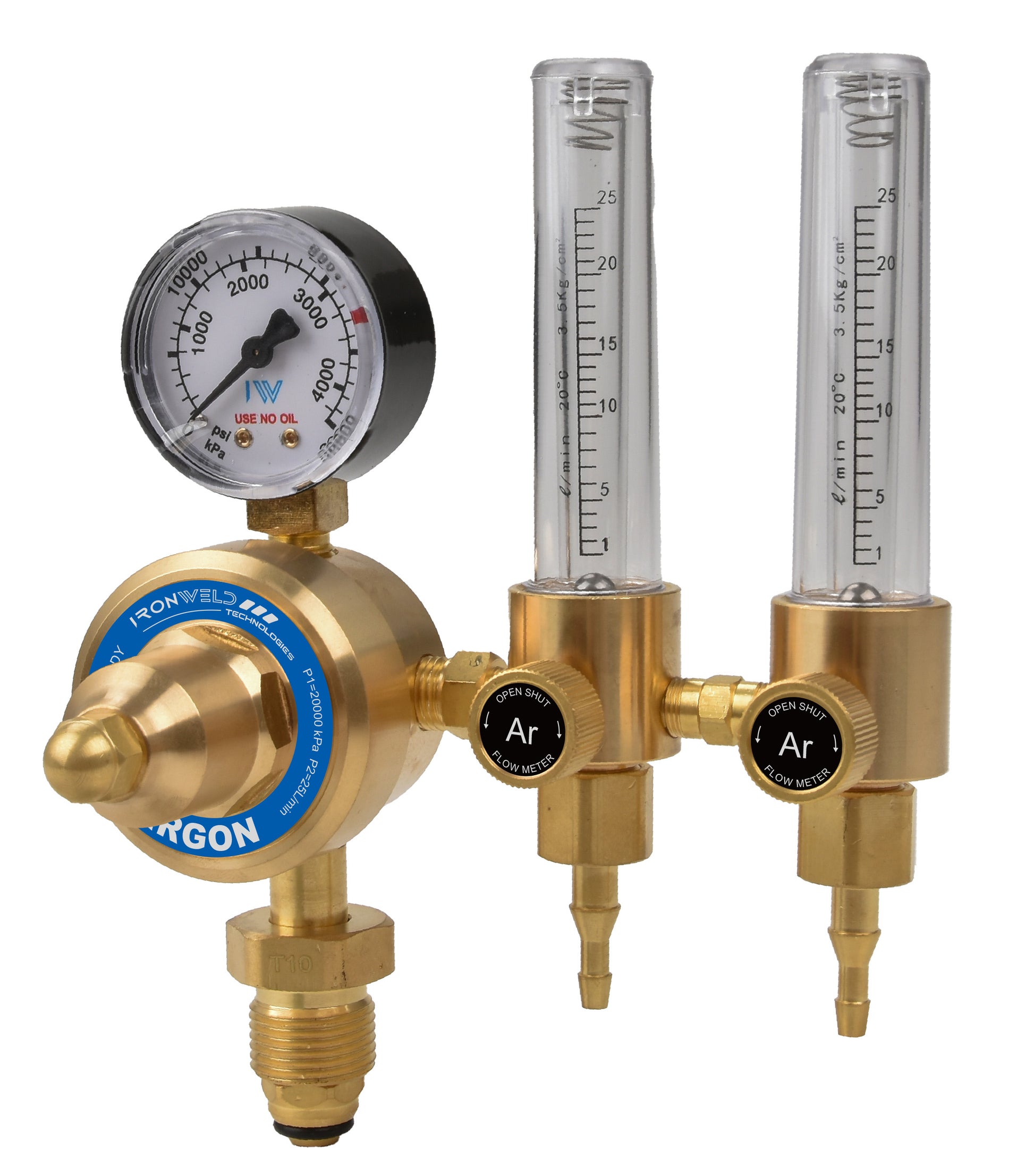

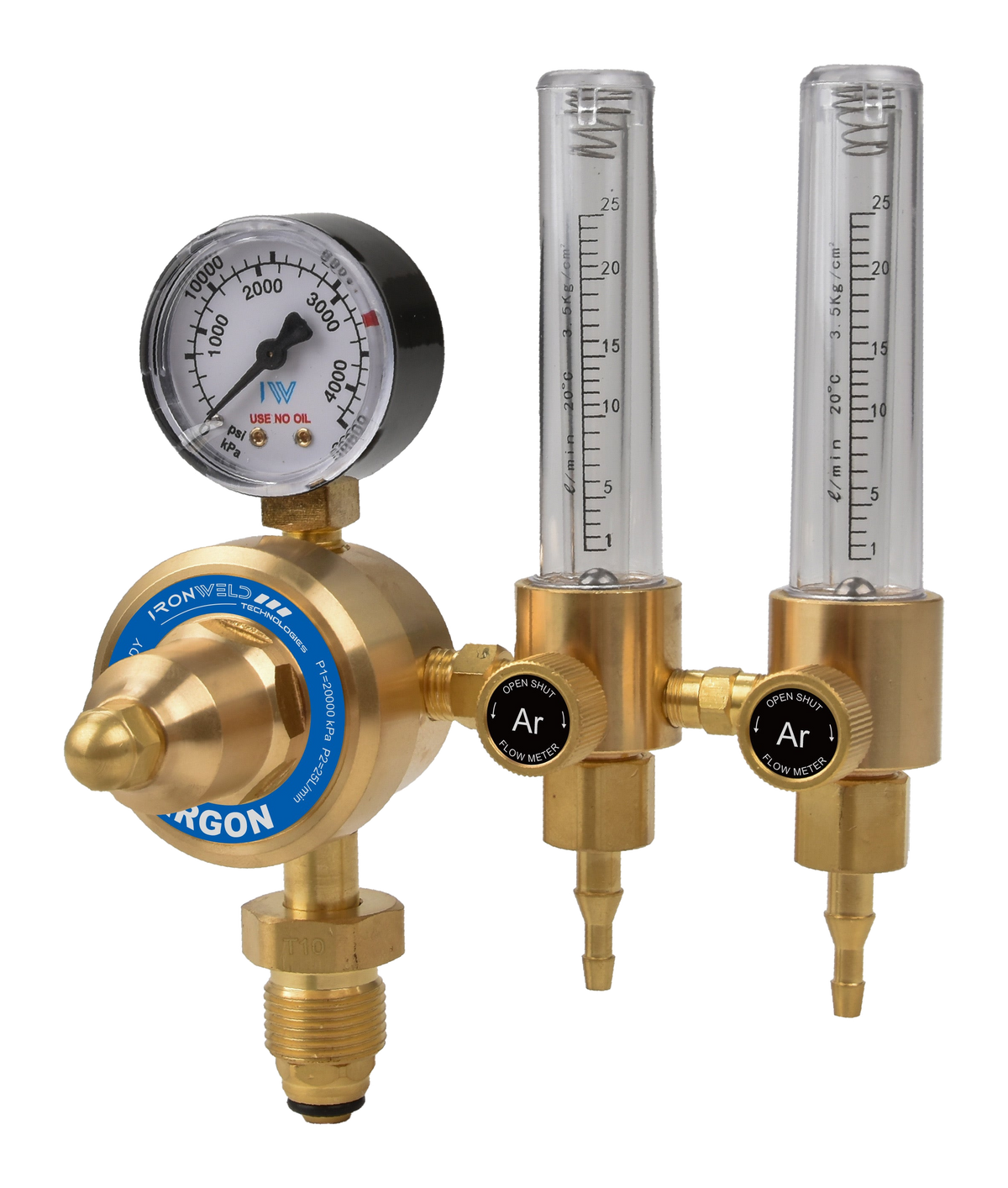

IRONWELD IW6012 Solid Brass Argon Double Flowmeter Regulator

The IRONWELD IW6012 is a specialized, industrial-grade Argon regulator designed for advanced TIG and MIG welding setups that require simultaneous gas distribution from a single cylinder. Equipped with dual vertical flowmeters, the IW6012 is the definitive tool for back-purging applications or running two welding machines from a single gas source without sacrificing precision.

The Solid Brass Advantage: Engineering for Critical Safety

In high-pressure gas management, material quality is a safety requirement. While competitors often use a mixture of copper and aluminium to reduce production costs, the IW6012 features a forged solid brass body.

• Enhanced Overpressure Safety: Argon cylinders are typically pressurized to 20,000 kPa (approx. 3,000 PSI). The dense, forged structure of solid brass provides significantly higher tensile strength than aluminium-hybrid alternatives. In the event of a sudden pressure surge or internal valve failure, a solid brass body is designed to contain the stress far more effectively, reducing the risk of catastrophic body rupture.
• Superior Thread Durability: Frequent cylinder changeouts can quickly wear down threads on softer alloy regulators. The IW6012’s brass-on-brass or brass-on-steel connections are resistant to "galling" and stripping, ensuring a gas-tight, metal-to-metal seal over years of heavy use.
• Natural Corrosion Resistance: Solid brass is naturally resistant to the oxidation and pitting that can occur in industrial environments, ensuring that the internal seating surfaces remain smooth and leak-free.

Key Technical Specifications

• Part Number: IW6012
• Gas Service: Argon / Argon-CO2 Mixtures
• Body Construction: Forged Solid Brass
• Inlet Connection: AS2473 Type 10 (Standard Australian Stem)
• Dual Flow Tubes: Two independently adjustable polycarbonate flowmeters
• Flow Range: 0–25 Liters Per Minute (LPM) per tube
• Outlet Connection: 5/8" UNF Right-Hand Thread
• Internal Filter: Sintered bronze inlet filter to protect the valve seat from debris.
