Take a closer look
Product information
Details

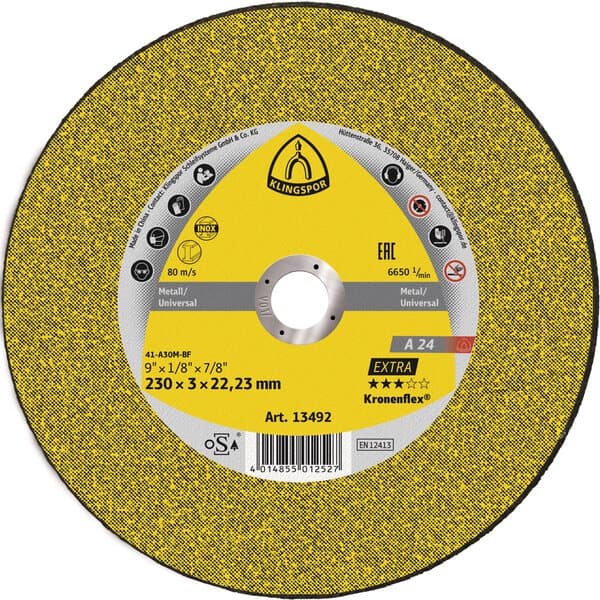

KLINGSPOR A 24 Extra Cutting Wheels – 25 Pack are designed for cutting metals. Supplied in packs of 25.
Key Features
- General-purpose metal cutting wheel for handheld equipment.
- Glass-fibre reinforcement provides stability during off-hand cutting.
- Suitable for cutting solid sections as well as general fabrication work.
Specifications
| Class | Extra |
| Bonding agent | Synthetic resin, fibre-reinforced |
| Grain | Aluminium oxide |
| Bore | 22.23 mm |
| Abrasive grain | Aluminium oxide |
| Machine type | angle grinder |
| Maximum operating speed | 80 m/s |
| Pack quantity | 25 |
| Suitable materials | Metals |
| Applications | Apparatus and container manufacturing, Locksmith's shop, Metal construction, Plant engineering |
Variants & Part Numbers
- 115 x 2.5 x 22.23mm – flat / Medium / 25 Pack (242137) — Diameter: 115 mm; Thickness: 2.5 mm; Form: flat; Maximum rotational speed: 13,300 rpm
- 125 x 2.5 x 22.23mm – flat / Medium / 25 Pack (328771) — Diameter: 125 mm; Thickness: 2.5 mm; Form: flat; Maximum rotational speed: 12,250 rpm
- 125 x 2.5 x 22.23mm – depressed centre / Medium / 25 Pack (328774) — Diameter: 125 mm; Thickness: 2.5 mm; Form: depressed centre; Maximum rotational speed: 12,250 rpm
- 180 x 3 x 22.23mm – flat / Medium / 25 Pack (328765) — Diameter: 180 mm; Thickness: 3 mm; Form: flat; Maximum rotational speed: 8,500 rpm
- 230 x 3 x 22.23mm – flat / Medium / 25 Pack (328761) — Diameter: 230 mm; Thickness: 3 mm; Form: flat; Maximum rotational speed: 6,650 rpm
- 230 x 3 x 22.23mm – depressed centre / Medium / 25 Pack (328763) — Diameter: 230 mm; Thickness: 3 mm; Form: depressed centre; Maximum rotational speed: 6,650 rpm
