Klingspor

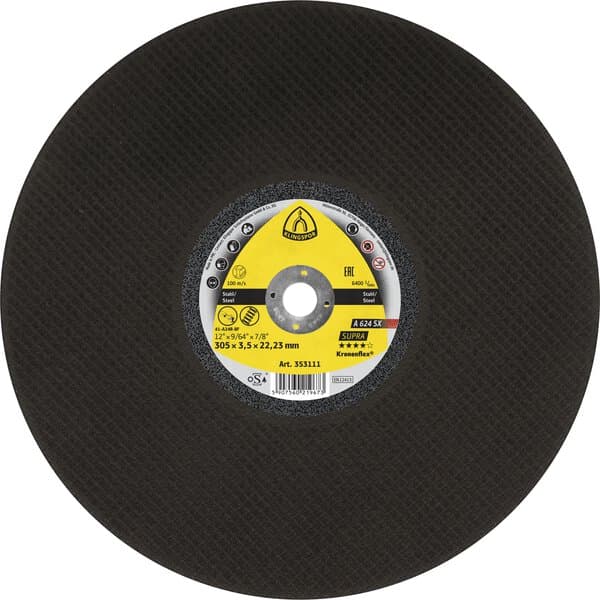

KLINGSPOR A 624 SX Supra Large Cutting Wheels – 10 Pack

$376.86 AUD

~~$0.00 AUD~~ $376.86 AUD

Sale Sold out

GST included. Shipping calculated at checkout.

Size 356 x 4 x 25.4mm – flat 406 x 4 x 25.4mm – flat

SKU: 340641

Available to order

Pay in 4

Afterpay
Zip
PayPal Pay in 4

Split your purchase into interest-free instalments at checkout. Terms apply.

Delivery options

Select your suburb for a delivery estimate. Additional courier options are available at checkout.

Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.

Buy with confidence

Delivery & pickupAvailable to order · Lead time varies

Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.

Australia-wide delivery. Available shipping options and costs are shown at checkout.

Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.

Full delivery & pickup policy

Returns & exchanges90 days for eligible unopened items

Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.

You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.

Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.

Full returns policy & exclusions

Warranty & supportProduct-specific warranty & support

Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.

For a fault or incorrect item, contact our team with your order details and a description of the issue.

Email our support team

Need help choosing?

Call our Smithfield team for product advice and compatibility checks.

Call our team Live chat

View full details

Details

KLINGSPOR A 624 SX Supra Large Cutting Wheels – 10 Pack are designed for cutting steel. Supplied in packs of 10.

The abrasive or tool is specified for Steel. Its construction and working form are detailed below, so material suitability, mounting and the selected article can be checked together.

Sold as a full selling pack: 10 discs. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.

Features and benefits

Softer bond supports fast cutting of hard rails.

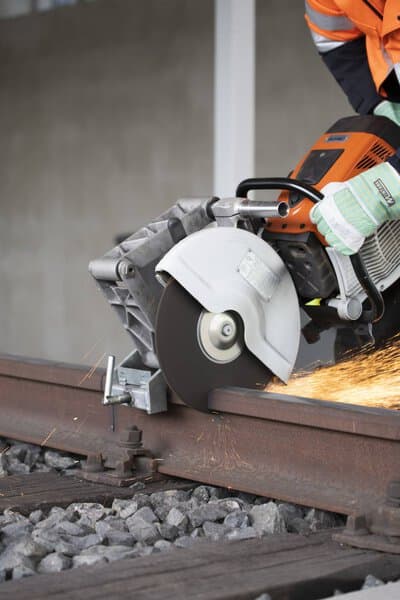

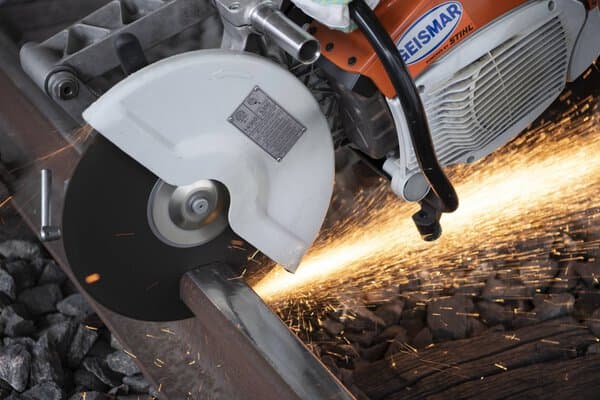

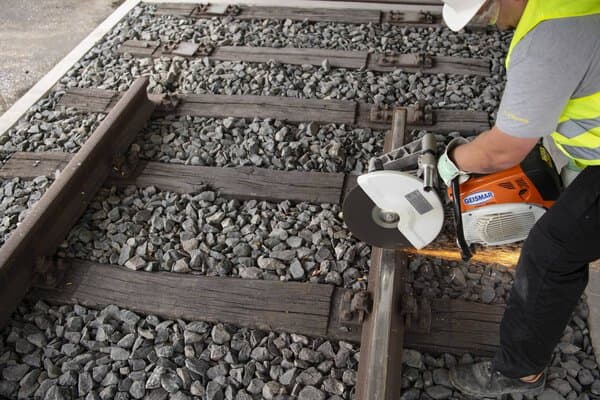

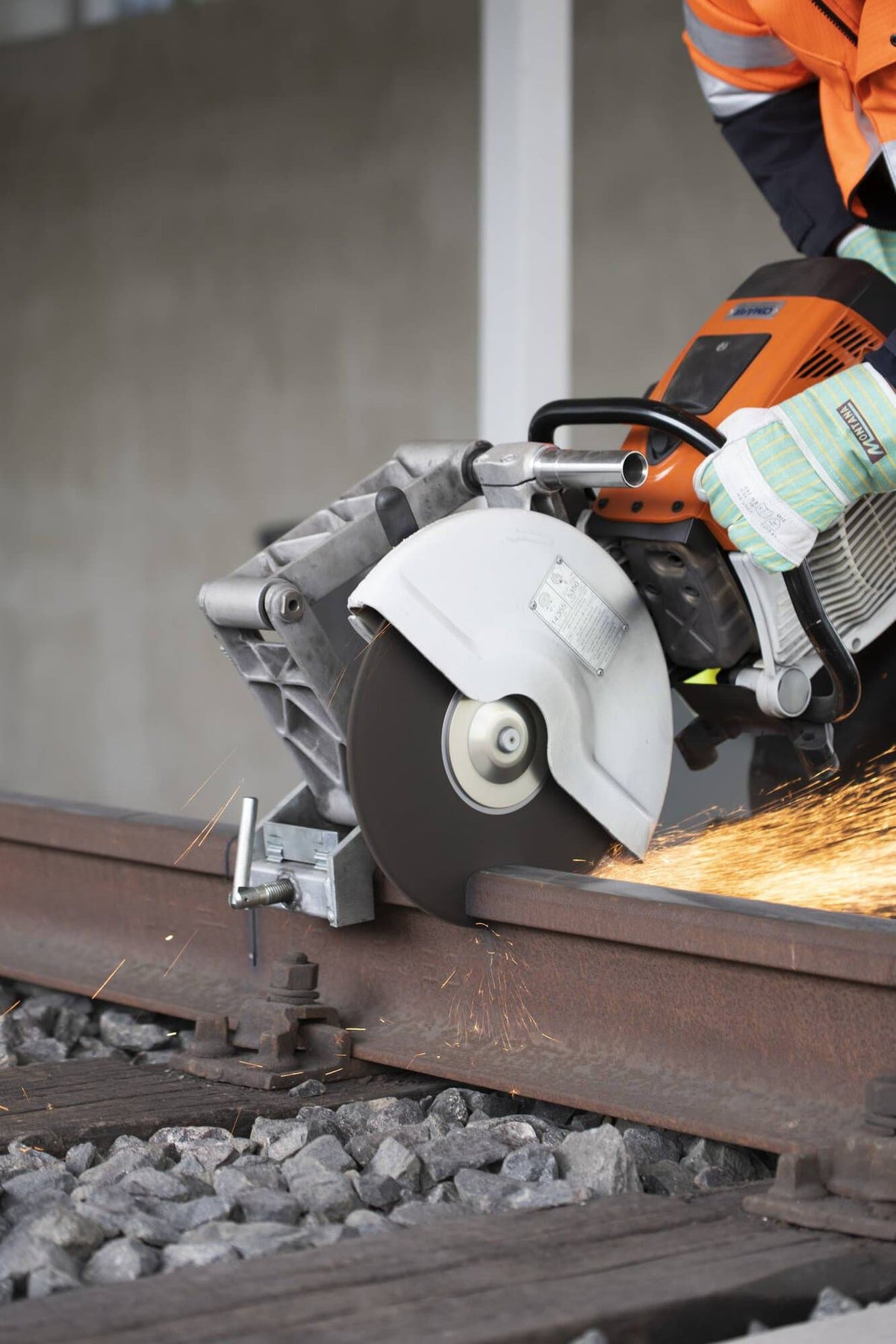

Designed for rail cutting on petrol-powered machines below 5kW, with a clamping device.
For equipment specified for a 100m/s wheel.
Aluminium oxide abrasive grain for the listed material applications.

Suitable materials

Steel.

Typical applications

Railway construction

Technical specifications

Brand	Klingspor
Form	flat
Class	Supra
Bonding agent	Synthetic resin, fibre-reinforced
Grain	Aluminium oxide
Selling quantity	10 discs

Variant specifications

SKU	Dimensions	Selling quantity	Diameter	Maximum rotational speed	Peripheral speed
340641	356 × 4 × 25.4 mm	10 discs	356 mm	5500 rpm	100 m/s
351436	406 × 4 × 25.4 mm	10 discs	406 mm	4800 rpm	100 m/s

Selection and use

Choose the diameter, thickness and bore for the intended cutting machine and material. Cutting-off wheels work through their cutting edge and must be used in the intended cutting orientation. Use a compatible mounting and guard, and observe the wheel’s marked speed limit as well as the machine rating.

Maximum RPM and peripheral-speed values are article ratings, rather than recommended working speeds. Use the rating for the selected article and follow the limits marked on the abrasive, mounting accessory and machine.
