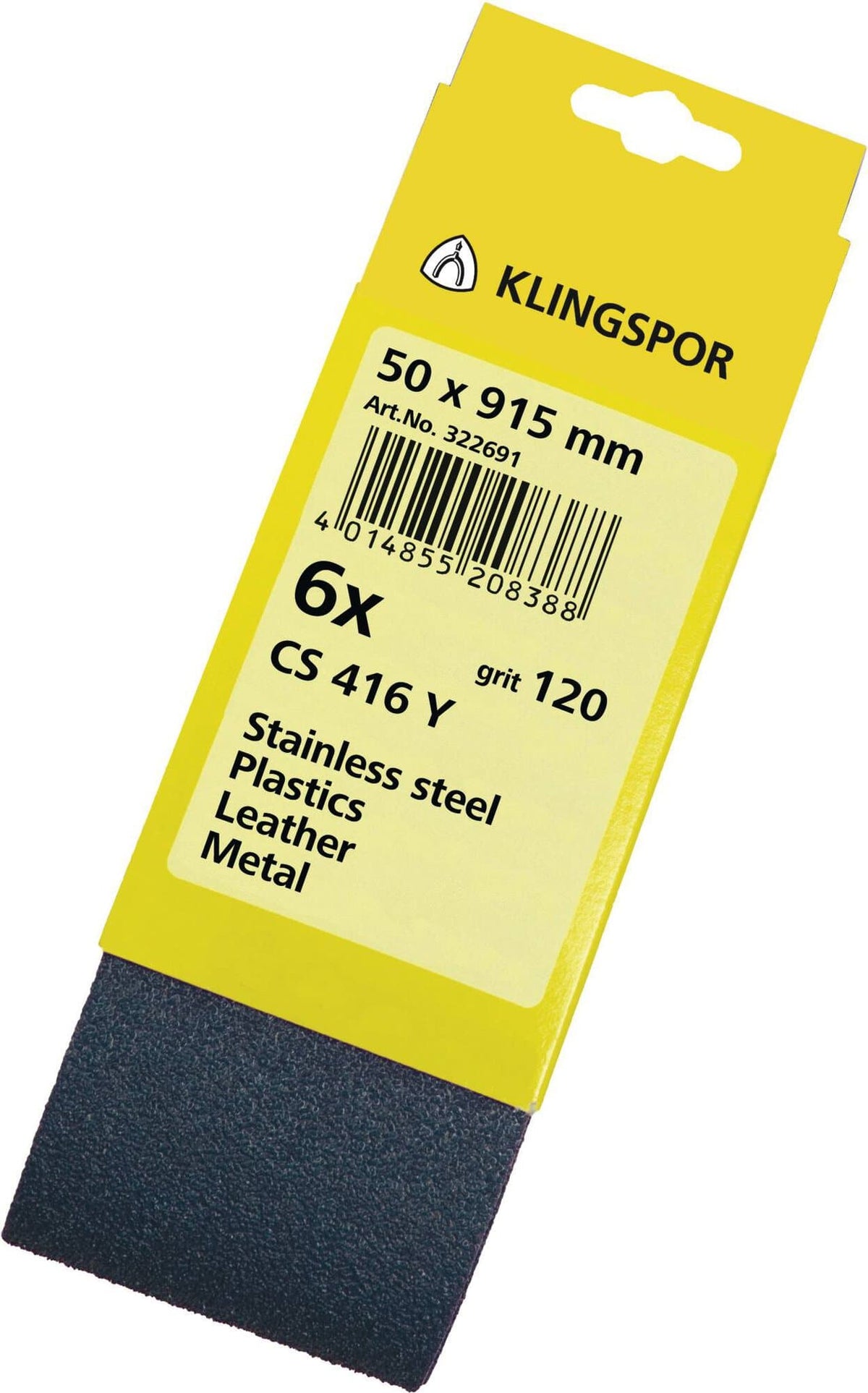

KLINGSPOR CS 416 Y Retail Pack Abrasive Belts for Stainless steel, Plastic
KLINGSPOR CS 416 Y Retail Pack Abrasive Belts for Stainless steel, Plastic
GST included. Shipping calculated at checkout.
SKU: 322688
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
Klingspor CS 416 Y abrasive belts combine zirconia-alumina grain with a strong Y-polyester cloth backing. The resin-bonded, semi-open construction provides space for sanding debris and is designed for high cutting performance and useful life on stainless steel and other listed materials, including surfaces that tend to load an abrasive.
Sold as a full selling pack: 18 belts. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.
Features and benefits
- Zirconia-alumina abrasive secured with a resin bond.
- Semi-open grain spacing provides room for sanding debris.
- Y-polyester backing supports demanding machine sanding.
- Choose the belt size and grit for the machine and intended surface finish.
Select the belt width and running length for the machine, then choose the grit for initial removal or subsequent refinement. The manufacturer specifies this belt for stainless steel, plastic and other listed applications. Match material suitability to the actual workpiece and use the correct tracking and tension for the equipment. Each SKU table identifies the size and supplied quantity so individual and box listings can be ordered correctly.
Suitable materials
Stainless steel, Plastic, NF metals.
Typical applications
- Apparatus and container manufacturing
- Foundries
- Railing construction
- Wall and façade builder
Technical specifications
| Brand | Klingspor |
|---|---|
| Bonding agent | Resin |
| Grain | Zirconia alumina |
| Coating | Semi-open |
| Backing | Y-polyester |
| Selling quantity | 18 belts |
Variant specifications
| SKU | Dimensions | Grit / grade | Selling quantity |
|---|---|---|---|
| 322688 | 50 × 915 mm | 40 Grit | 18 belts |
| 322689 | 50 × 915 mm | 60 Grit | 18 belts |
| 322690 | 50 × 915 mm | 80 Grit | 18 belts |
| 322691 | 50 × 915 mm | 120 Grit | 18 belts |
Selection and use
Match both belt width and running length to the machine before ordering. Choose the grit for the amount of stock removal and the required finish; a coarser grit removes material more quickly, while finer grits refine the scratch pattern. Where a joint specification is listed, use the specified running direction and the machine maker’s fitting guidance.
