Product information

Details

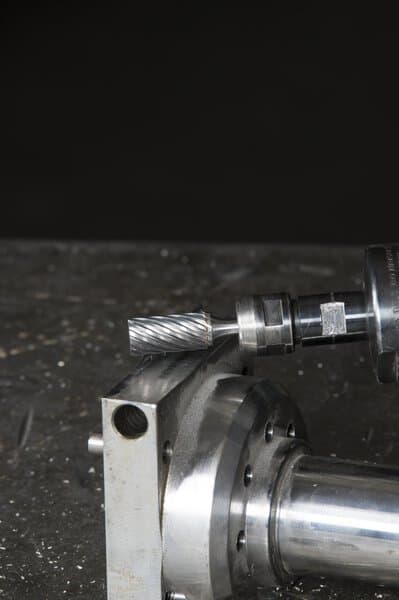

The Klingspor HF 100 B is a cylindrical carbide burr with an end cut for working on blind holes and end surfaces inside a component. Cutting edges on the cylindrical side and end face allow controlled deburring and shaping of internal contours.

Sold as a full selling pack: 1 burr. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.

Features and benefits

  • Cylindrical cutting head with an additional end cut.
  • Double-cut geometry for the listed options.
  • Suitable for construction steel, cast iron, non-ferrous metals and highly heat-resistant materials.
  • Head size, total length, shank dimensions and maximum RPM are specified for each article.

The end-cut form is useful when the end surface needs to be processed as well as the side of a recess. Choose a head diameter that fits the access area and a shank diameter that matches the machine collet. Optimum working speed depends on the head size and material, and the maximum article rating must still be observed. The listed overall length is different from the cutting-head height and usable shank length.

Technical specifications

Brand Klingspor
Form cylinder with endcut
Cut Double-cut
Selling quantity 1 burr

Variant specifications

SKU Dimensions Configuration Selling quantity Diameter Height Length Shank diameter Shank length Maximum rotational speed
295532 6 × 18 × 6 mm Double-cut 1 burr 6 mm 18 mm 50 mm 6 mm 32 mm 65,000 rpm
295553 8 × 19 × 6 mm Double-cut 1 burr 8 mm 19 mm 64 mm 6 mm 45 mm 55,000 rpm
295569 9.6 × 19 × 6 mm Double-cut 1 burr 9.6 mm 19 mm 64 mm 6 mm 45 mm 55,000 rpm
295610 12.7 × 25 × 6 mm Double-cut 1 burr 12.7 mm 25 mm 70 mm 6 mm 45 mm 35,000 rpm
310209 6 × 18 × 6.35 mm Double-cut 1 burr 6 mm 18 mm 51 mm 6.35 mm 33 mm 65,000 rpm
310210 8 × 19 × 6.35 mm Double-cut 1 burr 8 mm 19 mm 64 mm 6.35 mm 45 mm 55,000 rpm
310211 9.6 × 19 × 6.35 mm Double-cut 1 burr 9.6 mm 19 mm 64 mm 6.35 mm 45 mm 55,000 rpm
310212 12.7 × 25 × 6.35 mm Double-cut 1 burr 12.7 mm 25 mm 70 mm 6.35 mm 45 mm 35,000 rpm

Selection and use

Choose the burr profile for the surface, cavity, edge or contour being shaped. Match the shank diameter to the machine collet and select the serration for the material and finish required. Cutting-head dimensions and shank diameter are listed separately where available, so the mounting and reach can be checked before ordering.

Maximum RPM and peripheral-speed values are article ratings, rather than recommended working speeds. Use the rating for the selected article and follow the limits marked on the abrasive, mounting accessory and machine.
