• KLINGSPOR HF 100 L Carbide Burrs – Double-Cut
1 1 photos

Klingspor

KLINGSPOR HF 100 L Carbide Burrs – Double-Cut

KLINGSPOR HF 100 L Carbide Burrs – Double-Cut

$60.56 AUD
$0.00 AUD $60.56 AUD
Sale Sold out

GST included. Shipping calculated at checkout.

Size

SKU: 296200

Available to order

Pay in 4

  • Afterpay Afterpay
  • Zip Zip
  • PayPal PayPal Pay in 4

Split your purchase into interest-free instalments at checkout. Terms apply.

Delivery options

Select your suburb for a delivery estimate. Additional courier options are available at checkout.

Choose your suburb from the suggestions.

Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.

Buy with confidence

Delivery & pickupAvailable to order · Lead time varies

Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.

Australia-wide delivery. Available shipping options and costs are shown at checkout.

Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.

Full delivery & pickup policy

Returns & exchanges90 days for eligible unopened items

Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.

You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.

Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.

Full returns policy & exclusions

Warranty & supportProduct-specific warranty & support

Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.

For a fault or incorrect item, contact our team with your order details and a description of the issue.

Email our support team

Need help choosing?

Call our Smithfield team for product advice and compatibility checks.

Call our team Live chat
View full details

Take a closer look

Product information

Details

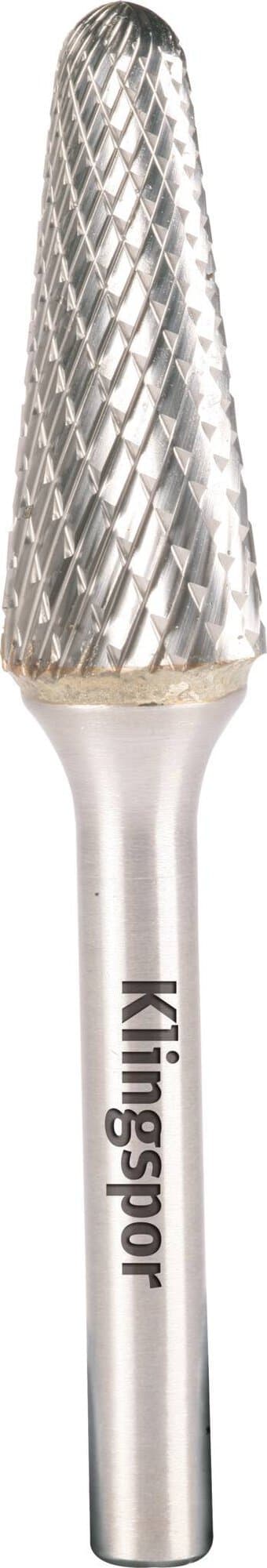

The Klingspor HF 100 L is a round-nosed conical carbide burr for difficult-to-access areas. Its tapered cutting head reaches narrow contours, while the rounded tip assists with shaping transitions and finishing curved surfaces.

Sold as a full selling pack: 1 burr. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.

Features and benefits

  • Conical cutting head with a rounded nose.
  • Double-cut geometry for the listed options.
  • Suitable for deburring, chamfering, contour grinding and refining weld areas.
  • Manufacturer-listed materials include construction steel, non-ferrous metals, cast iron, highly heat-resistant materials and plastic.

Choose the taper and head size for the available space and the surface profile, and match the shank to the rotary tool’s collet. The appropriate working speed varies with head diameter and material; operate within the maximum rating identified for the article. Check the separate head and shank measurements when reach matters, and use a sound mounting arrangement for controlled shaping in confined areas.

Technical specifications

Brand Klingspor
Form ball nosed tree
Cut Double-cut
Selling quantity 1 burr

Variant specifications

SKU Dimensions Configuration Selling quantity Diameter Height Length Shank diameter Shank length Maximum rotational speed
296200 6 × 18 × 6 mm Double-cut 1 burr 6 mm 18 mm 50 mm 6 mm 32 mm 65,000 rpm
296205 8 × 25.4 × 6 mm Double-cut 1 burr 8 mm 25.4 mm 70 mm 6 mm 44.6 mm 55,000 rpm
296201 9.6 × 30 × 6 mm Double-cut 1 burr 9.6 mm 30 mm 76 mm 6 mm 45.8 mm 55,000 rpm
296192 12.7 × 32 × 6 mm Double-cut 1 burr 12.7 mm 32 mm 77 mm 6 mm 45 mm 35,000 rpm
310286 6 × 18 × 6.35 mm Double-cut 1 burr 6 mm 18 mm 51 mm 6.35 mm 33 mm 65,000 rpm
310288 8 × 25.4 × 6.35 mm Double-cut 1 burr 8 mm 25.4 mm 70 mm 6.35 mm 45 mm 55,000 rpm
310287 9.6 × 30 × 6.35 mm Double-cut 1 burr 9.6 mm 30 mm 76 mm 6.35 mm 46 mm 55,000 rpm
310285 12.7 × 32 × 6.35 mm Double-cut 1 burr 12.7 mm 32 mm 77 mm 6.35 mm 45 mm 35,000 rpm

Selection and use

Choose the burr profile for the surface, cavity, edge or contour being shaped. Match the shank diameter to the machine collet and select the serration for the material and finish required. Cutting-head dimensions and shank diameter are listed separately where available, so the mounting and reach can be checked before ordering.

Maximum RPM and peripheral-speed values are article ratings, rather than recommended working speeds. Use the rating for the selected article and follow the limits marked on the abrasive, mounting accessory and machine.

Product documents

HF 100 L Carbide burrs data sheetOpen PDF · new tabHF 100 L Carbide burrs product informationManufacturer information · new tab
