Klingspor

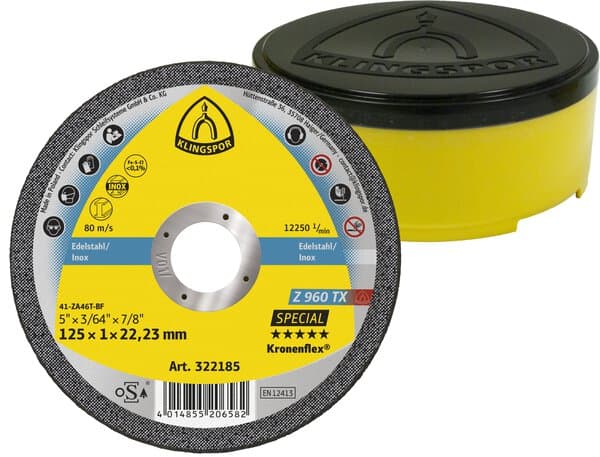

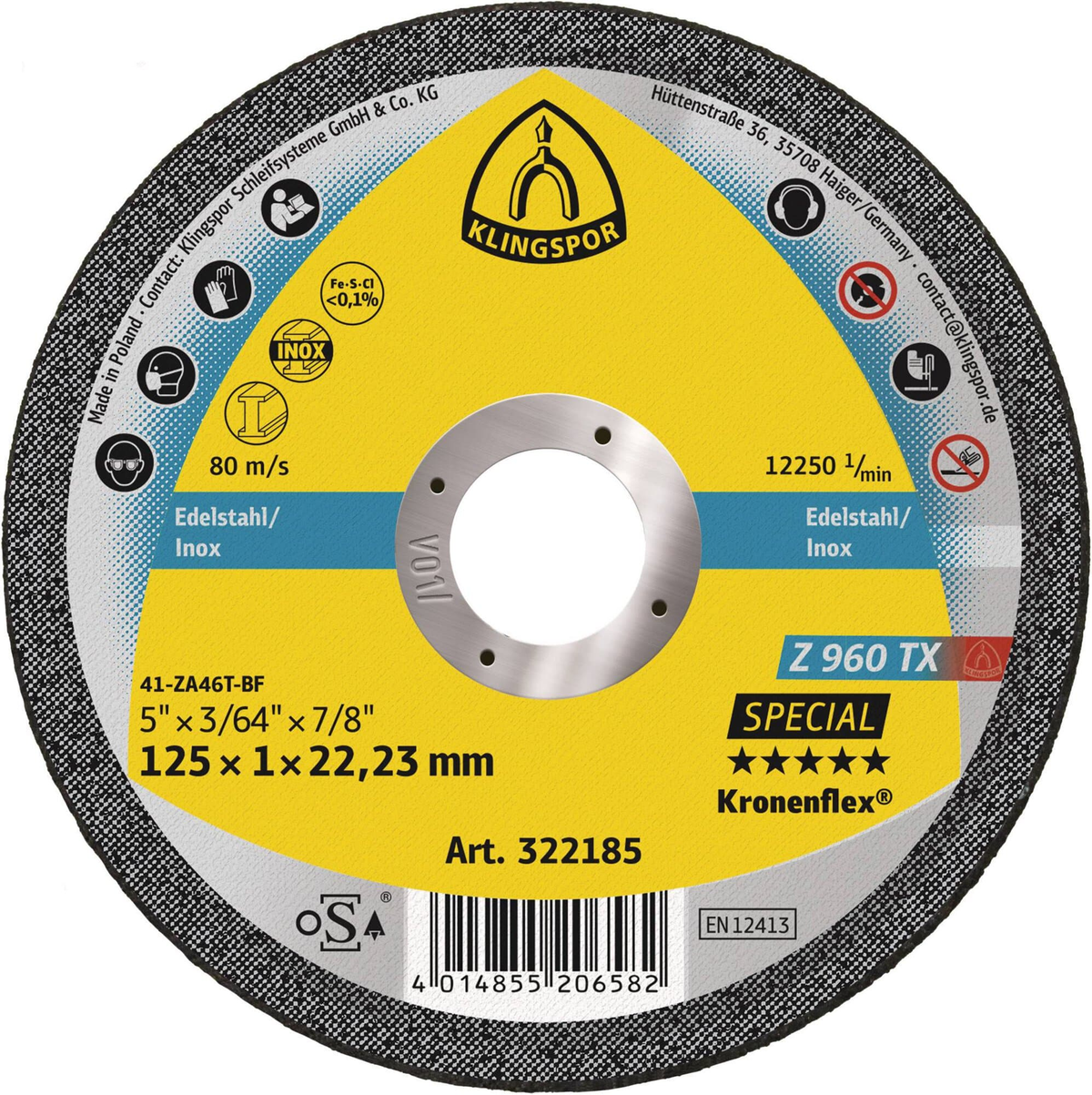

KLINGSPOR Z 960 TX Special Cutting Wheels – 25 Pack 322185
KLINGSPOR Z 960 TX Special Cutting Wheels – 25 Pack 322185
GST included. Shipping calculated at checkout.
SKU: 322185
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
KLINGSPOR Z 960 TX Special Cutting Wheels – 25 Pack 322185 are designed for cutting stainless steel, alloys, carbon steel. Supplied in packs of 25.
The abrasive or tool is specified for Stainless steel, Alloys, Carbon steel. Its construction and working form are detailed below, so material suitability, mounting and the selected article can be checked together.
Sold as a full selling pack: 25 discs. One ordered quantity supplies the complete box, pack or set shown for the chosen SKU.
Features and benefits
- Zirconia-alumina grain suits difficult materials such as titanium and high-alloy steels.
- Narrow cut limits heat input and burr formation.
- Free of iron, sulphur and chlorine.
- Zirconia alumina abrasive grain for the listed material applications.
Suitable materials
Stainless steel, Alloys, Carbon steel.
Typical applications
- Railing construction
- Stainless steel processing industry
Technical specifications
| Brand | Klingspor |
|---|---|
| Form | flat |
| Class | Special |
| Bonding agent | Synthetic resin, fibre-reinforced |
| Grain | Zirconia alumina |
| Selling quantity | 25 discs |
| SKU | 322185 |
| Dimensions | 125 × 1 × 22.23 mm |
| Grit / grade | Hard |
| Peripheral speed | 80 m/s |
| Maximum rotational speed | 12250 rpm |
Selection and use
Choose the diameter, thickness and bore for the intended cutting machine and material. Cutting-off wheels work through their cutting edge and must be used in the intended cutting orientation. Use a compatible mounting and guard, and observe the wheel’s marked speed limit as well as the machine rating.
Maximum RPM and peripheral-speed values are article ratings, rather than recommended working speeds. Use the rating for the selected article and follow the limits marked on the abrasive, mounting accessory and machine.
