Nitto Kohki

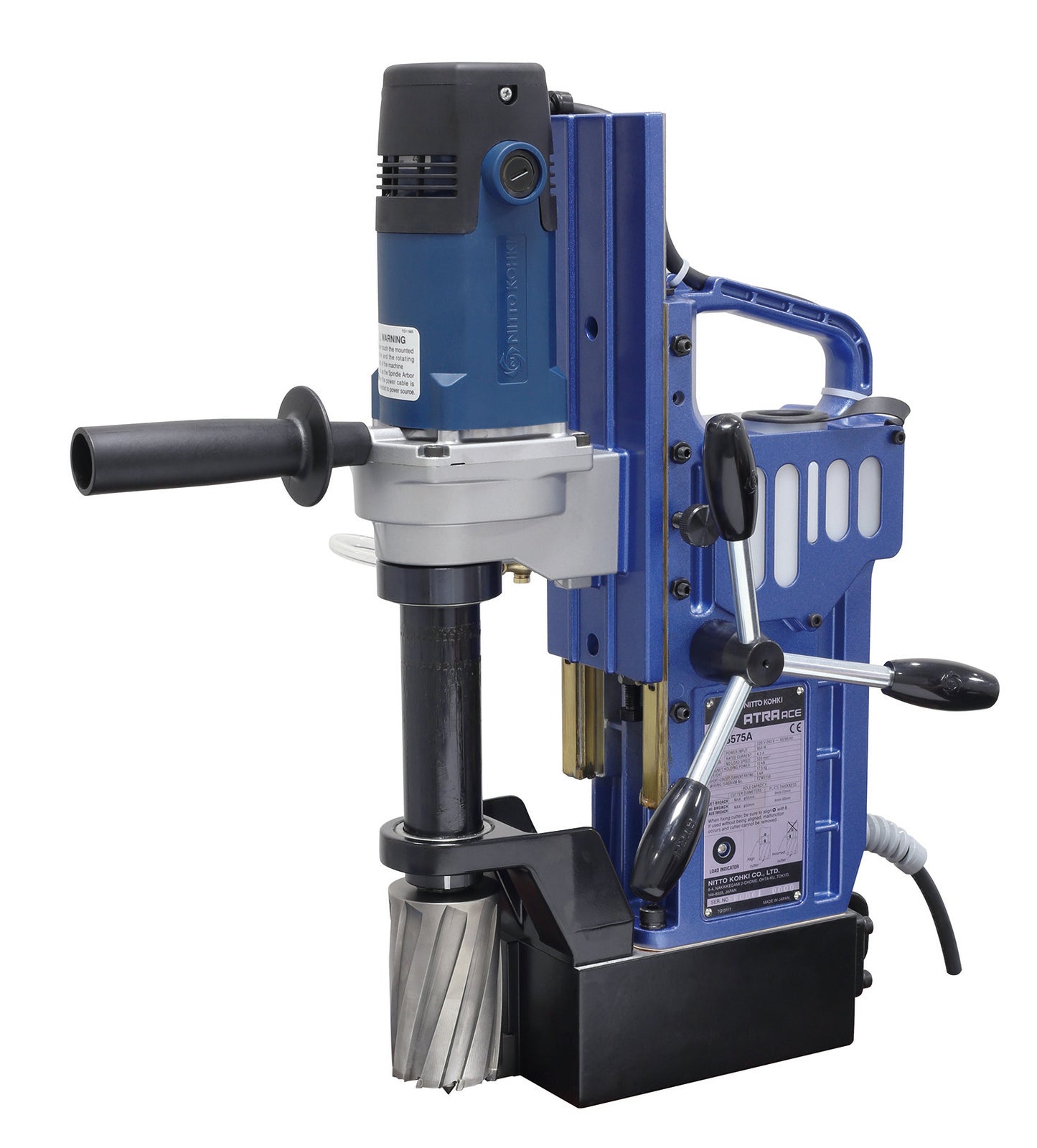

Nitto Atra Ace AO-5575A Magnetic Base Drill

Nitto Atra Ace AO-5575A Magnetic Base Drill

  • Special Order Item
Regular price $2,830.28 AUD
Regular price $0.00 AUD Sale price $2,830.28 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:NTAO-5575A

KEY FEATURES

• Manual feed
• For smooth cutting of deep and large holes
• A real workhorse
• New powerful single-speed motor 520rpm
• 1020 kg/f double rectangular magnet
• Cuts up to 55mm thru 75mm plate
• One-touch arbor
• Supplied in sturdy carry case

APPLICATIONS

• Steel fabrication, manufacturing, construction and shipbuilding

SPECIFICATIONS

Model AO-5575A
Power Source (Single Phase) 220~240V AC 50/60 Hz
Rated Power Consumption 950W
No Load Speed 520rpm
Hole Diameter 12-55mm
Plate Thickness 9-75mm
Magnetic Holding Power 1,020 kgf
Weight 17.5 kg

Standard Accessories

• Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc
• Chain Ass'y : 1 set
• Chip Breaker : 1 pc.
• Side handle ass'y : 1 set
• 3mm / 5mm Hex socket screw key : 1 pc
• 8mm x 10mm spanner : 1 pc
• Guard ass'y : 1 set


Optional Accessories

JETBROACH: One-touch type: 35L, 50L and 75L
• Chuck adapter NPCHUCK ADPT AO5575A
• 13mm keyed chuck NPCHUCK 13MM
