Nitto Kohki

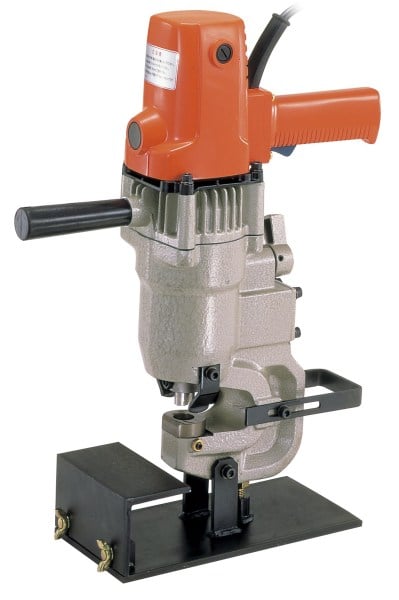

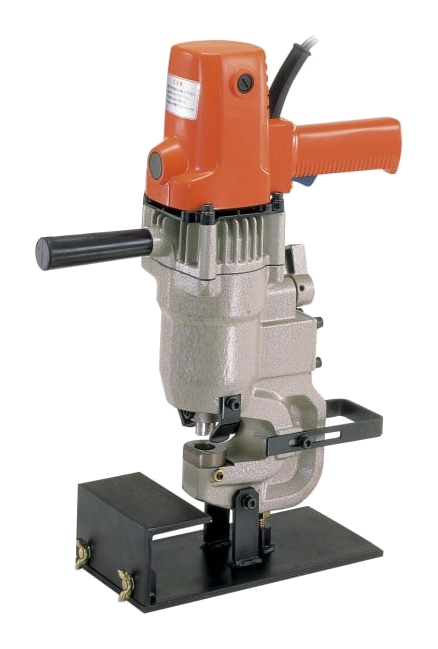

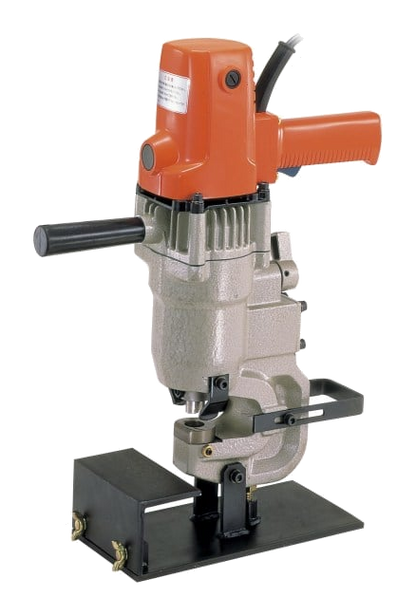

Nitto Electric Hydraulic Punches

Nitto Electric Hydraulic Punches

  • Special Order Item
Regular price $3,119.74 AUD
Regular price $0.00 AUD Sale price $3,119.74 AUD
Sale Sold out
Shipping calculated at checkout.
Model

SKU:NTE250615

Key Features

• In-built hydraulic pump
• Punches both round and elongated holes
• Maximum punching diameter 15mm thru 6mm flat plate, 4mm stainless steel and channel up to 125mm x 65mm
• 25mm throat depth
• Stand Assembly available as an optional extra - TB00800

Applications

• General steel / stainless steel punching

Specifications

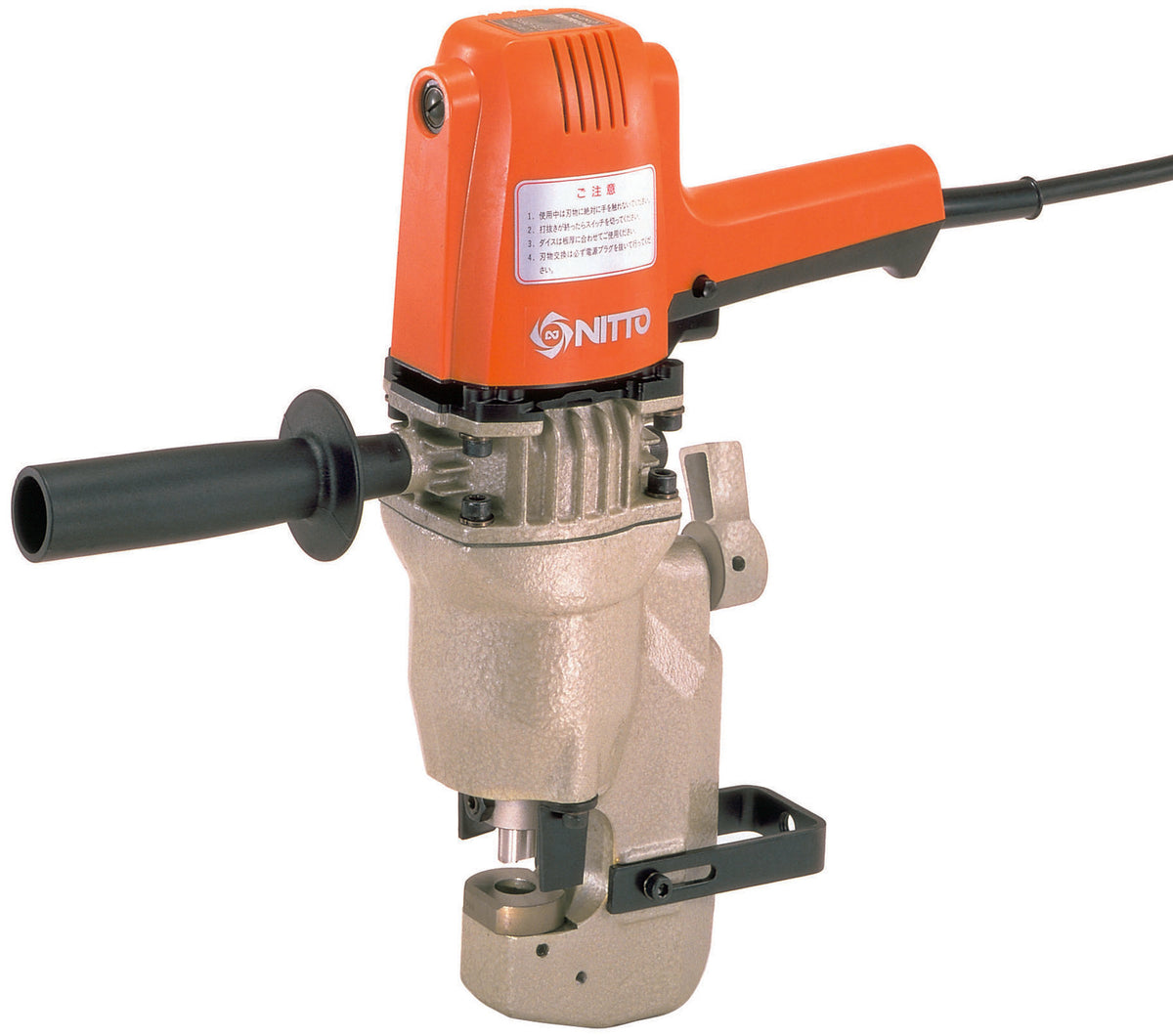

Model E 25-0615 E 55-0619
Power Source 220~240V AC 220-240V AC
Power Consumption 305W 305W
Punching Dia. Capacity 4-15mm 6-19mm
Max. Punching Plate Thickness (Mild Steel) 6mm 6mm
Max. Punching Plate Thickness (Stainless Steel) 4mm 4mm
Throat Depth 25mm 55mm
Weight 7kg 14kg

Accessories

Standard Accessories - E25-0615

• E Punch 15 / 15A / 15B : 1 pc
• 8mm Spanner : 1 pc
• 10mm x 12mm Spanner : 1 pc
• 2.5mm / 4mm Hex Socket Screw Key : Each 1 pc
• Auxiliary Oil : 1 pc


Standard Accessories - E55-0619

• EL Punch 18 /18A / 18B: Each 1 pc
• 10mm x 12mm Spanner : 1 pc
• 3mm / 4mm / 5mm Hex. Socket Key : Each 1 pc
• Auxiliary Oil : 1 pc

Optional Accessories

• Stand Assembly - TB00800
