Nitto Kohki

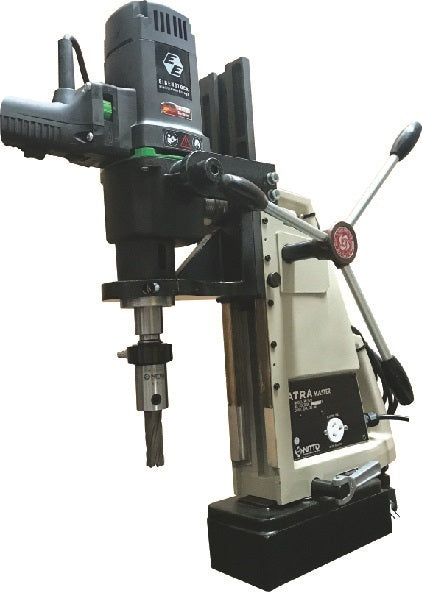

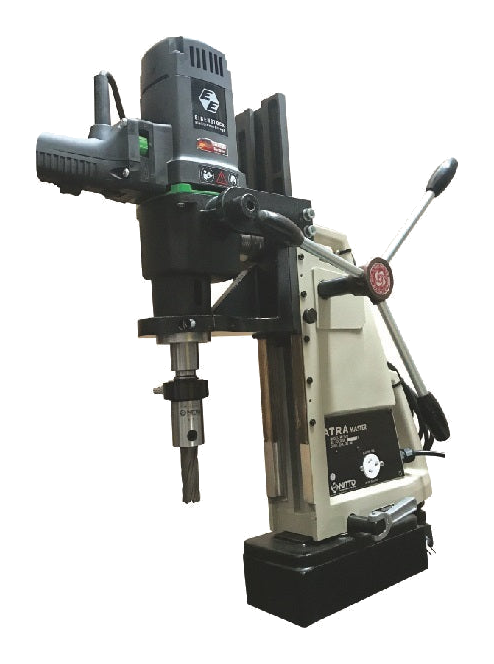

Nitto Atra Master M320 MT3 Magnetic Base Drill

Nitto Atra Master M320 MT3 Magnetic Base Drill

  • Special Order Item
Regular price $5,789.20 AUD
Regular price $0.00 AUD Sale price $5,789.20 AUD
Sale Sold out
Shipping calculated at checkout.

SKU:NTM320 MT3

Key Features

• The M320 MT3 is a 3 Morse taper with a twist drilling capacity of 32mm in steel combined with a 50 deg. swivel
• 20mm front to rear movement capability and 280mm stroke
• Eibenstock Drill (Part no: NTEHB32-2) comes with variable speed, soft start and forward / reverse features
• Designed for maximum accuracy and versatility for a wide range of drilling applications


Applications

• Suitable for a wide range of drilling applications in mild steel and harder metals
• Ideal for use with twist drills, broach cutters (with additional broach holder) and tapping chucks

Specifications

Model M320 MT3 Drill
Drilling Capacity 32mm Twist Drill, 3 Morse Taper
Free Speed 220, 250, 350, 420rpm
Load Speed 115, 160, 190, 260rpm
Weight 40 kg

Accessories

Optional Accessories
• Custom made bracket kits available separately - Part No: NPAEG3
• Industrial Arbor
