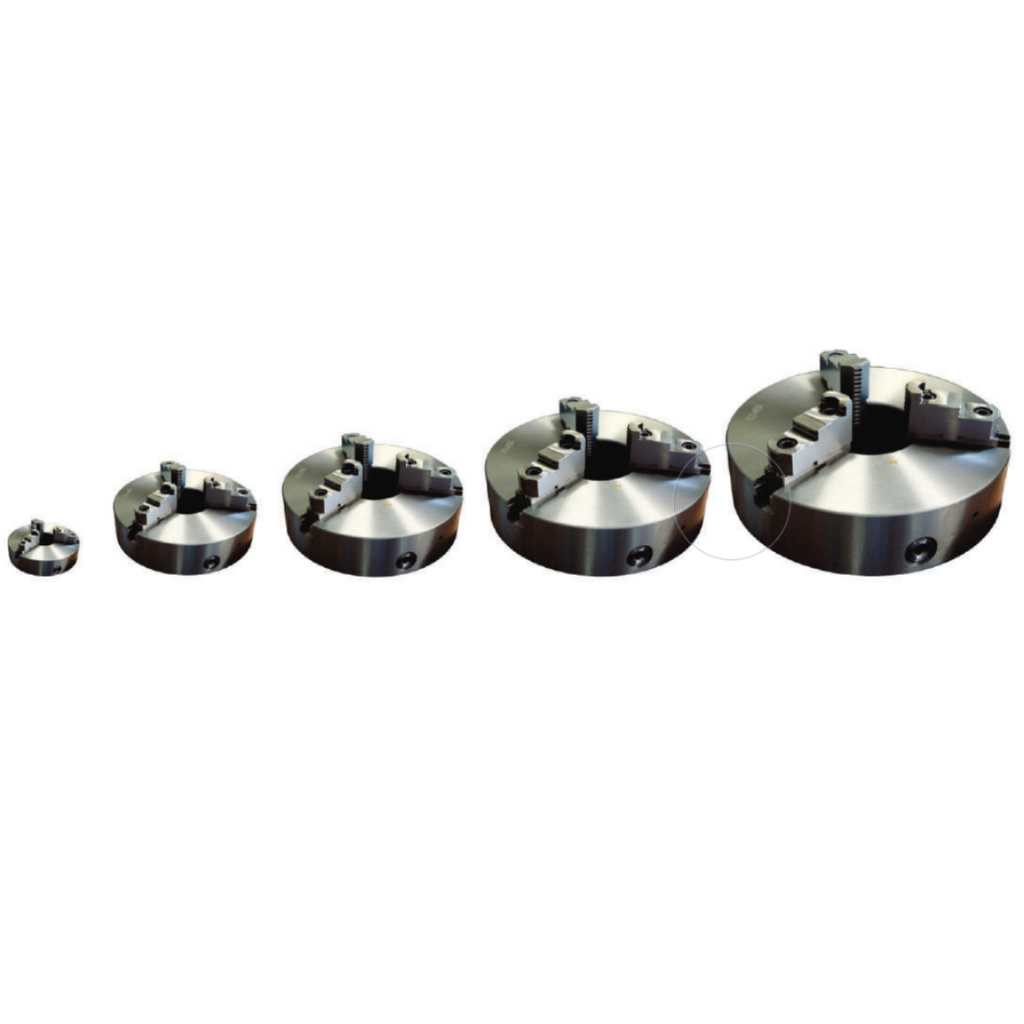

• PROFAX WPC-6, WPC-12, WPC-16, WPC-20 and WPC-25 three-jaw chuck range
1 1 photos

PROFAX

PROFAX Three-Jaw Welding Positioner Chucks

PROFAX Three-Jaw Welding Positioner Chucks

$652.67 AUD
$0.00 AUD $652.67 AUD
Sale Sold out

GST included. Shipping calculated at checkout.

Diameter

Freight may be charged after checkout

Prices include GST. If freight cannot be calculated at checkout, choose “Uncalculate Shipping (charge after check-out)”. Any $0 shown for this option is not free delivery.

We will contact you by SMS or email with freight options and the delivery charge. Freight must be agreed and paid before dispatch.

Availability, lead time and the supplied configuration will be confirmed with you. For a freight quote before ordering, email our team with the model, quantity and delivery postcode.

SKU: PXWPC-6

Pay in 4

  • Afterpay Afterpay
  • Zip Zip
  • PayPal PayPal Pay in 4

Split your purchase into interest-free instalments at checkout. Terms apply.

Delivery options

Select your suburb for a delivery estimate. Additional courier options are available at checkout.

Choose your suburb from the suggestions.

Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.

Buy with confidence

Delivery & pickupAvailable to order · Lead time varies

Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.

Australia-wide delivery. Available shipping options and costs are shown at checkout.

Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.

Full delivery & pickup policy

Returns & exchanges90 days for eligible unopened items

Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.

You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.

Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.

Full returns policy & exclusions

Warranty & supportProduct-specific warranty & support

Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.

For a fault or incorrect item, contact our team with your order details and a description of the issue.

Email our support team

Need help choosing?

Call our Smithfield team for product advice and compatibility checks.

Call our team Live chat
View full details

Take a closer look

Product information

Details

PROFAX Three-Jaw Welding Positioner Chucks secure workpieces to compatible welding positioners using self-centring, reversible jaws. The range offers several chuck diameters and gripping arrangements. Choose the model using both the compatible-positioner list and the clamping range for the intended jaw arrangement.

Key Features

  • Self-centring three-jaw design
  • Reversible jaws
  • Easy mounting to the compatible positioners listed below.
  • Reversible jaws provide different gripping arrangements; use the A–A1, B–B1 and C–C1 ranges for the selected chuck.
  • The included T-handle wrench is used to tighten and release the chuck.

Specifications

Part number Nominal diameter Weight Compatible positioners
PXWPC-6 158 mm 9 kg WP250-2
PXWPC-12 317.5 mm 47 kg WP500-2, WP1000-2
PXWPC-16 400 mm 75 kg WP500-2, WP1000-2, WP2000-4
PXWPC-20 498.5 mm 117 kg WP1000-2, WP2000-4, WP6000-4
PXWPC-25 628 mm 209 kg WP2000-4, WP6000-4

Variants & Part Numbers

  • 158 mm (PXWPC-6)
  • 317.5 mm (PXWPC-12)
  • 400 mm (PXWPC-16)
  • 498.5 mm (PXWPC-20)
  • 628 mm (PXWPC-25)

Clamping Ranges and Through-Hole Sizes

Dimensions below are the manufacturer’s original inch specifications. A–A1, B–B1 and C–C1 identify the three jaw arrangements in the manufacturer’s chuck diagram.

Part number Clamping range A–A1 I.D. range B–B1 External-jaw clamping C–C1 Through-hole diameter
PXWPC-6 1/8–2-1/8 in 2–6-1/4 in 2-1/4–5-5/8 in 1.77 in
PXWPC-12 1/2–5-1/2 in 3-3/4–12-3/8 in 3-7/8–12-3/8 in 3.94 in
PXWPC-16 5/8–8-1/4 in 4-3/4–15-3/4 in 4-3/4–15-3/4 in 5.70 in
PXWPC-20 1–11 in 5-7/8–19-5/8 in 5-7/8–19-5/8 in 8.26 in
PXWPC-25 2–13-3/4 in 6-5/8–24-3/4 in 6-5/8–24-3/4 in 10.62 in

A T-handle wrench is included with each chuck.

Supplier Metric Clamping Ranges

These are IWWS’s nominal metric ranges for the A–A1, B–B1 and C–C1 jaw arrangements shown in the product document. The original inch specifications above are retained; the supplier’s rounded metric values are not exact inch conversions.

Part number Clamping A–A1 Internal gripping B–B1 External-jaw clamping C–C1
PXWPC-6 3.2–54 mm 50–158 mm 57–142 mm
PXWPC-12 12.5–139 mm 95–314 mm 98–314 mm
PXWPC-16 16–209 mm 120–400 mm 120–400 mm
PXWPC-20 25–279 mm 149–498 mm 149–498 mm
PXWPC-25 50–349 mm 168–628 mm 168–628 mm

Product documents

Welding Positioner Chuck GripperOpen PDF · new tab
