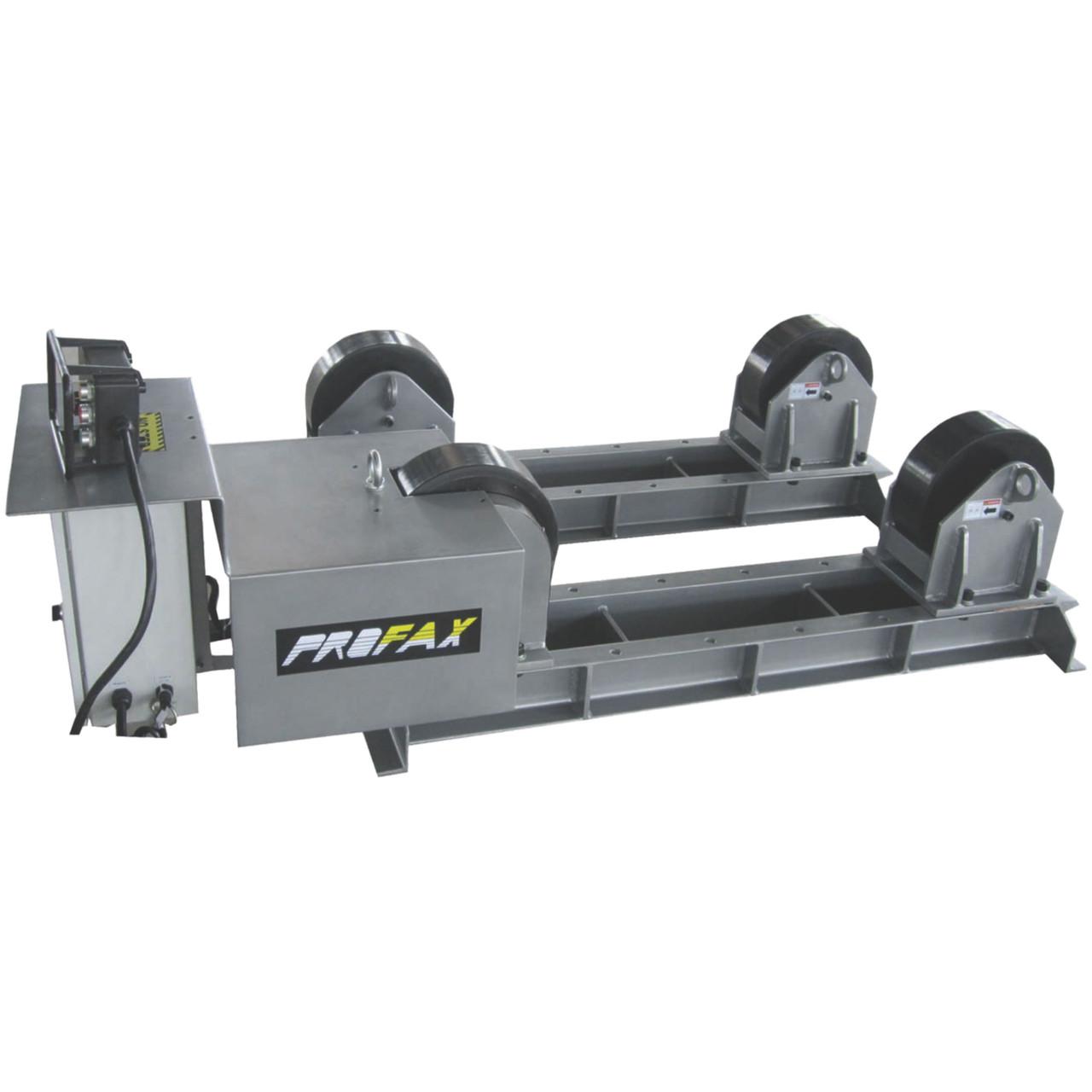

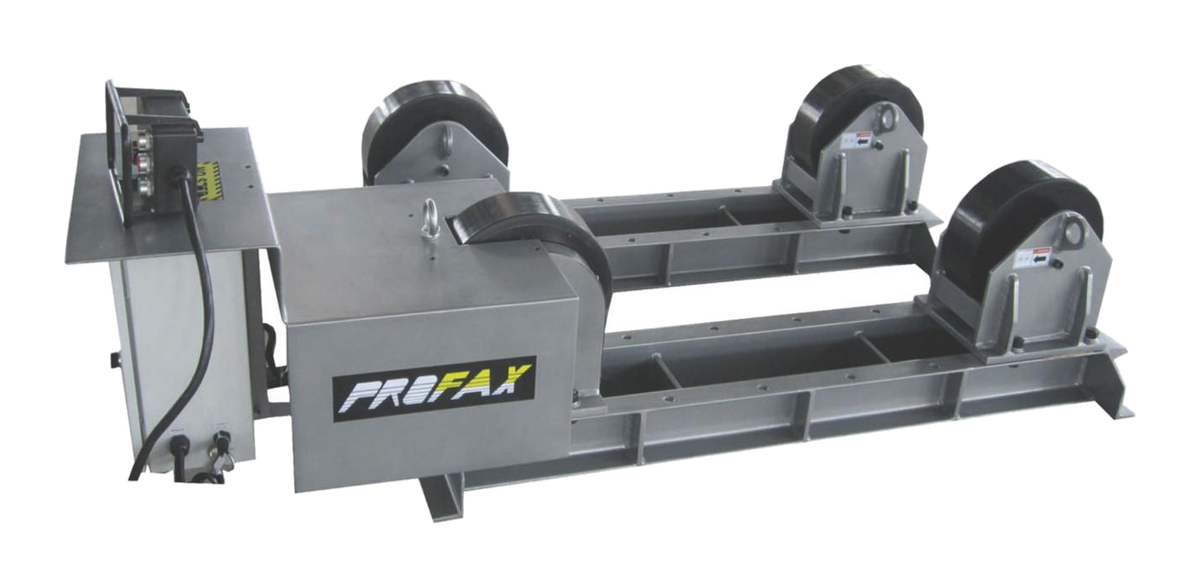

PROFAX TR10000-2 Turning Roll

PROFAX TR10000-2 Turning Roll

$13,191.75 AUD
$13,191.75 AUD
Sale Sold out
Shipping calculated at checkout.

TR10000-2

Available to order

The PROFAX TR10000-2 Turning Roll is a 5-tonne drive and idler system for controlled rotation of larger cylindrical workpieces during welding and fabrication. Adjustable wheel spacing and a low-voltage hand pendant support reliable setup and operation.

Key Features:

  • 4,535kg load capacity across the drive and idler set.
  • Adjustable wheel spacing for 300mm to 2.4m diameter workpieces.
  • Variable rotation speed from 0–45 IPM.
  • Polyurethane-over-steel wheels rated to 135°C.
  • Compatible with the IR-5000 additional idler for up to 6,802kg rotational capacity.

In the Box:

  • 1 × Drive Unit
  • 1 × Idler Unit
  • 1 × 24V Hand Pendant with 7.5m Cord

Machine Specifications:

Load Capacity 4,535kg (5 Tonnes)
Capacity per Drive / Idler 2,267kg (2.5 Tonnes)
Maximum Rotational Capacity with Additional Idler 6,802kg (7.5 Tonnes)
Workpiece Diameter Range 300mm–2.4m (12–96in)
Rotation Speed 0–45 IPM
Wheel Size 101 × 304mm
Wheel Construction Polyurethane over steel
Tyre Temperature Rating 135°C
Motor 2/3 HP
Control 24V hand pendant with 7.5m cord
Shipping Weight 327kg
Dimensions (L × W × H) 1,935 × 410 × 460mm
Warranty 1 Year
Compatible Additional Idler IR-5000
