Product information

Product details

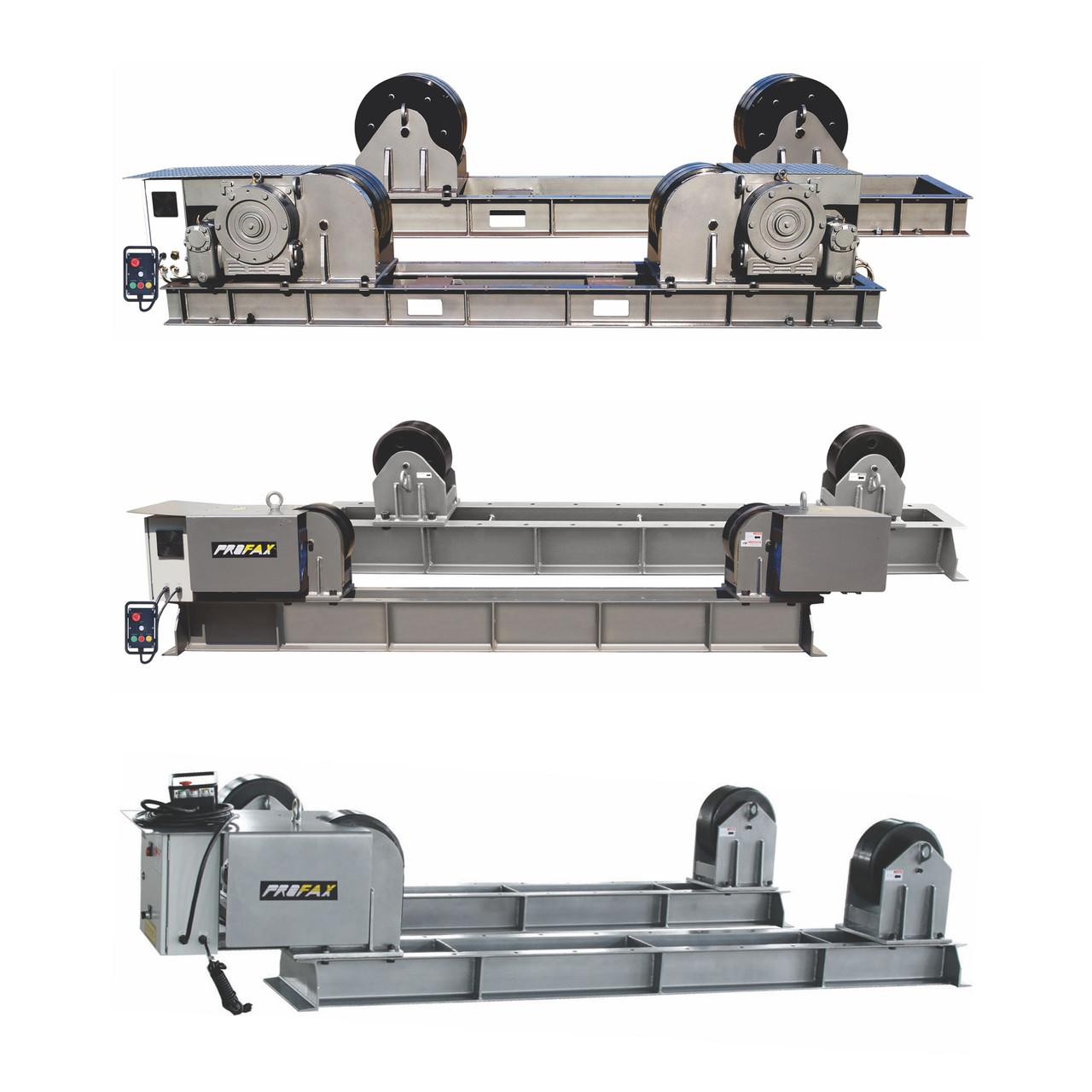

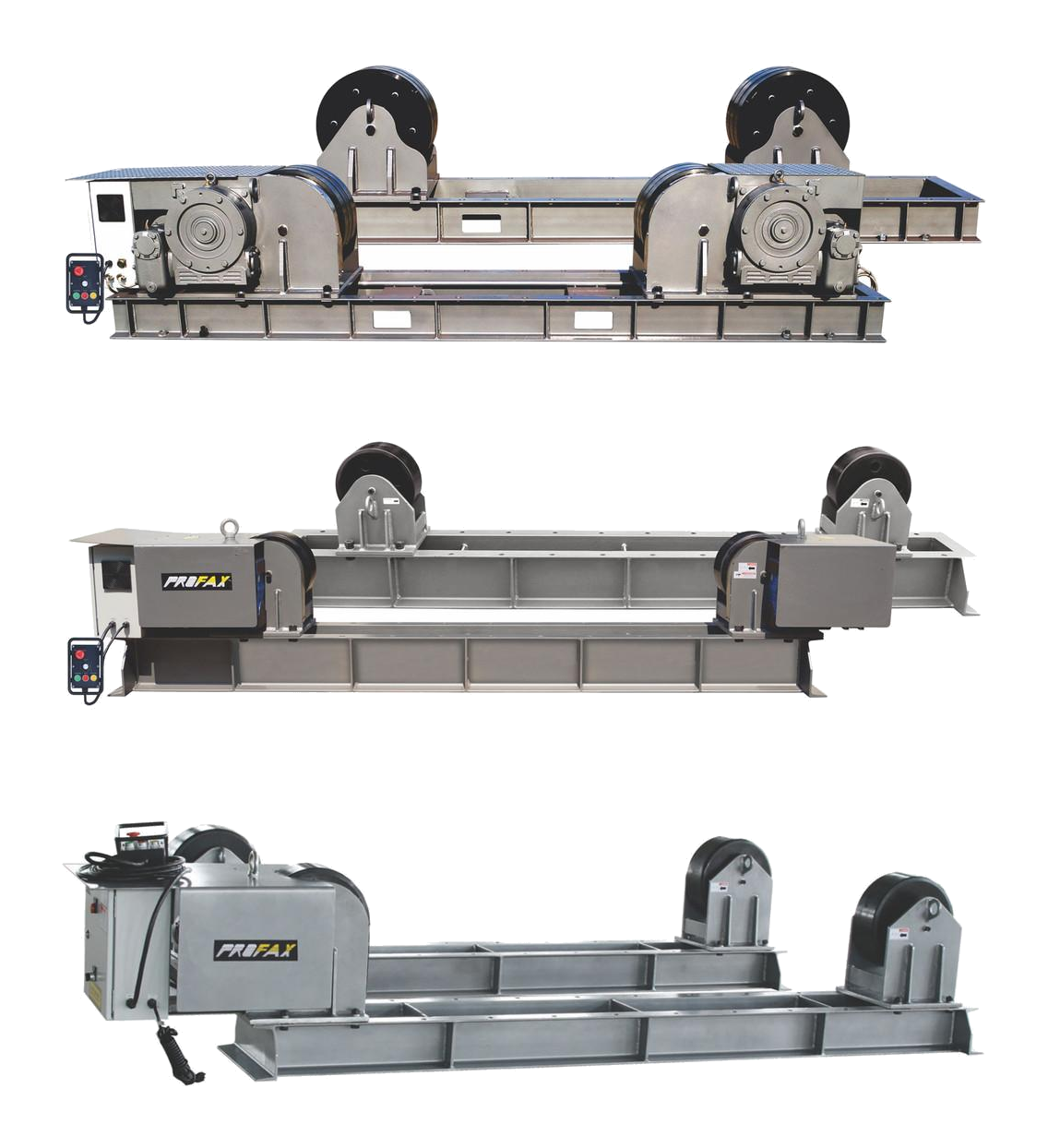

The PROFAX TR20000-2 Turning Roll is a 10-tonne drive and idler system for controlled rotation of large cylindrical workpieces during welding and fabrication. It combines adjustable wheel spacing, heat-resistant polyurethane-over-steel wheels and pendant control for workshop use.

Key Features:

  • 9,071kg load capacity across the drive and idler set.
  • Adjustable wheel spacing for 500mm to 4.8m diameter workpieces.
  • Variable rotation speed from 0–48 IPM.
  • 127 × 317mm polyurethane-over-steel wheels rated to 135°C.
  • Compatible with the IR-10000 additional idler for up to 13,607kg rotational capacity.

In the Box:

  • 1 × Drive Unit
  • 1 × Idler Unit
  • 1 × 24V Hand Pendant with 7.5m Cord

Machine Specifications:

Load Capacity 9,071kg (10 Tonnes)
Capacity per Drive / Idler 4,535kg (5 Tonnes)
Maximum Rotational Capacity with Additional Idler 13,607kg (15 Tonnes)
Workpiece Diameter Range 500mm–4.8m (20–192in)
Rotation Speed 0–48 IPM
Wheel Size 127 × 317mm
Wheel Construction Polyurethane over steel
Tyre Temperature Rating 135°C
Motor 1 HP
Control 24V hand pendant with 7.5m cord
Shipping Weight 600kg
Dimensions (L × W × H) 3,600 × 440 × 700mm
Warranty 1 Year
Compatible Additional Idler IR-10000
