PROFAX TR60000-4 Turning Roll

PROFAX TR60000-4 Turning Roll

$28,378.35 AUD
$28,378.35 AUD
Sale Sold out
Shipping calculated at checkout.

TR60000-4

Available to order

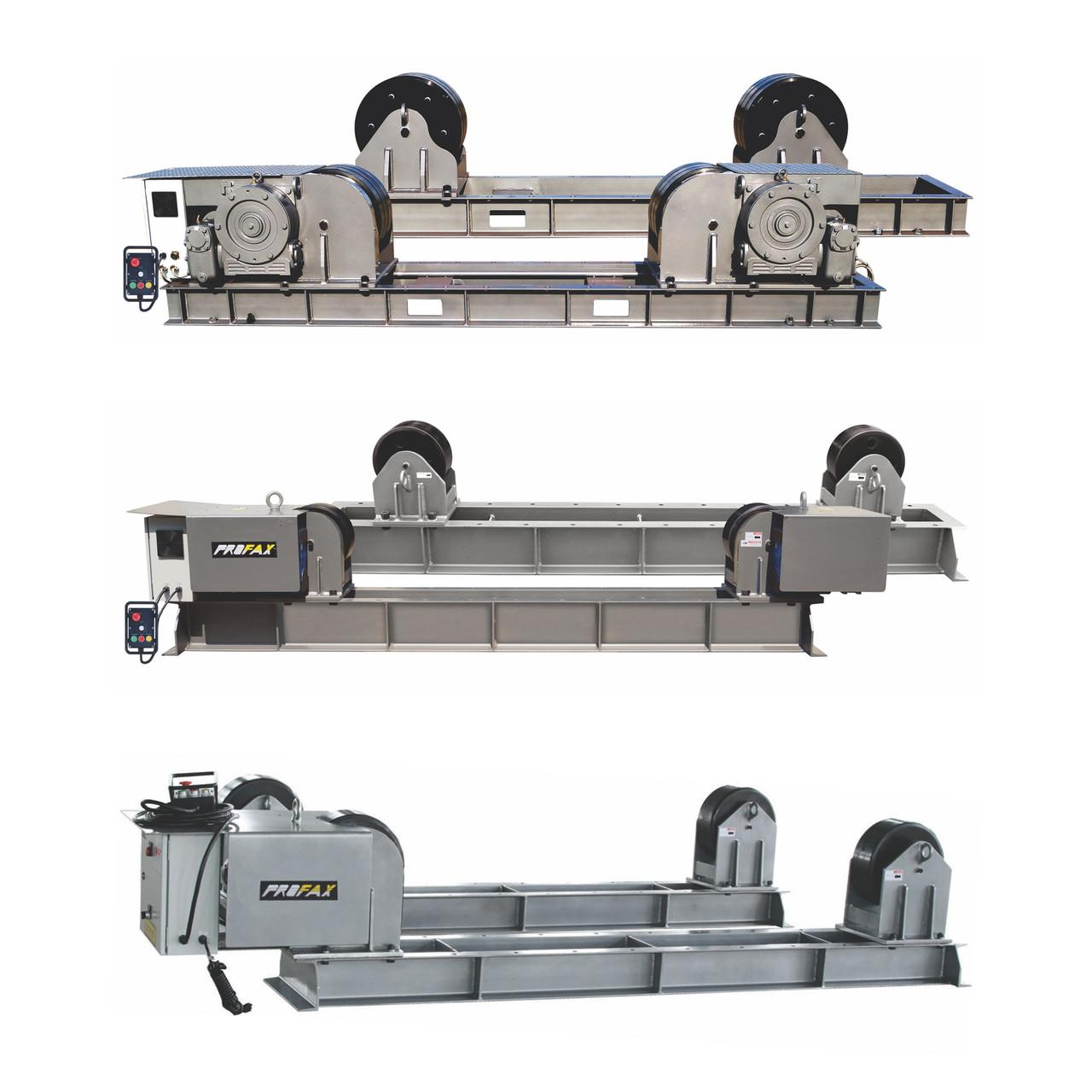

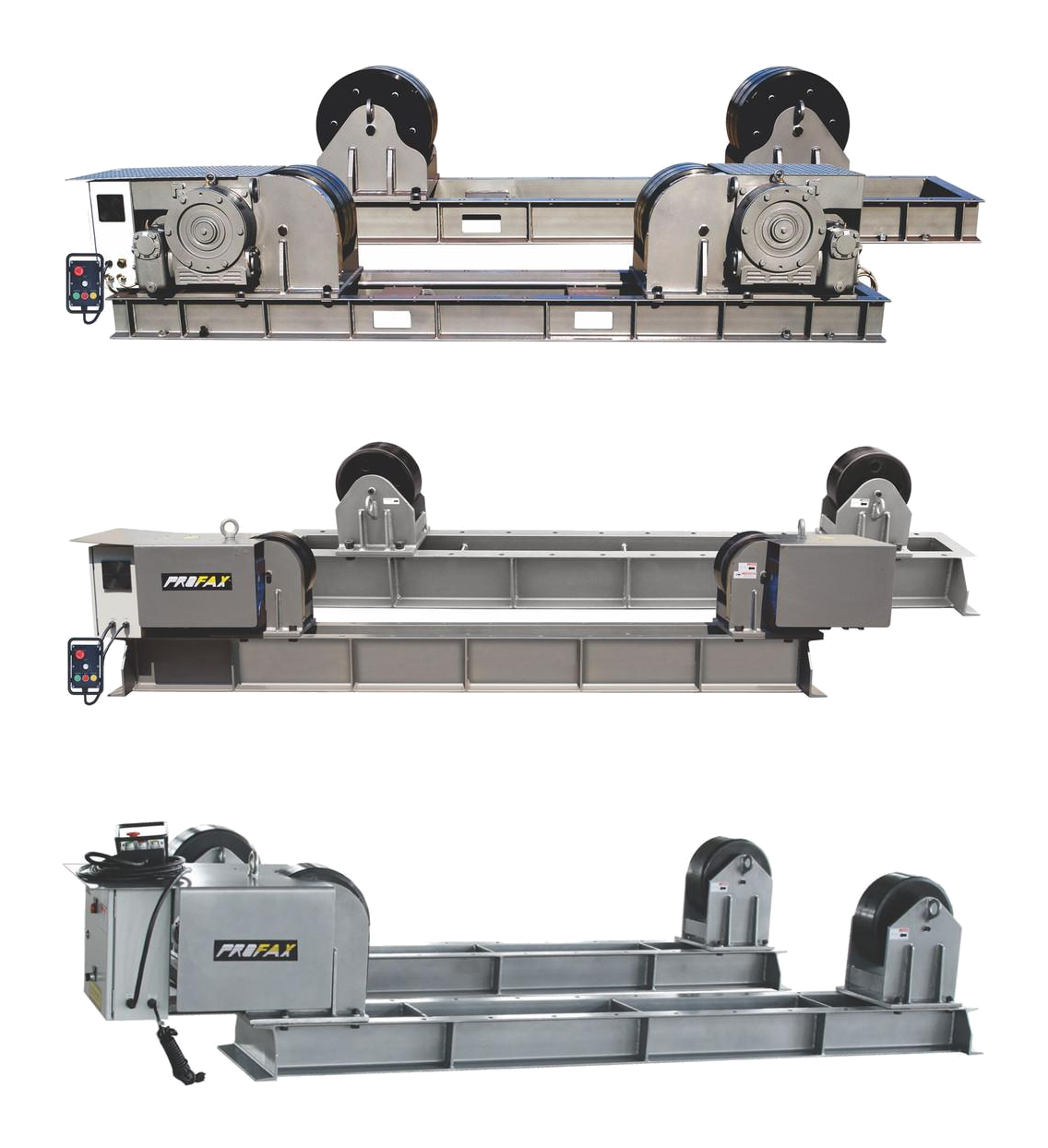

The PROFAX TR60000-4 Turning Roll is a 30-tonne drive and idler system for controlled rotation of large cylindrical workpieces during welding and fabrication. Twin 1.5 HP motors, adjustable wheel spacing and a 24V hand pendant suit demanding workshop applications.

Key Features:

  • 27,215kg load capacity across the drive and idler set.
  • Adjustable wheel spacing for 500mm to 5.4m diameter workpieces.
  • Variable rotation speed from 6–58 IPM.
  • Twin 1.5 HP motors and polyurethane-over-steel wheels rated to 135°C.
  • Compatible with the IR-30000 additional idler for up to 40,823kg rotational capacity.

In the Box:

  • 1 × Drive Unit
  • 1 × Idler Unit
  • 1 × 24V Hand Pendant with 7.5m Cord

Machine Specifications:

Load Capacity 27,215kg (30 Tonnes)
Capacity per Drive / Idler 13,607kg (15 Tonnes)
Maximum Rotational Capacity with Additional Idler 40,823kg (45 Tonnes)
Workpiece Diameter Range 500mm–5.4m (20–216in)
Rotation Speed 6–58 IPM
Wheel Size 152 × 343mm
Wheel Construction Polyurethane over steel
Tyre Temperature Rating 135°C
Motor 2 × 1.5 HP
Input 440V / 10A
Control 24V hand pendant with 7.5m cord
Shipping Weight 1,064kg
Warranty 1 Year
Compatible Additional Idler IR-30000
