PROFAX Welding Positioner Grippers
PROFAX Welding Positioner Grippers
GST included. Shipping calculated at checkout.
Freight may be charged after checkout
Prices include GST. If freight cannot be calculated at checkout, choose “Uncalculate Shipping (charge after check-out)”. Any $0 shown for this option is not free delivery.
We will contact you by SMS or email with freight options and the delivery charge. Freight must be agreed and paid before dispatch.
Availability, lead time and the supplied configuration will be confirmed with you. For a freight quote before ordering, email our team with the model, quantity and delivery postcode.
SKU: WPG-22
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

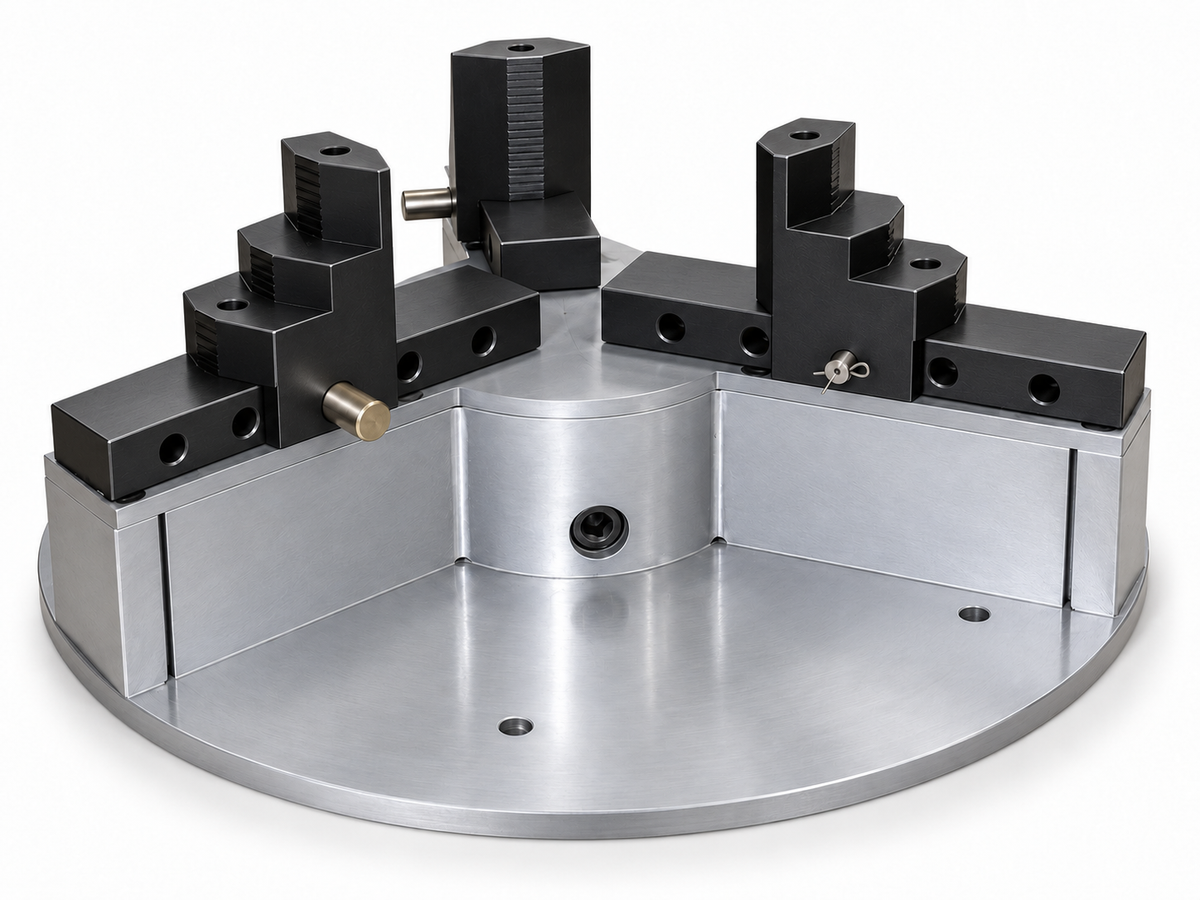

PROFAX Welding Positioner Grippers secure workpieces for rotation on the compatible positioners listed below. Self-centring, reversible jaws provide inside and outside gripping arrangements. Select the gripper by its actual gripping capacities and compatible machine, rather than the model number alone.
Key Features
- Self-centring action: Centres the gripping arrangement around the workpiece.
- Reversible jaws: Support the stated internal and external gripping arrangements.
- Inside and outside gripping: Separate inside and outside gripping capacities help match the gripper to the workpiece.
Before You Buy
Easy mounting to the compatible positioners listed below.
Outboard supports are required as part of the workholding arrangement when using these grippers.
In the Box
- One welding positioner gripper of the selected WPG model.
Specifications
| Part number | Body diameter | Compatible positioners |
|---|---|---|
| WPG-22 | 501 mm | WP500-2, WP1000-2, WP2000-4, WP6000-4 |
| WPG-26 | 628 mm | WP1000-2, WP2000-4, WP6000-4 |
| WPG-34 | 768 mm | WP2000-4, WP6000-4 |
Gripping Capacities
| Model | Outside gripping capacity | Inside gripping capacity | Weight |
|---|---|---|---|
| WPG-22 | 1–15 in | 4–22 in | 130 lb (approximately 59 kg) |
| WPG-26 | 1-1/2–18 in | 6–26 in | 235 lb (approximately 107 kg) |
| WPG-34 | 2–26 in | 6–34 in | 365 lb (approximately 166 kg) |
Metric Gripping Capacities
IWWS lists the following nominal metric capacities. These rounded supplier values accompany the original inch capacities above.
| Part number | Outside gripping capacity | Inside gripping capacity |
|---|---|---|
| WPG-22 | 25–381 mm | 101–558 mm |
| WPG-26 | 38–457 mm | 152–660 mm |
| WPG-34 | 50–660 mm | 152–863 mm |
Product Documents
| Variants & Part Numbers | |
|---|---|
| Model | SKU |
| 22 inch model | WPG-22 |
| 26 inch model | WPG-26 |
| 34 inch model | WPG-34 |
