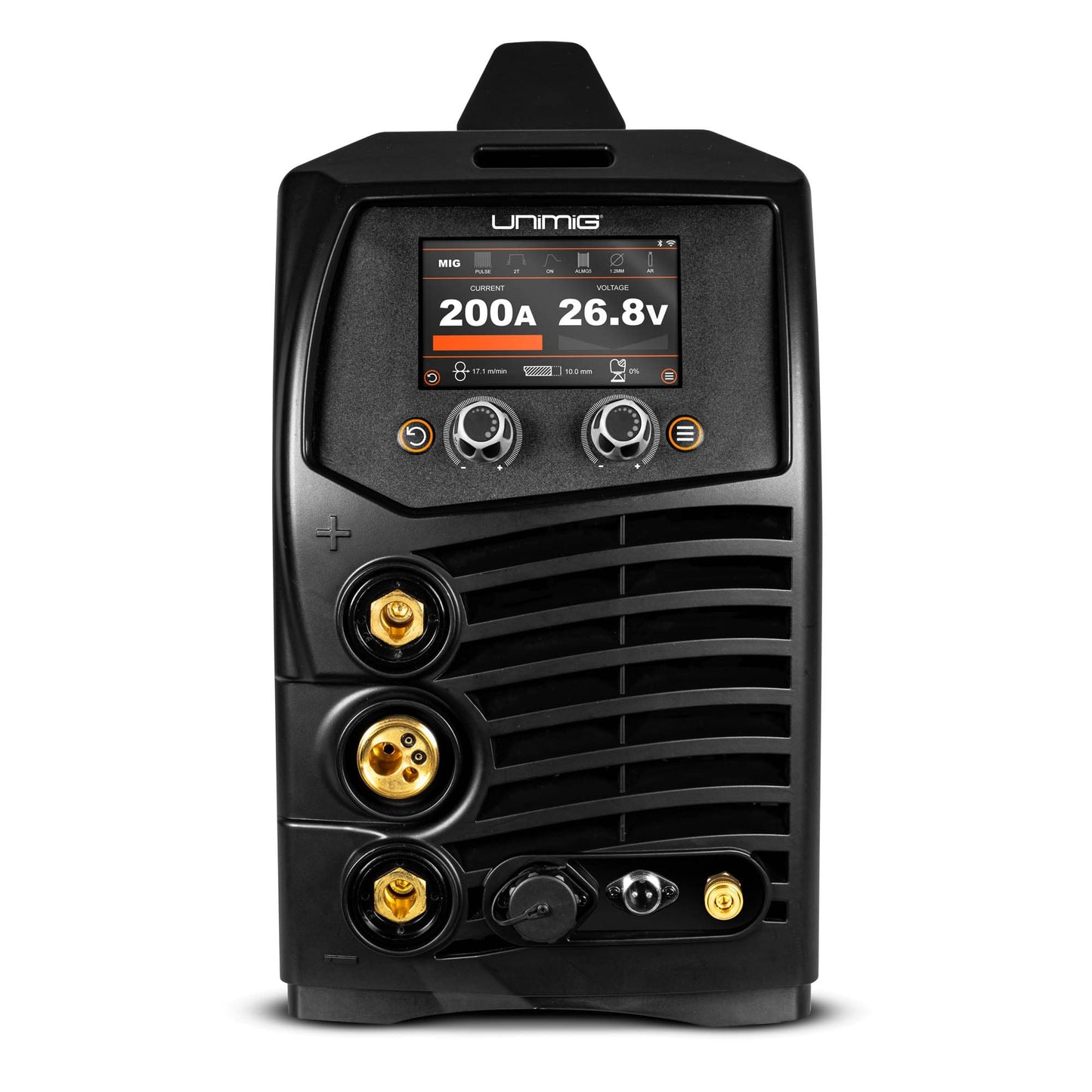

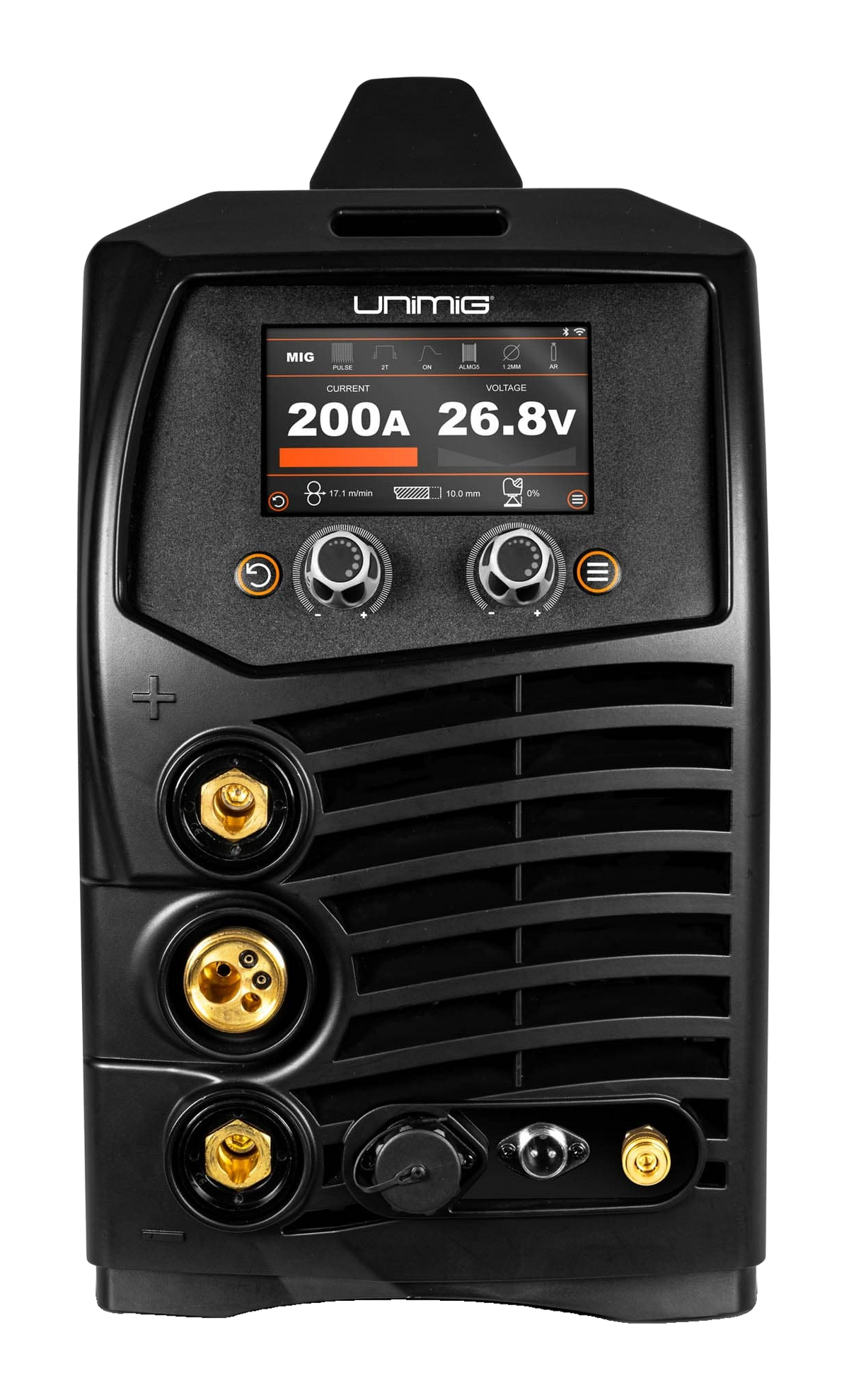

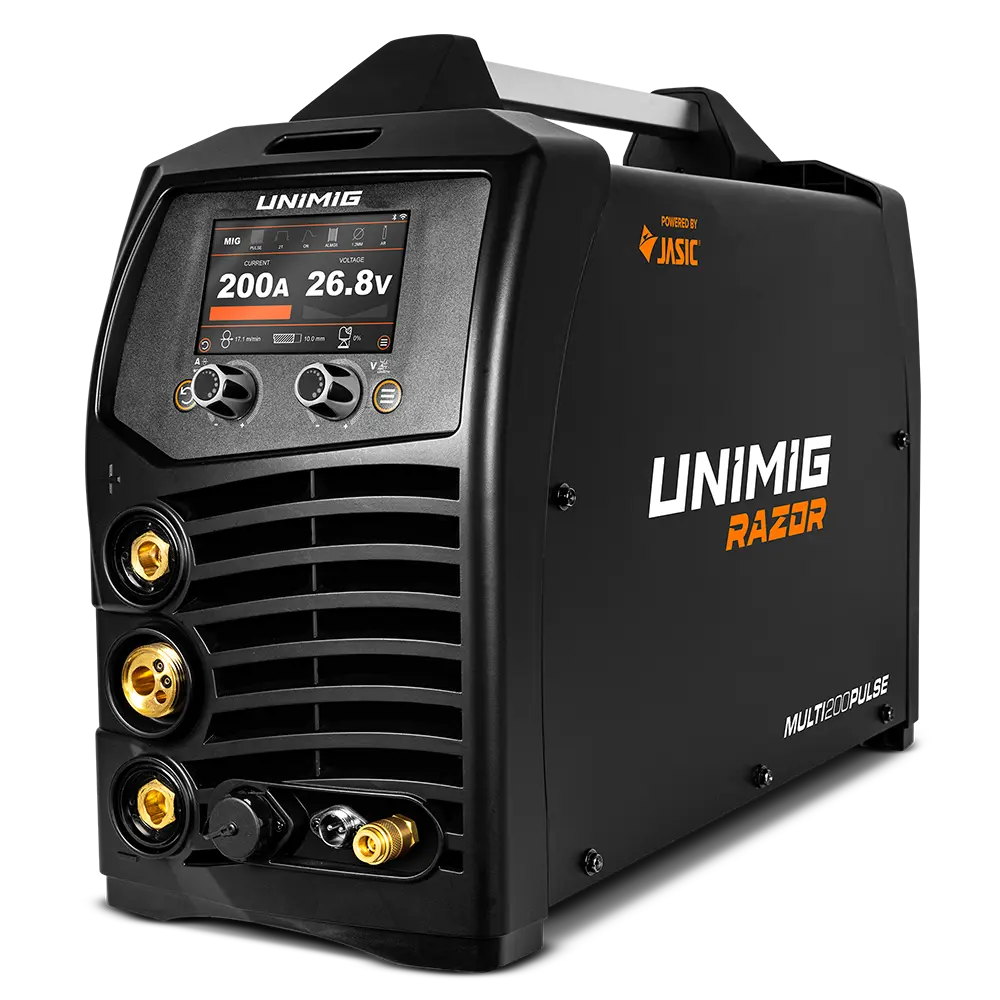

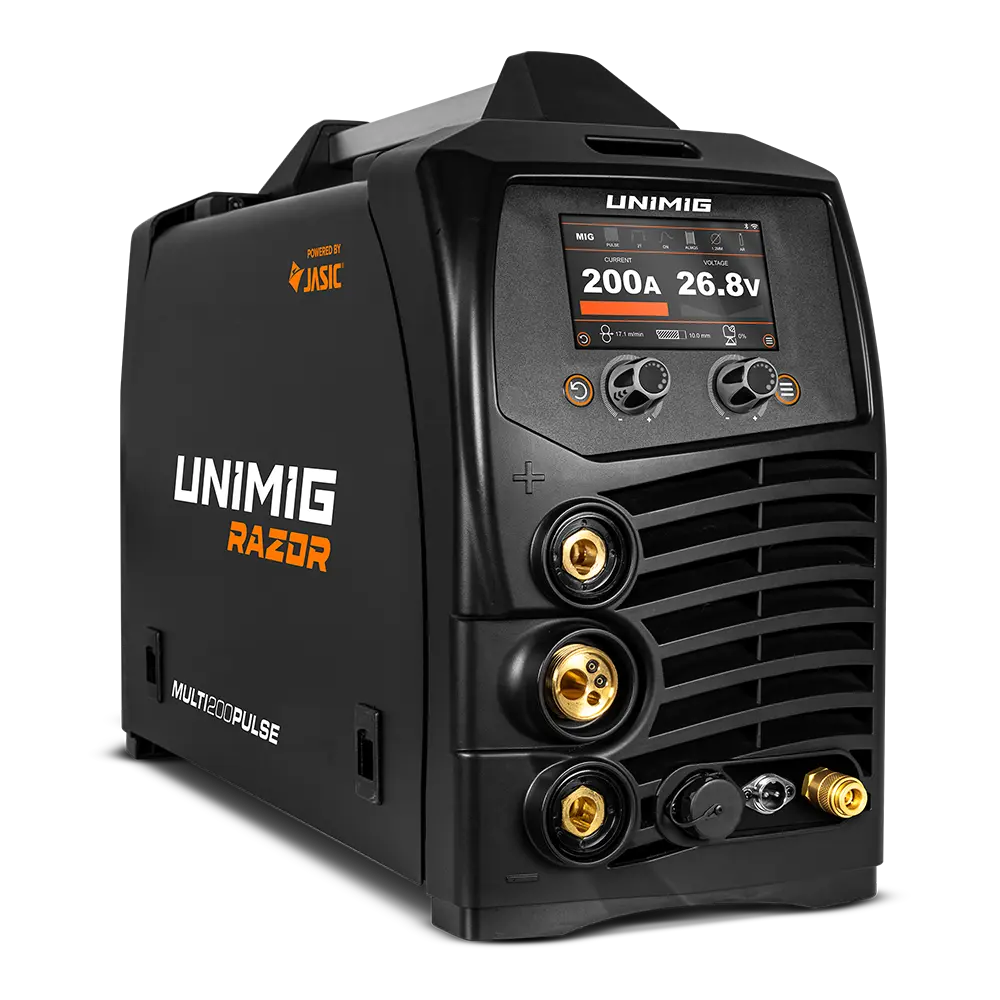

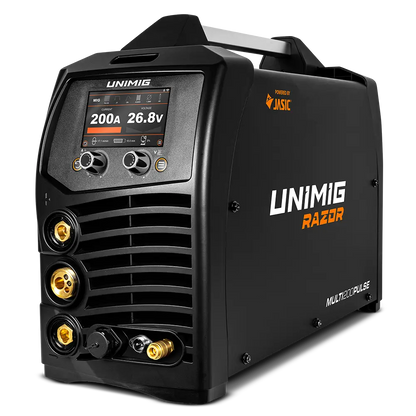

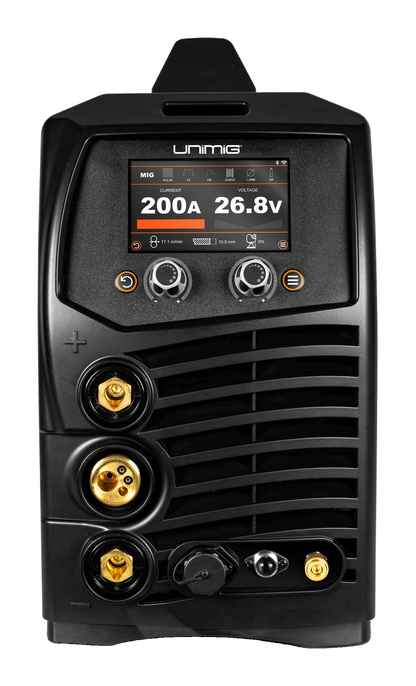

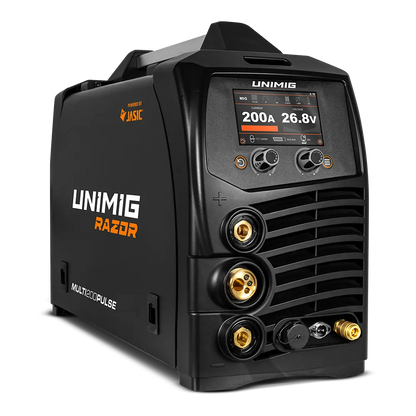

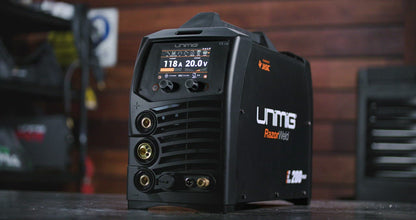

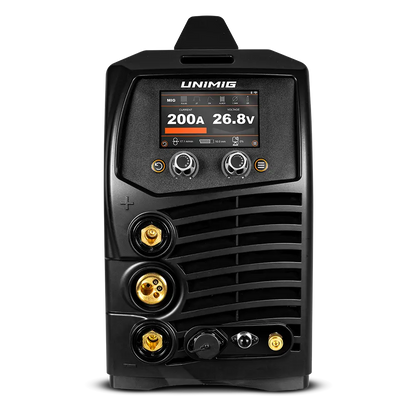

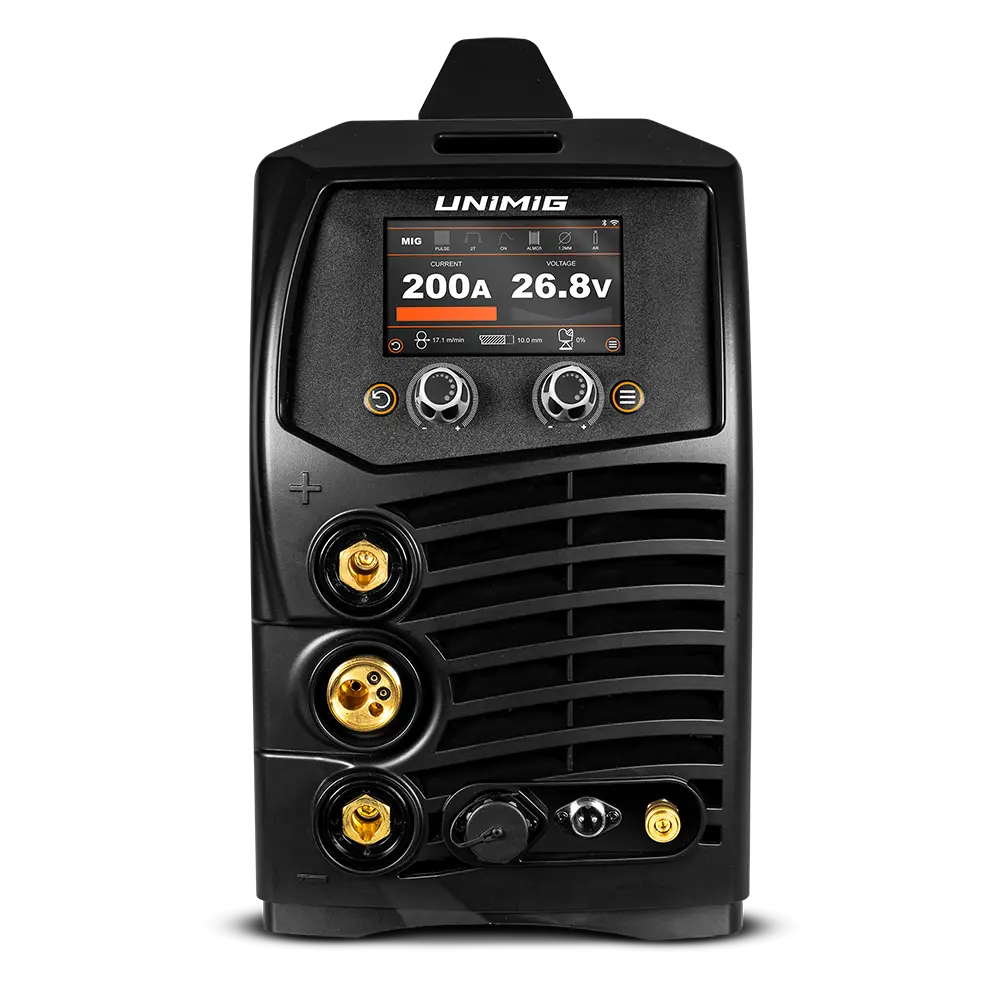

UNIMIG RAZOR 200 PULSE MIG/STICK/TIG Welder
UNIMIG RAZOR 200 PULSE MIG/STICK/TIG Welder
SKU:U11003K
Low stock: 1 left
Interested in UNIMIG RAZOR 200 PULSE Bundle?
MACHINE SPECIFICATIONS |
Primary Input Voltage | 240V Single Phase |
Supply Plug | 15 Amp |
Rated Input Power (kVA) | 40A/16V-200A/24V |
Ieff (A) | 14.9 |
Rated Output | 50A/17V - 500A/39.0V |
No Load Voltage (V) | 77 |
Protection Class | IP23S |
Insulation Class | H |
Minimum Generator (kVA) | 11.0 |
Dinse Connector | 35/50 |
Standard | AS/NZ60974-1 |
Suitable Material | Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper |
Warranty | 3 years |
MIG SPECIFICATIONS
|
MIG Welding Current Range | 40-200A |
MIG Duty Cycle @ 40c | 15% @ 200A, 60% @ 101A, 100% @ 78A |
MIG Wire Size Range | 0.6-1.2mm |
MIG Wire Spool Size | 100mm/200mm |
MIG Welding Thickness Range | 1-10mm |
Drive Roller Size | 30/22 |
TIG SPECIFICATIONS
|
TIG Function Type | High Frequency |
TIG Welding Current Range | 5-200A |
TIG Duty Cycle @ 40c | 20% @ 200A, 60% @ 116A, 100% @ 90A |
TIG Welding Thickness Range | 1-8mm |
STICK SPECIFICATIONS
|
STICK Welding Current Range | 20-180A |
STICK Duty Cycle @ 40c | 15% @ 180A, 60% @ 91A, 100% @ 70A |
STICK Electrode Range | 2.5-4.0mm |
STICK Welding Thickness Range | 2-12mm |
ARC Force | 0-100% |
SIZE AND WEIGHT
|
DIMENSIONS (mm) | 605x230x400mm |
Weight (kg) | 17kg |
MACHINE FEATURES
|
Wire Drive | 4 Geared |
VRD | Yes |
Burnback Adjustment | Yes |
Wire Inch | Yes |
Inductance Control | Yes |
Thermal Overload Protection | Over Temperature Warning |

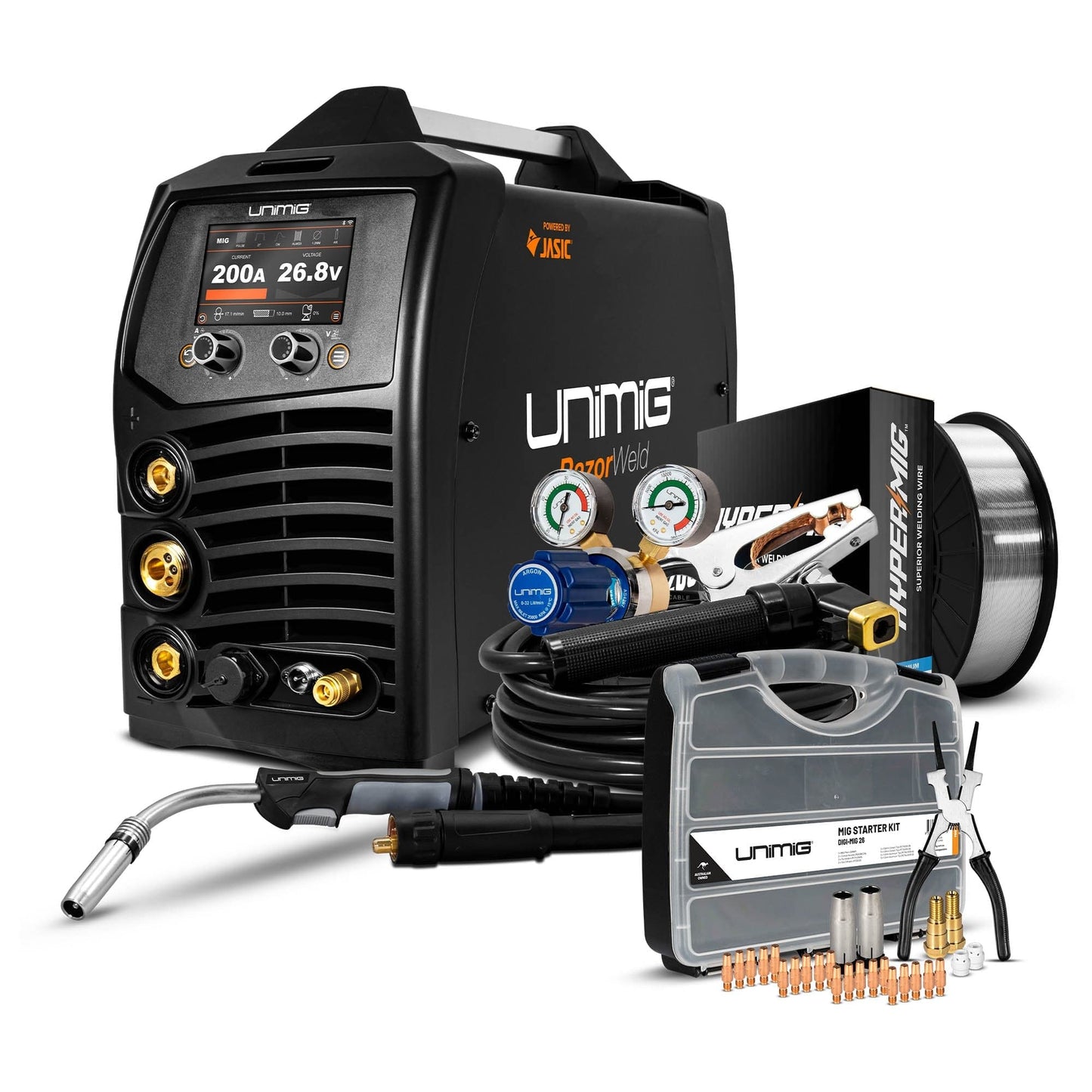

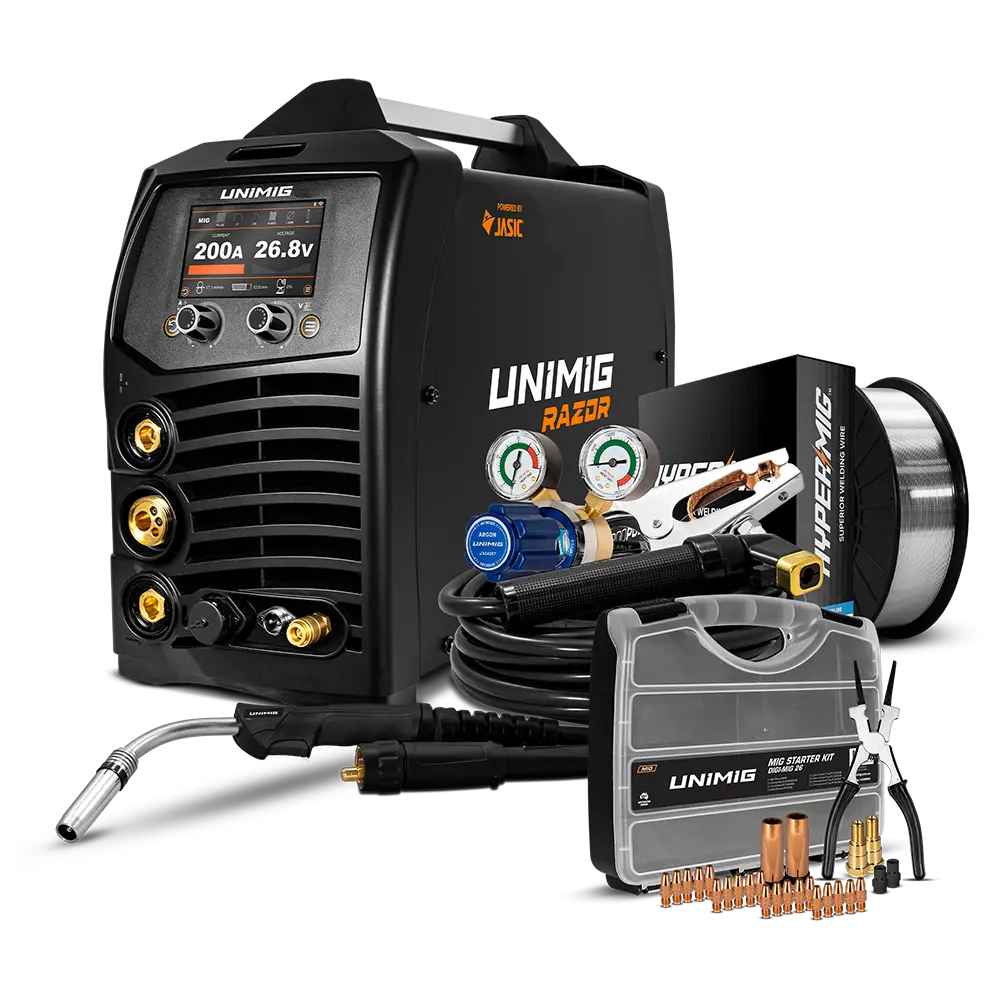

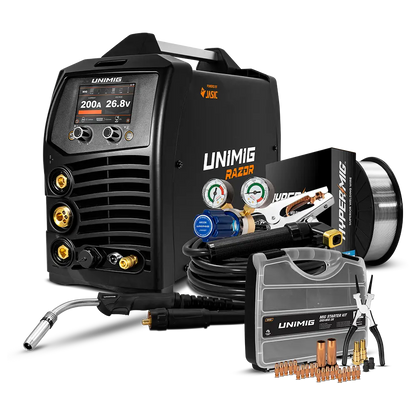

Package Contents (U11003K):
-
RAZOR™ 200 PULSE MIG/TIG/STICK Welder
-
3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner
-
3m Twist Lock Electrode Holder
-
3m 300 Amp Earth Clamp & Lead
-
Twin Gauge Argon Regulator
-
1.8m Gas Hose Complete with fittings
-
Operating Manual
-
2kg 1.2mm 5356 HYPERARC Aluminium Wire
-
DM26 Consumable Starter Kit
