UNIMIG

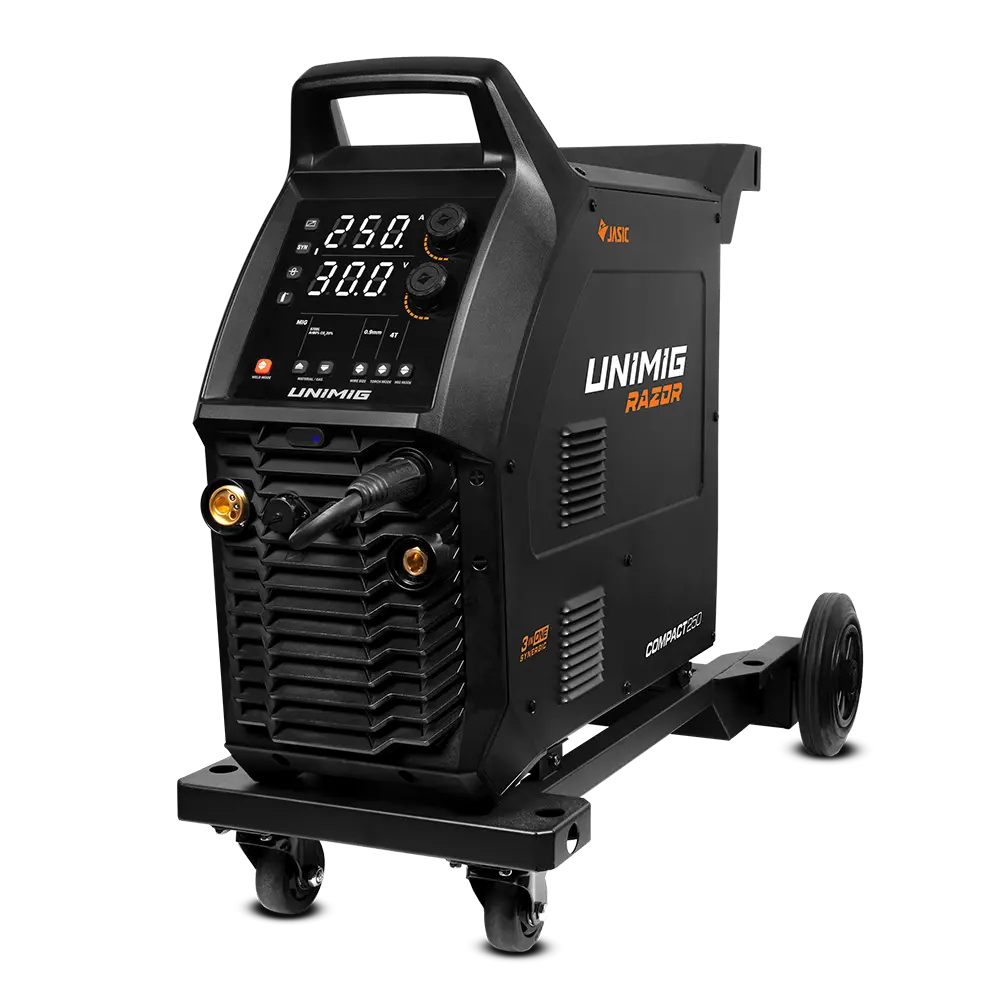

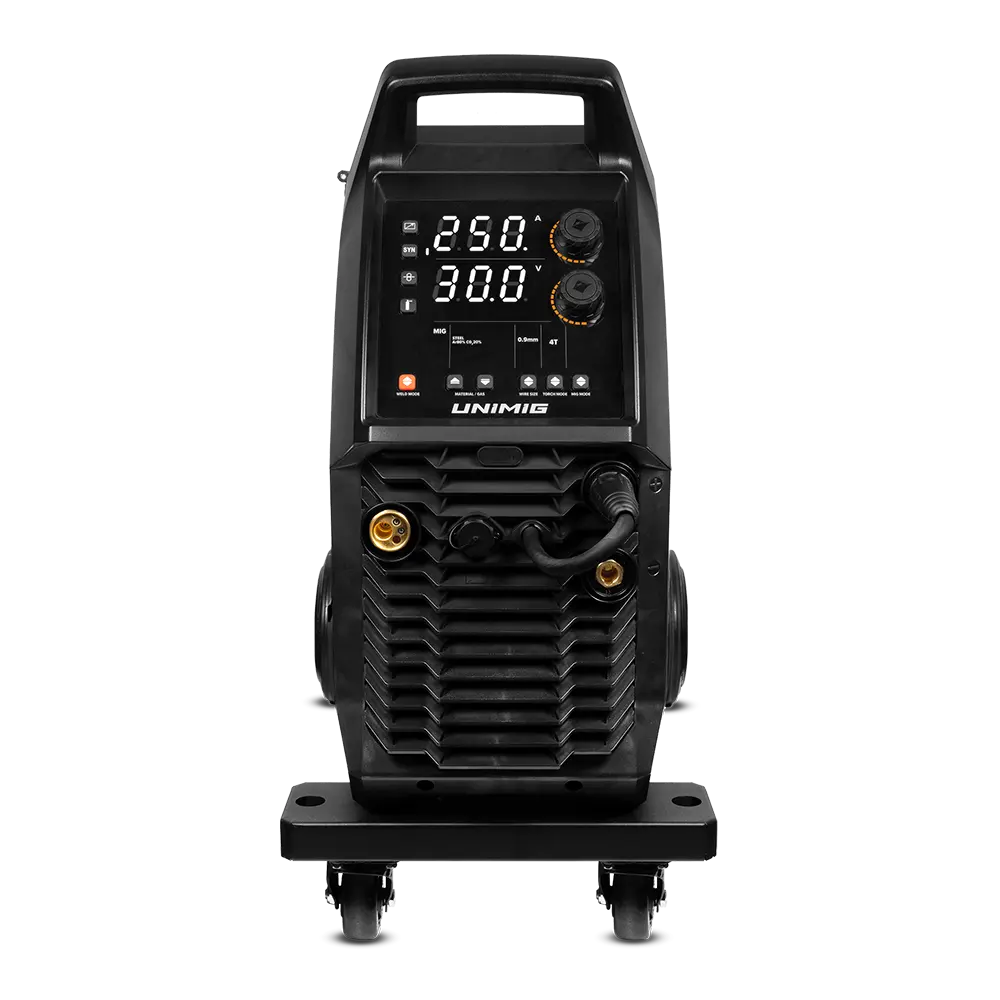

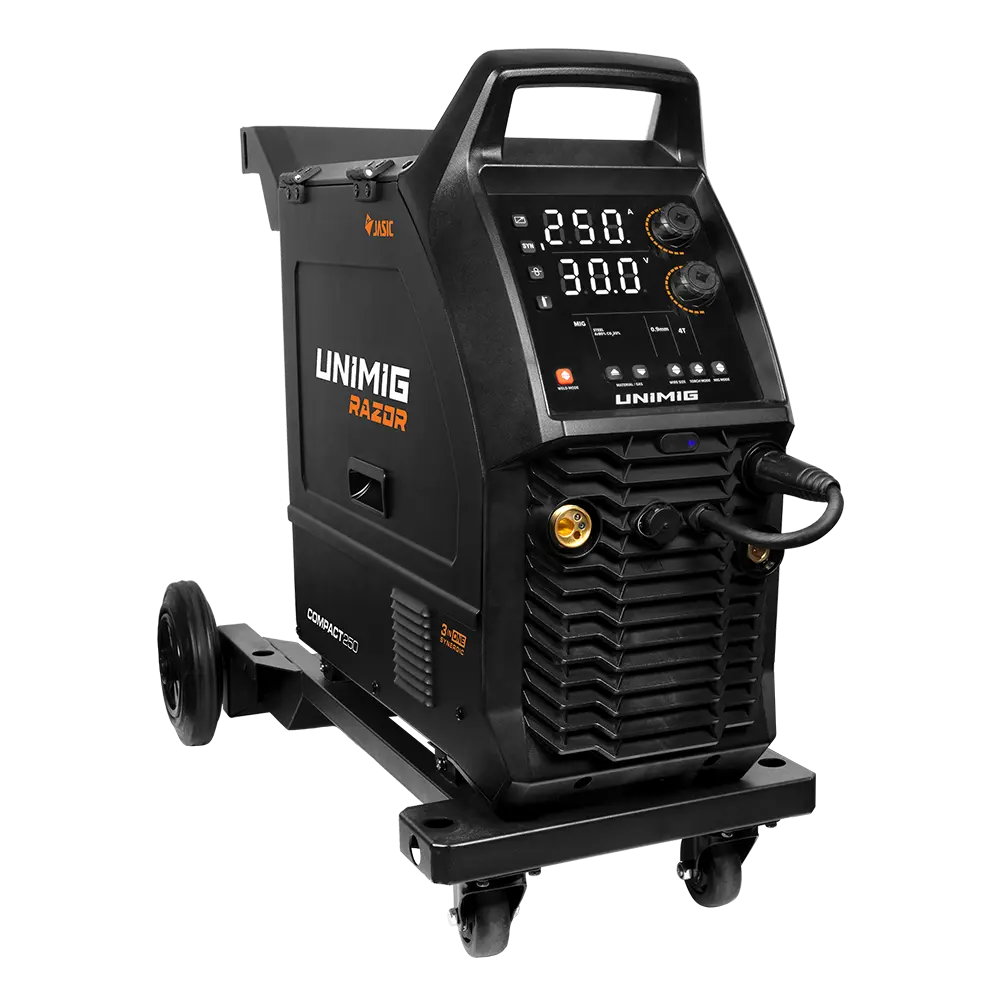

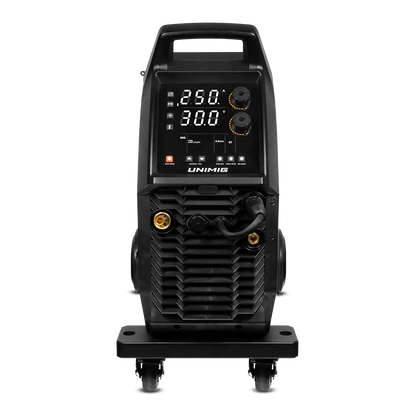

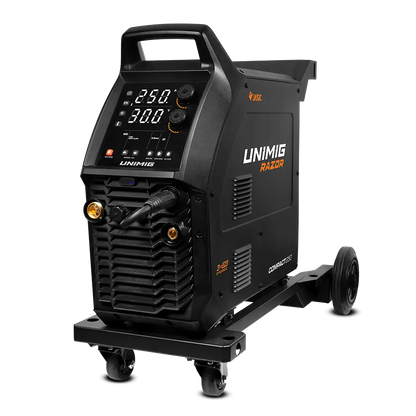

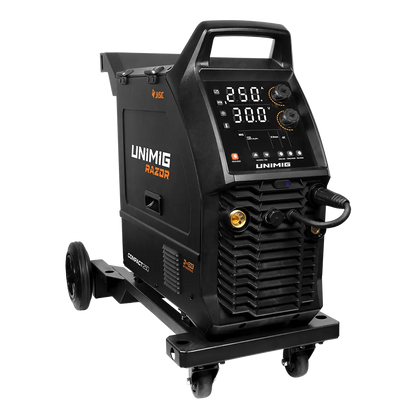

RAZOR Compact 250 Welder

RAZOR Compact 250 Welder

Regular price $2,499.00 AUD
Regular price $0.00 AUD Sale price $2,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
Selection

SKU:U11010K

In stock

Get superior MIG, TIG & STICK performance even in the toughest conditions with the professional machine in a compact case.

  • Quick and easy setup with synergic MIG programs
  • Spool gun and Push-Pull gun compatible for the best aluminium welds
  • 4 geared wire drive system for the ultimate wire feeding experience
  • A 5-year warranty to reflect our confidence in this machine



MACHINE SPECIFICATIONS
 Primary Input Voltage 240V Single Phase
Supply Plug 15Amp
Ieff (A) 15.0
Rated Output 30A/15.5V - 250A/26.5V
No Load Voltage (V) 65
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 11.0
Dinse Connector 35/50
Standard AS/NZ60974-1
Suitable Material

MIG: Mild Steel, Stainless Steel, Aluminium Silicon Bronze

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

MMA: Mild Steel, Stainless Steel, Cast Iron

Warranty  5 years



MIG SPECIFICATIONS
MIG Welding Current Range 30-250A
MIG Duty Cycle @ 40 °c
20% @ 250A / 60% @ 144A / 100% @ 112A
MIG Wire Size Range
0.6-1.2mm
MIG Wire Spool Size
5kg / 15kg
MIG Welding Thickness Range 1-12mm
Drive Roller Size 30/22 (x2)



TIG SPECIFICATIONS
TIG Function Type
Trigger Controlled DC Lift Arc
TIG Welding Current Range
5-250A
TIG Duty Cycle @ 40c
20% @ 250A/ 60% @ 144A / 100% @ 112A
TIG Welding Thickness Range
1-10mm



 STICK SPECIFICATIONS
STICK Welding Current Range 20-220A
STICK Duty Cycle @ 40c 20% @ 220A / 60% @ 127A / 100% @ 98A
STICK Electrode Range 2.5-4.0mm
STICK Welding Thickness Range 2-12mm



SIZE AND WEIGHT
 DIMENSIONS (mm) 900x400x760mm
Weight (kg) 41.3kg



MACHINE FEATURES
Wire Drive
4 Geared
VRD Yes
Spool Gun Connection
Yes
Foot Control Connection Yes
Burnback Adjustment Yes
Wire Inch

Yes

Inductance Control Yes
Thermal Overload Protection Over Temperature Warning

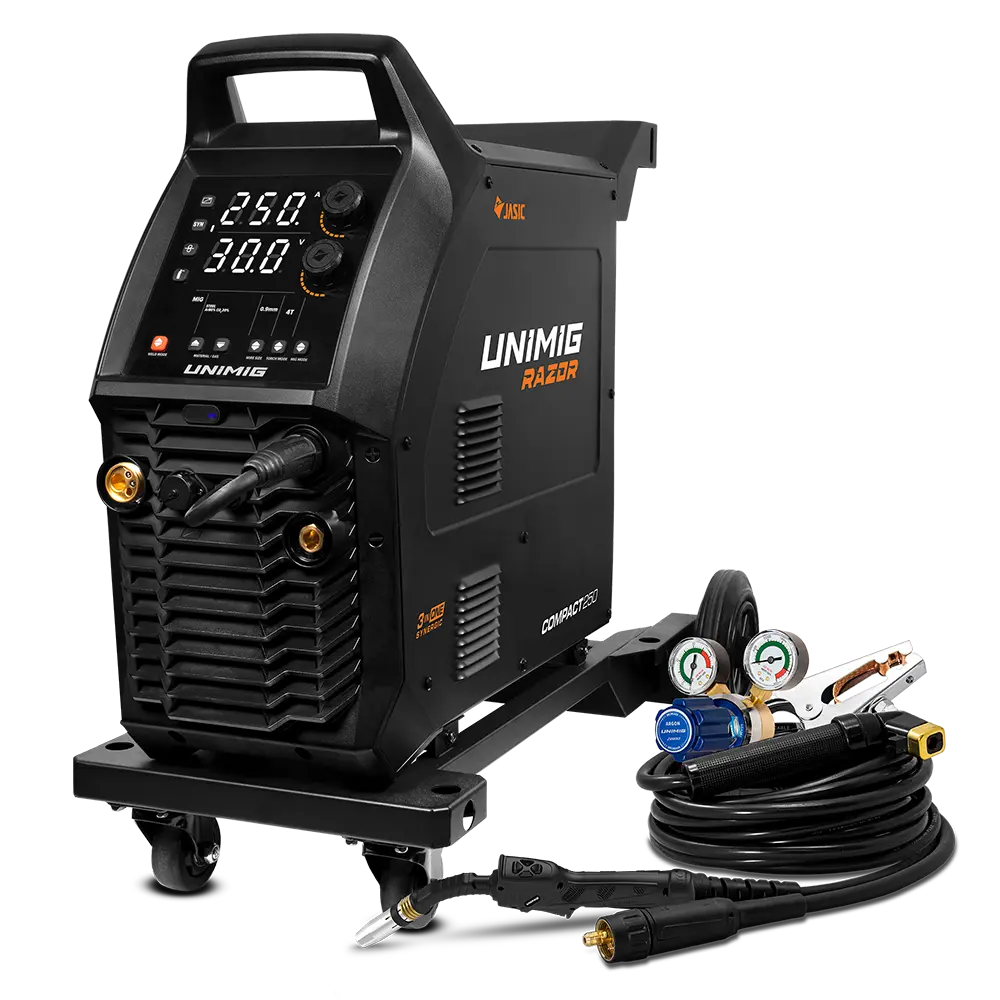

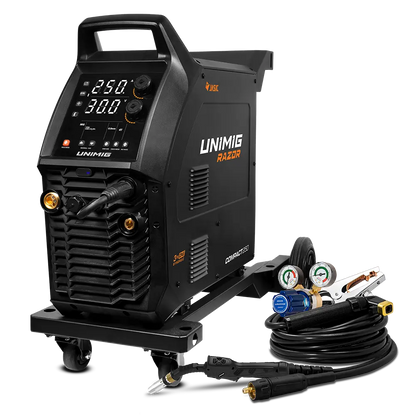

Package Contents (U11010K):

  • RAZOR COMPACT 250 Welder
  • 4m M24 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Gas Hose with fittings
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  •  1.0-1.2mm U Groove Roller

Bundle Contents (PK11093):

  • RAZOR COMPACT 250 Welder
  • 4m M24 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Gas Hose with fittings
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  •  1.0-1.2mm U Groove Roller
  • BINZEL 24 Style Consumable Starter Kit (UMSK24)
  • ROGUE Heavy Duty Welding Gloves (UMWG8)
  • 2 x 0.9mm HYPERMIG ER70S-6 Mild Steel Wire 15kg MS.9C
  • Professional Series Welding Helmet – Back (U21015)
