UNIMIG

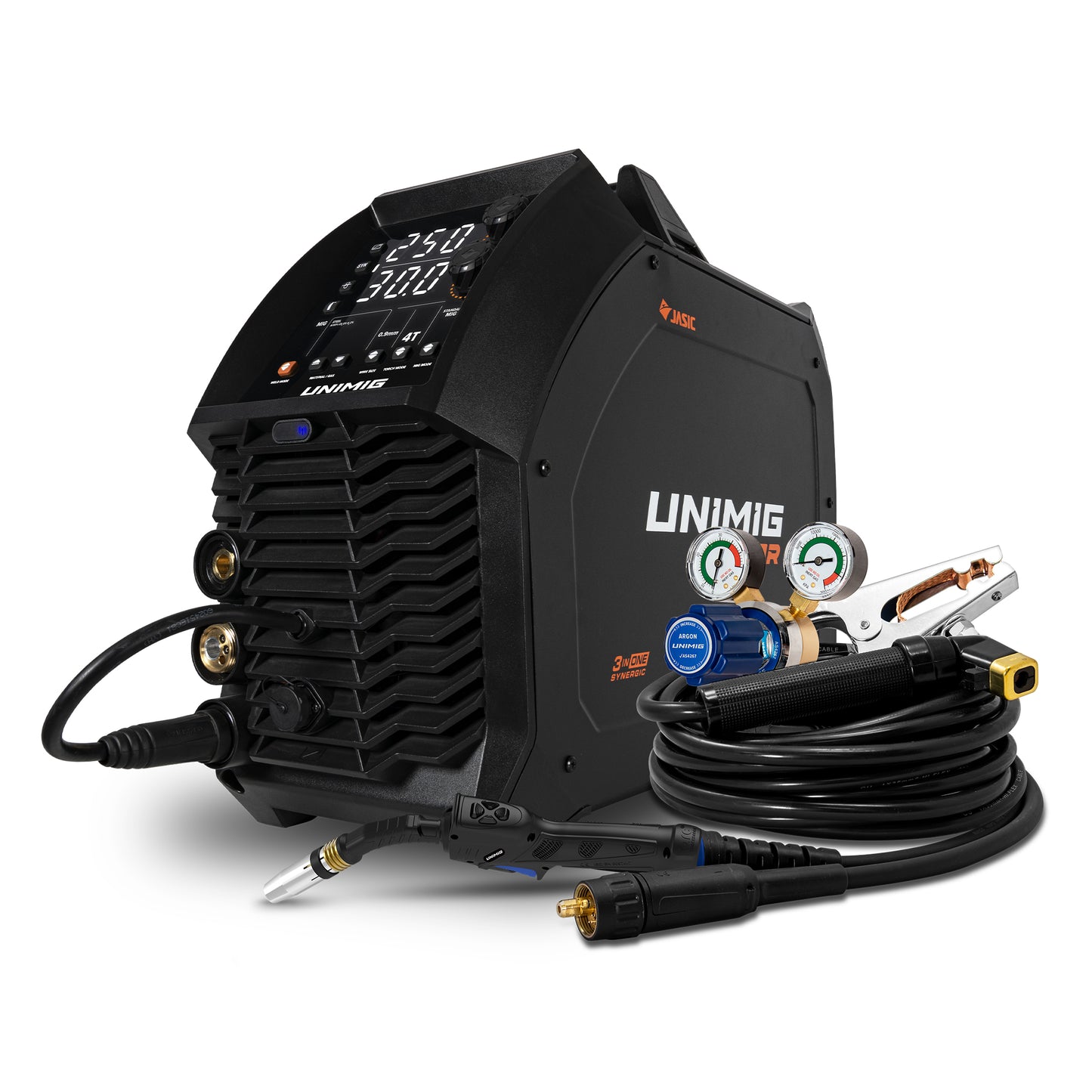

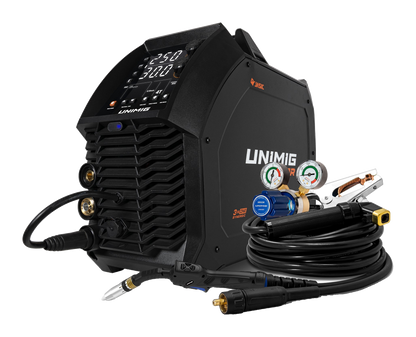

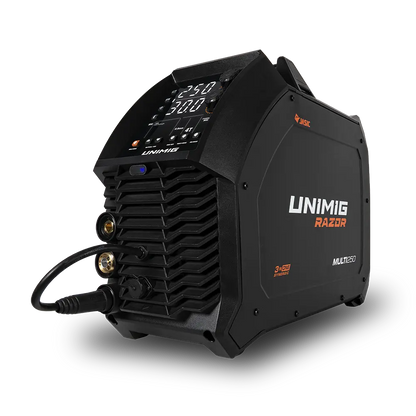

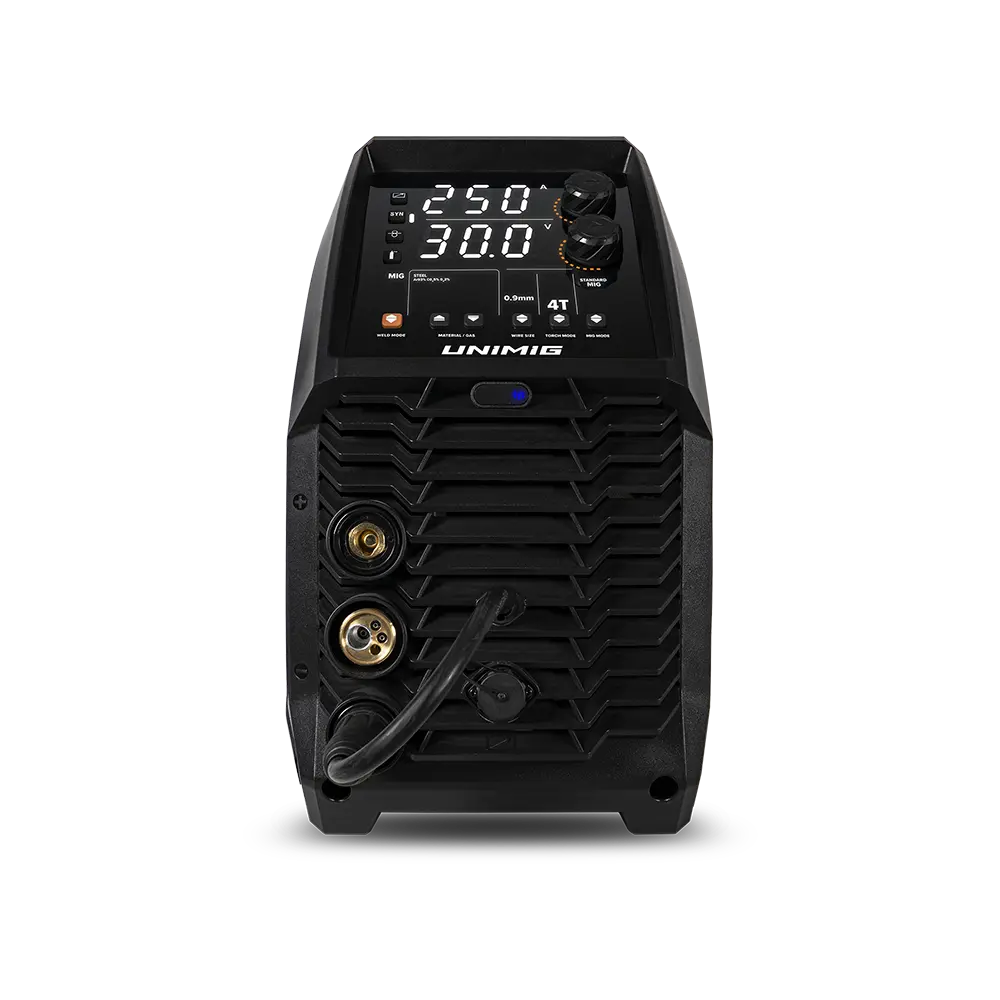

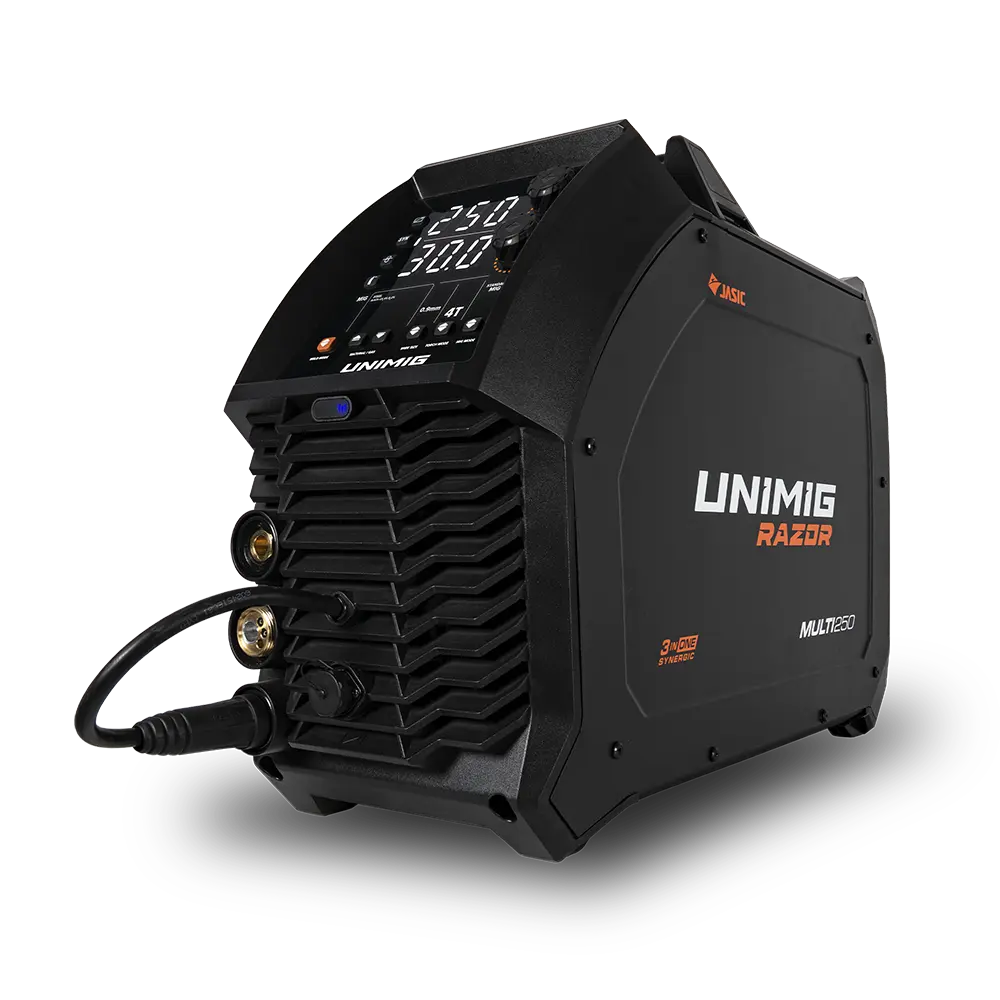

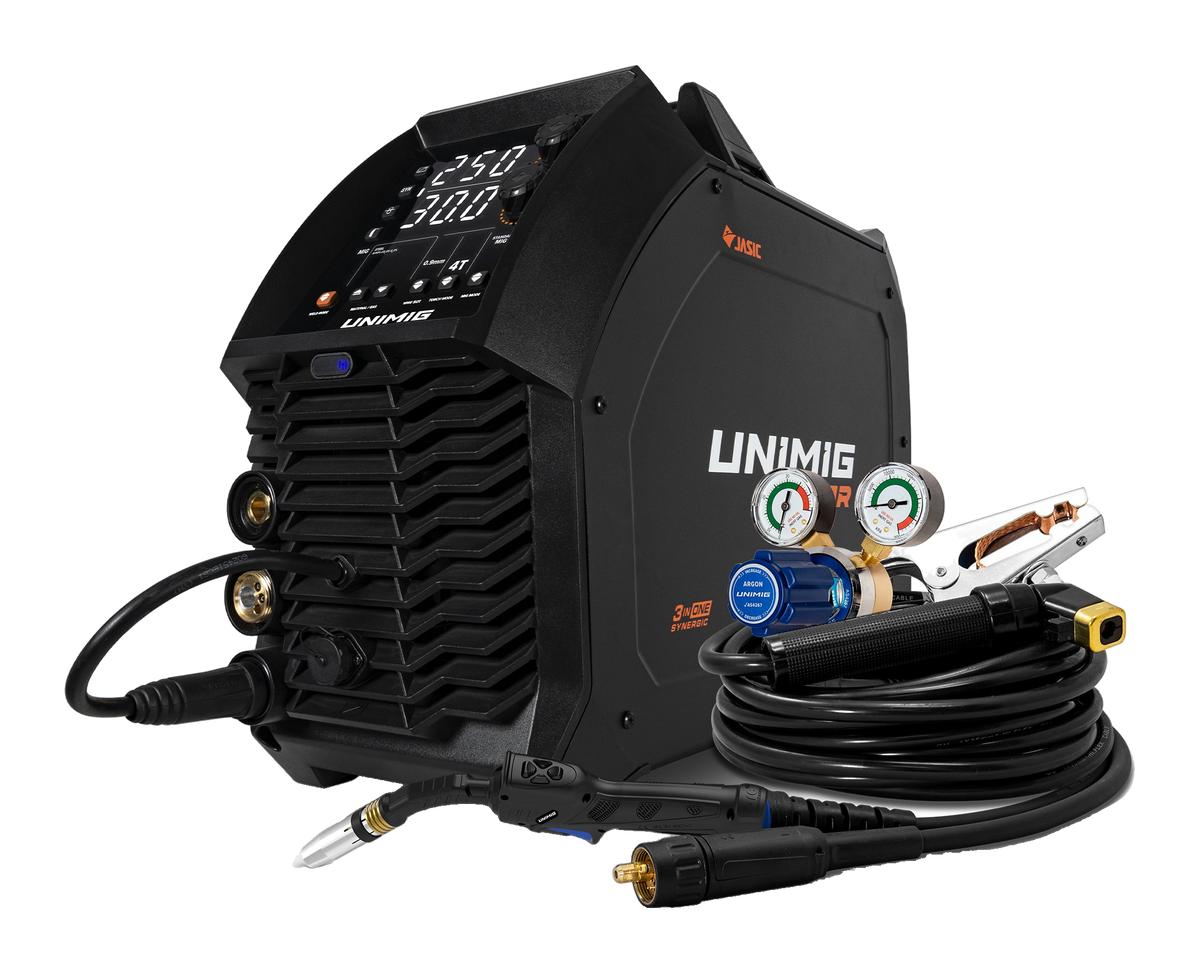

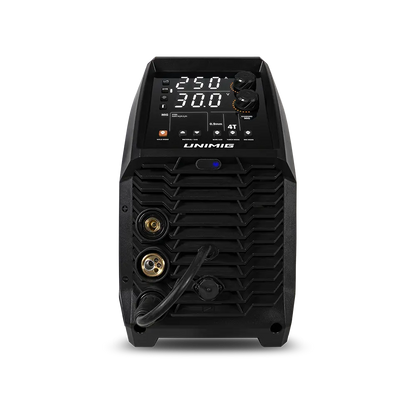

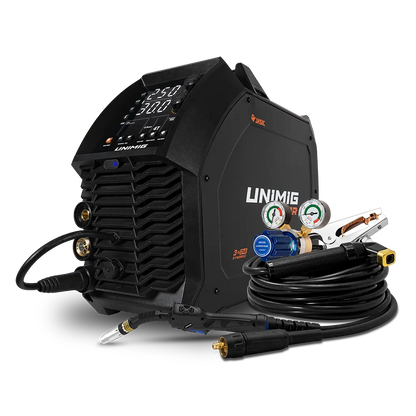

RAZOR MULTI 250 Welder

RAZOR MULTI 250 Welder

Regular price $1,363.00 USD
Regular price Sale price $1,363.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:U11009K

In stock

A professional machine in a portable case with all the power, the RAZOR MULTI 220 is perfect for the worksite or the workshop.

  • Quick and easy setup with synergic MIG programs
  • 3-in-1 multi-process machine so you can MIG, TIG & STICK
  • Geared wire drive system for smooth wire feeding
  • A 5-year warranty to reflect our confidence in this machine
    MACHINE SPECIFICATIONS
     Primary Input Voltage 240V Single Phase
    Supply Plug 15 Amp
    Ieff (A) 15.0
    Rated Output 30A/15.5V - 250A/26.5V
    No Load Voltage (V) 65
    Protection Class IP23S
    Insulation Class H
    Minimum Generator (kVA) 11.0
    Dinse Connector 35/50
    Standard AS/NZ60974-1
    Suitable Material

    MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze

    TIG: Mild Steel, Stainless Steel, Copper, Silicone Bronze

    MMA: Mild Steel, Stainless Steel, Cast Iron

    Warranty  5 years



    MIG SPECIFICATIONS
    MIG Welding Current Range 30-250A
    MIG Duty Cycle @ 40c
    20% @ 250A / 60% @ 144A / 100% @ 112A
    MIG Wire Size Range
    0.6-1.2mm
    MIG Wire Spool Size
    5kg / 15kg
    MIG Welding Thickness Range 1-12mm
    Drive Roller Size 30/22 (x2)



    TIG SPECIFICATIONS
    TIG Function Type Trigger Controlled DC Lift Arc
    TIG Welding Current Range 5-250A
    TIG Duty Cycle @ 40c 20% @ 250A / 60% @ 144A / 100% @ 112A
    TIG Welding Thickness Range
    1-10mm



     STICK SPECIFICATIONS
    STICK Welding Current Range 20-220A
    STICK Duty Cycle @ 40c   20% @ 220A / 60% @ 127A / 100% @ 98A
    STICK Electrode Range 2.5-4.0mm
    STICK Welding Thickness Range 2-12mm



    SIZE AND WEIGHT
     DIMENSIONS (mm) 700x280x511mm
    Weight (kg) 25.5kg



    MACHINE FEATURES
    Wire Drive
    4 Geared
    VRD Yes
    Spool Gun Connection
    Yes
    Foot Control Connection Yes
    Burnback Adjustment Yes
    Wire Inch Yes
    Inductance Control Yes
    Thermal Overload Protection Yes

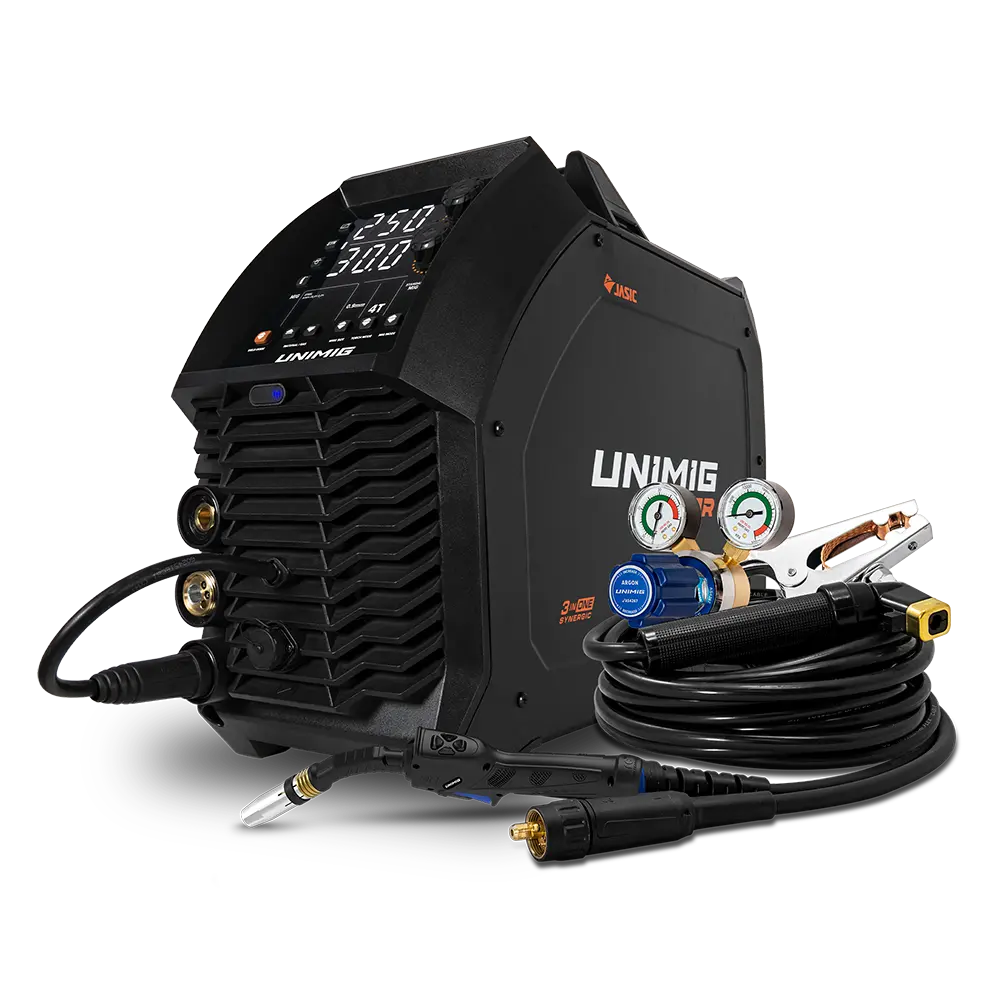

    Package Contents:

    • RAZOR MULTI 250 Welder
    • 4m M24 Digital MIG Torch
    • 4m Twist Lock Electrode Holder
    • 4m 300 Amp Earth Clamp & Lead
    • Twin Gauge Argon Regulator
    • 1.8m Gas Hose with fittings
    • Operating Manual
    • 0.8-0.9mm V Groove Roller
    • 0.8-0.9mm F Groove Roller
    •  1.0-1.2mm U Groove Roller
      • A&S Satisfied Customer Promise
      • Price-Match Promise
      • 30-Day Returns
