UNIMIG

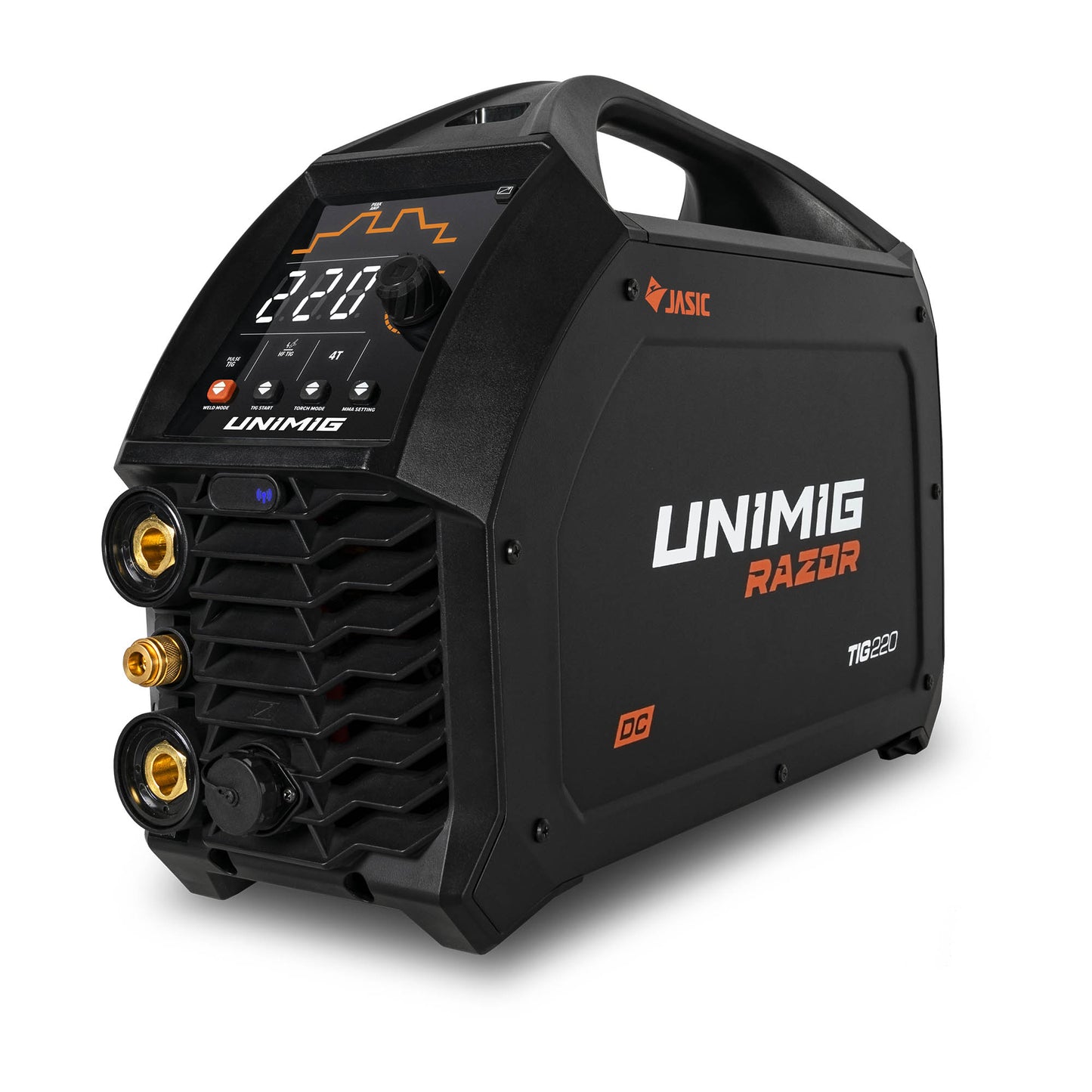

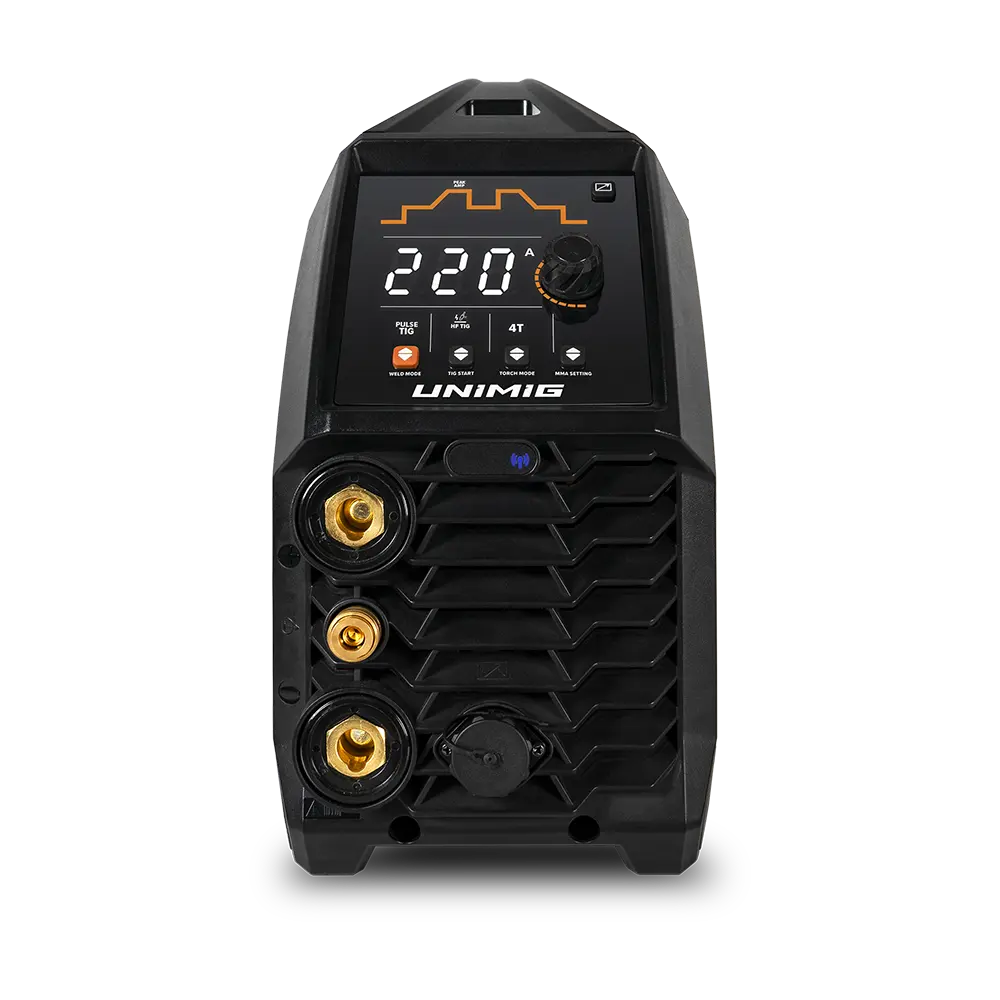

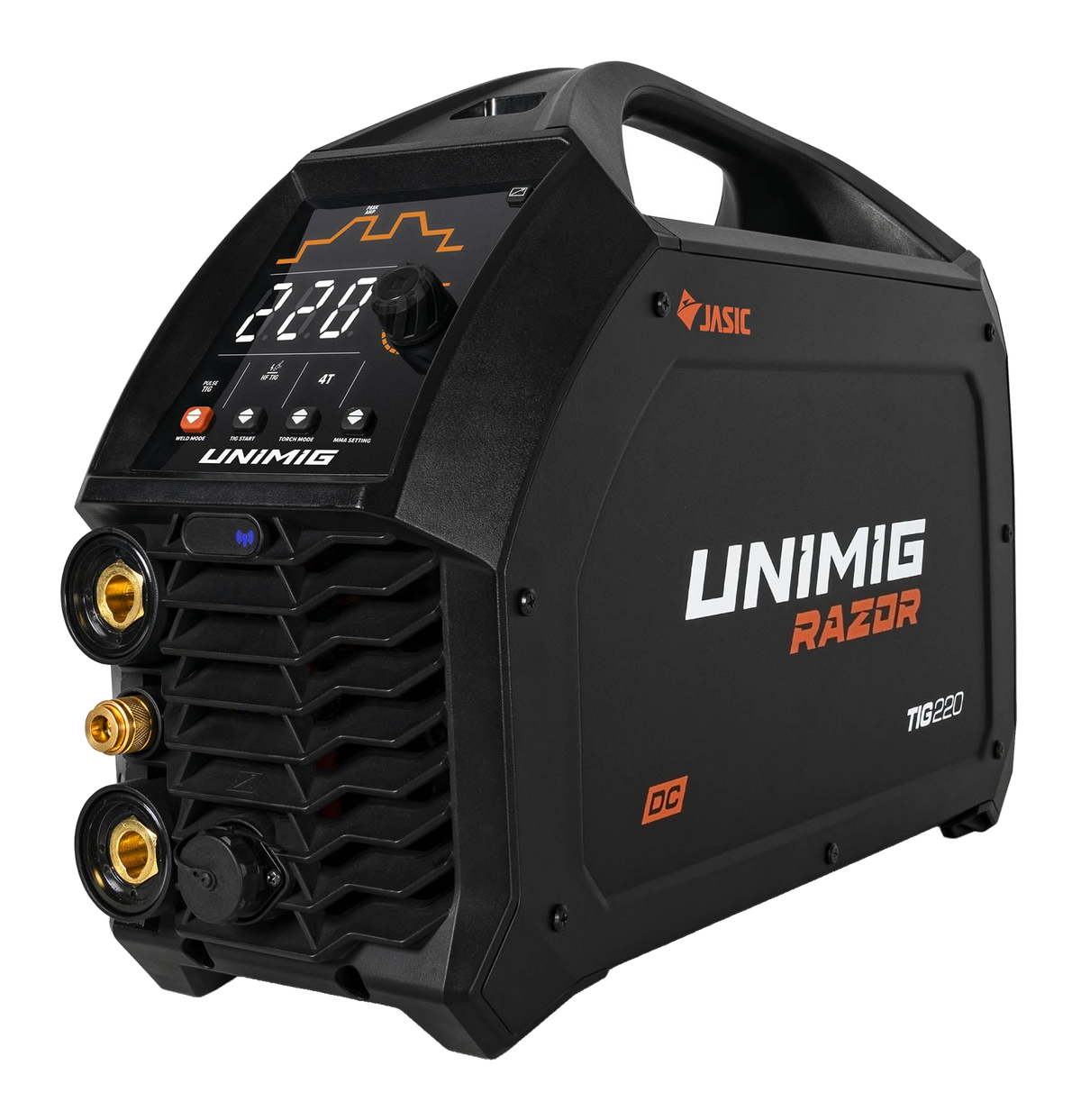

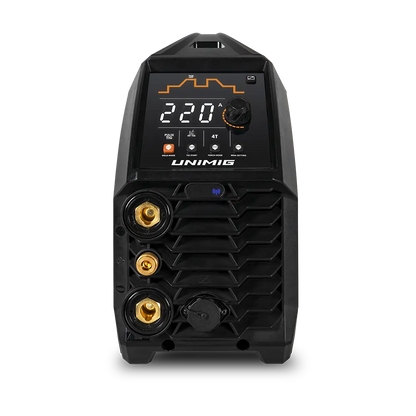

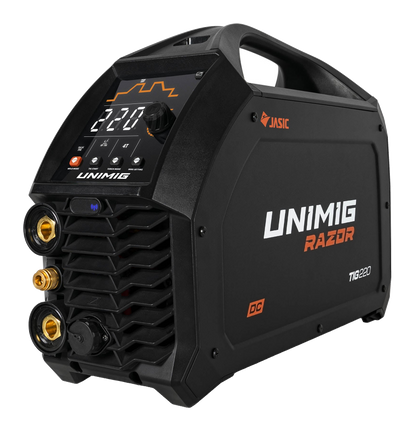

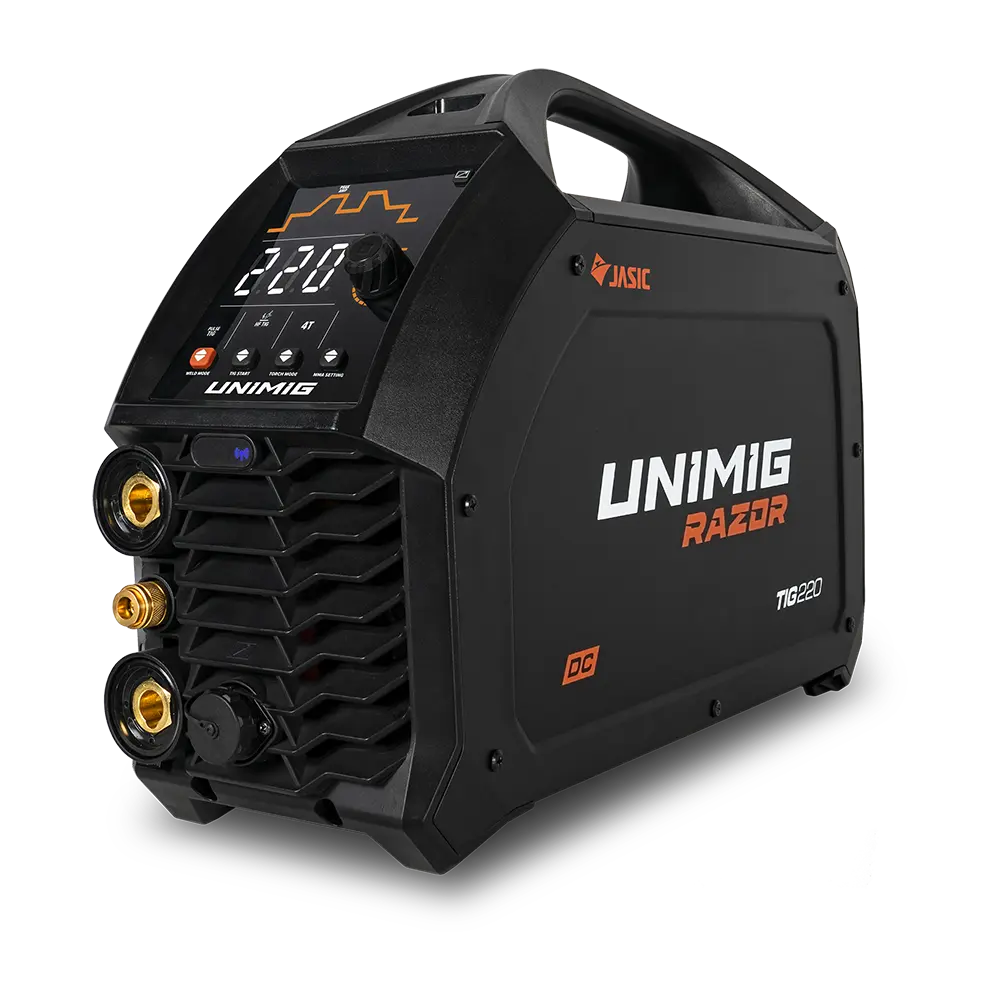

RAZOR TIG 220 DC Welder U12003K
RAZOR TIG 220 DC Welder U12003K
GST included. Shipping calculated at checkout.
SKU: U12003K
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details
This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.
- Get the full DC TIG welding cycling including all the pulse functions
- With new PFC components, this machine can be run on a 10A plug
- Connect a foot pedal to the machine for extra versatility and convenience
- A 5-year warranty to reflect our confidence in this machine
| MACHINE SPECIFICATIONS |
| Primary input voltage | 240 V, single-phase |
| Supply plug | 10 A |
| Ieff (A) | 9.8 |
| Rated Output | 5–220 A |
| Open circuit voltage (V) | 68 |
| Protection class | IP23S |
| Insulation class | H |
| Minimum generator (kVA) | 7.0 |
| Dinse Connector | 35/50 |
| Standard | AS/NZ60974-1 |
| Suitable materials |
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium MMA: Mild Steel, Stainless Steel, Cast Iron |
| Warranty (years) | 5 |
|
TIG SPECIFICATIONS
|
| TIG ignition type | DC High-frequency |
| TIG welding current range | 5–220 A |
| TIG duty cycle at 40°C | 20% at 220 A / 60% at 127 A / 100% at 98 A |
| TIG welding thickness range | 1–8 mm |
|
STICK SPECIFICATIONS
|
| Stick welding current range | 20–160 A |
| Stick duty cycle at 40°C | 15% at 160 A / 60% at 80 A / 100% at 62 A |
| Stick electrode range | 2.5–4 mm |
| Stick welding thickness range | 2–10 mm |
|
SIZE AND WEIGHT
|
| Dimensions (mm) | 310 × 150 × 460 |
| Weight (kg) | 8.9 |
|
MACHINE FEATURES
|
| VRD | Yes |
| Foot Control Connection | Yes |

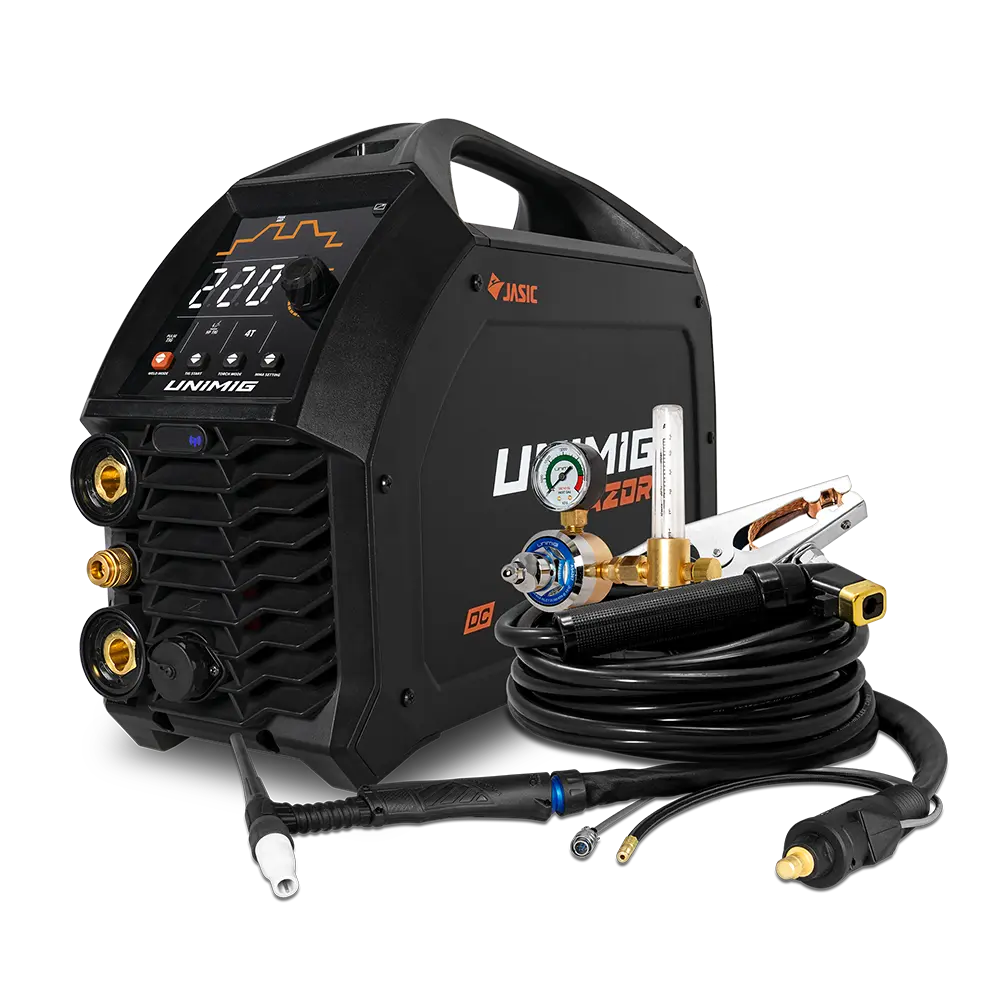

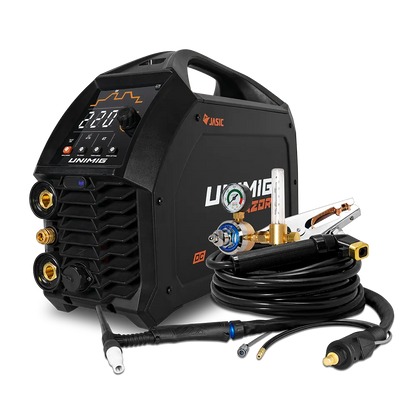

Package Contents:
- RAZOR TIG 220 DC Welder
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 1.8m Gas Hose with fittings
- Operating Manual
Operating Manual:
