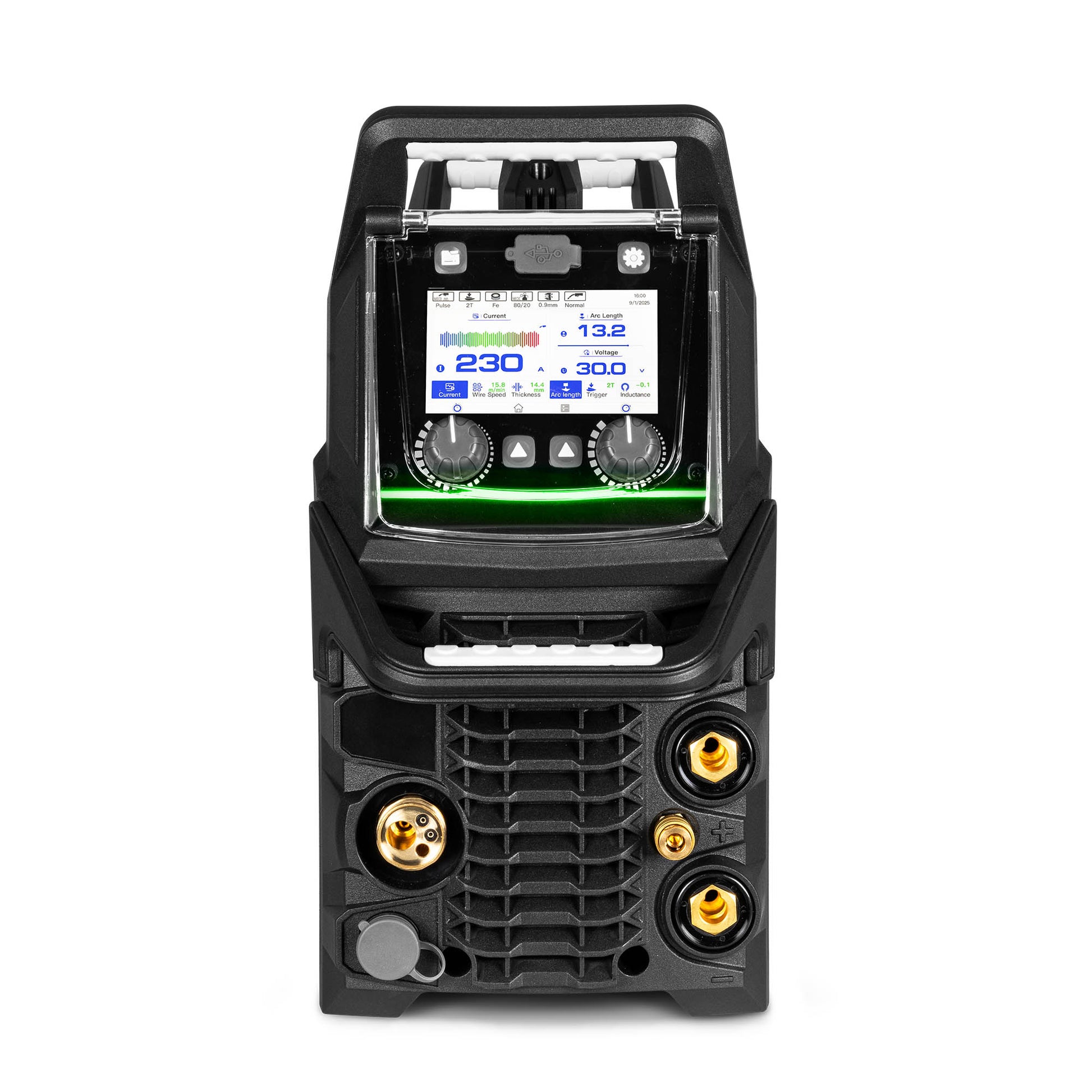

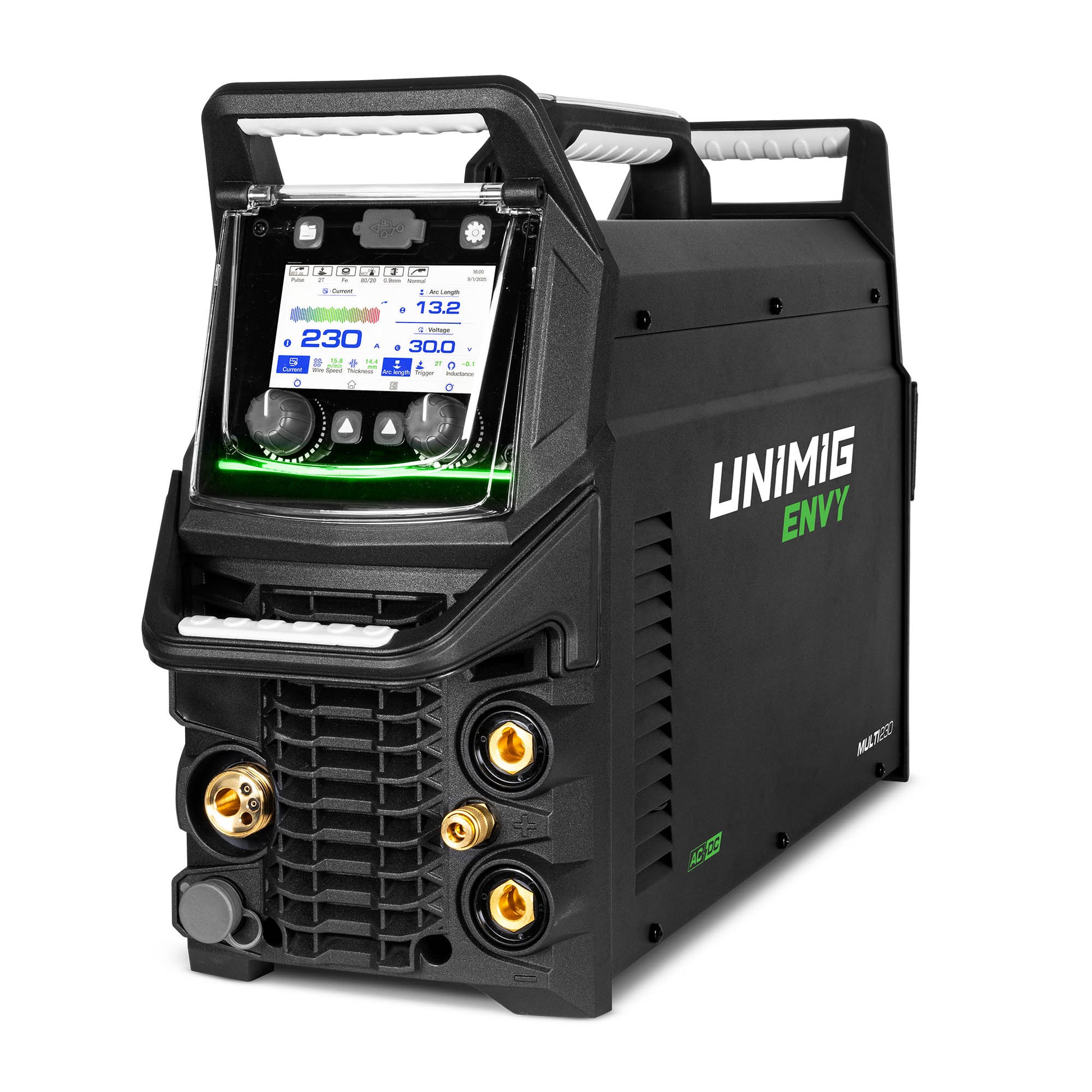

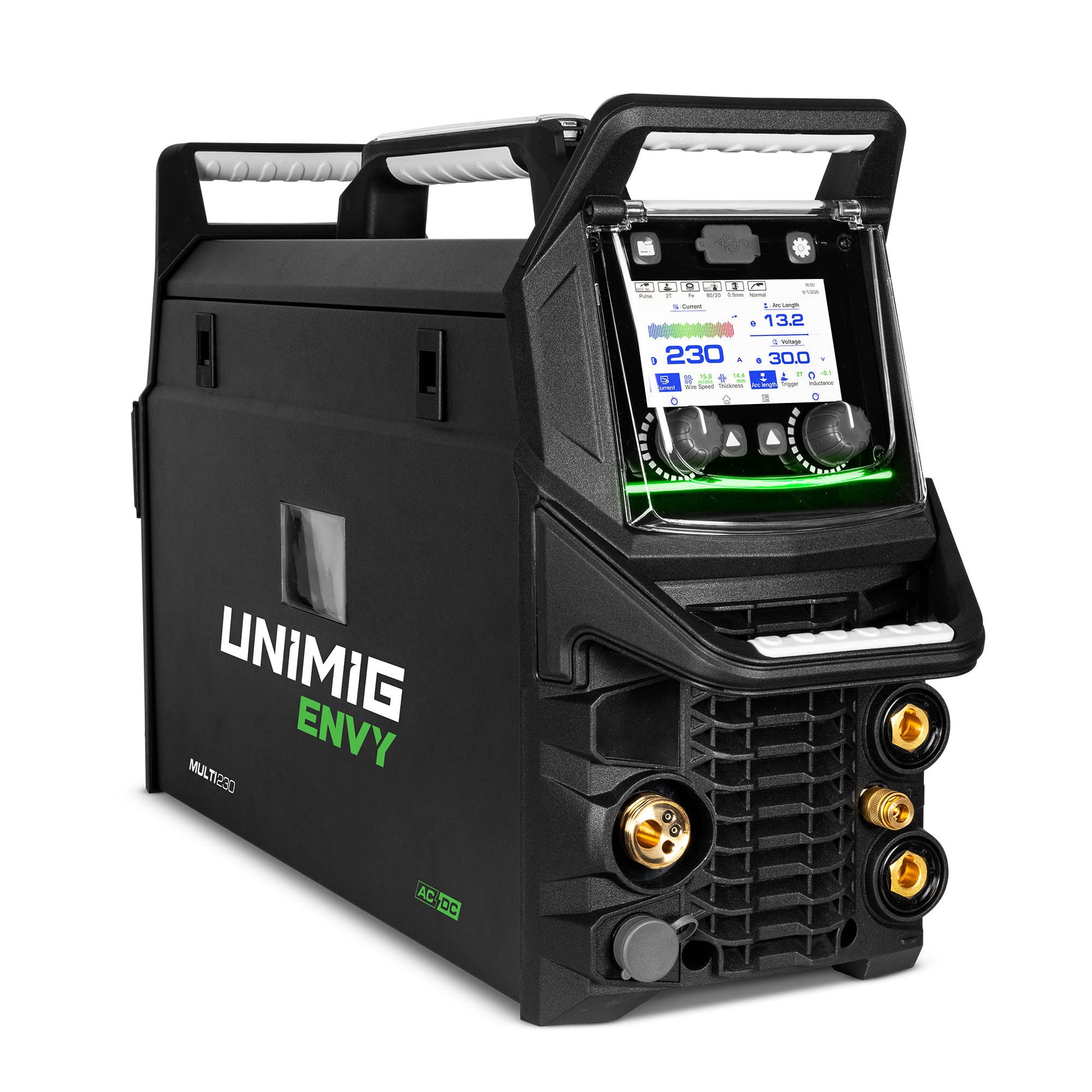

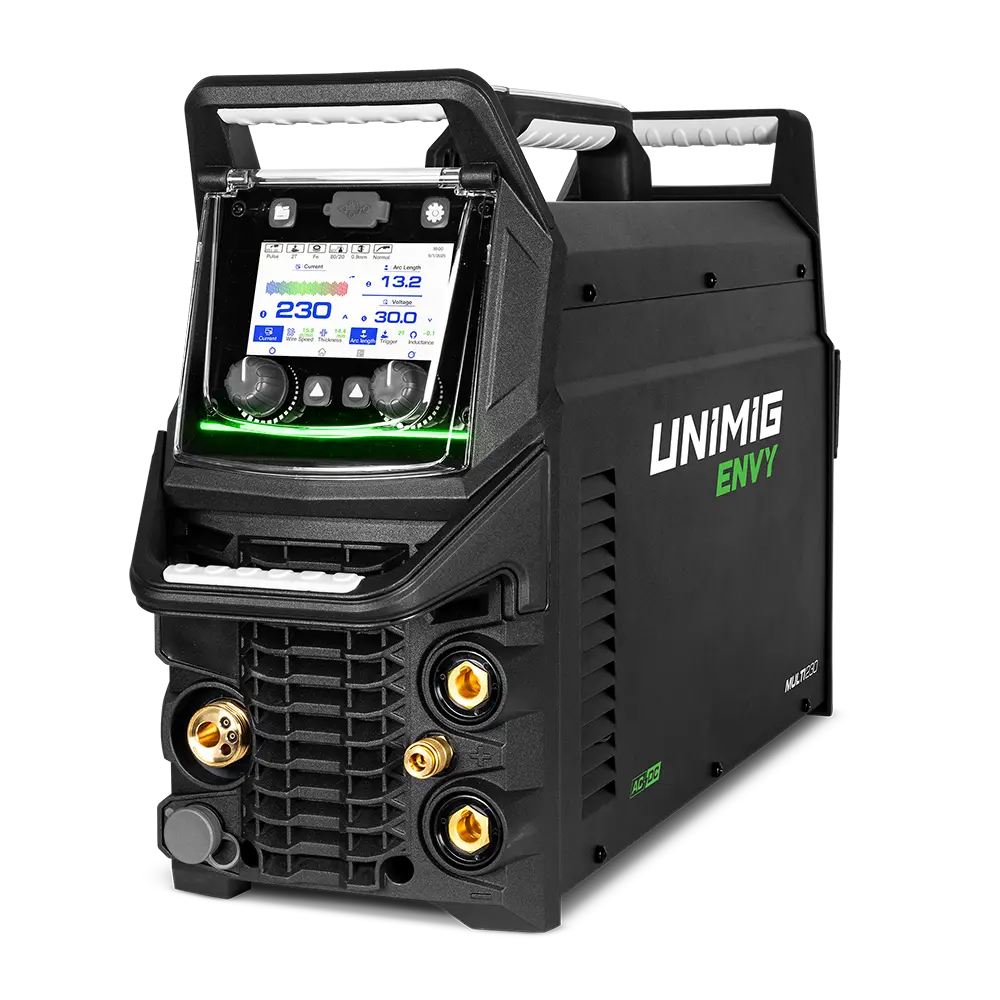

UNIMIG ENVY MULTI 230 AC/DC Welder U11203
UNIMIG ENVY MULTI 230 AC/DC Welder U11203
GST included. Shipping calculated at checkout.
SKU: U11203
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

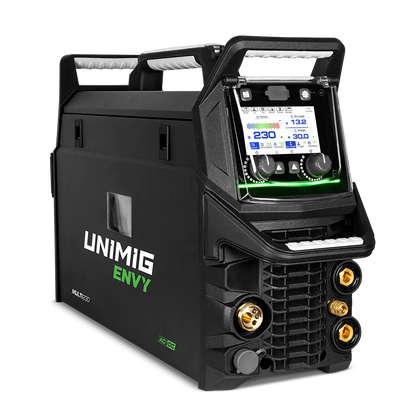

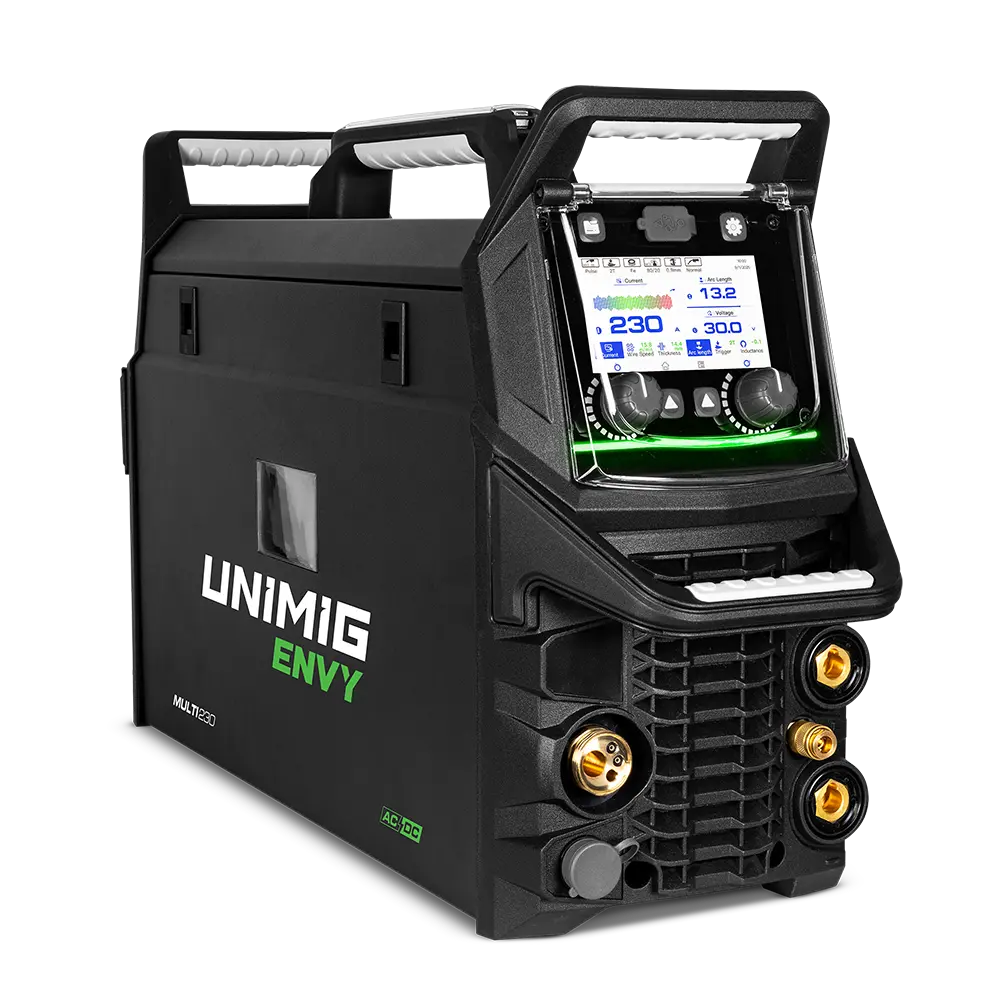

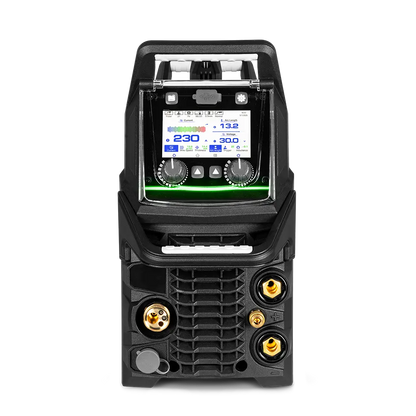

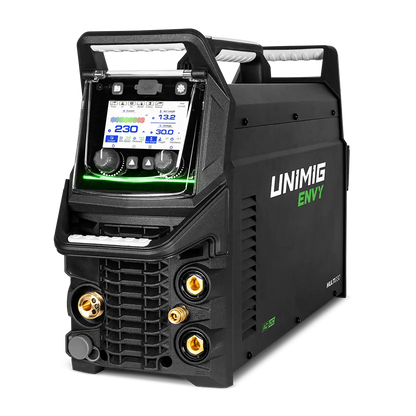

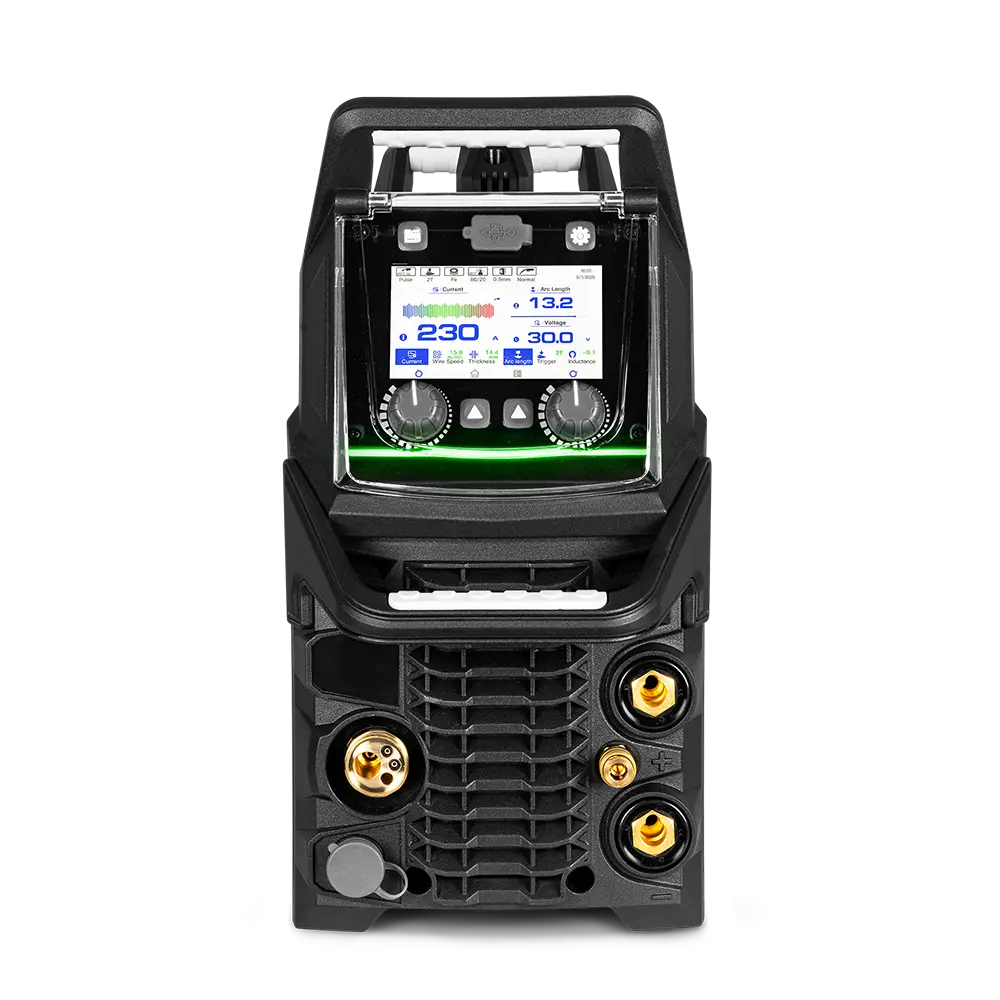

UNIMIG Envy Multi 230 AC/DC is a professional multi-process welder built for serious fabrication. With single & double pulse MIG, high-frequency AC/DC TIG and solid MMA control, it combines advanced welding technology with an intuitive setup to deliver clean, consistent results across aluminium, stainless and mild steel.
Key Features
- Single & Double Pulse MIG: Lower heat input and reduced spatter for cleaner aluminium and thin-sheet work.

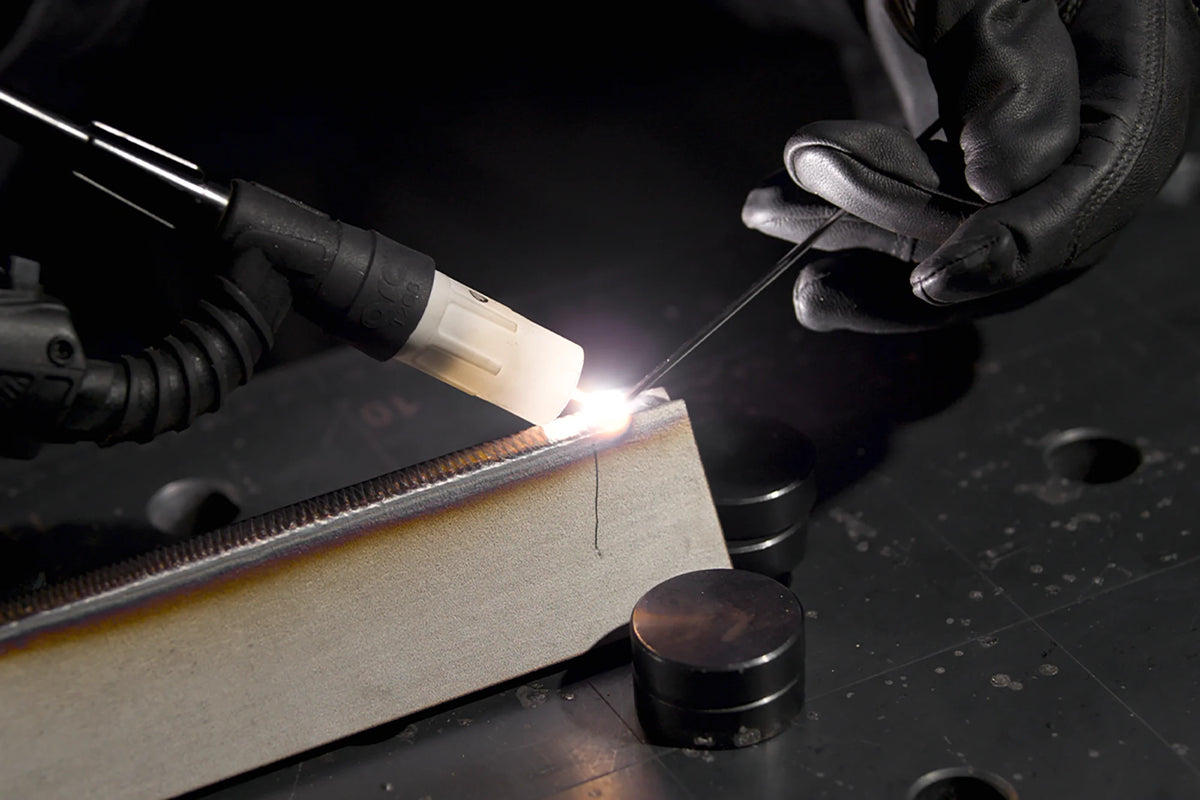

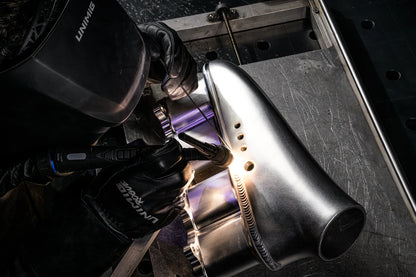

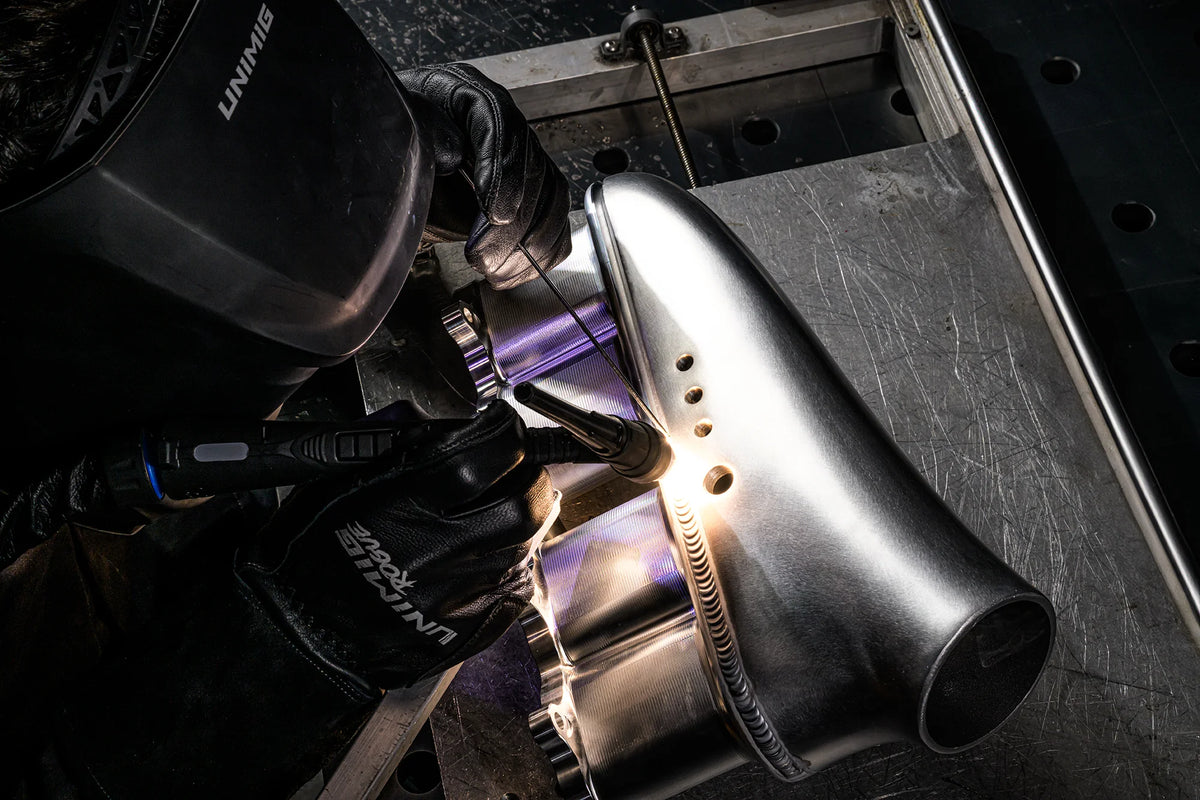

- High-Frequency AC/DC TIG: Weld ferrous and non-ferrous metals with full cycle control (pre/post-gas, upslope/downslope).
- MIG & TIG Smart-Set: Enter material details and get complete synergic setups fast.
- Complete Arc Control: Adjustable arc length, inductance, burnback and more for dialled-in welds.
- Geared Wire Drive: Smooth, consistent feeding for gas and gasless wires.
- Smart Cooling: Quieter operation, less dust intake, longer component life.

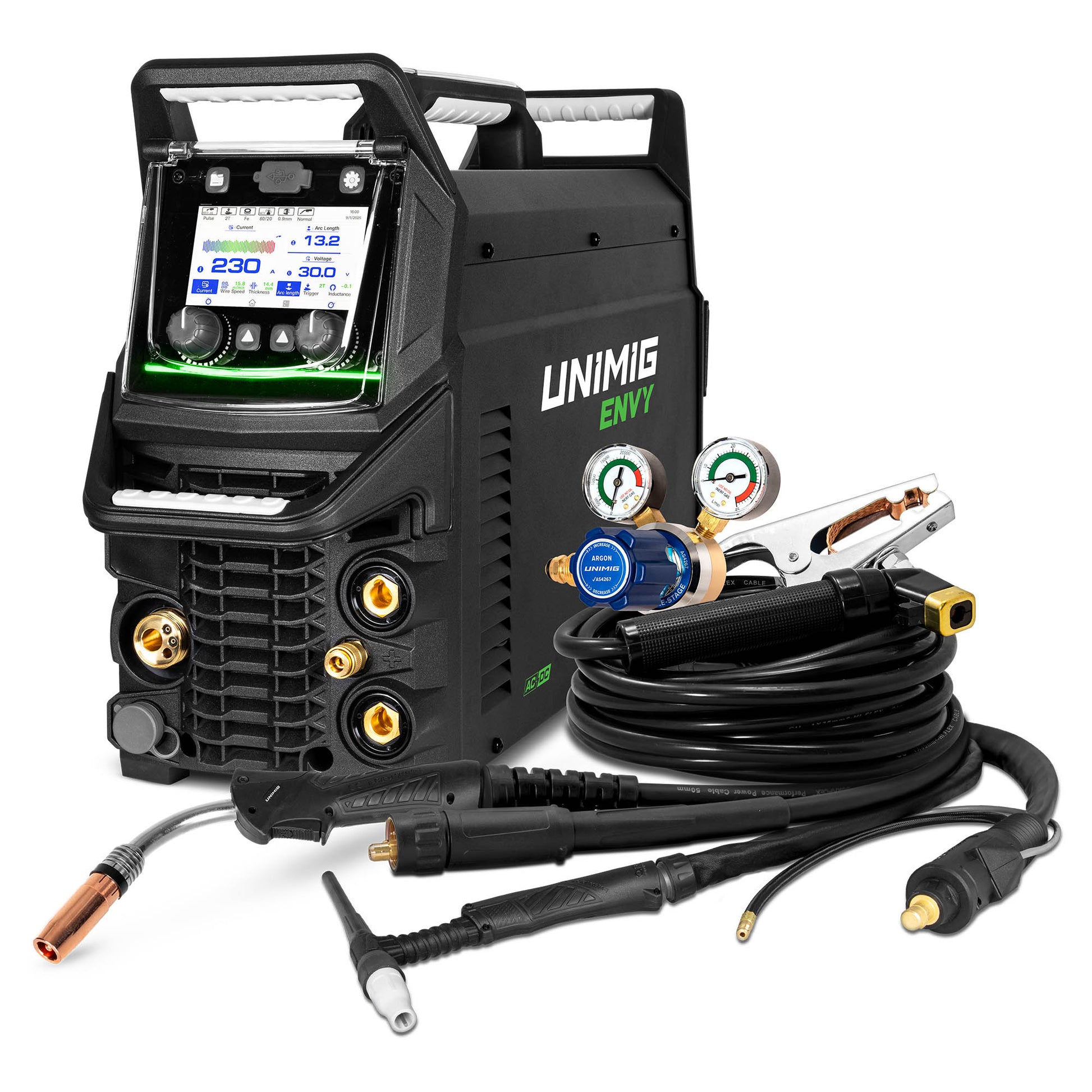

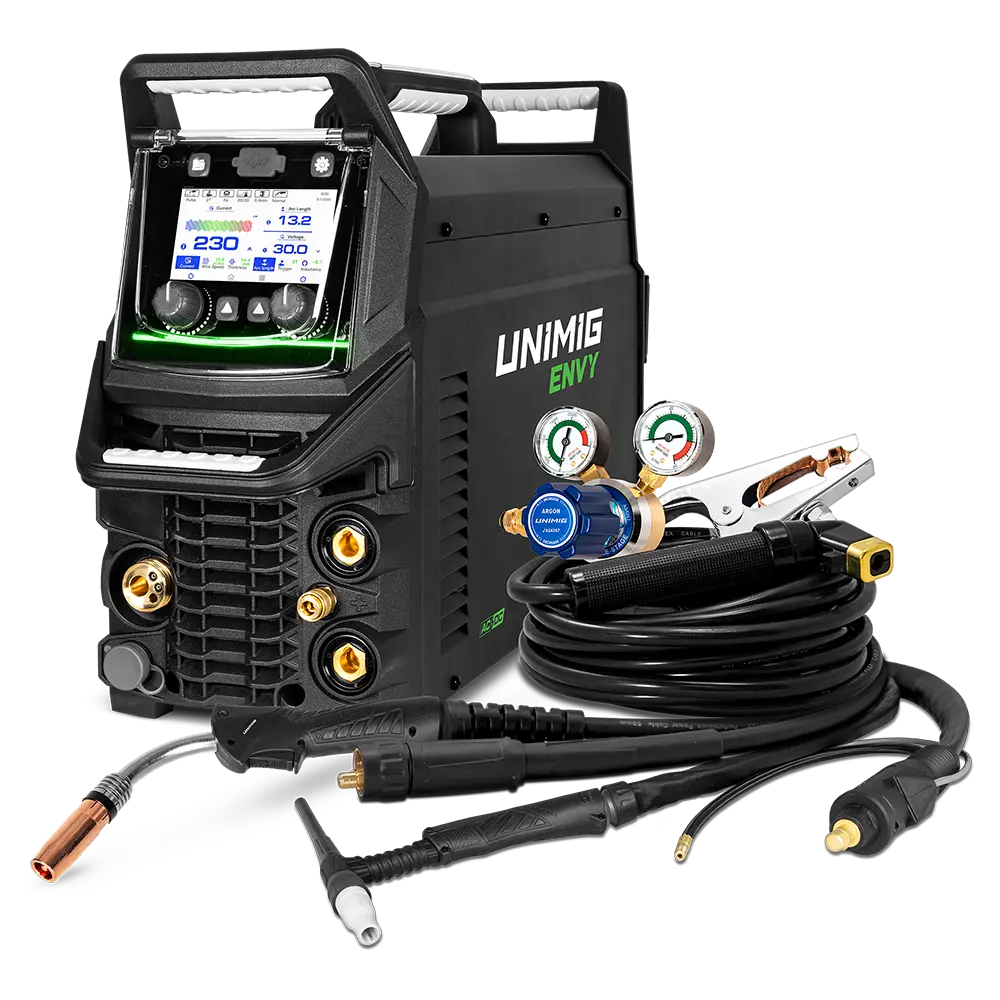

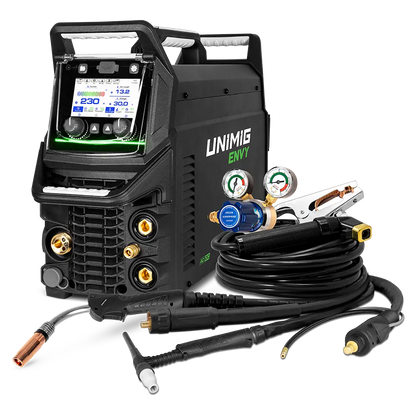

In the Box
- ENVY MULTI 230 AC/DC Welder
- 3m M26 Digital MIG Torch
- 4m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2 × 0.8–0.9 mm V Groove Rollers
- 2 × 0.8–0.9 mm F Groove Rollers
- 2 × 1.0–1.2 mm U Groove Rollers
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 240 V, single-phase |
| Input frequency (Hz) | 50/60 |
| Supply plug | 15 A |
| Ieff (A) | 15 |
| Imax (A) | 30A |
| Rated Output | 25–230 A |
| Open circuit voltage (V) | 76 V |
| Protection class | IP21S |
| Insulation class | H |
| Minimum generator (kVA) | 10 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Suitable materials |
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG (AC/DC): Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze |
| Warranty (years) | 5 |
| MIG SPECIFICATIONS | |
| MIG welding current range | 25–230 A |
| MIG duty cycle at 40°C | 25% at 230 A, 60% at 148 A, 100% at 145 A |
| MIG wire size range | 0.6–1.2 mm |
| MIG wire spool size | 1kg (D100); 5kg (D200) |
| MIG welding thickness range | 1–10 mm |
| Drive Roller Size | 30/22 |
| TIG SPECIFICATIONS | |
| TIG ignition type | AC/DC High-frequency |
| TIG welding current range | 10–230 A |
| TIG duty cycle at 40°C | 35% at 230 A, 60% at 175 A, 100% at 136 A |
| TIG welding thickness range | 1–8 mm |
| MMA SPECIFICATIONS | |
| Stick welding current range | 10–200 A |
| Stick duty cycle at 40°C | 25% at 200 A, 60% at 130 A, 100% at 100 A |
| Stick electrode range | 2.5–4 mm |
| Stick welding thickness range | 2–12 mm |
| SIZE & WEIGHT | |
| Dimensions (mm) | 680 × 210 × 395 |
| Weight (kg) | 24 |
