UNIMIG

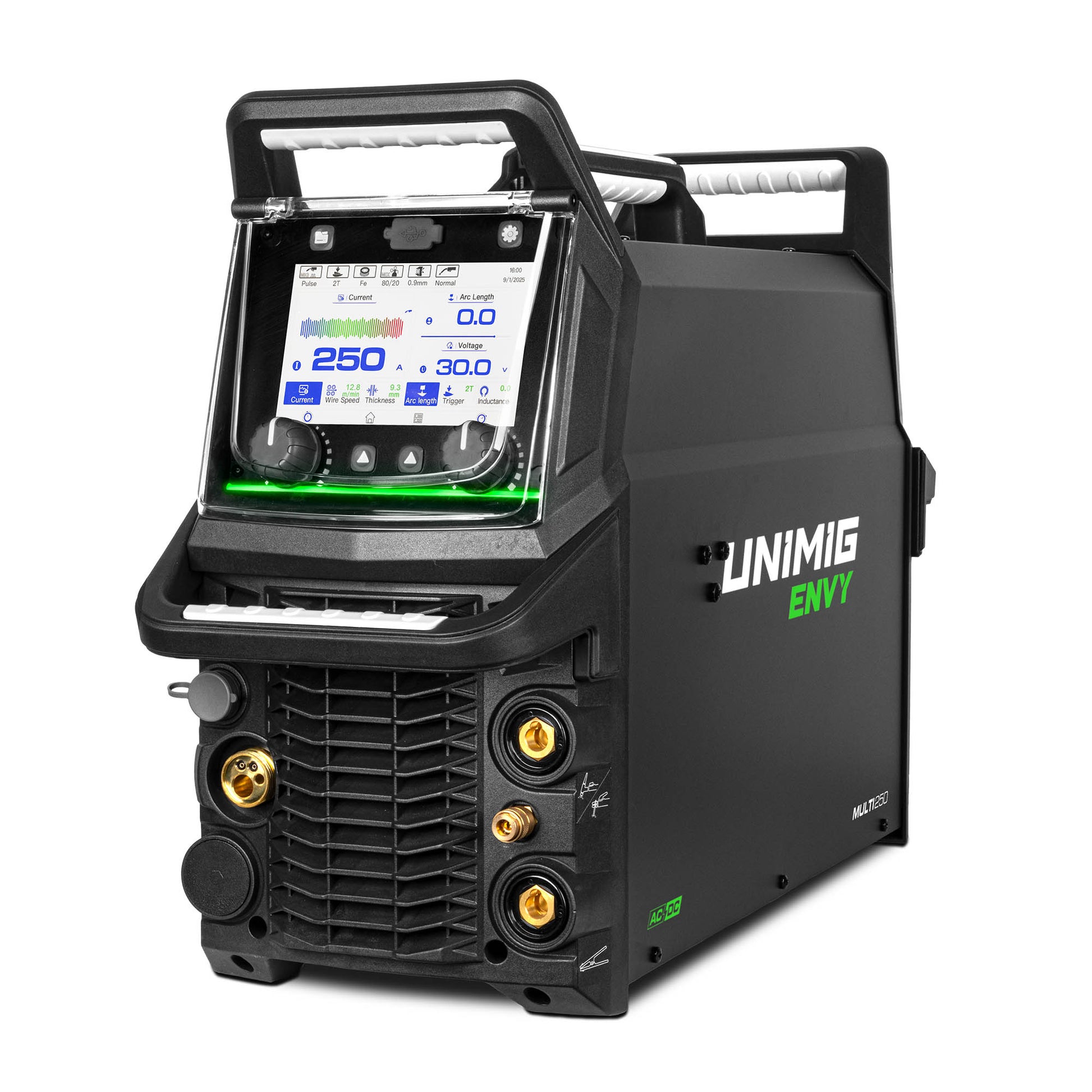

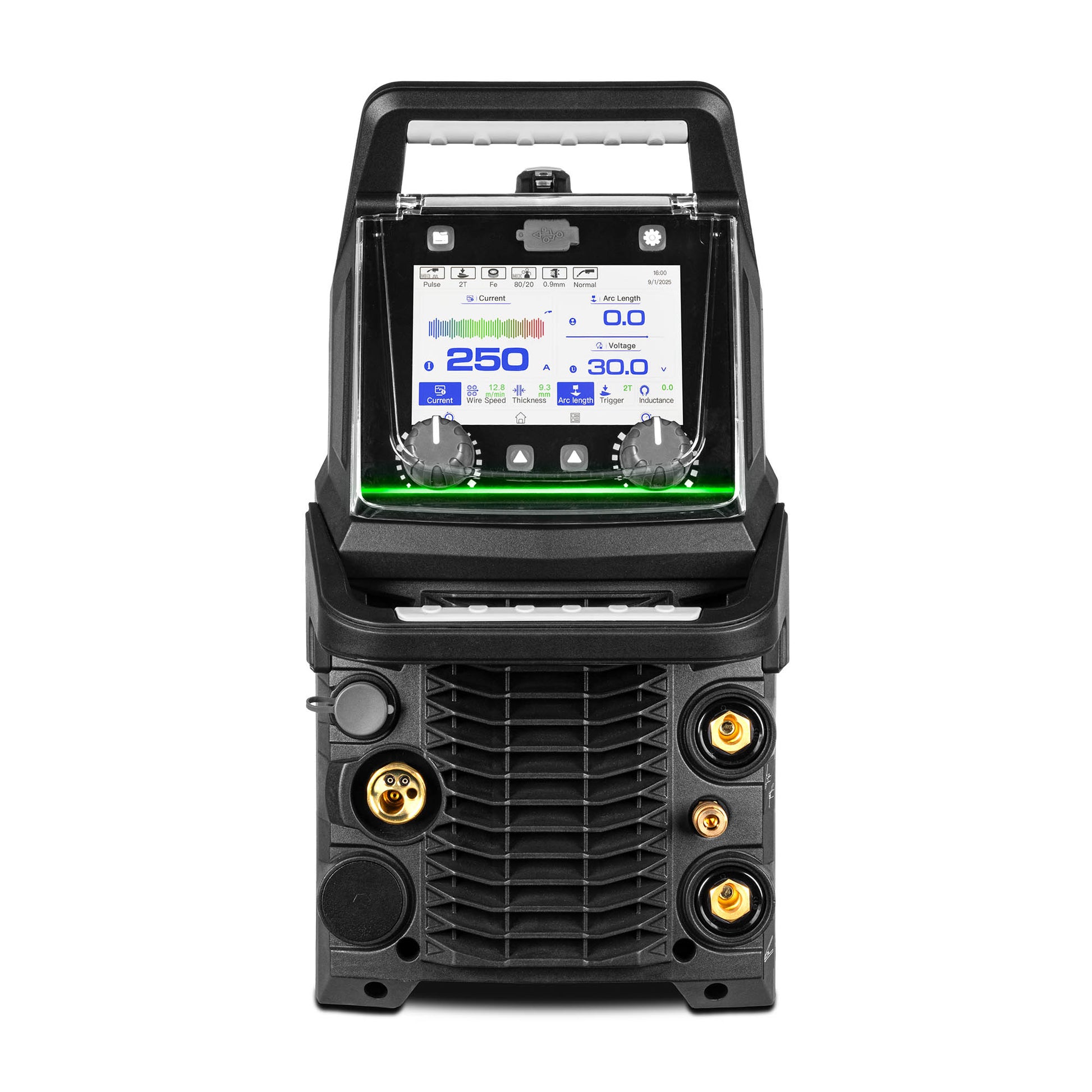

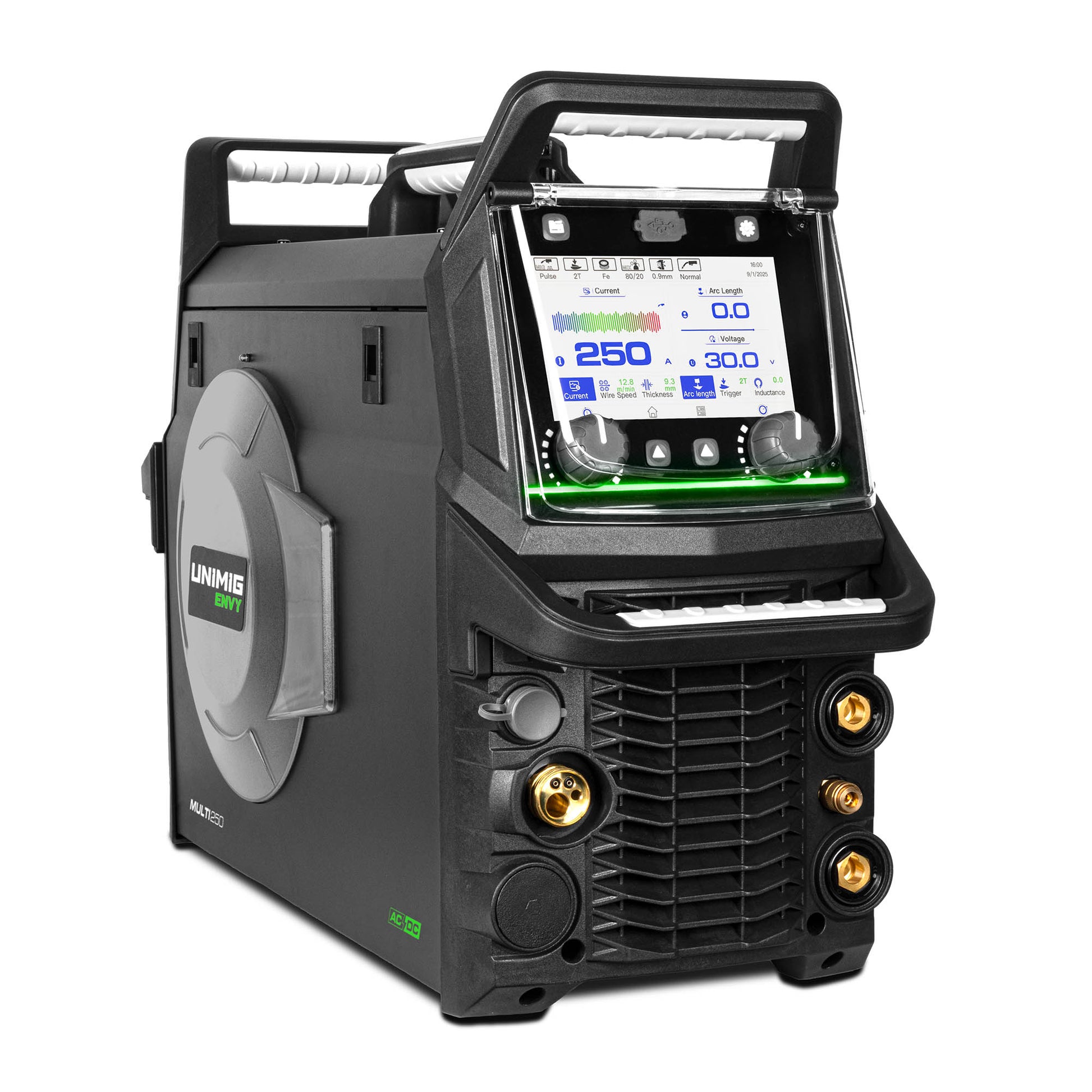

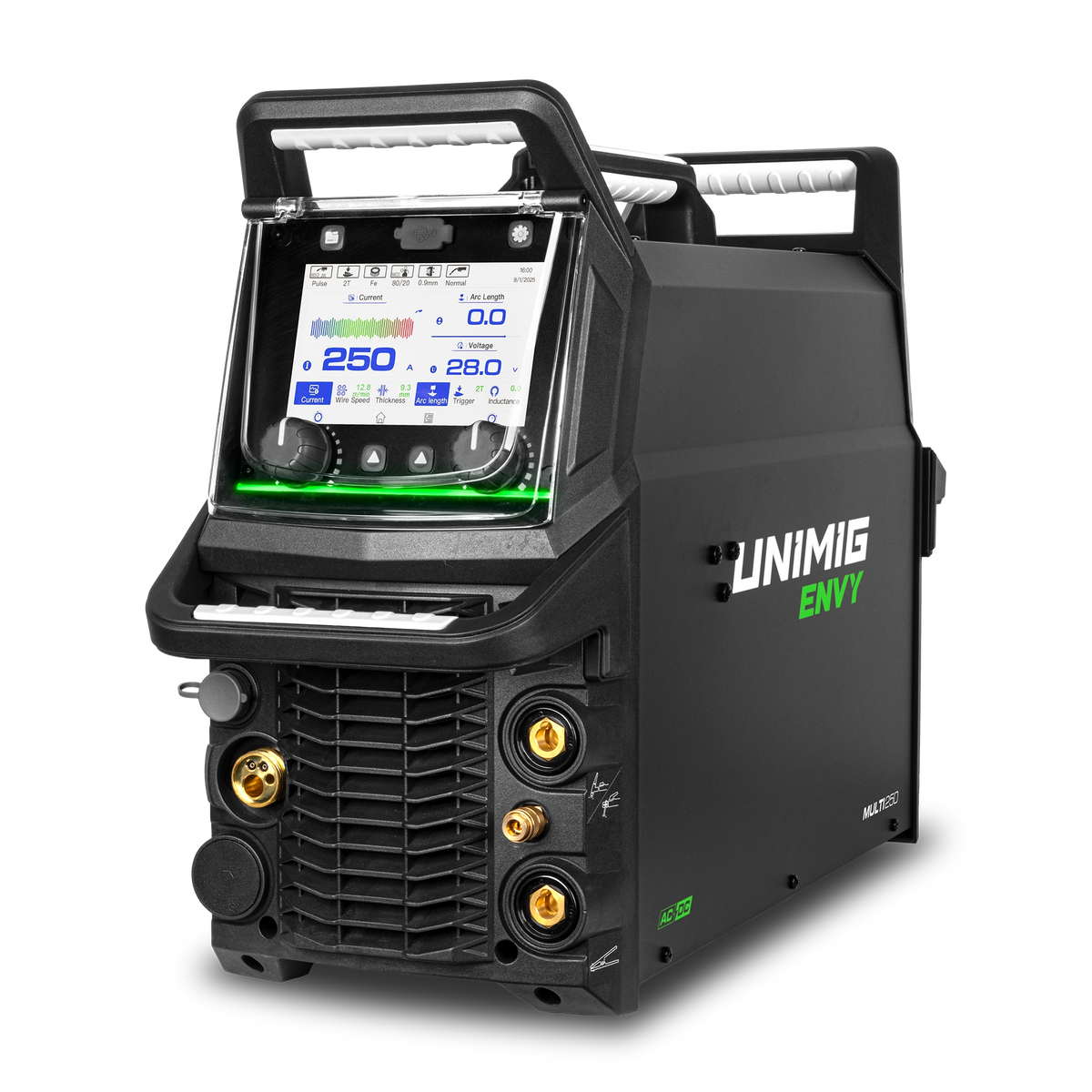

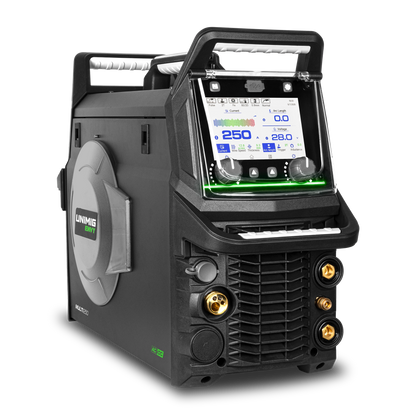

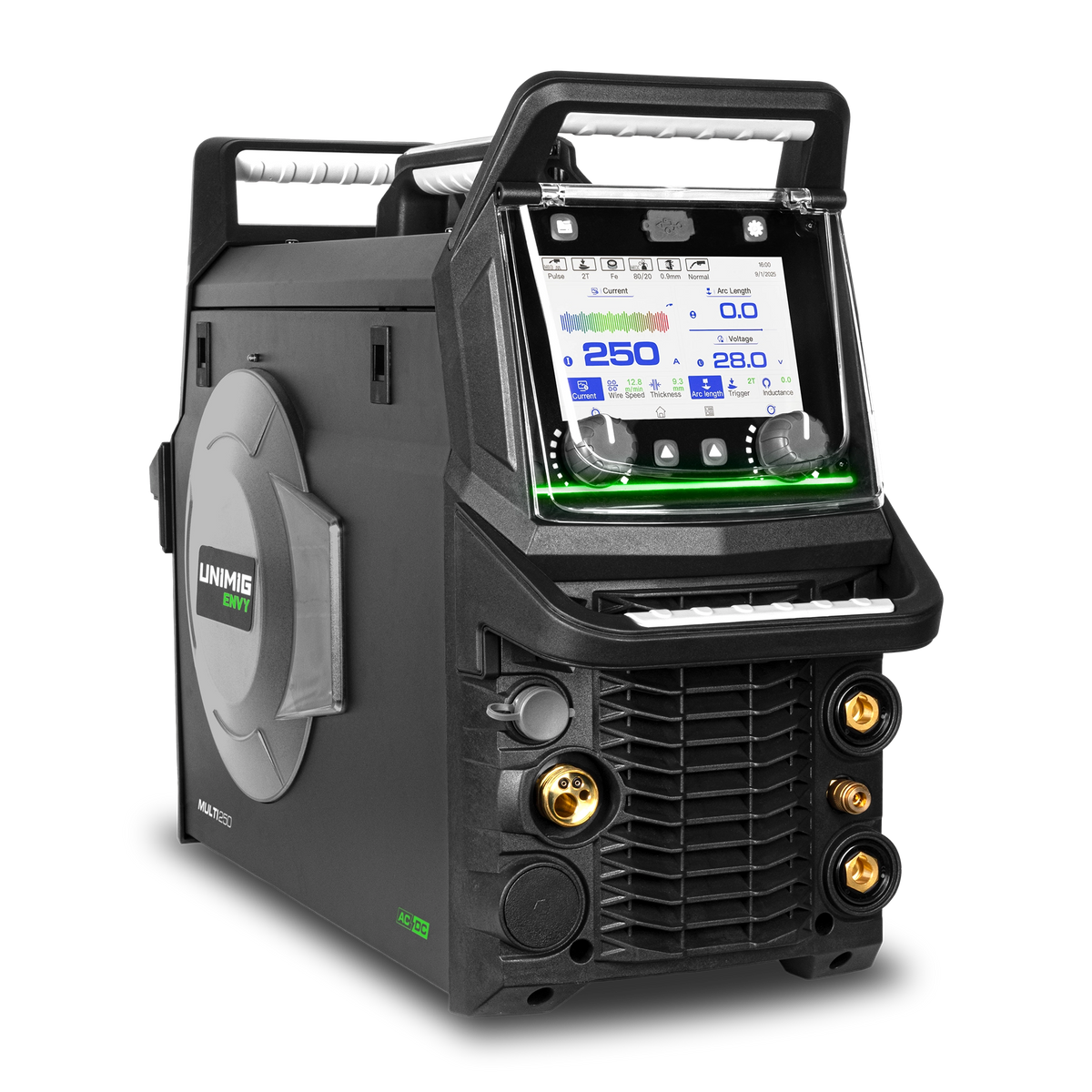

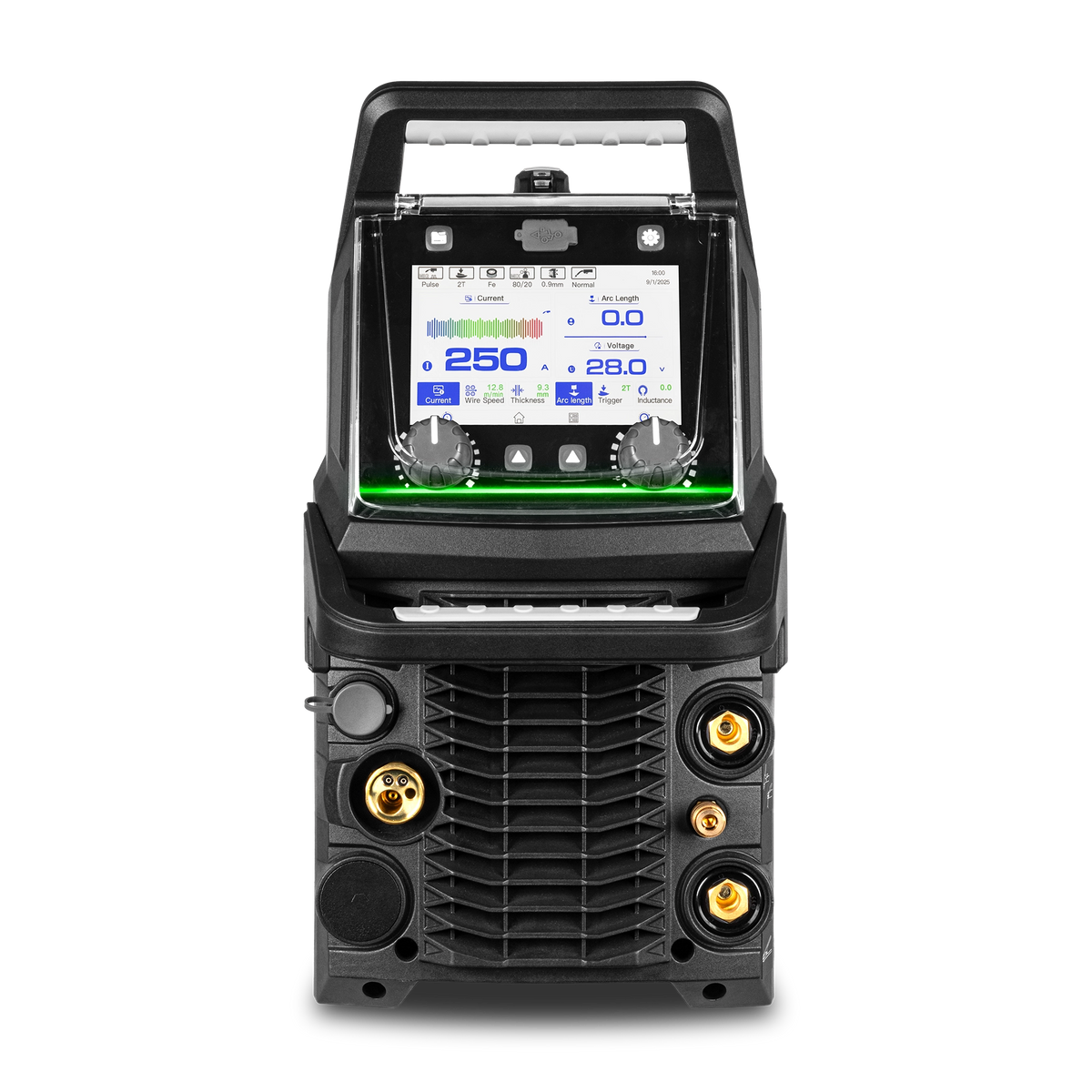

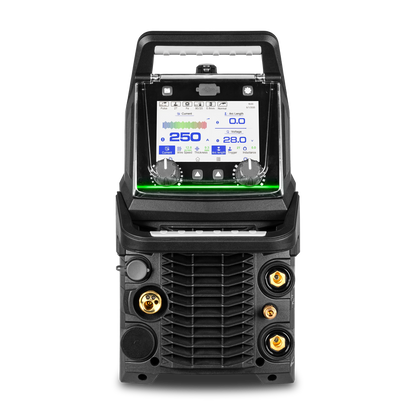

UNIMIG ENVY MULTI 250 AC/DC Welder U11238

UNIMIG ENVY MULTI 250 AC/DC Welder U11238

$3,999.00 AUD
$3,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11238

In stock

UNIMIG Envy Multi 250 AC/DC is the next evolution in the Envy series — a professional-grade multi-process welder engineered for fabrication precision and performance. With advanced single & double pulse MIG, full AC/DC TIG capability and powerful MMA control, it delivers the versatility and reliability required for both workshop and onsite fabrication.

Key Features

  • Single & Double Pulse MIG: Achieve cleaner, spatter-free welds with reduced heat input for aluminium and thin materials.
  • High-Frequency AC/DC TIG: Weld ferrous and non-ferrous metals with complete cycle control — including pre/post gas, slope, and balance settings.
  • Smart-Set MIG & TIG: Simple synergic setup for quick material and gas selection.
  • Advanced MIG Control: Adjustable arc length, inductance, burnback and full pulse tuning.
  • Dual Gas Capability: Two regulators and gas inlets for MIG/TIG setup flexibility.
  • Heavy-Duty Wire Drive: Four-geared 30/22 drive rollers for smooth and consistent wire feed.
  • Smart Cooling: Quieter operation, less dust intake and longer internal component lifespan.

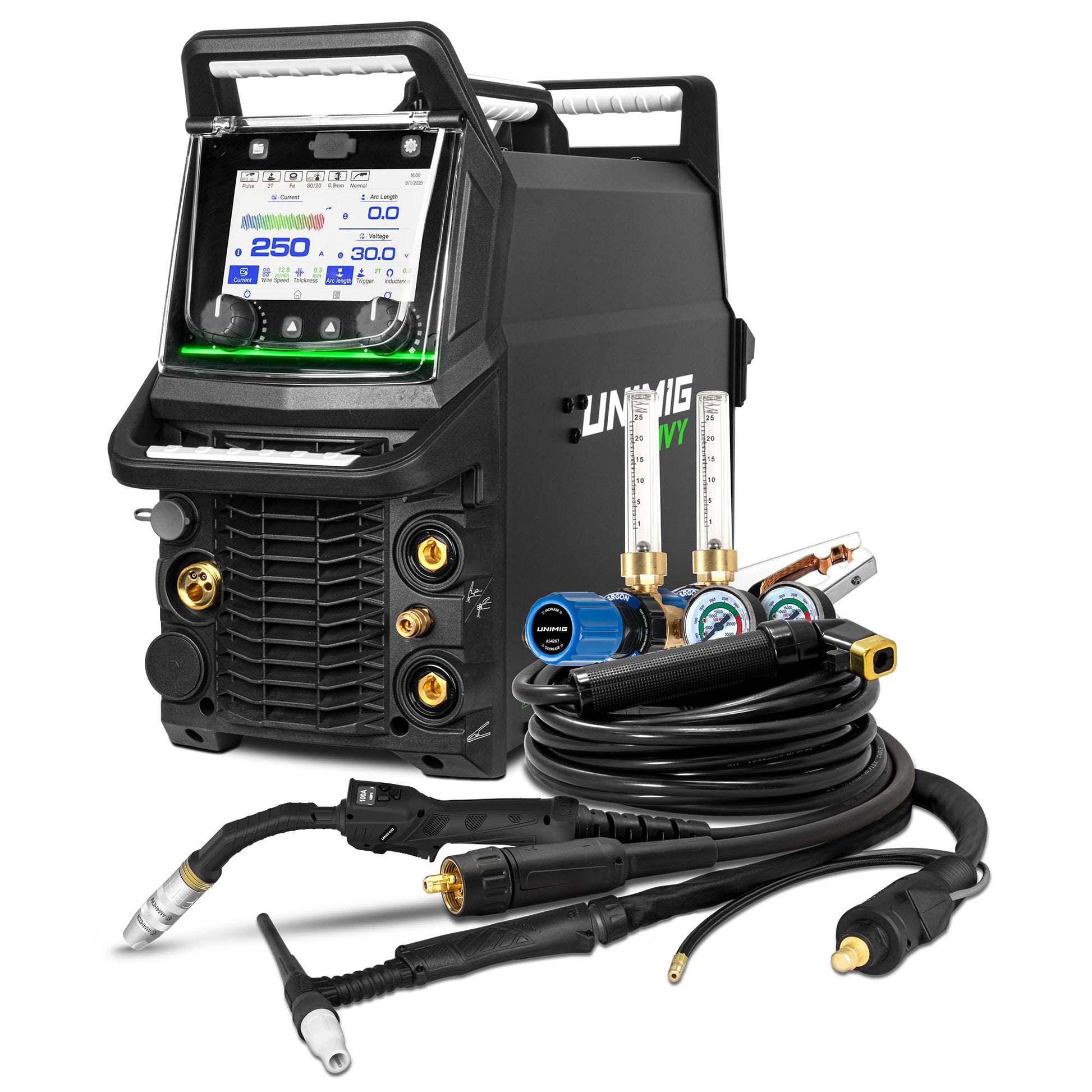

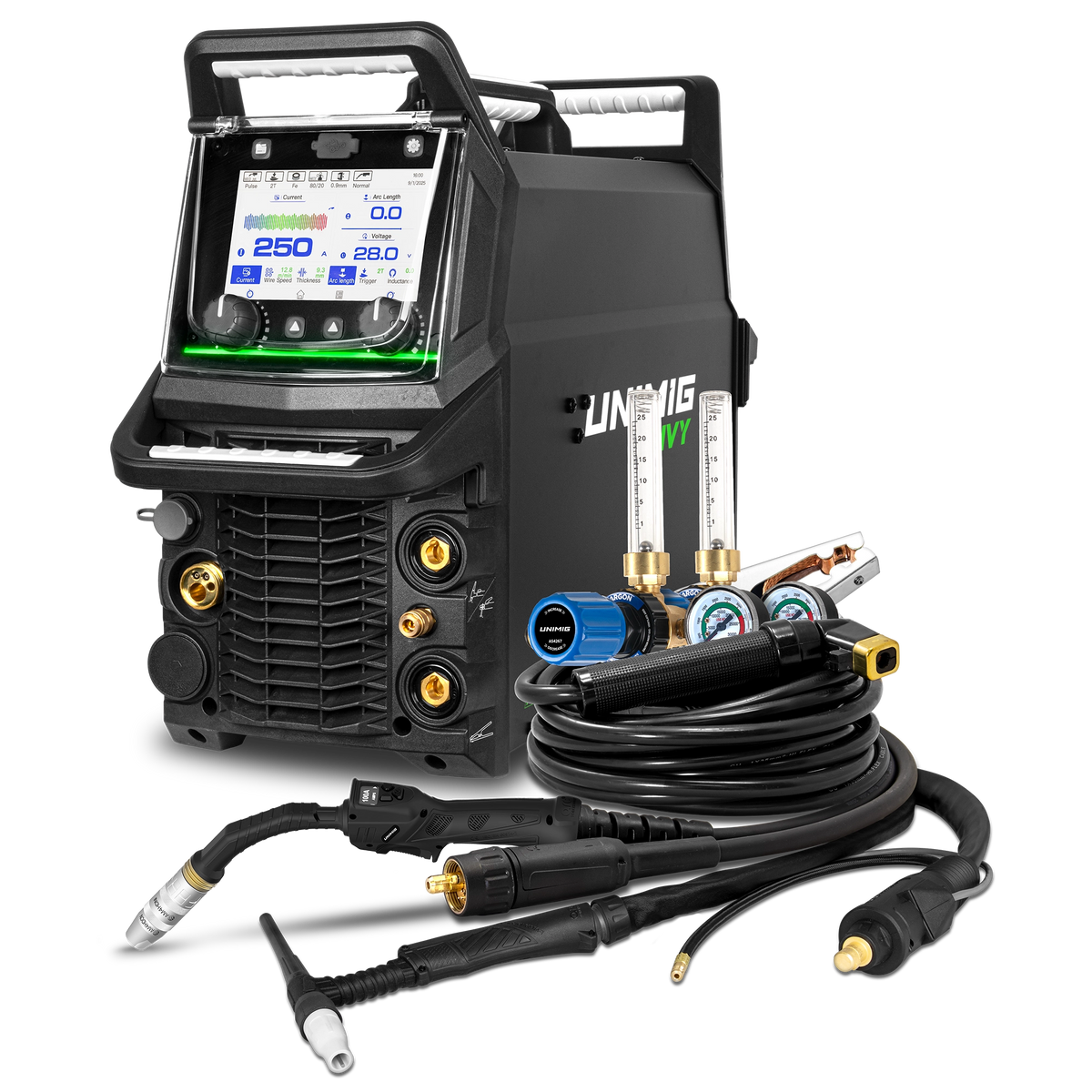

In the Box

  • ENVY MULTI 250 AC/DC Welder
  • 3m M350 Digital MIG Torch
  • 4m T2 TIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • 2 × Dual Stage Argon Flowmeters
  • 2 × 1.8m Quick-Connect Gas Hoses
  • Operating Manual
  • 4 × 0.8–0.9mm V Groove Rollers
  • 4 × 0.8–0.9mm F Groove Rollers
  • 4 × 1.0–1.2mm U Groove Rollers
MACHINE SPECIFICATIONS
Primary Input Voltage 240V Single Phase 50/60Hz
Supply Plug 15A
Ieff (A) 15.0
Imax (A) 34.0
Rated Output 20–250A
No Load Voltage (V) 92V
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 12.0
Dinse Connector 35/50
Standard AS 60974.1
Welds MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG (AC/DC): Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze
Warranty (Years) 5



MIG SPECIFICATIONS
MIG Welding Current Range 20–250A
MIG Duty Cycle @ 40°C 20% @ 250A, 60% @ 144A, 100% @ 112A
MIG Wire Size Range 0.6–1.2mm
MIG Wire Spool Size 5kg (200mm) / 15kg (300mm)
MIG Welding Thickness Range 1–12mm
Drive Roller Size 30/22



TIG SPECIFICATIONS
TIG Function Type AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range 3–250A
TIG Duty Cycle @ 40°C 30% @ 250A, 60% @ 177A, 100% @ 137A
TIG Welding Thickness Range 1–10mm



MMA SPECIFICATIONS
STICK Welding Current Range 10–230A
STICK Duty Cycle @ 40°C 20% @ 230A, 60% @ 133A, 100% @ 103A
STICK Electrode Range 2.5–4.0mm
STICK Welding Thickness Range 2–12mm



SIZE & WEIGHT
Dimensions (mm) 810 × 280 × 520mm
Weight (kg) 34.5kg
