Details

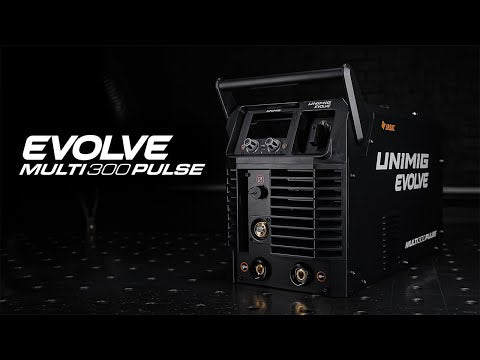

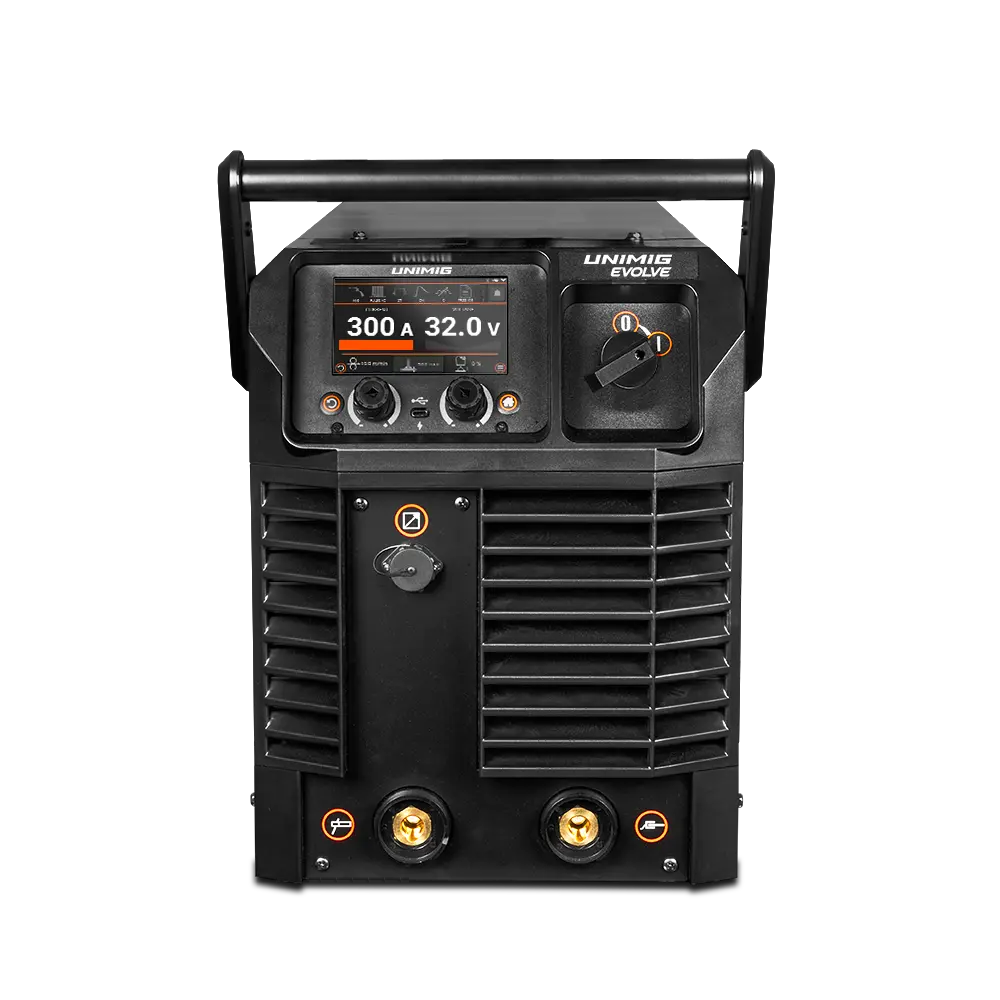

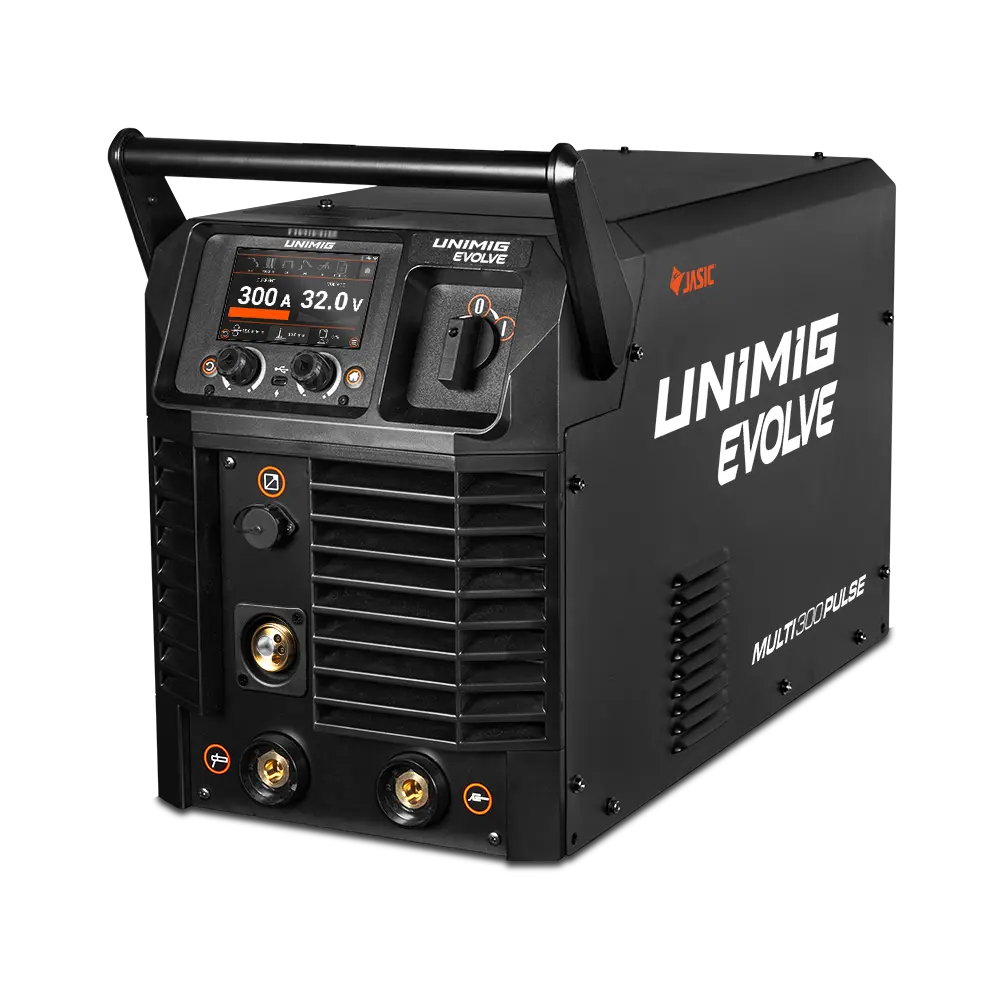

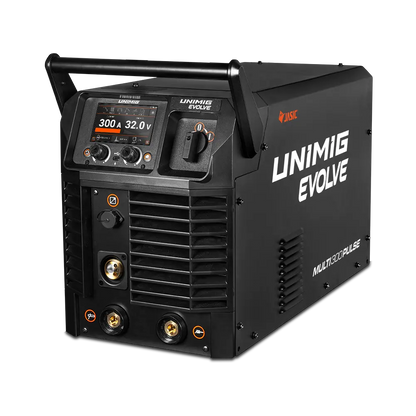

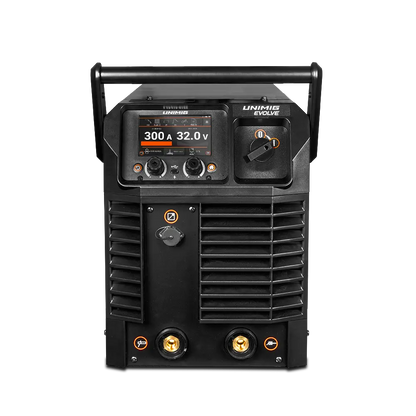

The UNIMIG EVOLVE MULTI 300 PULSE (U11130) is a dual-voltage, multi-process MIG/MMA welder engineered for fabrication, workshop, and industrial environments. With single-phase and three-phase compatibility, advanced pulse capabilities, and a robust duty cycle, it delivers premium results across mild steel, stainless steel, aluminium and silicon bronze applications.
Key Features
- Dual-voltage operation: 240V single-phase or 415V three-phase
- Advanced MIG pulse and multi-pulse modes for superior control on aluminium and thin materials
- Heavy-duty industrial-duty cycle ideal for fabrication and workshop use
- Supports MIG, Pulse MIG, Double Pulse, MMA and more
- Includes multiple drive rollers for steel, aluminium and specialty wires
- 5-year UNIMIG warranty
In the Box
- EVOLVE MULTI 300 PULSE Welder
- 3m M350 MIG Torch
- Consumable Kit
- 3m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Quick-Connect Gas Hose
- Operating Manual
- 2x 1.0–1.2mm U-Groove Rollers
- 2x 0.9–1.2mm V-Groove Rollers
- 2x 1.2–1.6mm V-Groove Rollers
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 240 V, single-phase / 415 V, three-phase |
| Supply plug | 32 A three-phase / 15 A single-phase via plug adapter (maximum 250 A MIG output on single-phase) |
| Ieff (A) | 14.2 (Single-Phase) / 12.4 (Three-Phase) |
| Imax (A) | 36.7A (Single-Phase) / 16.0A (Three-Phase) |
| Open circuit voltage (V) | 70 |
| Open circuit voltage with VRD active (V) | 9.5 V |
| Protection class | IP21S |
| Insulation class | H |
| Minimum generator (kVA) | 13 (Single-Phase) / 23 (Three-Phase) |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 5 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron |
| MIG SPECIFICATIONS | |
| MIG welding current range | 20–250 A (single-phase) / 20–300 A (three-phase) |
| MIG duty cycle at 40°C | 15% at 250 A (single-phase); 60% at 125 A (single-phase); 100% at 97 A (single-phase); ; 60% at 300 A (three-phase); 100% at 232 A (three-phase) |
| MIG wire size range | 0.6–1.2 mm |
| MIG wire spool size | 5kg (D200); 15kg (D300) |
| MIG welding thickness range | 0.6–20 mm (Single Pass), >20 mm (Multi Pass) |
| Drive Roller Size | 30/22 |
| MMA SPECIFICATIONS | |
| Stick welding current range | 20–200 A (single-phase) / 20–300 A (three-phase) |
| Stick duty cycle at 40°C | 20% at 200 A (single-phase); 60% at 115 A (single-phase); 100% at 89 A (single-phase); ; 60% at 300 A (three-phase); 100% at 232 A (three-phase) |
| Stick electrode range | 1.6–4 mm |
| Stick welding thickness range | 2–10 mm (Single Pass), >10 mm (Multi Pass) |
Package specifications
| Complete package net weight (kg) | 48 |
| Packaged weight (kg) | 63.4 |
AC/DC TIG module, trolley, water cooler and external wire feeder are optional.
TIG welding and AC MIG require the optional EVOLVE AC/DC TIG module. It is not included in this package.
