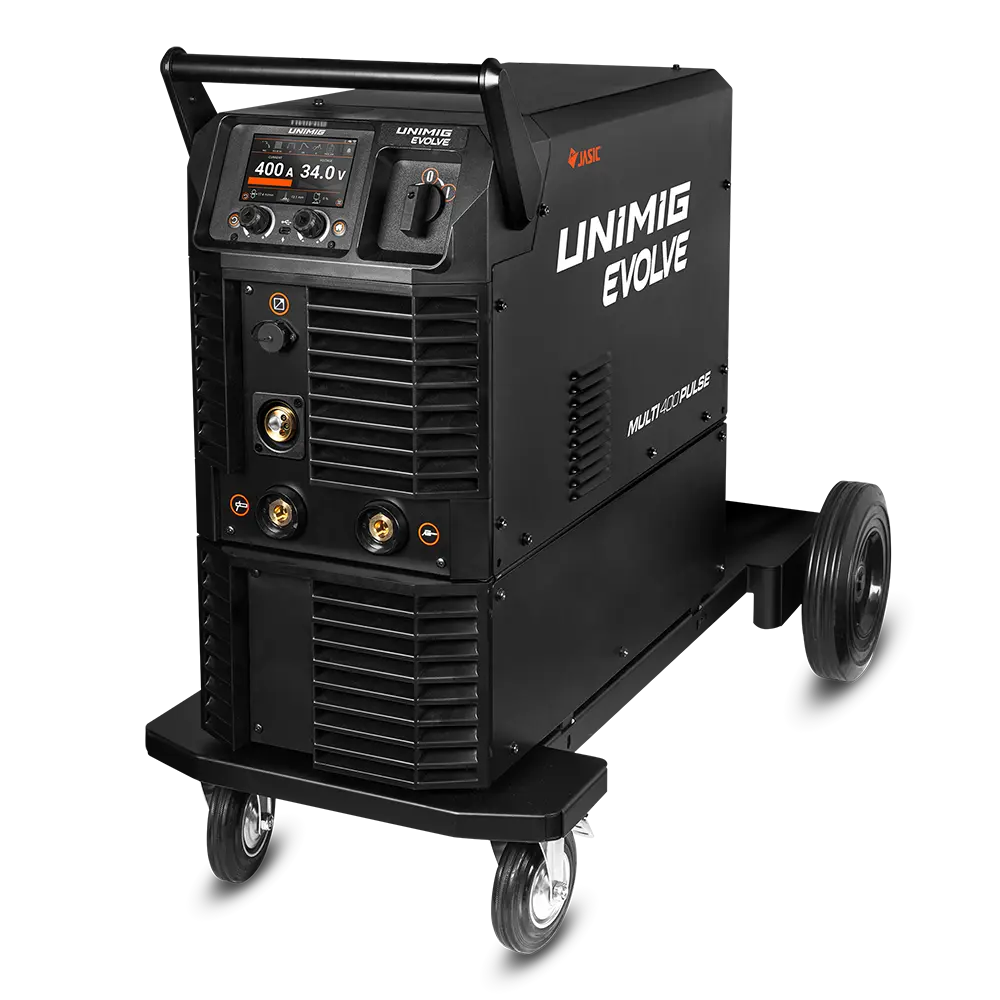

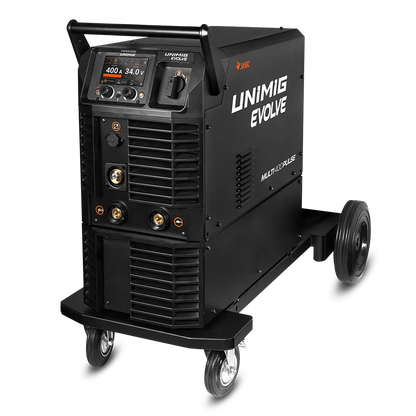

UNIMIG EVOLVE MULTI 400 PULSE M350 Trolley Package U11224

UNIMIG EVOLVE MULTI 400 PULSE M350 Trolley Package U11224

$8,399.00 AUD
$8,399.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11224

In stock

The UNIMIG EVOLVE MULTI 400 PULSE M350 Trolley Package (U11224) is an industrial-grade MIG/MMA welder engineered for fabrication, production, heavy workshop environments and aluminium work requiring Pulse & Double Pulse capability. This package includes the EVOLVE Trolley with integrated drawer for improved workshop mobility and storage.

Key Features

  • Dual-voltage: 240V single-phase or 415V three-phase input
  • Pulse & Double Pulse MIG for premium aluminium and thin-sheet welding
  • High-duty industrial output up to 400A (three-phase)
  • Includes EVOLVE Trolley with drawer for consumables & tool storage
  • Full roller set included for steel, aluminium & specialty wires
  • VRD Safety System
  • 5-year UNIMIG warranty

In the Box

  • EVOLVE MULTI 400 PULSE Welder
  • EVOLVE Trolley with Drawer
  • 3m M350 MIG Torch
  • Consumable Kit
  • 3m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2x 1.0–1.2mm U-Groove Rollers
  • 2x 1.2–1.6mm U-Groove Rollers
  • 2x 0.9–1.2mm V-Groove Rollers
  • 2x 1.2–1.6mm V-Groove Rollers
MACHINE SPECIFICATIONS
Primary Input Voltage 240V Single-Phase / 415V Three-Phase
Supply Plug 32A
Ieff (A) 14.4 (Single-Phase) / 18.3 (Three-Phase)
Imax (A) 32.2 (Single-Phase) / 24.5 (Three-Phase)
Open Circuit Voltage (OCV) 70
OCV with VRD Active 9.5V
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 13 (Single-Phase) / 23 (Three-Phase)
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron



MIG SPECIFICATIONS
MIG Current Range 20–250A (Single-Phase) / 20–400A (Three-Phase)
MIG Duty Cycle @ 40°C 20% @ 250A (Single-Phase)
60% @ 144A (Single-Phase)
100% @ 112A (Single-Phase)

60% @ 400A (Three-Phase)
100% @ 310A (Three-Phase)
MIG Wire Sizes 0.6–1.6mm
MIG Wire Spool Sizes 5kg (D200), 15kg (D300)
MIG Welding Thickness Range 0.6–20mm (Single Pass), >20mm (Multi Pass)
Drive Roller Size 30/22



MMA SPECIFICATIONS
MMA Current Range 20–225A (Single-Phase) / 20–400A (Three-Phase)
MMA Duty Cycle @ 40°C 20% @ 225A (Single-Phase)
60% @ 130A (Single-Phase)
100% @ 100A (Single-Phase)

60% @ 400A (Three-Phase)
100% @ 310A (Three-Phase)
MMA Electrode Range 1.6–6.0mm
MMA Welding Thickness Range 2–10mm (Single Pass), >10mm (Multi Pass)
