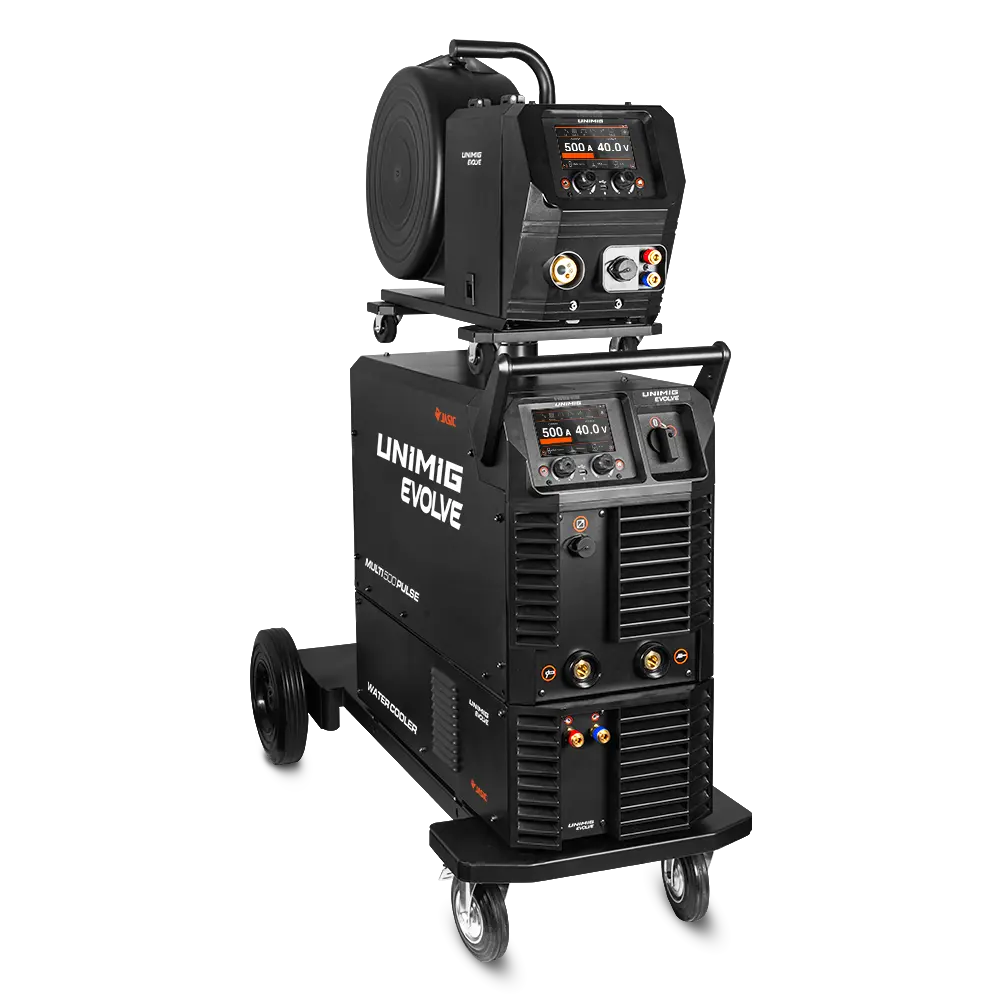

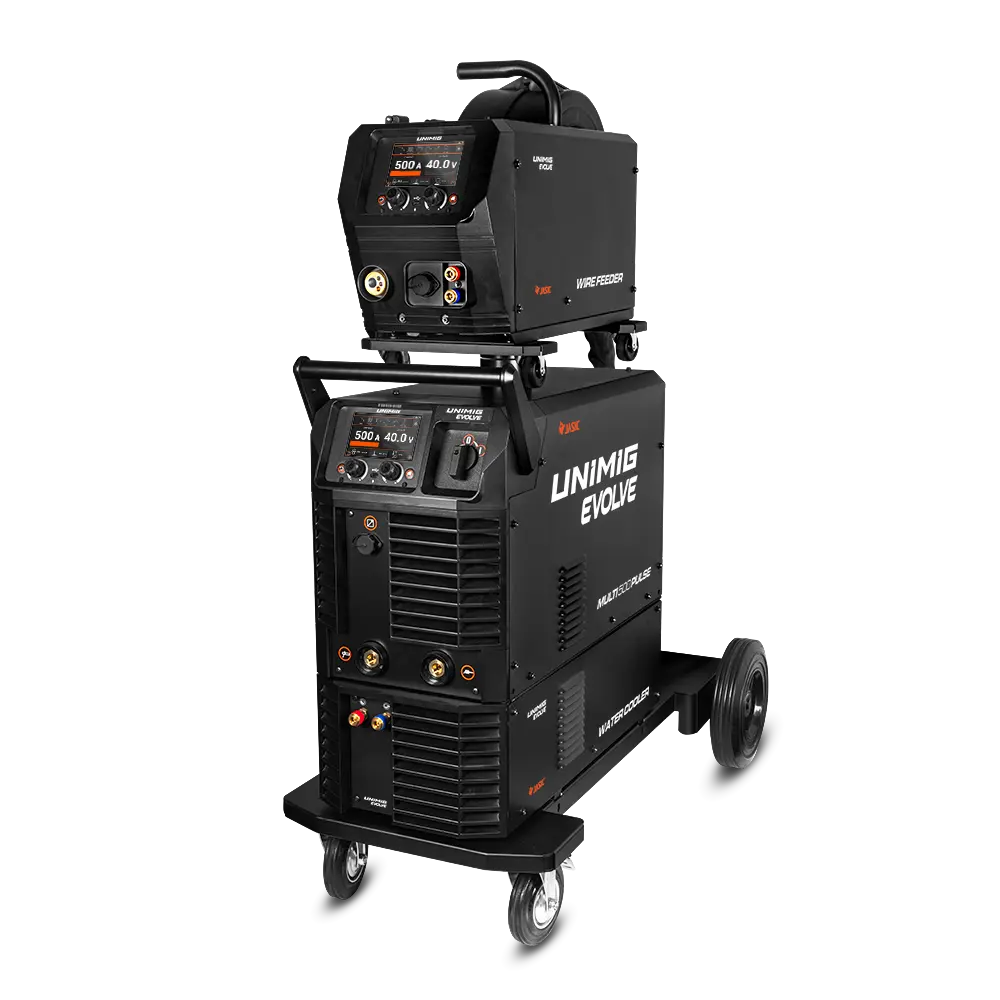

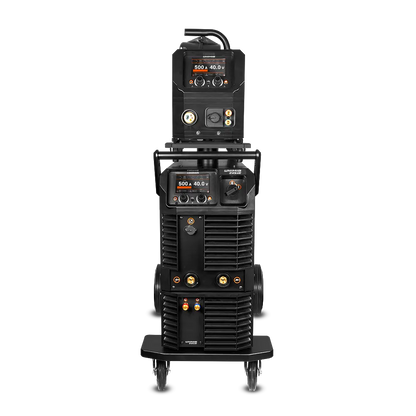

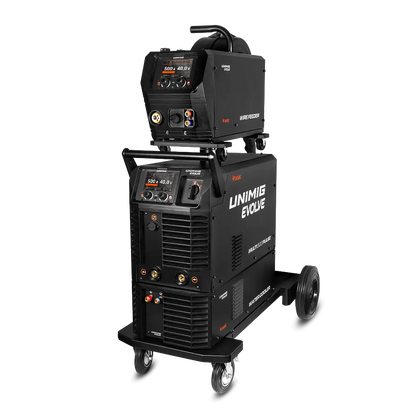

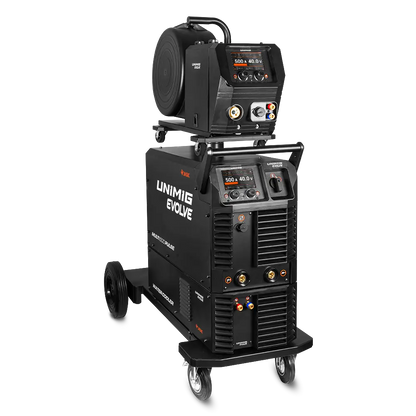

UNIMIG EVOLVE MULTI 500 PULSE M580W Water-Cooled Trolley Package U11142

UNIMIG EVOLVE MULTI 500 PULSE M580W Water-Cooled Trolley Package U11142

$12,499.00 AUD
$12,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11142

In stock

The UNIMIG EVOLVE MULTI 500 PULSE M580W Water-Cooled Trolley Package (U11142) is a heavy-industrial, high-output pulse MIG/MMA system built for fabrication shops, production environments, aluminium welding, structural work and large-gauge materials. Featuring a 500A three-phase power source, separate wire feeder, water cooler module and the M580W water-cooled MIG torch, this package is engineered for continuous high-duty welding performance.

Key Features

  • 500A industrial Pulse & Double Pulse MIG performance
  • Water-cooled M580W MIG torch for maximum duty cycle at high amperage
  • Separate Wire Feeder module for extended reach and improved workflow
  • EVOLVE Water Cooler Module for stable thermal control during continuous operation
  • EVOLVE Trolley for mobility and workstation integration
  • Full roller kit for aluminium, stainless, mild steel and specialty wires
  • VRD Safety System
  • 5-year UNIMIG warranty

In the Box

  • EVOLVE MULTI 500 PULSE Welder
  • EVOLVE Separate Wire Feeder Module
  • EVOLVE Water Cooler Module
  • EVOLVE Trolley
  • 3m M580W Water-Cooled MIG Torch
  • Consumable Kit
  • 3m 500A Twist Lock Electrode Holder
  • 3m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2x 1.0–1.2mm U-Groove Rollers
  • 2x 1.2–1.6mm U-Groove Rollers
  • 2x 0.9–1.2mm V-Groove Rollers
  • 2x 1.2–1.6mm V-Groove Rollers
MACHINE SPECIFICATIONS
Primary Input Voltage 415V Three-Phase
Supply Plug 32A
Ieff (A) 25.0
Imax (A) 34.8
Open Circuit Voltage (OCV) 80
OCV with VRD Active 9.5V
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 34
Dinse Connector 35/50
Standard AS 60974.1
Warranty 5 Years
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron



MIG SPECIFICATIONS
MIG Current Range 20–500A
MIG Duty Cycle @ 40°C 60% @ 500A
100% @ 400A
MIG Wire Sizes 0.8–2.4mm
MIG Wire Spool Sizes 5kg (D200), 15kg (D300)
MIG Welding Thickness Range 0.6–20mm (Single Pass), >20mm (Multi Pass)
Drive Roller Size 30/22



MMA SPECIFICATIONS
MMA Current Range 20–500A
MMA Duty Cycle @ 40°C 60% @ 500A
100% @ 400A
MMA Electrode Range 2.5–6.0mm
MMA Welding Thickness Range 2–10mm (Single Pass), >10mm (Multi Pass)
