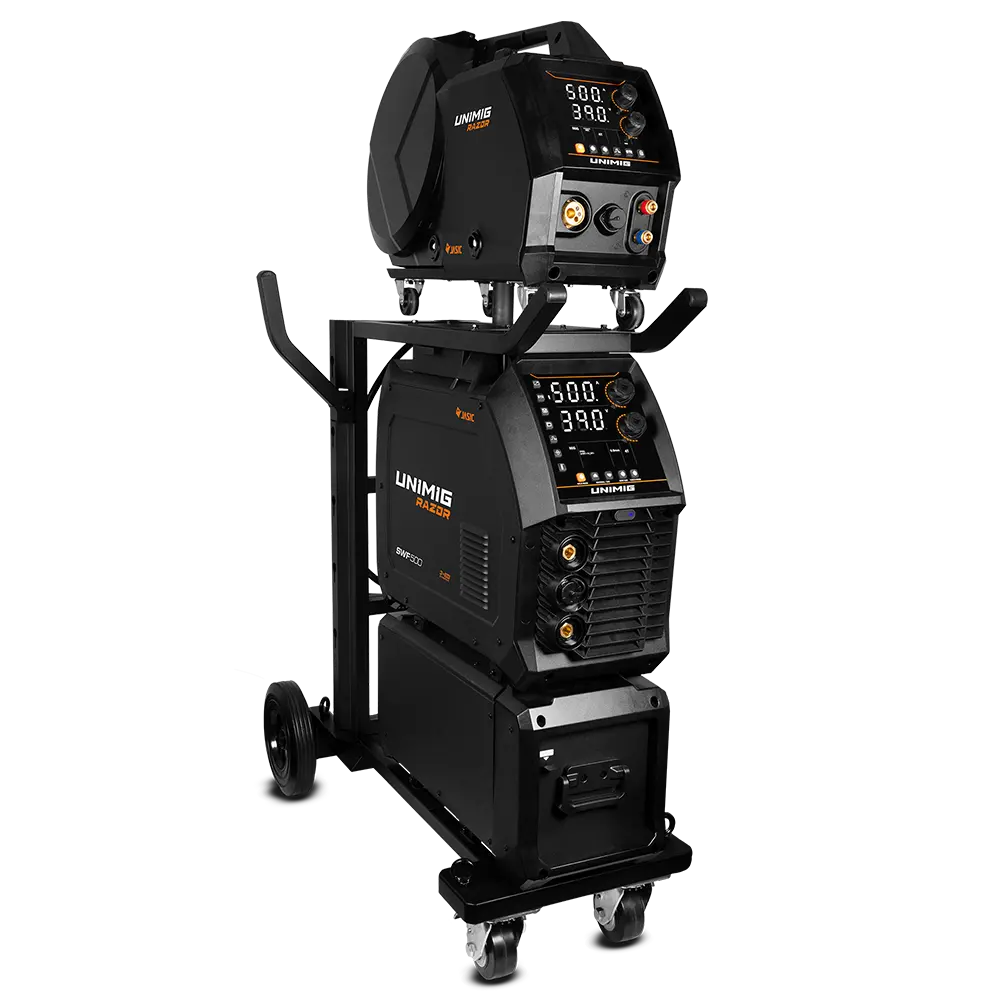

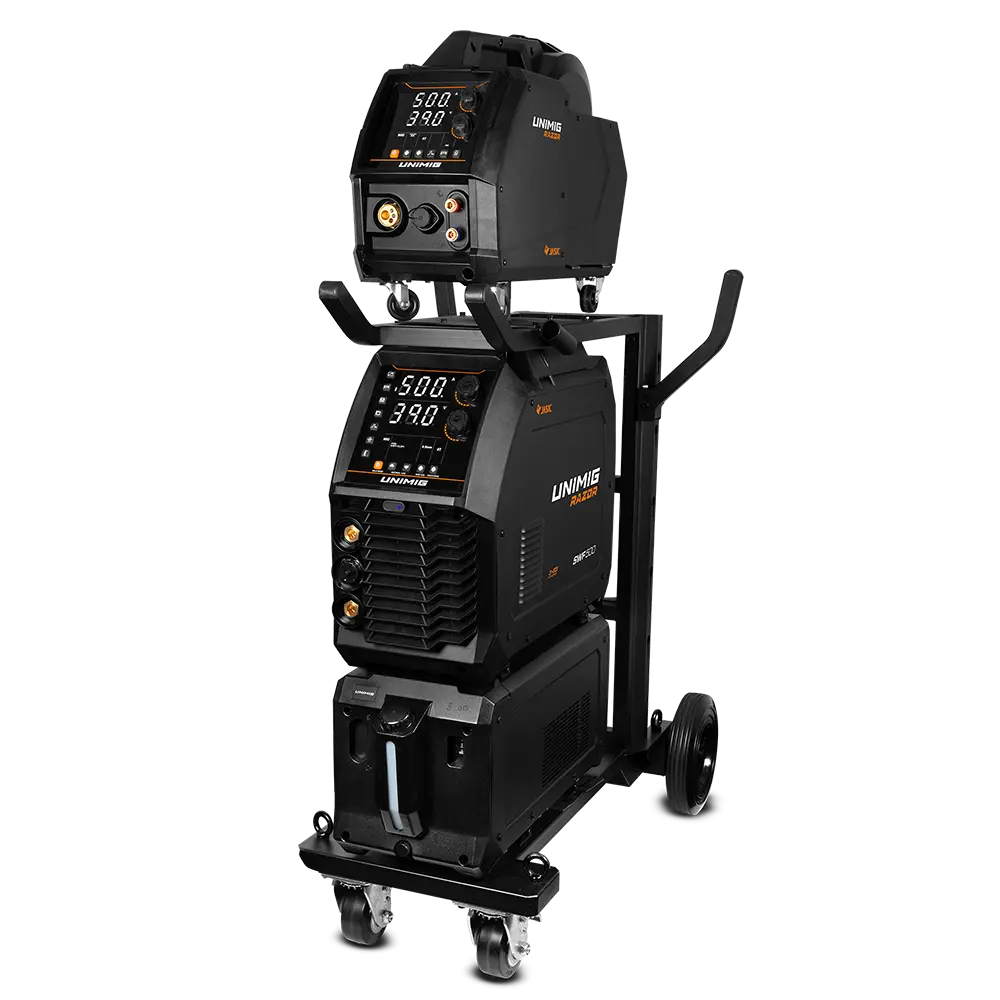

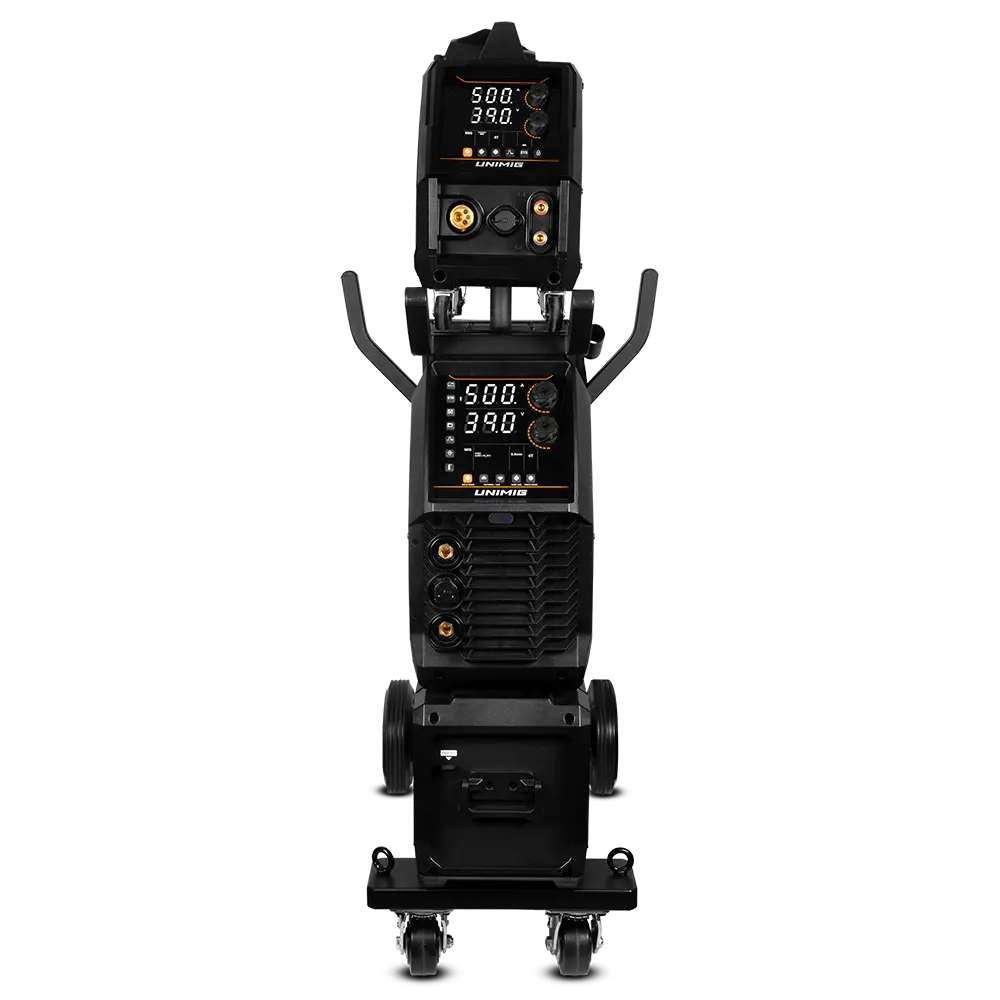

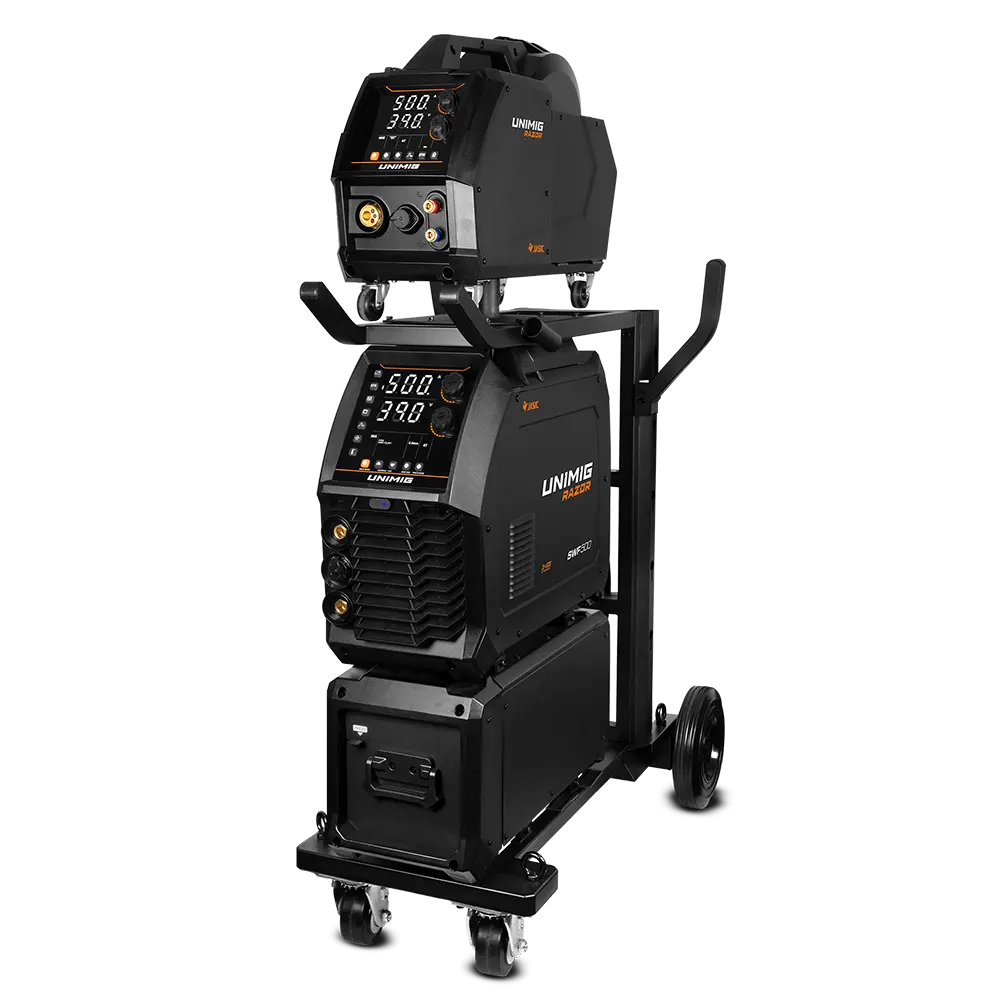

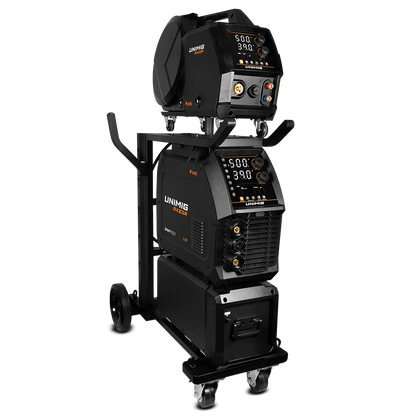

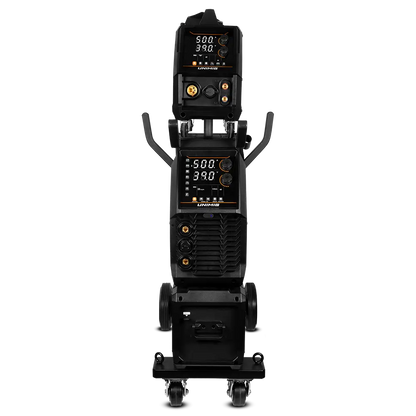

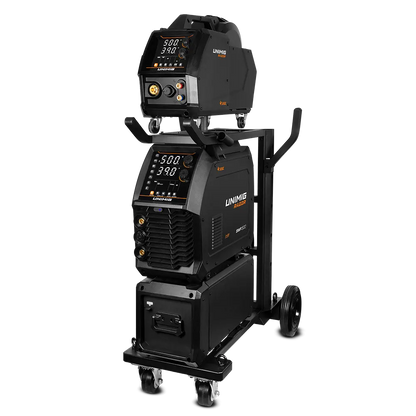

UNIMIG RAZOR 500 SWF Welder U11214

UNIMIG RAZOR 500 SWF Welder U11214

$6,499.00 AUD
$6,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11214

In stock

Superior performance even in the harshest conditions, this powerful workshop machine delivers nothing less than top-tier weld quality.

  • A separate wire feeder gives extra manoeuvrability
  • Push-Pull gun ready for heavy-duty welding
  • 4 geared wire drive system for the smoothest wire feeding experience
 MACHINE SPECIFICATIONS
 Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32 AMP Recommened)
Ieff (A) 22.0
Imax (A) 42.8
Open Circuit Voltage (OCV) 82.0
Open Circuit Voltage with VRD Active (V) 13.0
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 40.0
Dinse Connector 35/50
Standard AS/NZ60974.1
Warranty  5 years
Weight (kg) 91.20
Dimensions (LxWxH) 1520 x 520 x 980mm
Suitable Material

MIG: Mild Steel, Stainless Steel, Aluminium, Silicone Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze



 MIG SPECIFICATIONS
 MIG Welding Current Range 30-500A
MIG Duty Cycle @ 40c  40% @ 500A
60% @ 408A
100% @ 316A
MIG Wire Size Range 0.8-1.6mm
MIG Wire Spool Size 5kg (D200)
15kg (D300)
MIG Welding Thickness Range 1-30mm
Drive Roller Size 37/24



TIG SPECIFICATIONS
 TIG Function Type DC Lift Arc
TIG Welding Current Range
 20-500A
TIG Duty Cycle @ 40c

40% @ 500A
60% @ 408A
100% @ 316A
TIG Welding Thickness Range
 1-10mm



 STICK SPECIFICATIONS
STICK Welding Current Range 10-500A
STICK Duty Cycle @ 40c 40% @ 500A
60% @ 408A
100% @ 316A
STICK Electrode Range 2.5-6.0mm
STICK Welding Thickness Range 2-20mm



Package Contents (U11214):

  • RAZOR SWF 500 Welder
  • 4m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers



  • Customer Promise
  • Price Match
  • 30-Day Returns
