Take a closer look
Product information
Details
- Weld at higher amperages and for longer periods of time without overheating
- Extend the life of the TIG consumables when combined with the T3W Water-Cooled TIG torch
- Bi-Flow Technology - a series of high-capacity cooling chambers - removes excessive heat at the source, allowing greater performance from the TIG torch

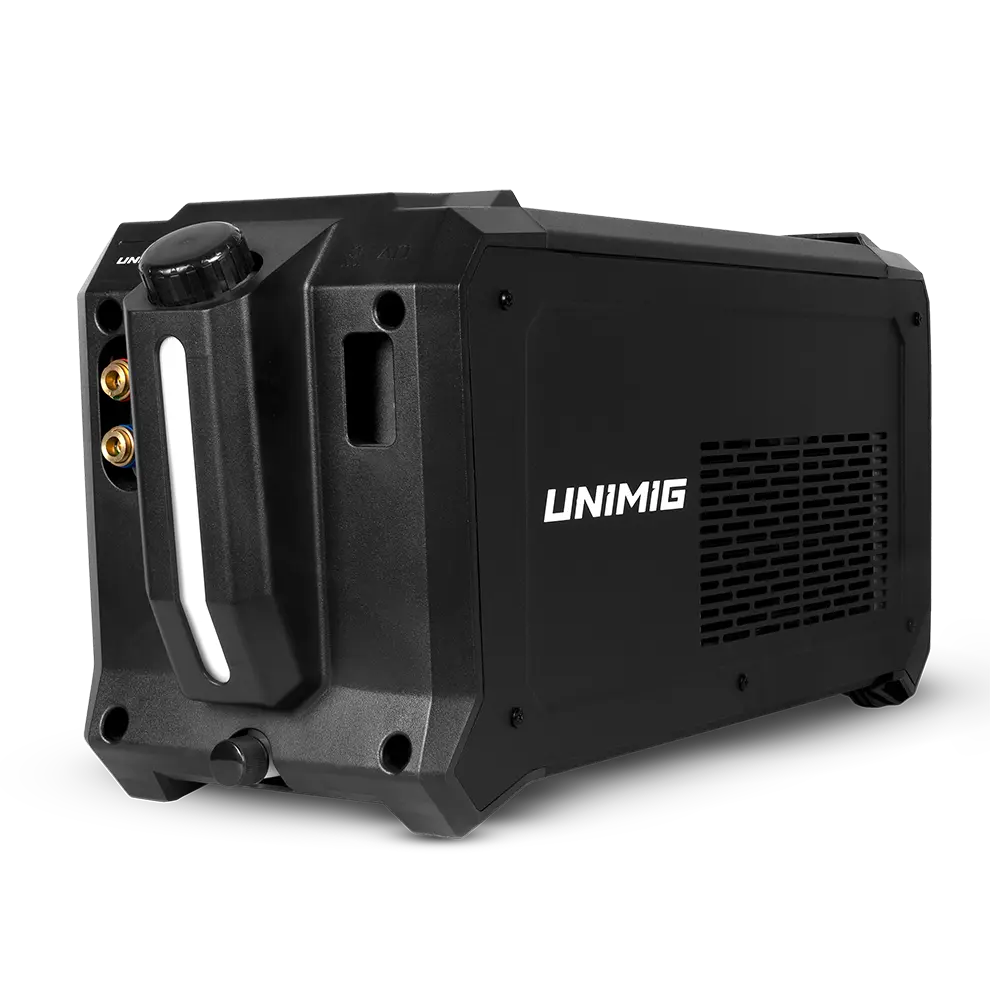

- RAZOR TIG 330 AC/DC Water Cooler
- Mounting Brackets
- Operating Manual
| WATER COOLER SPECIFICATIONS |
| Tank Capacity (L) | 6.5 |
| Maximum Pressure (MPa) | 0.48 |
| Maximum Flow (L/min) | 5 |
| Rated Cooling Power (kw) | 1.5 (1L/min) |
| Operating Ambient Temperature (°C) | -20 - 60 |
| Storage Temperature (°C) | -20 to 60 |
| Noise Level (dB) | <70 |
| Protection Class | IP23S |
| Standard | IEC 60974-2 |
| Weight (kg) | 14 |
| Dimensions (LxWxH) | 600 x 217 x 283mm |
