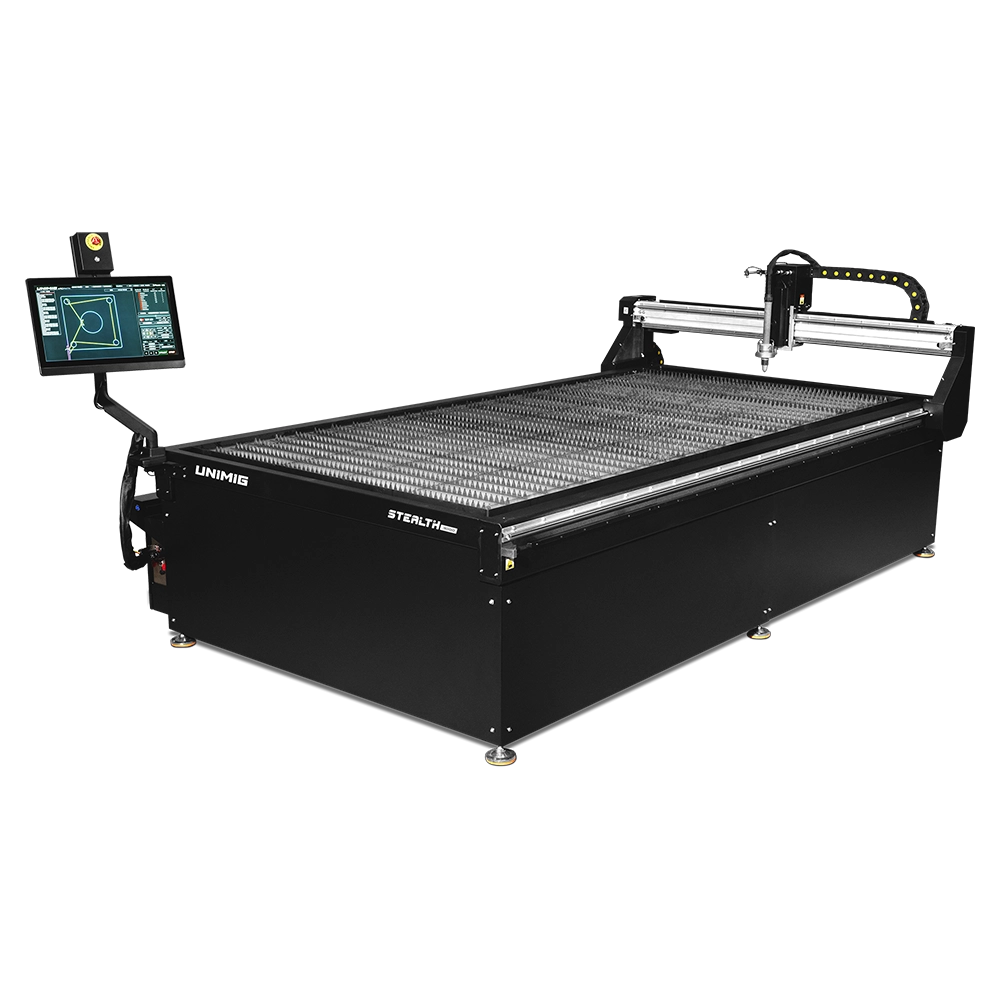

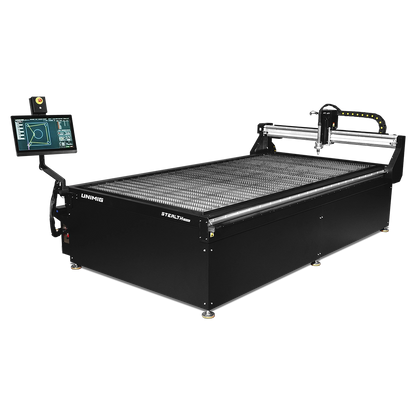

UNIMIG Stealth 3000 CNC Table U11206

UNIMIG Stealth 3000 CNC Table U11206

  • Special Order Product
  • Sourced on request — we’ll confirm availability and advise if extended lead times apply before finalising your order.
$25,995.00 AUD
$25,995.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11206

UNIMIG Stealth 3000 CNC Plasma Table (U11206) is a heavy-duty, full-sheet plasma cutting solution built for precision fabrication, high productivity, and exceptional accuracy. Featuring automatic torch height control, an integrated water bed, and UNIMIG’s custom Arc Path CNC software, it delivers reliable, repeatable cuts in every material and thickness range.

Key Features

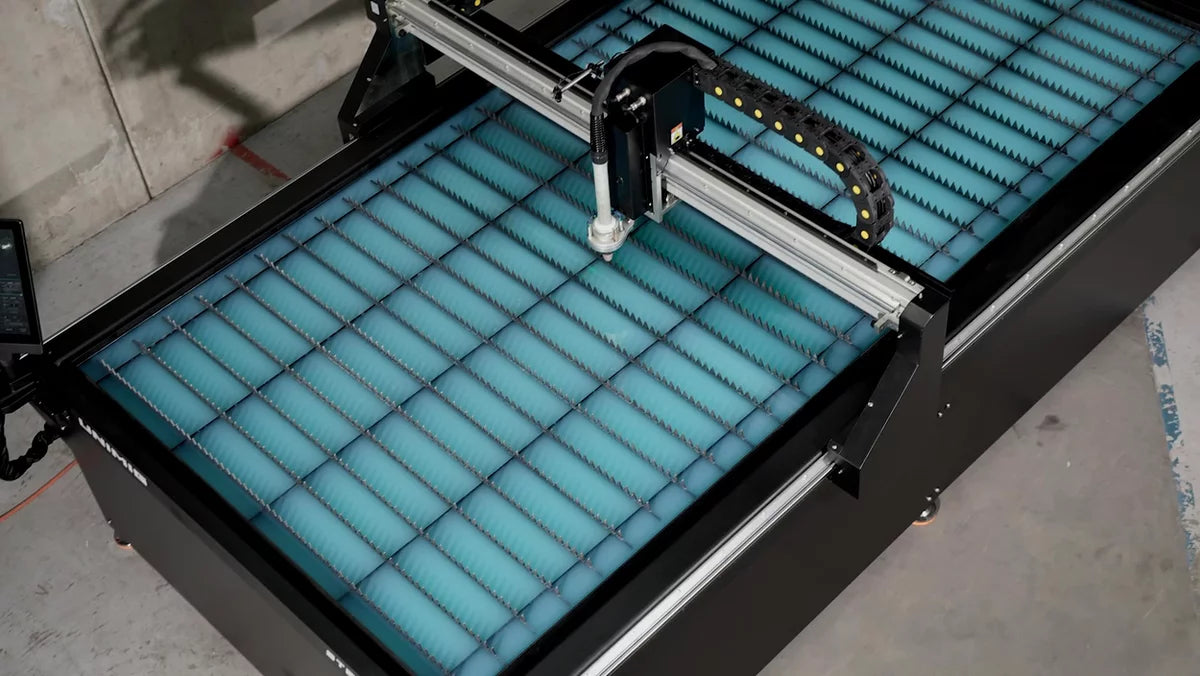

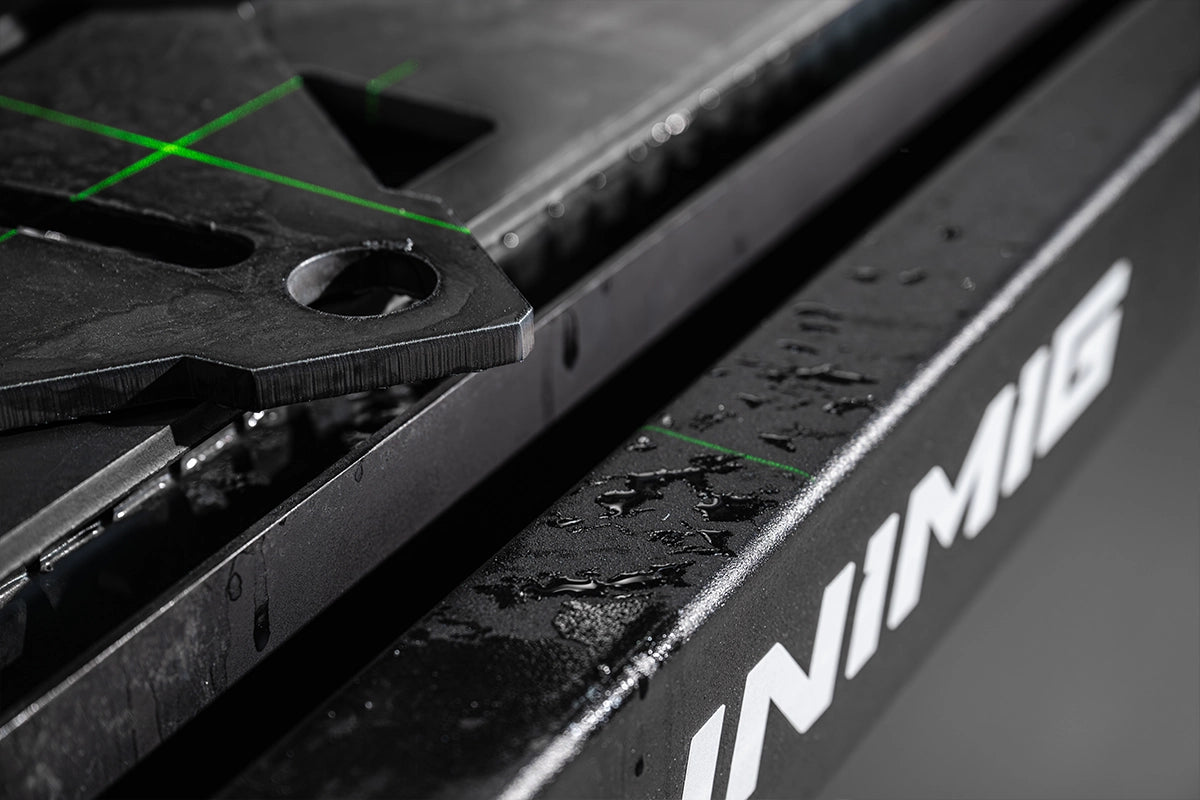

  • Full-Size Cutting Capability: Handle sheets up to 1.54 × 3.04 m with a 650 L separated water bed for clean, fume-controlled cutting.

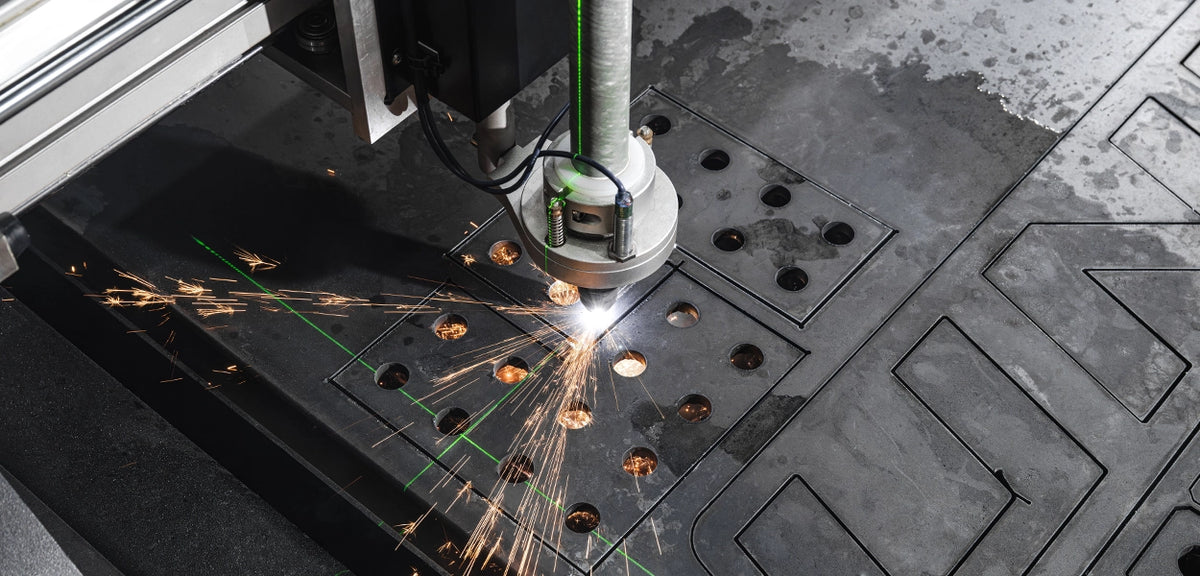

  • Automatic Torch Height Control: Ensures perfect standoff across the entire plate for consistent results and extended consumable life.

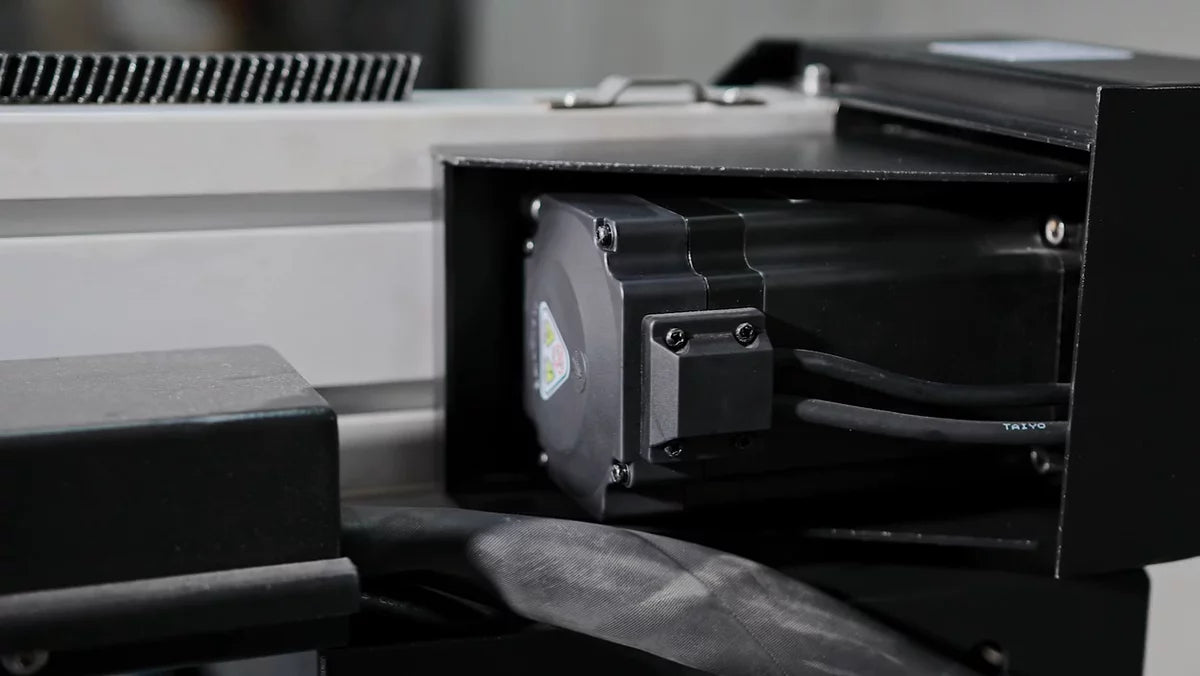

  • Three-Axis Precision: Purpose-built 3-axis system (X/Y/Z) with proximity sensor limiters for exact positioning and smooth motion.
  • Touchscreen Control Interface: 21” industrial-grade display running UNIMIG Arc Path CNC Control software for intuitive, visual workflow management.
  • Smart Connectivity: Ethernet, Wi-Fi and Bluetooth built-in for easy program transfer and network integration.
  • High-Performance PC Hardware: Powered by Intel Core i3, 8 GB RAM and 128 GB SSD for stable, fast operation.
  • Engineered Strength: 750 kg machine weight with a 1420 kg load rating for rugged fabrication environments.

In the Box

  • CNC Table
  • Z Axis & Torch Mount
  • Control Box
  • Windows Touchscreen PC
  • PC Arm Mount
  • Automatic Height Controller
  • Drag Chains
  • Water Bed
  • Material Slats
  • Lift Hooks
TABLE SPECIFICATIONS
Primary Input Voltage 240V Single-Phase
Supply Plug 15A
Dimensions (L×W×H) 220 × 385 × 145 cm
Weight (kg) 750 kg
Maximum Cutting Dimensions (m) 1.54 × 3.04 m
Maximum Table Load (kg) 1420 kg
Water Bed Capacity (L) 650 L
Axis Type 3 Axis (X/Y/Z)
Height Control Automatic & Manual
Axis Limiter Physical X/Y/Z Proximity Sensor Switches
Fume & Spark Management Separated Water Bed
Maximum Jog Speed (mm/min) 9000
CNC Controller Purpose-Built Multi-Tool Controller
Control PC Operating System Windows 10
Screen Panel 21” Touchscreen
Networking Ethernet, Wi-Fi, Bluetooth
Hardware Intel Core i3, 8 GB RAM, 128 GB SSD
Software UNIMIG Arc Path CNC Control Software, CAM/Nesting Software
Warranty (Years) 2
