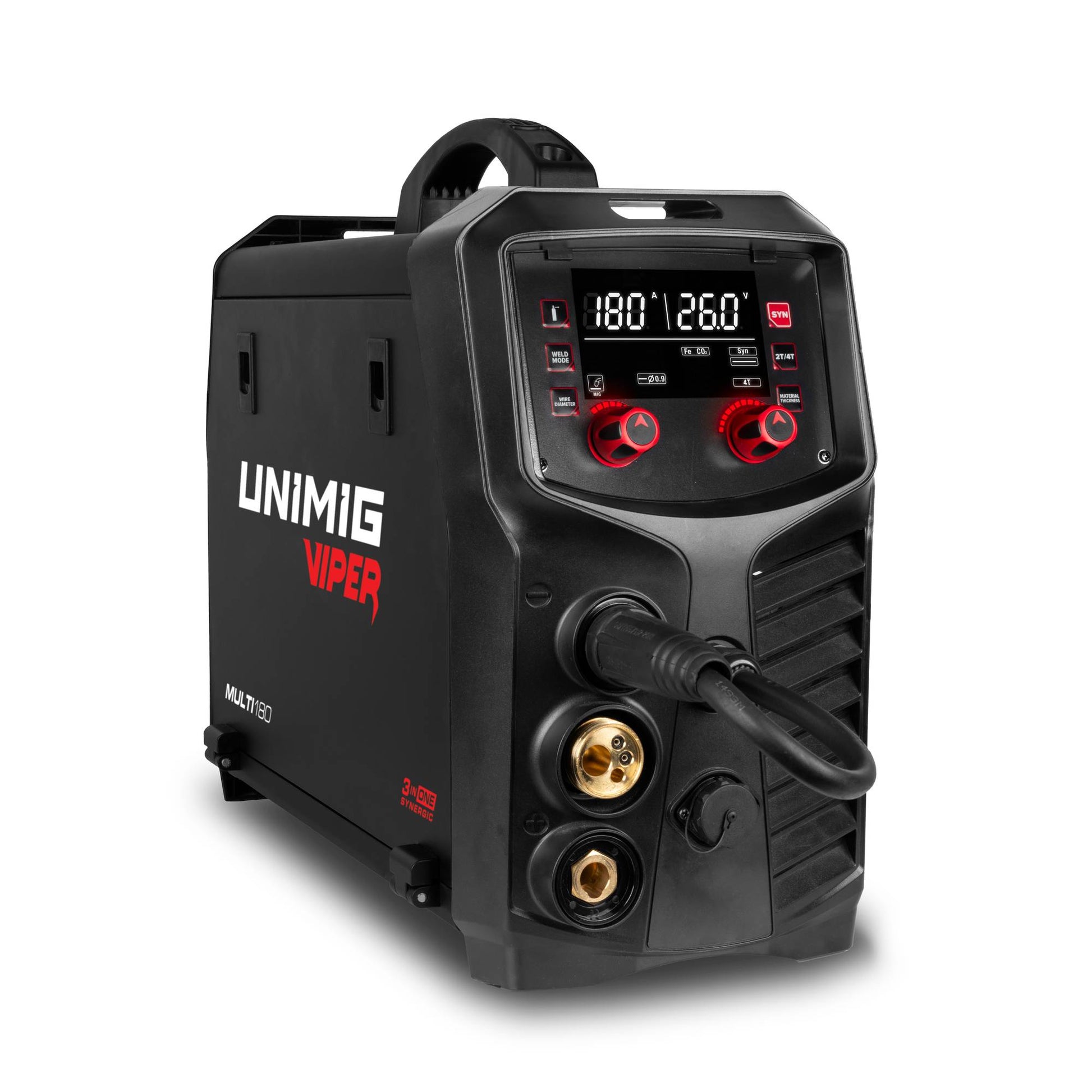

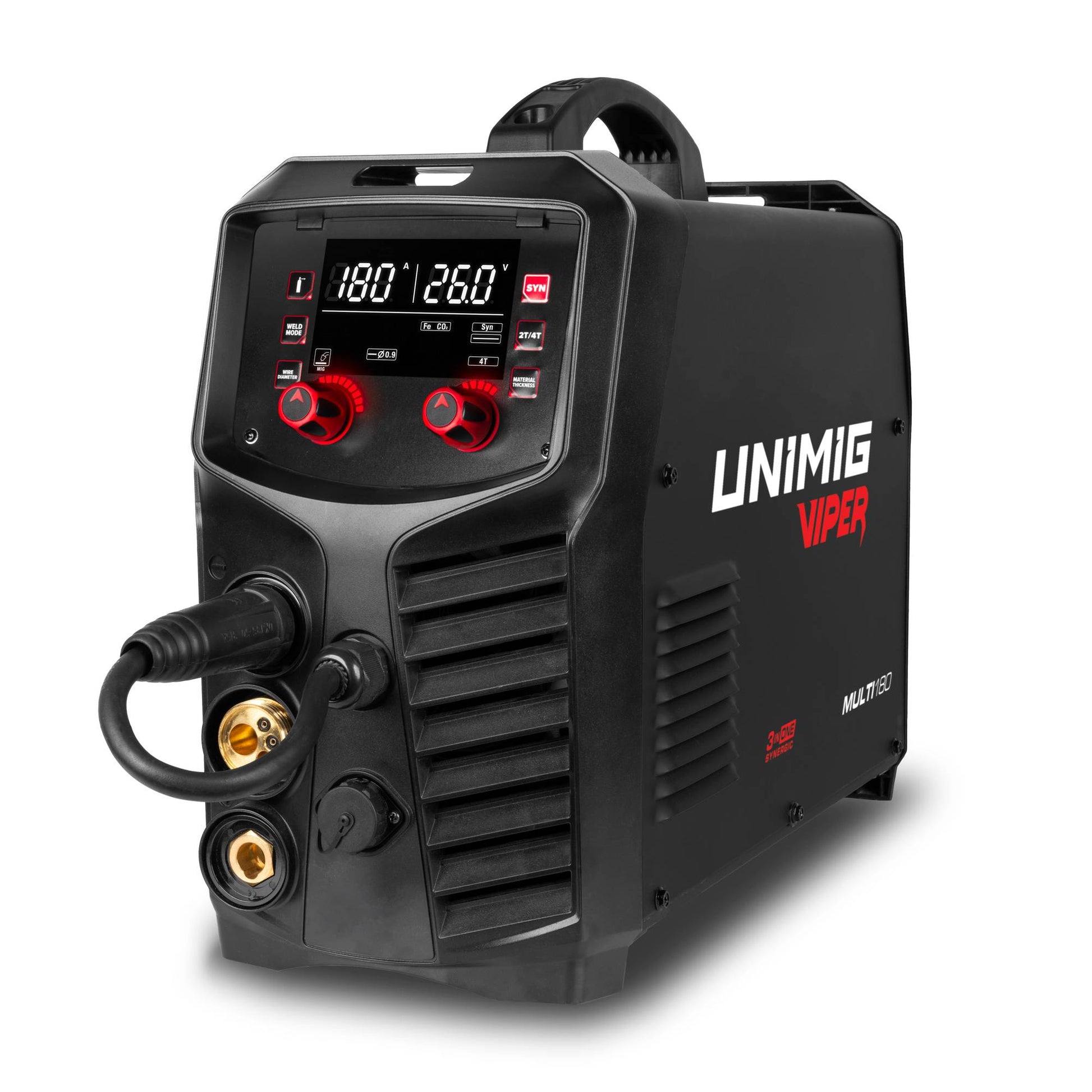

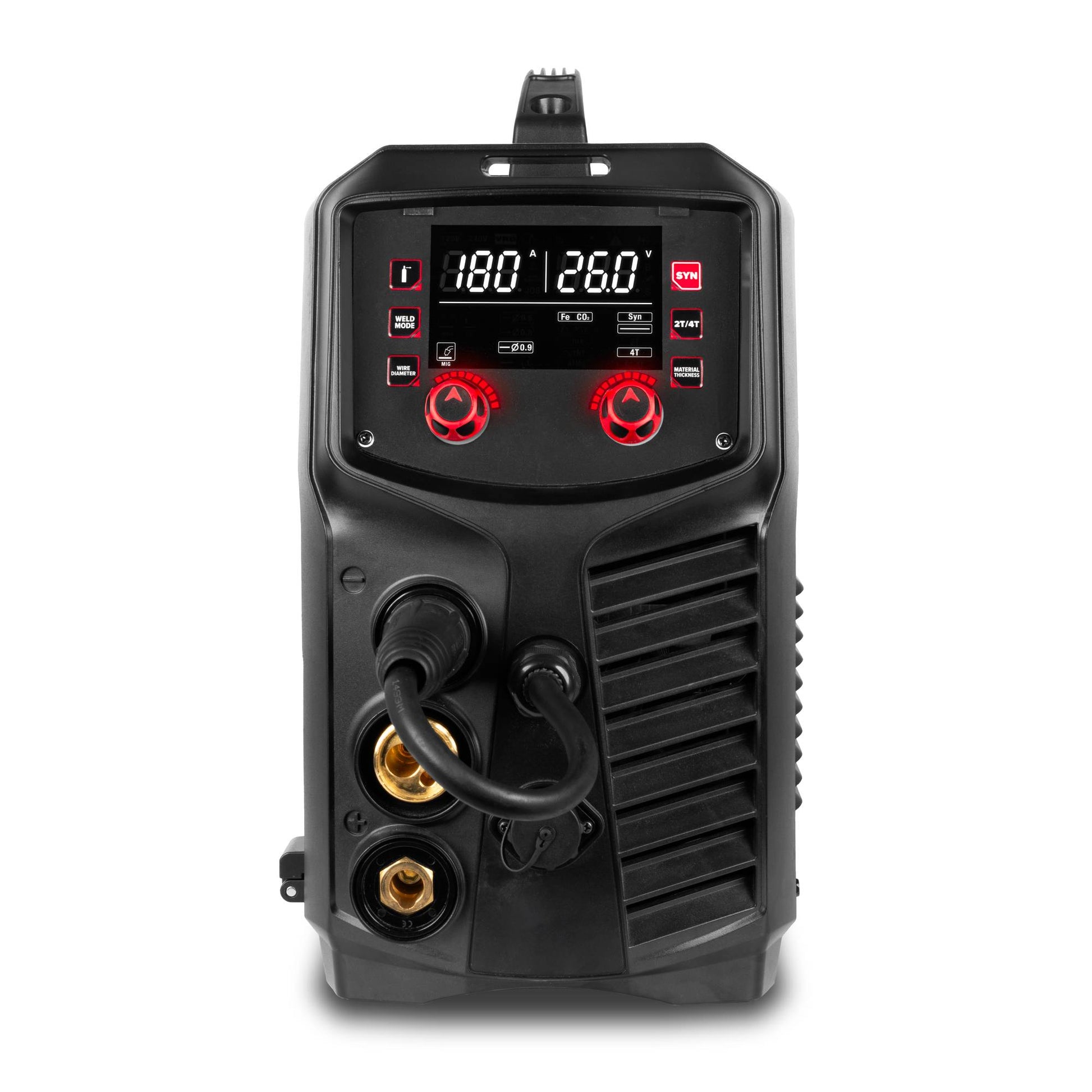

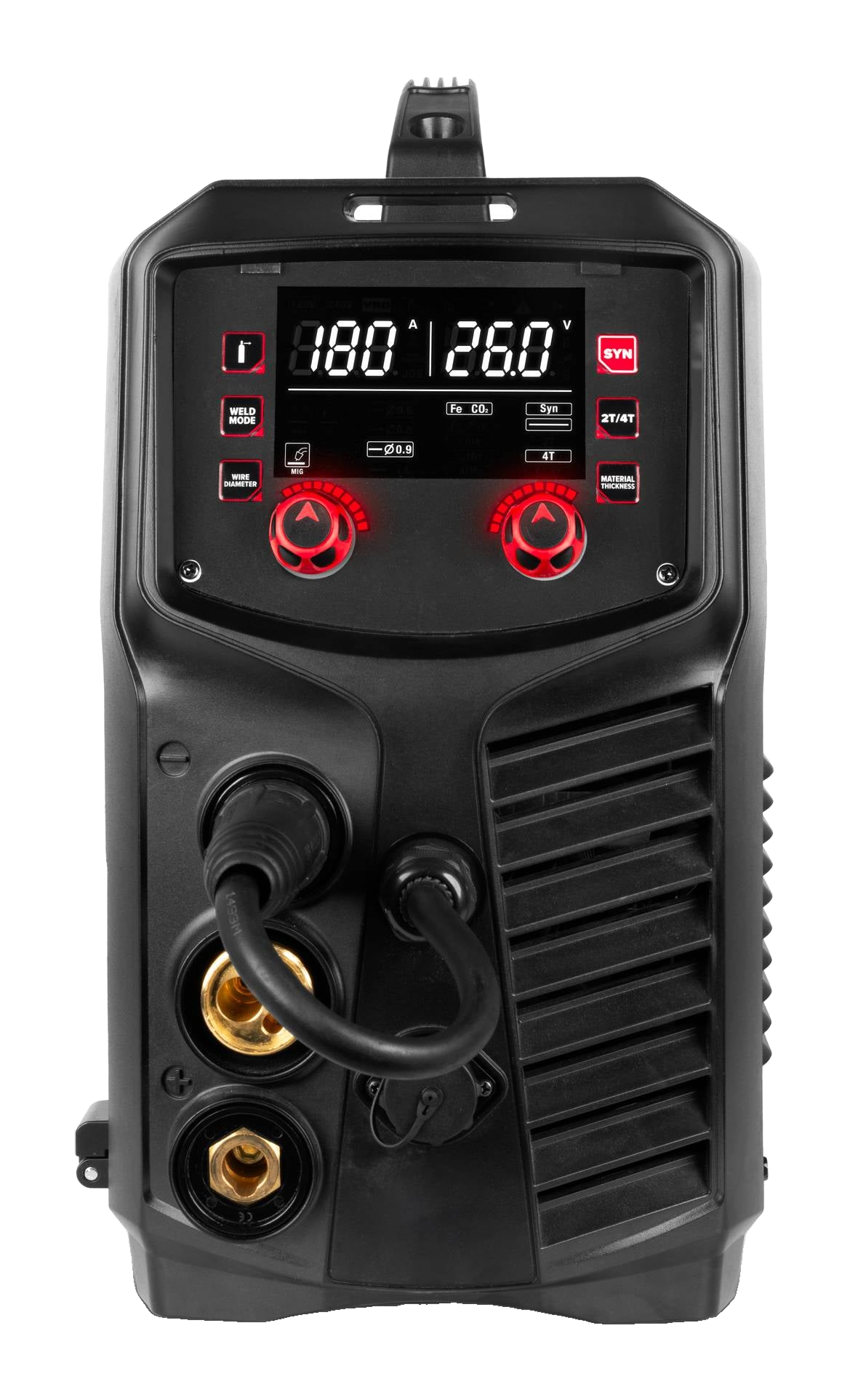

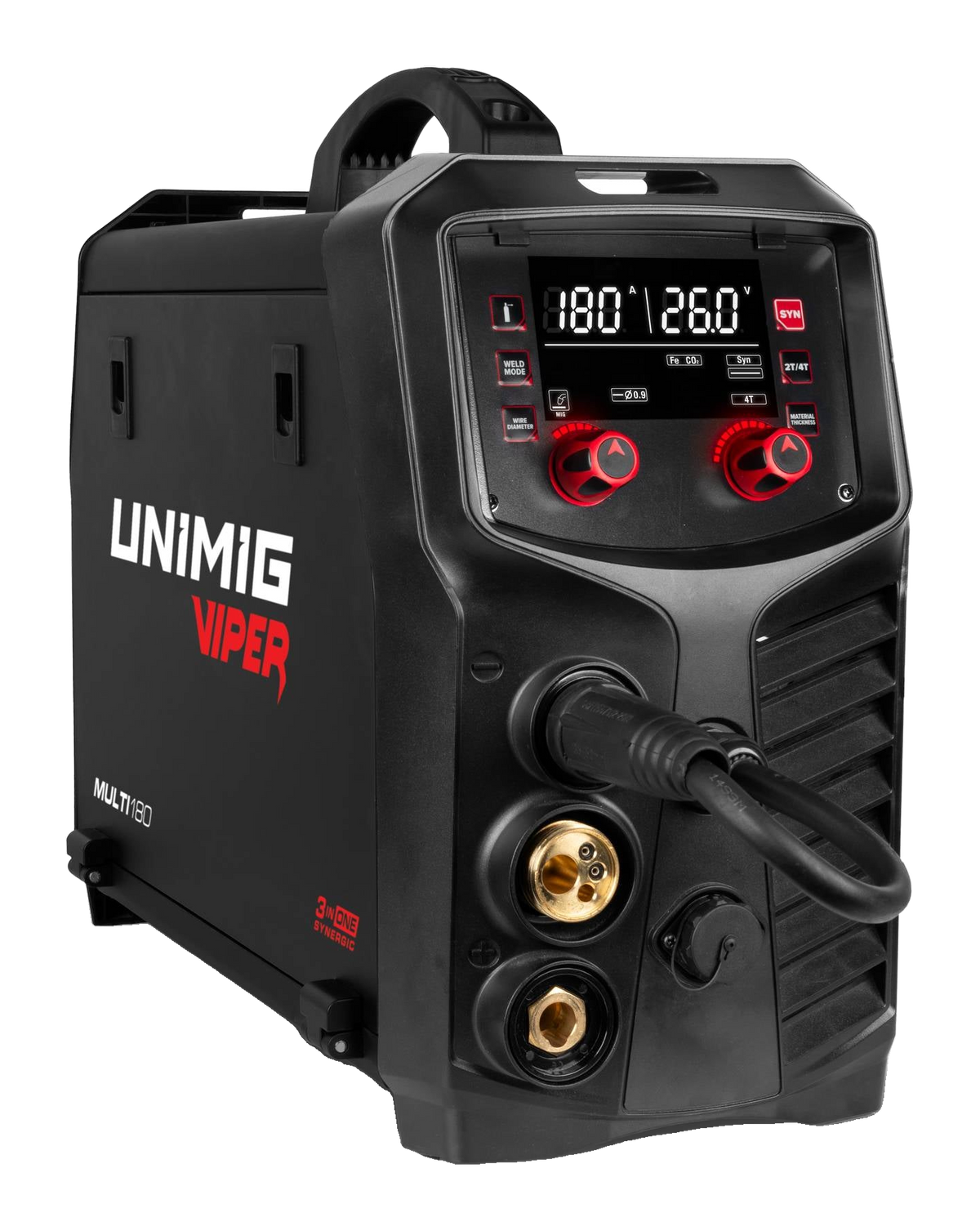

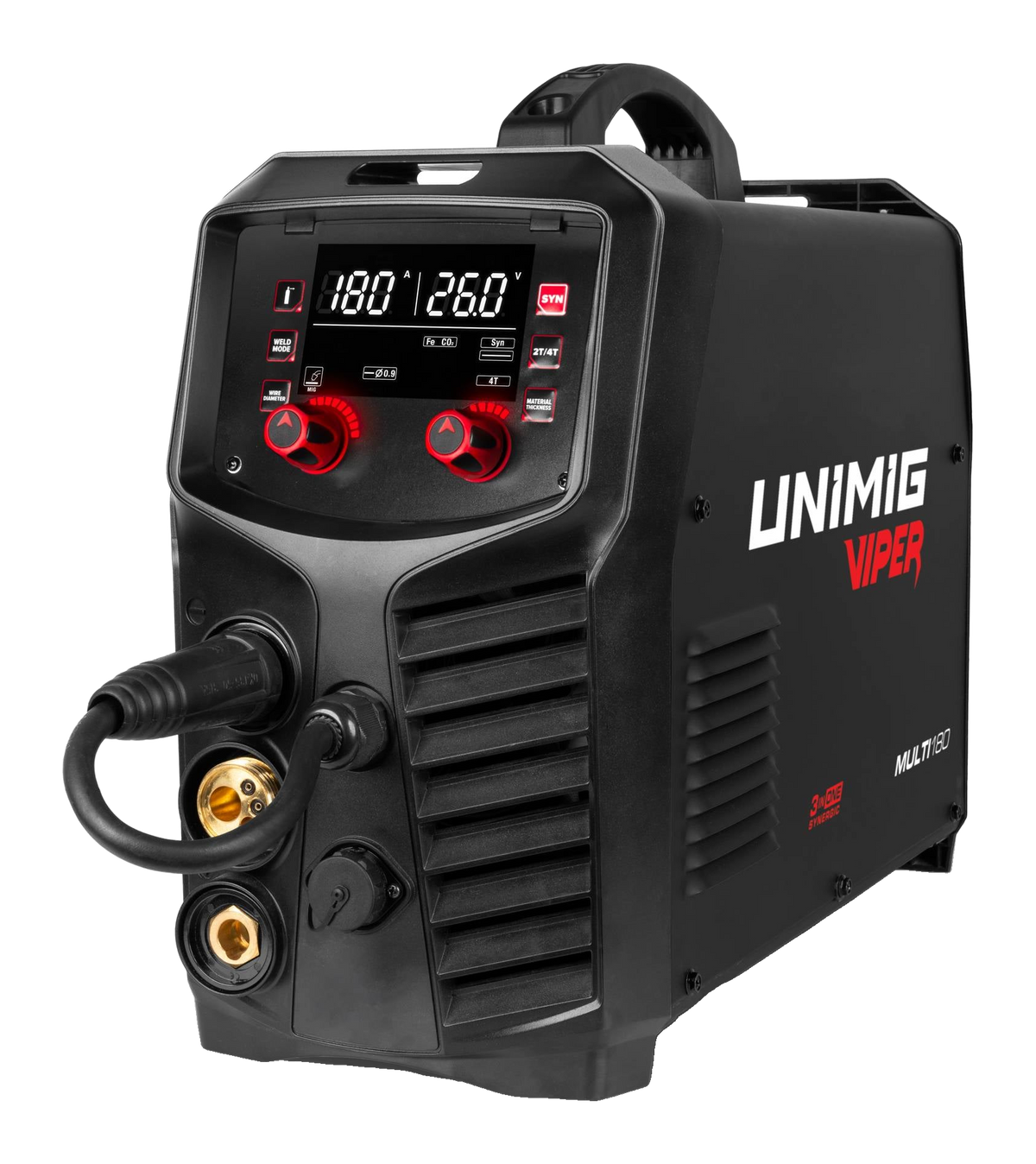

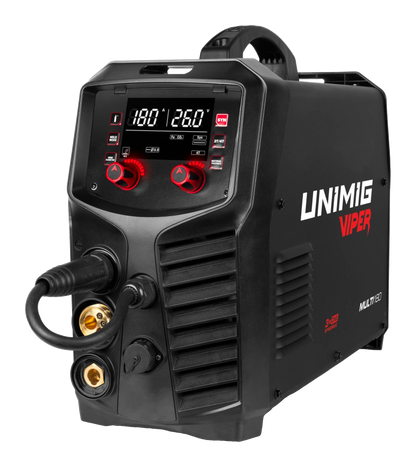

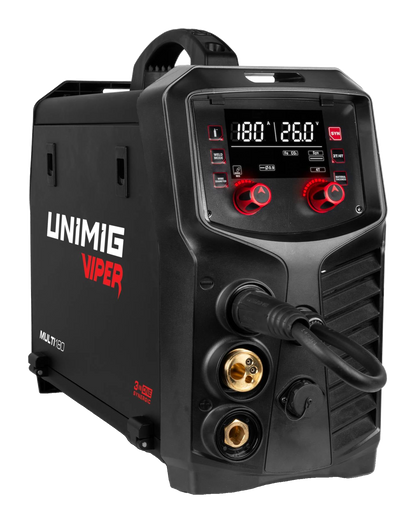

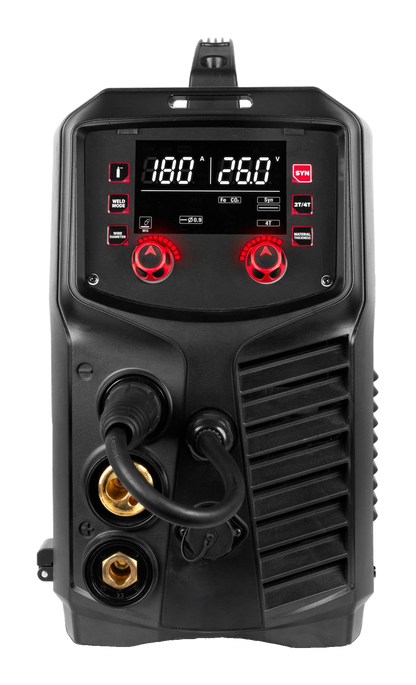

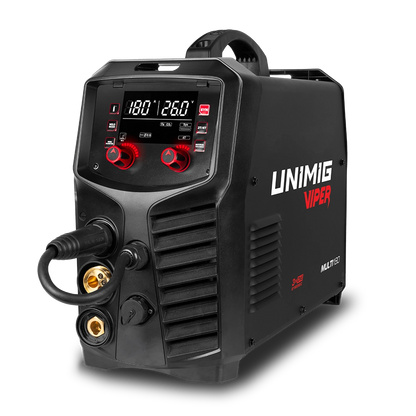

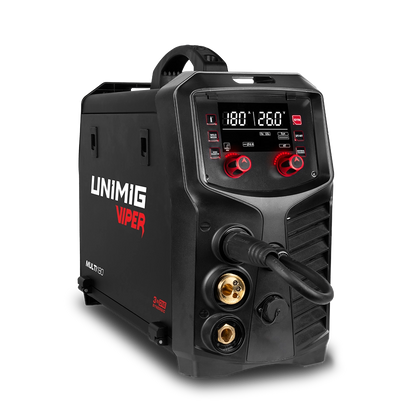

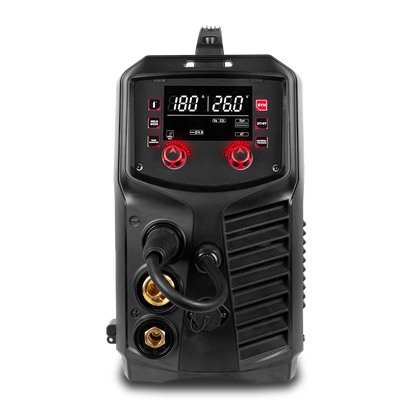

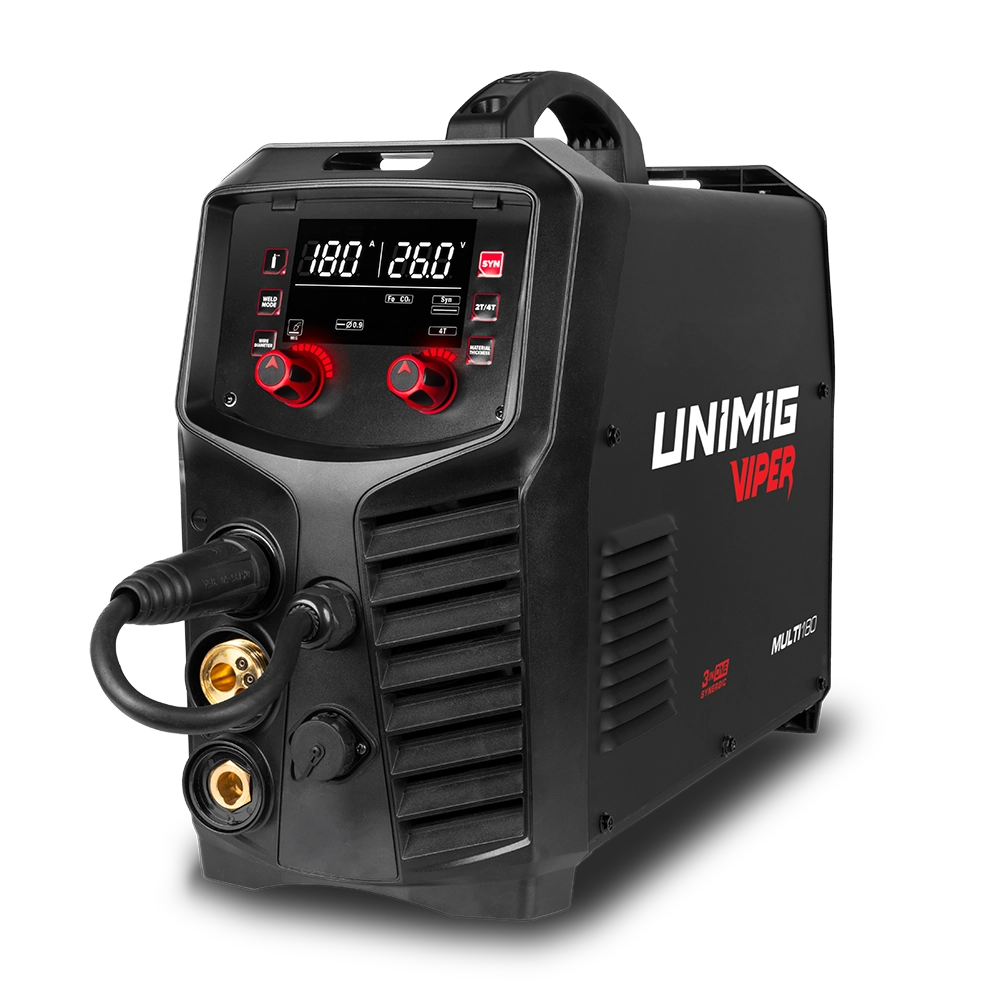

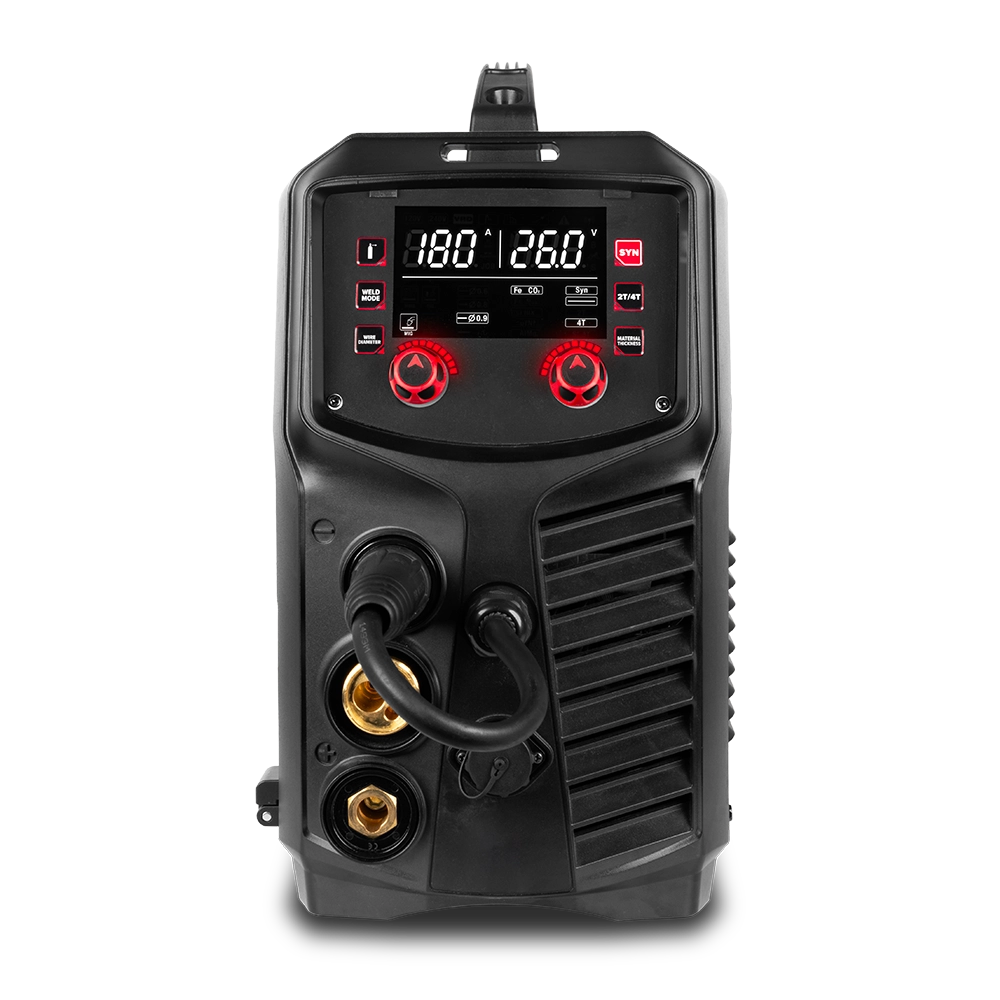

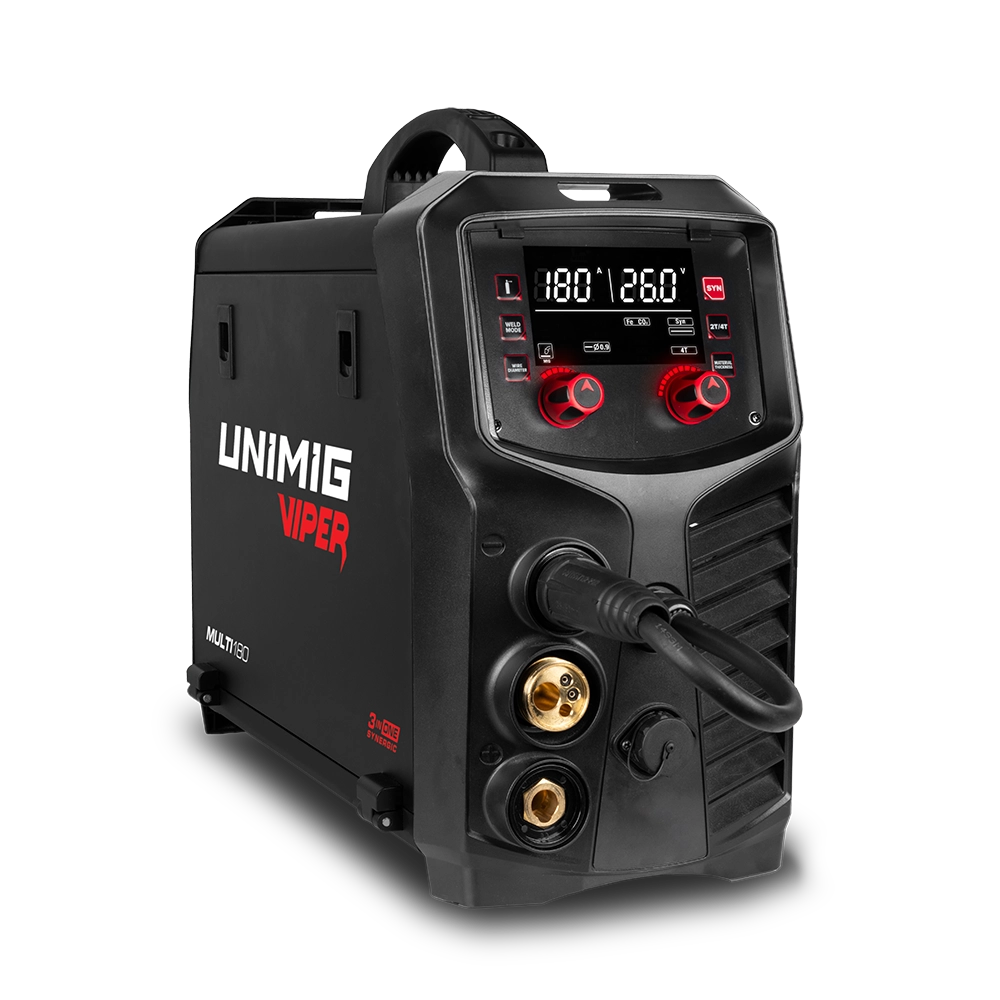

UNIMIG VIPER MULTI 180 MIG/TIG/MMA Welder U11638

UNIMIG VIPER MULTI 180 MIG/TIG/MMA Welder U11638

$799.00 AUD
$799.00 AUD
Sale Sold out
Shipping calculated at checkout.

U11638

Available to order

UNIMIG VIPER MULTI 180 MIG/TIG/MMA Welder (U11638) is a versatile 180A multi-process machine for MIG, DC TIG and MMA welding. Smart-Set MIG programs simplify setup, while the 10A supply plug makes it practical for home workshops, maintenance and light fabrication.

Key Features

  • 180A MIG, DC Lift Arc TIG and MMA multi-process capability
  • Smart-Set synergic MIG programs for faster weld setup
  • Supports gas-shielded and gasless MIG wire
  • Pulse DC TIG helps control heat input on sheet metal and out-of-position welds
  • Spool gun ready for faster aluminium changeovers
  • Job memory stores up to nine welding programs
  • Adjustable MIG burnback and inductance control
  • Geared wire drive supports smooth, consistent wire feeding
  • Pulse MMA, Hot Start, Arc Force and Anti-Stick functions
  • Smart Fan reduces unnecessary noise, power use and airborne contaminants
  • Generator compatible with a minimum recommended capacity of 9kVA
  • 10A supply plug for connection to a domestic outlet

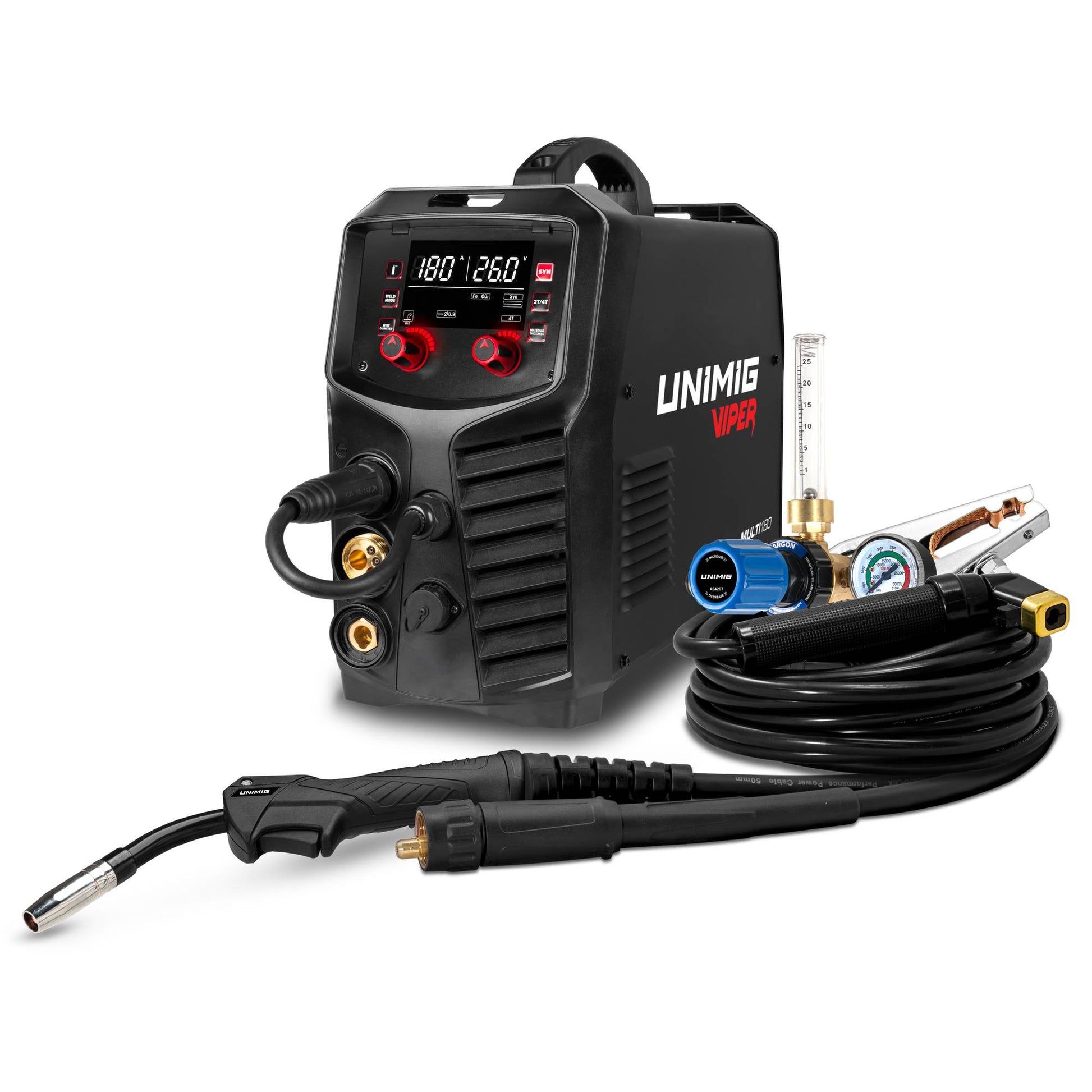

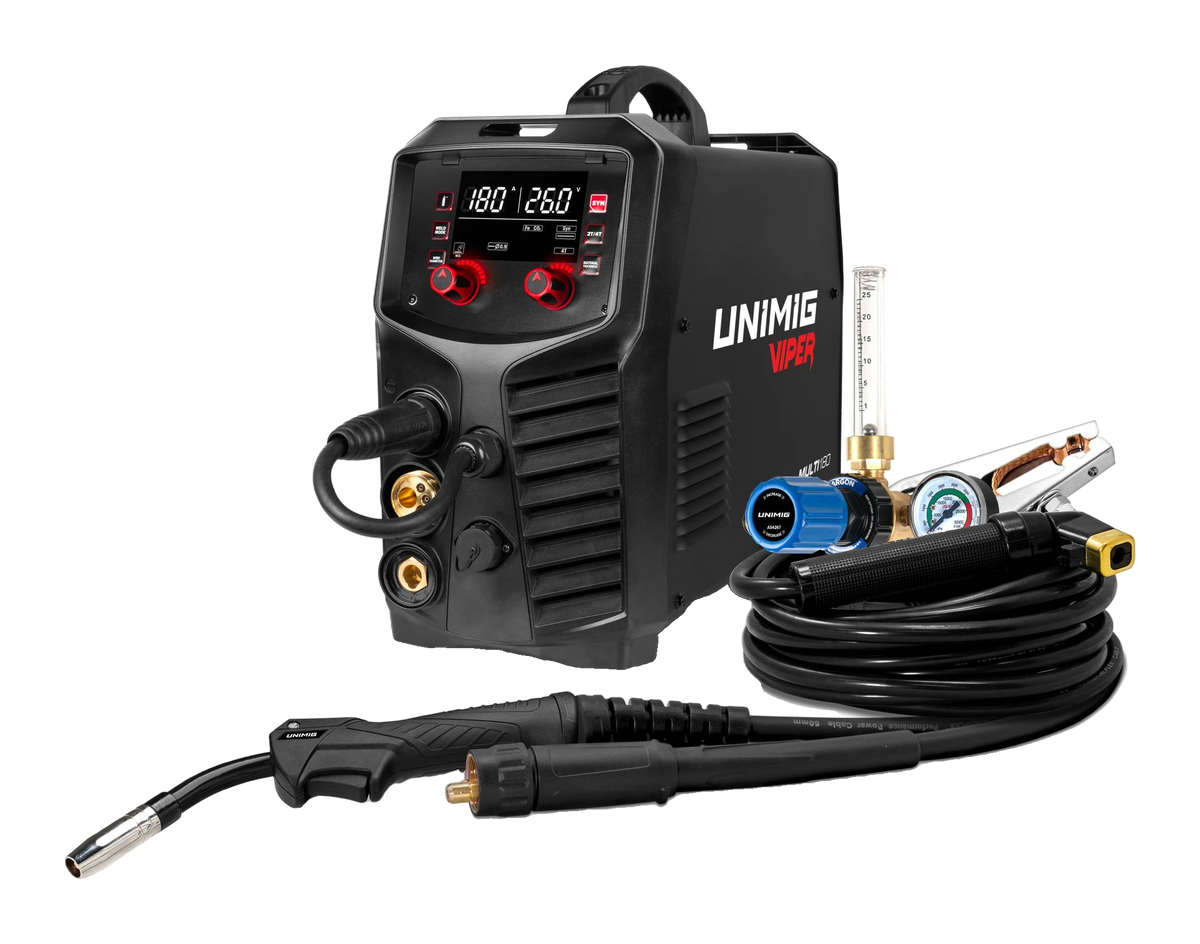

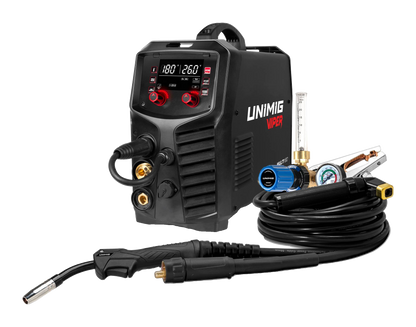

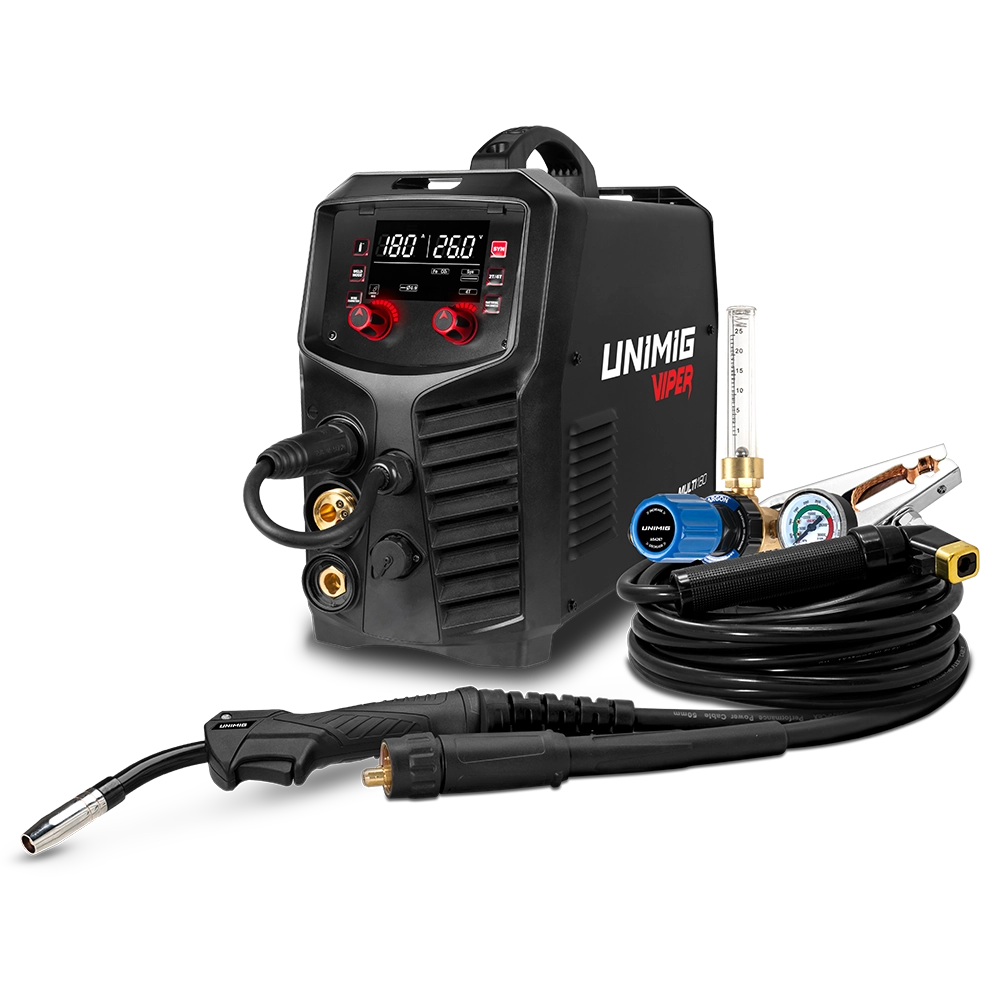

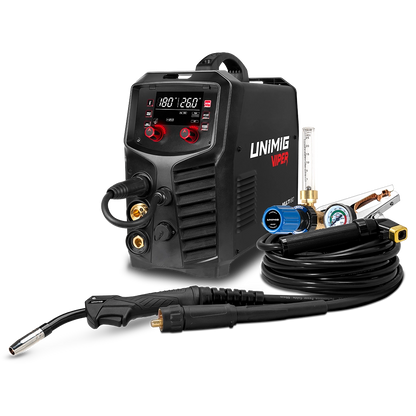

In the Box

  • VIPER MULTI 180 Welder
  • 3m Binzel 15 Style MIG Torch
  • 3m Twist Lock Electrode Holder
  • 3m 200 Amp Earth Clamp & Lead
  • Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  • 0.9-1.0mm U Groove Roller
MACHINE SPECIFICATIONS
Primary Input Voltage 240V Single-Phase 50/60Hz
Supply Plug 10A
Ieff (A) 8.9
Imax (A) 28.8
Rated Output 20-180A
Open Circuit Voltage (OCV) 67.0
Protection Class IP21S
Insulation Class H
Minimum Generator (kVA) 9
Dinse Connector 35/50
Standard AS 60974.1
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
Warranty 3 Years



MIG SPECIFICATIONS
MIG Welding Current Range 30-180A
MIG Duty Cycle @ 40°C 10% @ 180A
60% @ 75A
100% @ 57A
MIG Wire Size Range 0.6-1.0mm
MIG Wire Spool Size 1kg (100mm) / 5kg (200mm)
MIG Welding Thickness Range 1-8mm
Drive Roller Size 30/22



TIG SPECIFICATIONS
TIG Ignition Type DC Lift Arc TIG
TIG Welding Current Range 20-180A
TIG Duty Cycle @ 40°C 10% @ 180A
60% @ 75A
100% @ 57A
TIG Welding Thickness Range 1-6mm



MMA SPECIFICATIONS
MMA Welding Current Range 20-160A
MMA Duty Cycle @ 40°C 10% @ 160A
60% @ 65A
100% @ 51A
MMA Electrode Range 2.5-4.0mm
MMA Welding Thickness Range 2-10mm



SIZE & WEIGHT
Dimensions (LxWxH) 523x214x388mm
Weight (kg) 11.1
