UNIMIG WORKSHOP 390 WELDER KUM390
UNIMIG WORKSHOP 390 WELDER KUM390
GST included. Shipping calculated at checkout.
SKU: KUM390
Available to order
Delivery options
Select your suburb for a delivery estimate. Additional courier options are available at checkout.
Estimates are for this item and quantity only, in AUD excluding GST. Final availability, shipping and GST are confirmed at checkout.
Buy with confidence
Delivery & pickupAvailable to order · Lead time varies
Ordered from our supplier. This item is not currently stocked at our store. Contact us to check the expected lead time before ordering. Dispatch depends on supplier availability.
Australia-wide delivery. Available shipping options and costs are shown at checkout.
Free Smithfield pickup. Wait for your Ready for Pickup notification before travelling to the store.
Returns & exchanges90 days for eligible unopened items
Change-of-mind returns are available within 90 days of receiving your order for eligible items. Items must be unused, unopened, complete, in original packaging and resellable condition, with proof of purchase.
You pay return shipping for change-of-mind returns. Original shipping is not refunded. Please request approval before sending an item back.
Exclusions include items marked Special Order, gases and cylinders, hazardous materials, chemicals, and custom or cut-to-length items. See the full policy for all exclusions.
Warranty & supportProduct-specific warranty & support
Manufacturer warranties apply where available. See this product’s specifications or contact our team to confirm the applicable warranty.
For a fault or incorrect item, contact our team with your order details and a description of the issue.
Need help choosing?
Call our Smithfield team for product advice and compatibility checks.
Take a closer look
Product information
Details

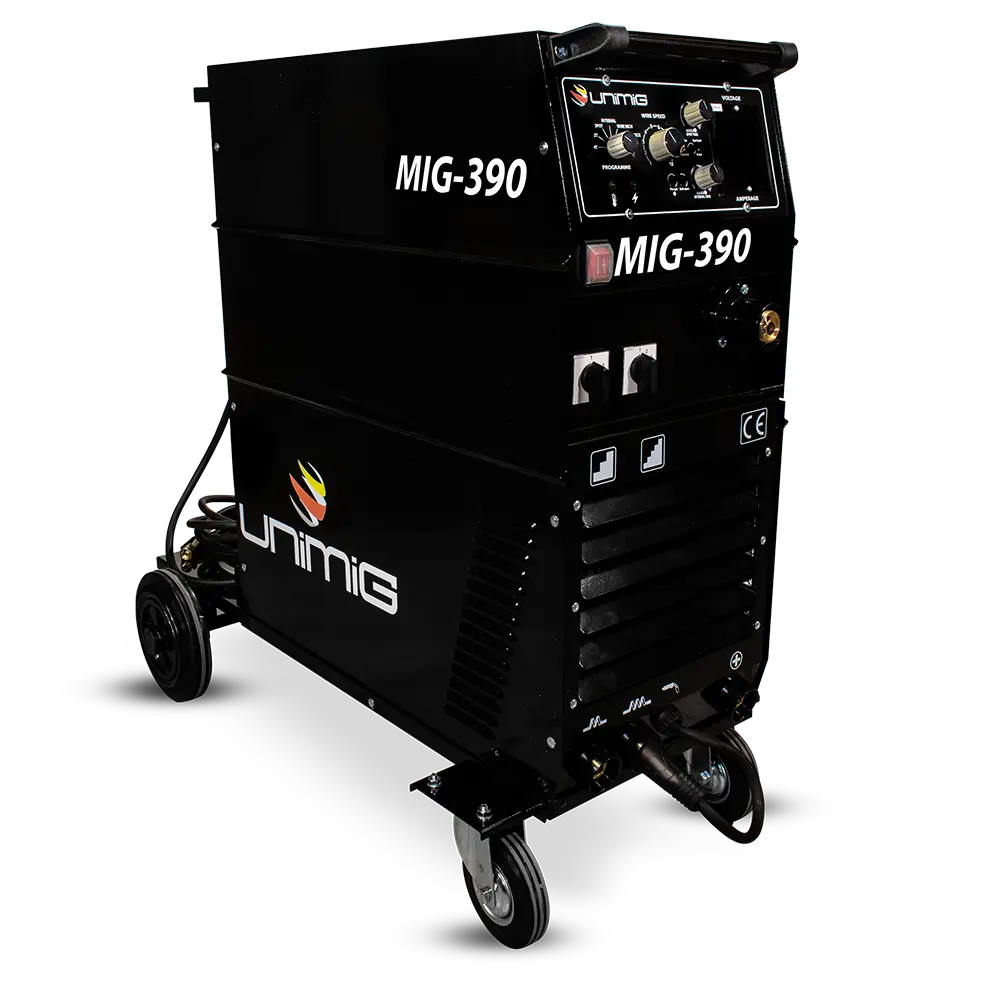

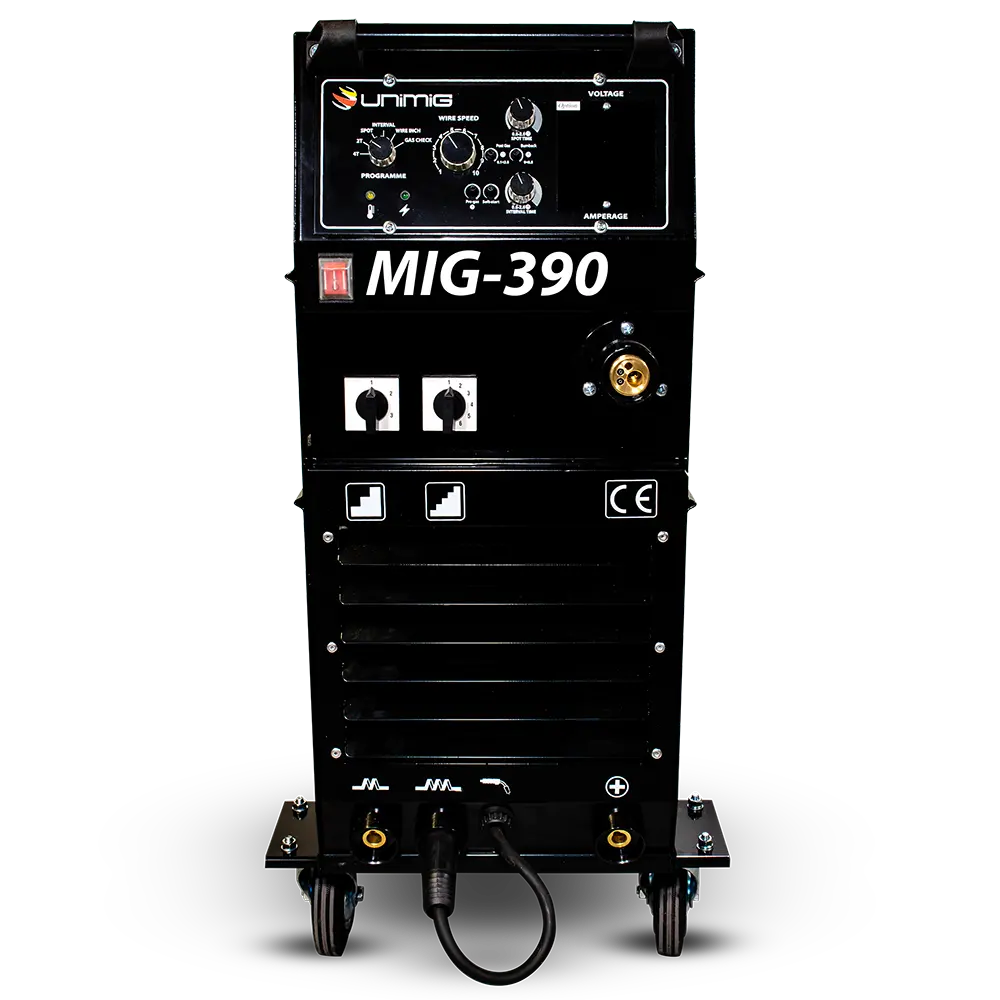

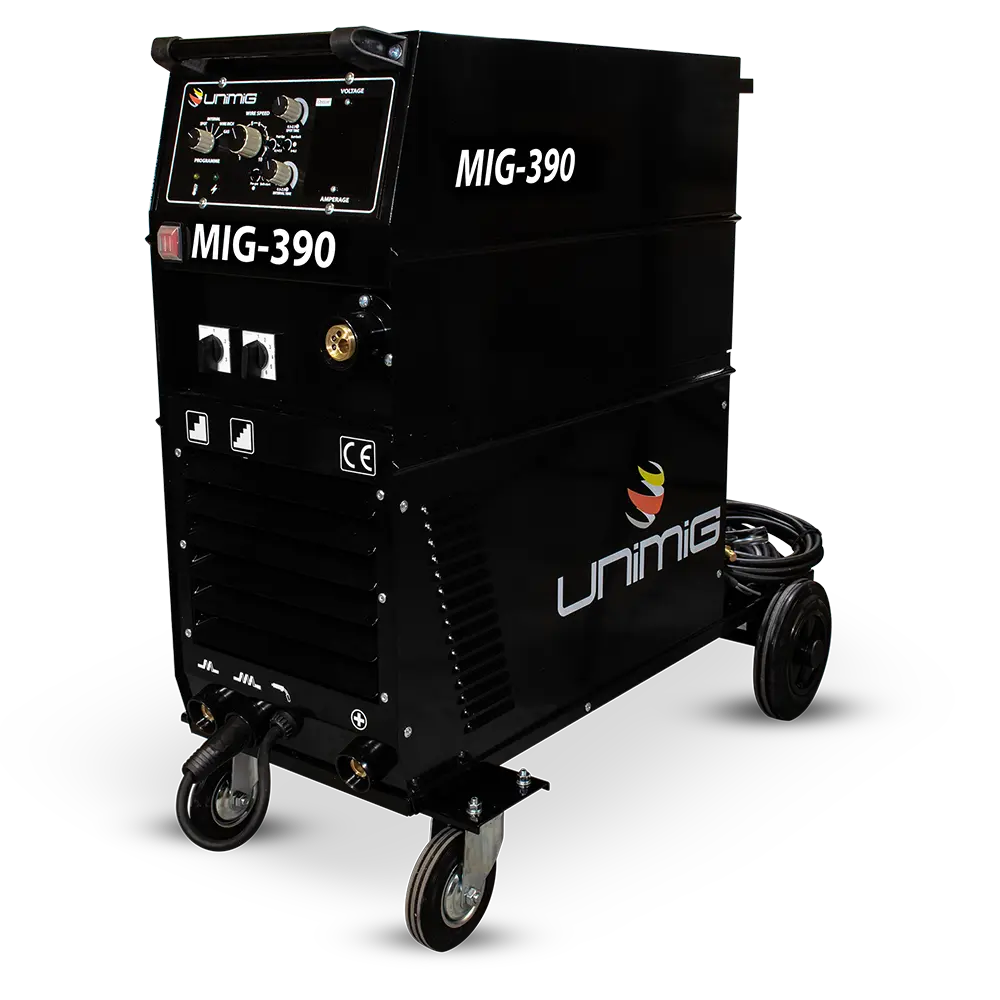

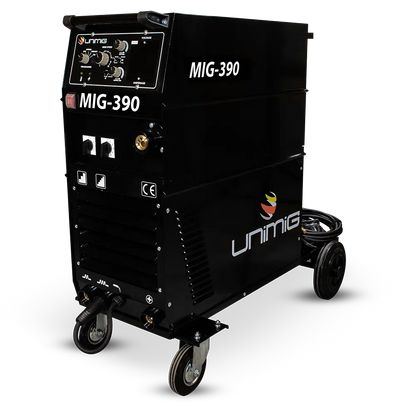

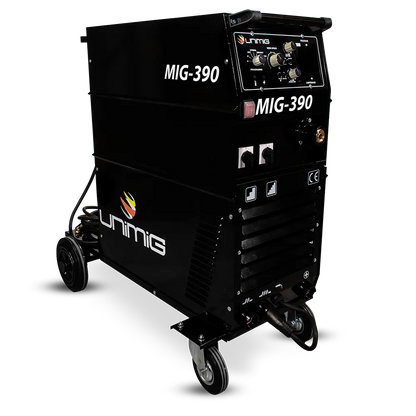

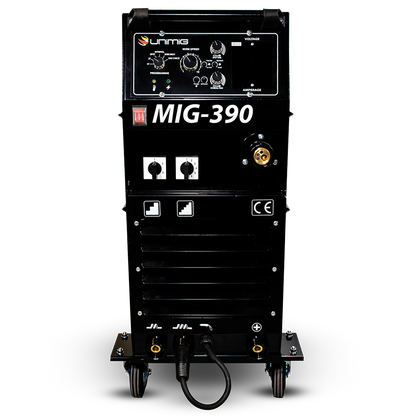

UNIMIG Workshop 390 (KUM390) is a high-output three-phase MIG welding system built for heavy fabrication, structural steel, industrial repair and high-duty cycle workshop use. With up to 375A of MIG power, strong thermal stability and a rugged 40/32 geared wire drive, it delivers consistent results on thick mild steel, stainless and aluminium.
In the Box
- WORKSHOP 390 Welder
- 4m SB36 MIG Torch
- 4m 500A Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 2m Gas Hose (Complete with fittings)
- Operating Manual
- 2 × 0.9–1.2 mm V Groove Rollers
| MACHINE SPECIFICATIONS | |
| Primary input voltage | 415 V, three-phase |
| Supply plug | Not fitted |
| Recommended supply plug | 32 A, three-phase |
| Ieff (A) | 19.0 |
| Protection class | IP21 |
| Insulation class | F |
| Minimum generator (kVA) | 19.0 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty (years) | 3 |
| Weight (kg) | 144 |
| Dimensions (mm) | 870 × 940 × 460 |
| Suitable materials | MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze |
| MIG SPECIFICATIONS | |
| MIG welding current range | 30–375 A |
| MIG duty cycle at 40°C | 40% at 375 A, 70% at 355 A, 100% at 300 A |
| MIG wire size range | 0.6–1.6 mm |
| MIG wire spool size | 5kg (D200); 15kg (D300) |
| MIG welding thickness range | 1–20 mm |
| Drive Roller Size | 40/32 |
