1 1

UNIMIG

UNIMIG WORKSHOP 425 SWF Welder KUM425SWF

UNIMIG WORKSHOP 425 SWF Welder KUM425SWF

$6,434.00 AUD
$6,434.00 AUD
Sale Sold out
Shipping calculated at checkout.

KUM425SWF

Available to order

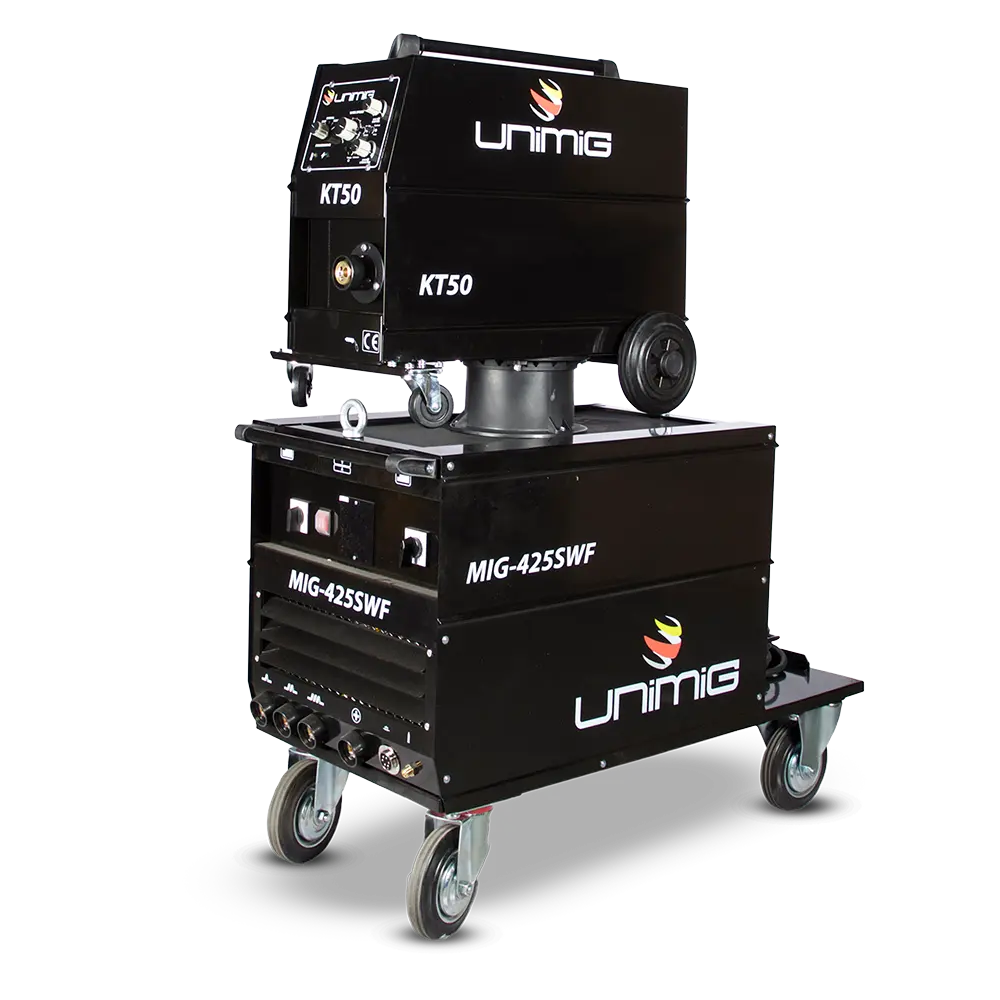

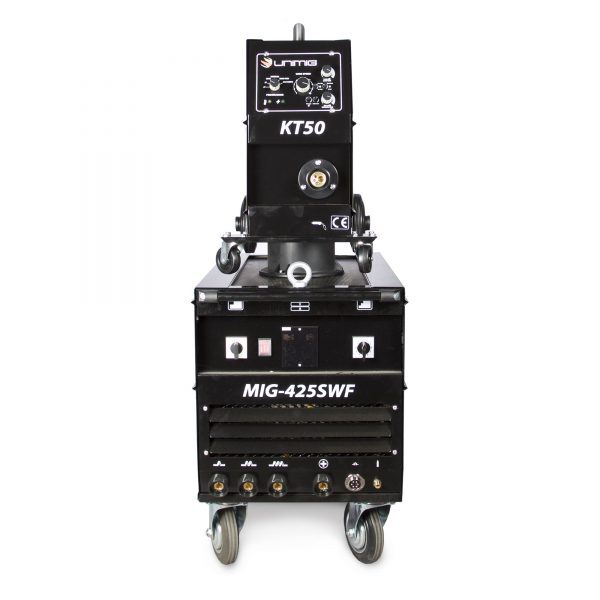

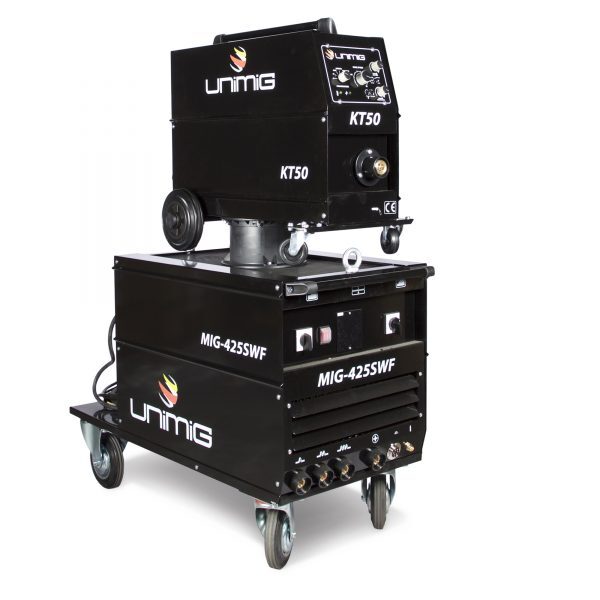

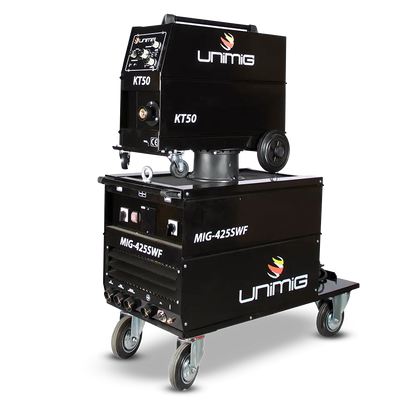

UNIMIG Workshop 425 SWF (KUM425SWF) is a heavy-duty industrial MIG system built for high-output fabrication, production welding and structural work. Paired with the KT50 SWF remote wire feeder and 10m interconnecting cables, it delivers stable arc performance, long-distance wire delivery and the power needed for thick-section welding in demanding workshop environments.

In the Box

  • WORKSHOP 425 SWF Welder
  • KT50 SWF Unit
  • 10m Interconnecting Cables
  • 4m SB38 MIG Torch
  • 10m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 2m Gas Hose (Complete with fittings)
  • Operating Manual
  • 2 × 0.9–1.2 mm V Groove Rollers
MACHINE SPECIFICATIONS
Primary Input Voltage 415V Three-Phase
Supply Plug Unplugged (32A Recommended)
Ieff (A) 22.0
Protection Class IP21
Insulation Class F
Minimum Generator (kVA) 24.0
Dinse Connector 35/50
Standard AS 60974.1
Warranty 3 Years
Weight (kg) 182.00
Dimensions (LxWxH) 1030 × 660 × 470mm
Suitable Materials MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze



MIG SPECIFICATIONS
MIG Current Range 30–400A
MIG Duty Cycle @ 40°C 60% @ 400A, 100% @ 310A
MIG Wire Sizes 0.6–1.6mm
MIG Wire Spool Sizes 5kg (D200), 15kg (D300)
MIG Welding Thickness Range 1–30mm
Drive Roller Size 40/32
